1. What does it mean that the antenna is directional?

Type of antenna which maximizes its gain in particular direction. Like a flashlight concentrates its light at one spot, directional antenna emits radio waves in a concentrated beam. Directioanl antenna radiation pattern: To learn more about directional antennas take a look at -> „link”

2. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality.

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

Porównaj

QuMax for Digi IX10 & IX20

P/n: ADIX1020M

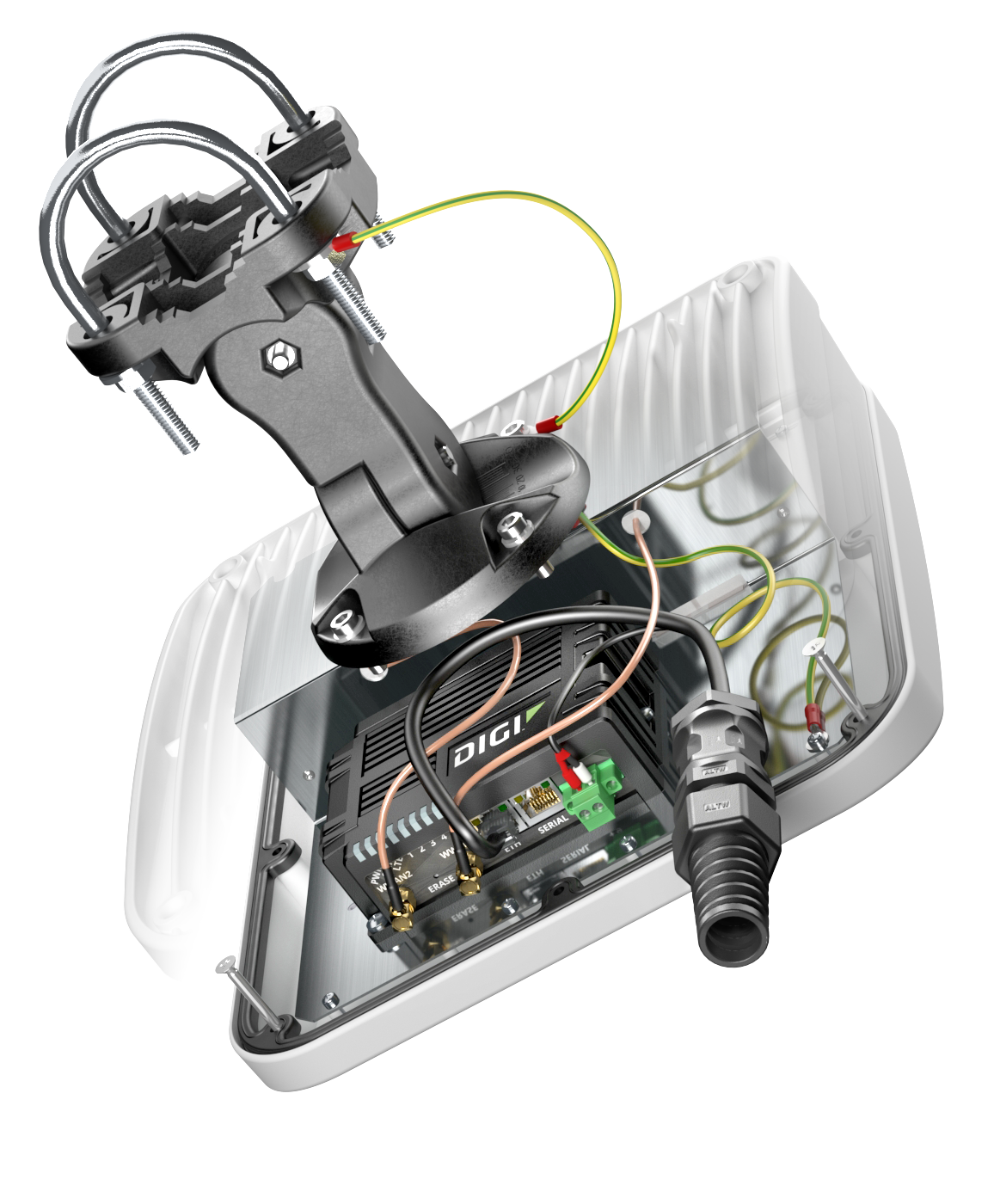

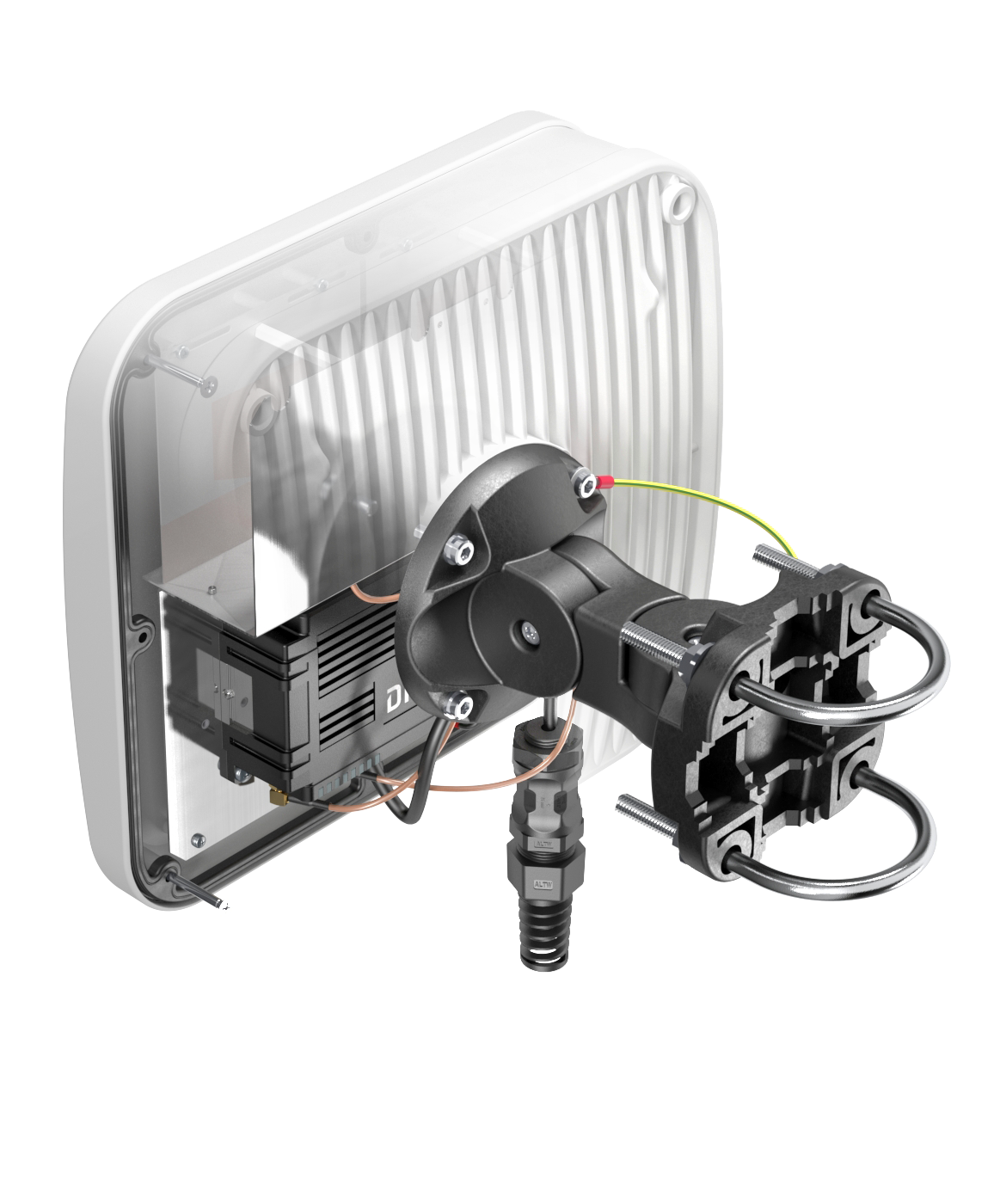

Integrated outdoor LTE high power directional antenna + outdoor Wi-Fi dual band 2.4 & 5 GHz omni antenna + place to install Digi IX10 or Digi IX20 (All-in-one)

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Digi IX10 or IX20 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.

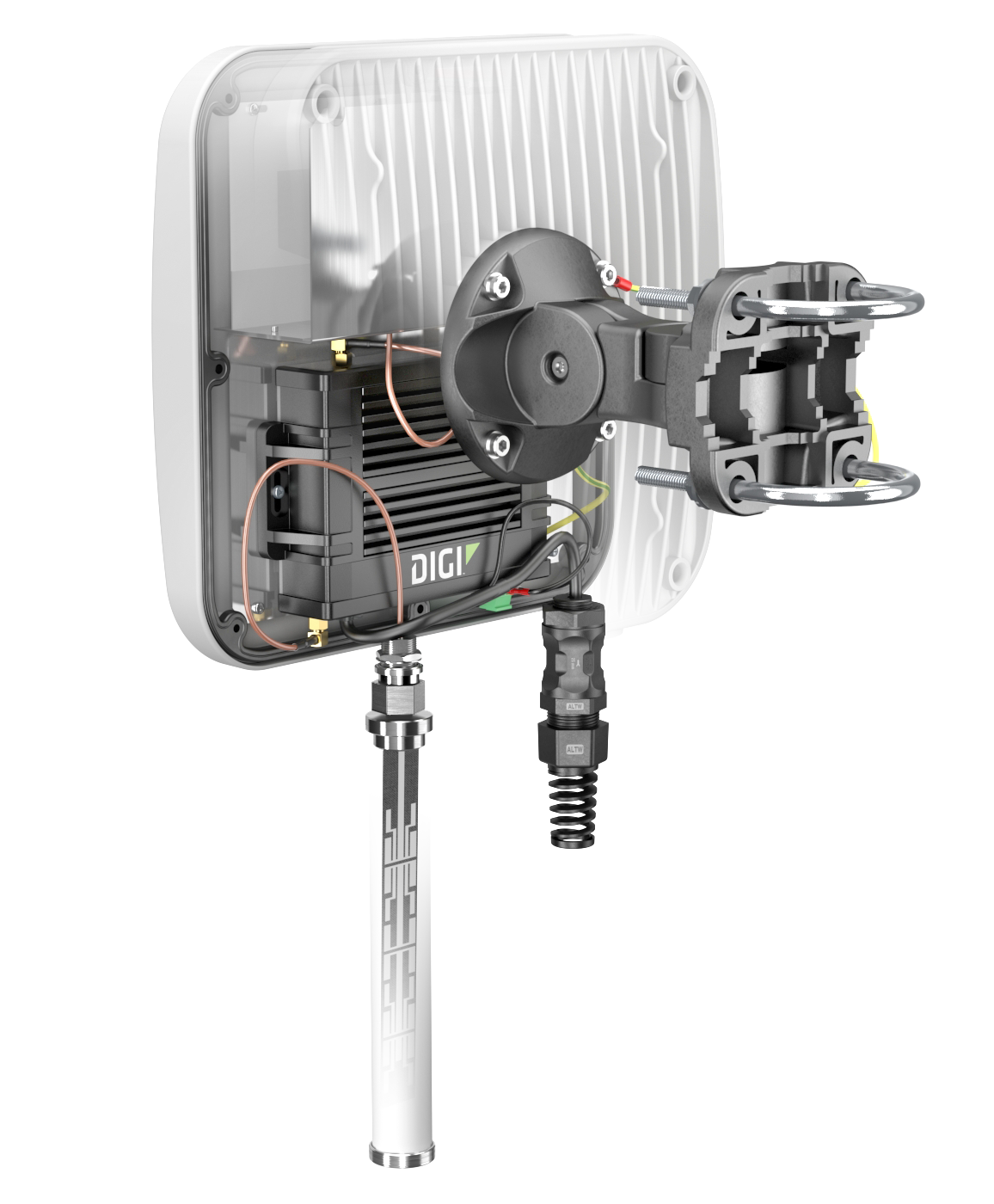

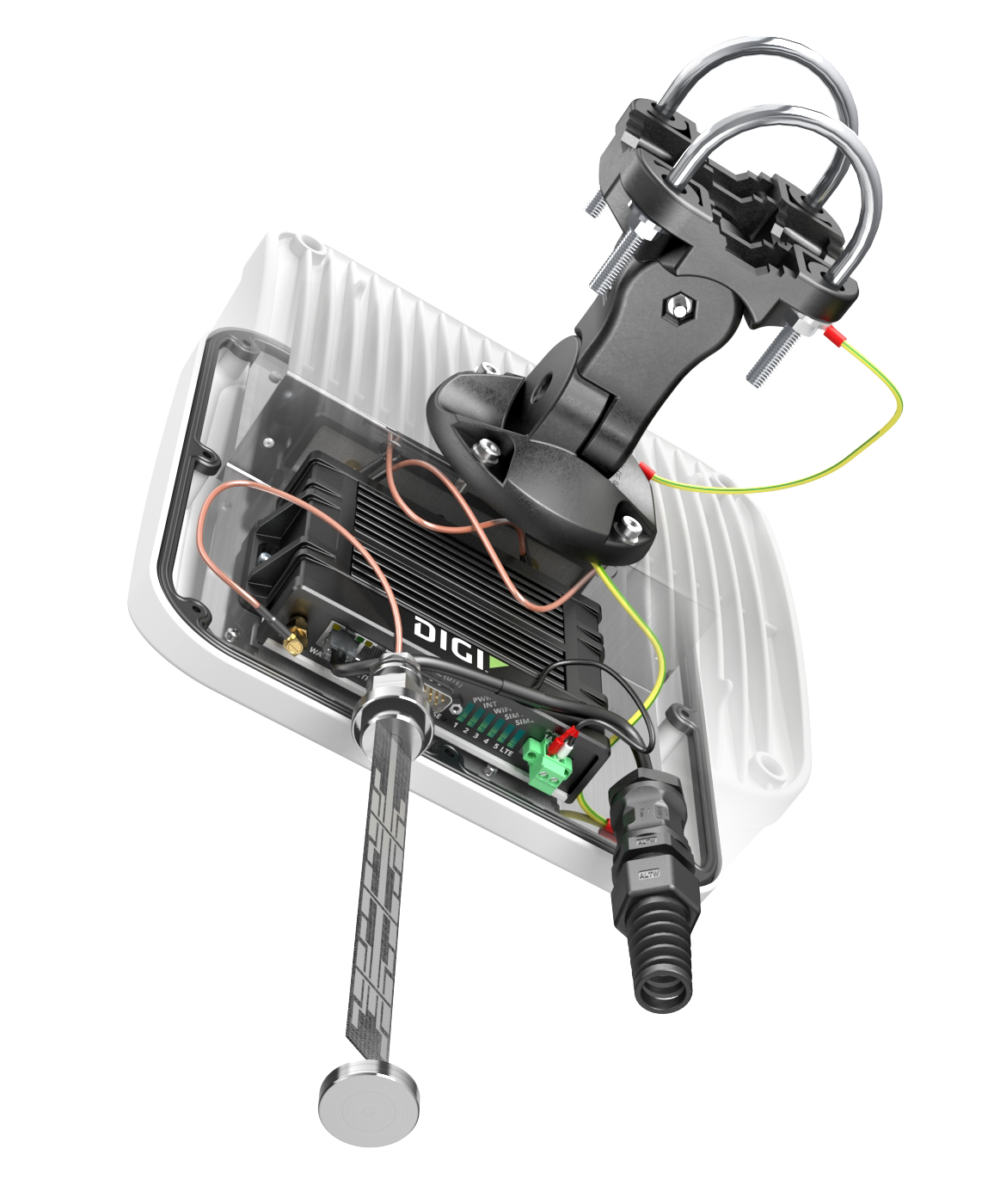

Outdoor Wi-Fi dual band 2.4Ghz & 5GHz omni antenna is included in the set and optional for use with Digi IX20.

Technical specification

Any question?

Why QuMax for Digi IX10 & IX20

Learn more about your profit

All antennas and Teltonika router integrated in one enclosure

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.694 - 0.96 GHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

0.694 - 0.96 GHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.2 - 2.7 GHz : 6 dBi

Front-to-Back

>8 dB

VSWR

<1.30, max <1.80

Beamwidth

90°/90° ±30°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for Wi-Fi antenna

Gain for Wi-Fi antenna

VSWR for LTE antenna

Gain for LTE antenna

LTE from 700MHz to 900MHz

Elevation

Azimuth

LTE from 1.71GHz to 2.17GHz

Elevation

Azimuth

LTE from 2.3GHz to 2.7GHz

Elevation

Azimuth

Wi-Fi 2.4GHz and 5GHz

Wi-Fi Elevation

Wi-Fi Azimuth

ANY QUESTIONS?

DIMENSIONS

PRODUCT DETAILS

Download

Datasheet QuMax for Digi IX10 & IX20

Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA

Home Security

01.01.2015

Protect your family and your valuables or develop your security business with high quality data transfer brought to you by QuWireless devices.

Wind Farms

01.01.2015

In a world where renewable energy sources are of a great value, be sure your wind farm works in optimal way by remotely monitoring its parameters.

Mobile CCTV Tower

01.01.2015

CCTV towers enable you to have eyes on your construction site, car park or any other remote area. Make sure you stay connected and get high quality image with QuWireless antennas.

FREQUENTLY ASKED QUESTIONS

FIND ANSWERS

CAN'T FIND THE ANSWER FOR YOUR QUESTION?

QuMax for Digi IX10 & IX20

Integrated outdoor LTE high power directional antenna + outdoor Wi-Fi dual band 2.4 & 5 GHz omni antenna + place to install Digi IX10 or Digi IX20 (All-in-one)

Why QuMax for Digi IX10 & IX20

SPECIFICATION

LTE ANTENNA SPECIFICATION

Wi-Fi ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

Frequency Bands

COMPATIBLE ROUTERS
