Antenna QuSpot for RUT2xx ver. US (Band71)

P/n: A240SUS

Integrated multi-band LTE omni antenna ver. US + WiFi omni antenna + place to install Teltonika RUT241, RUT240 or 230 (All-in-one)

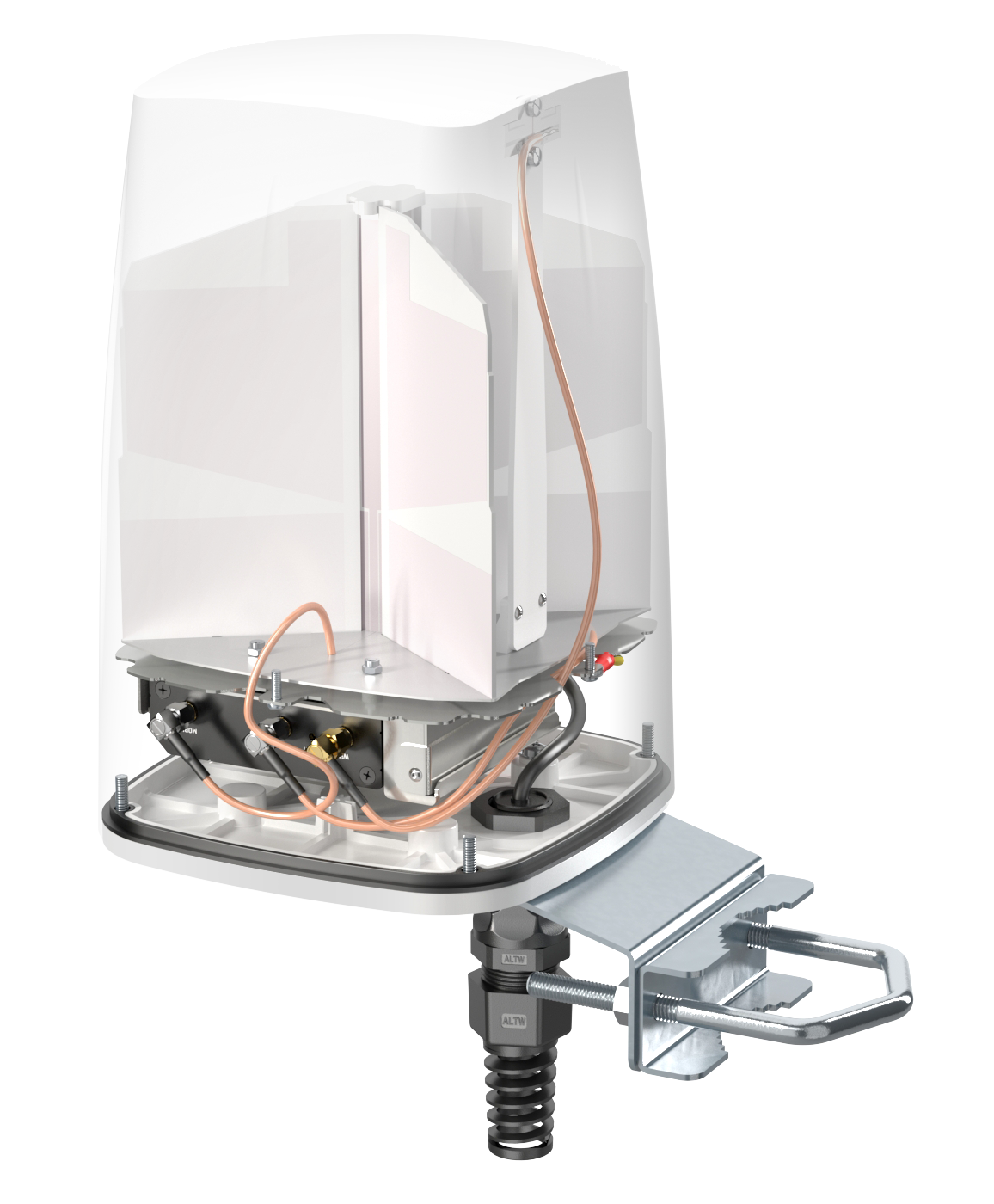

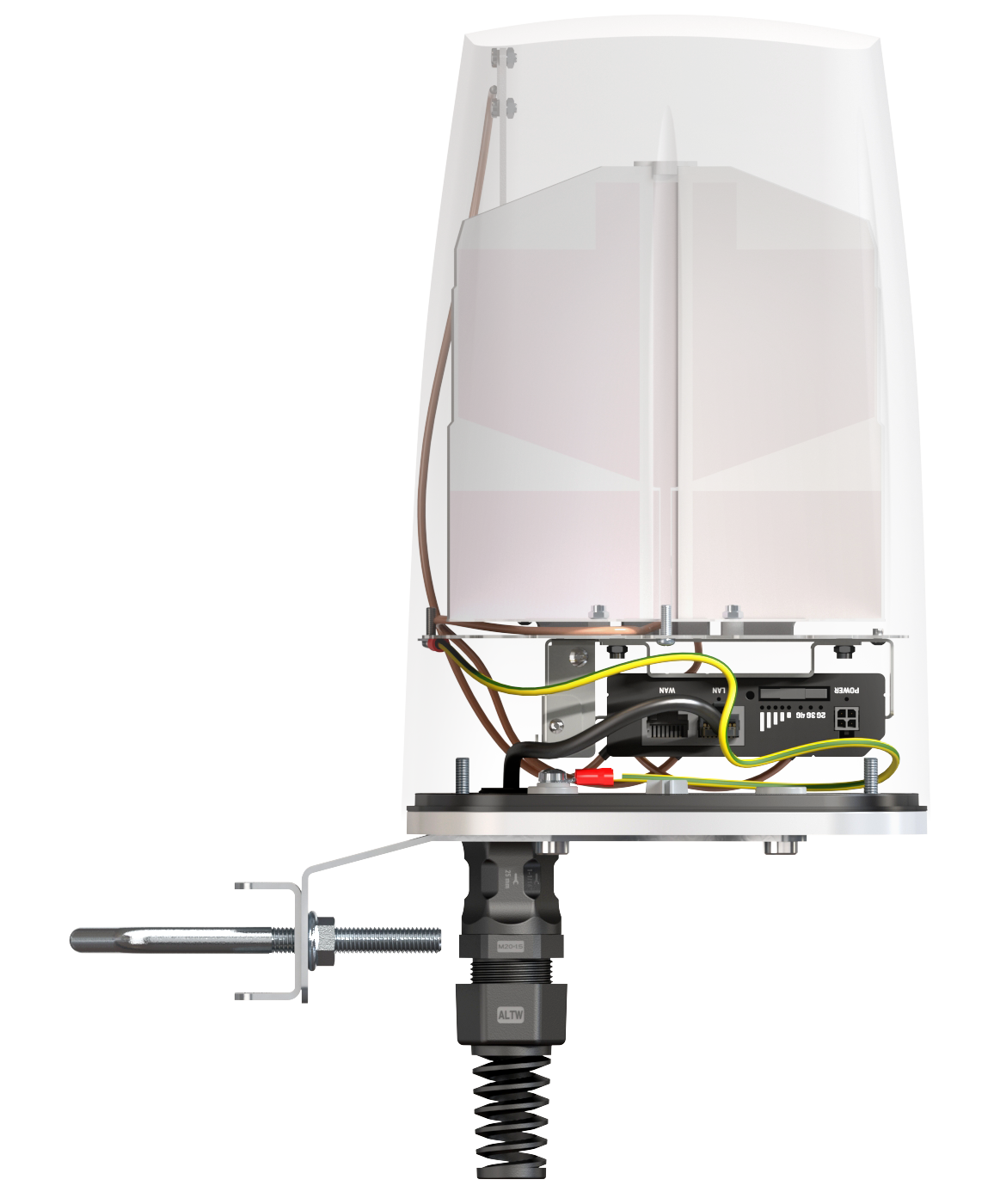

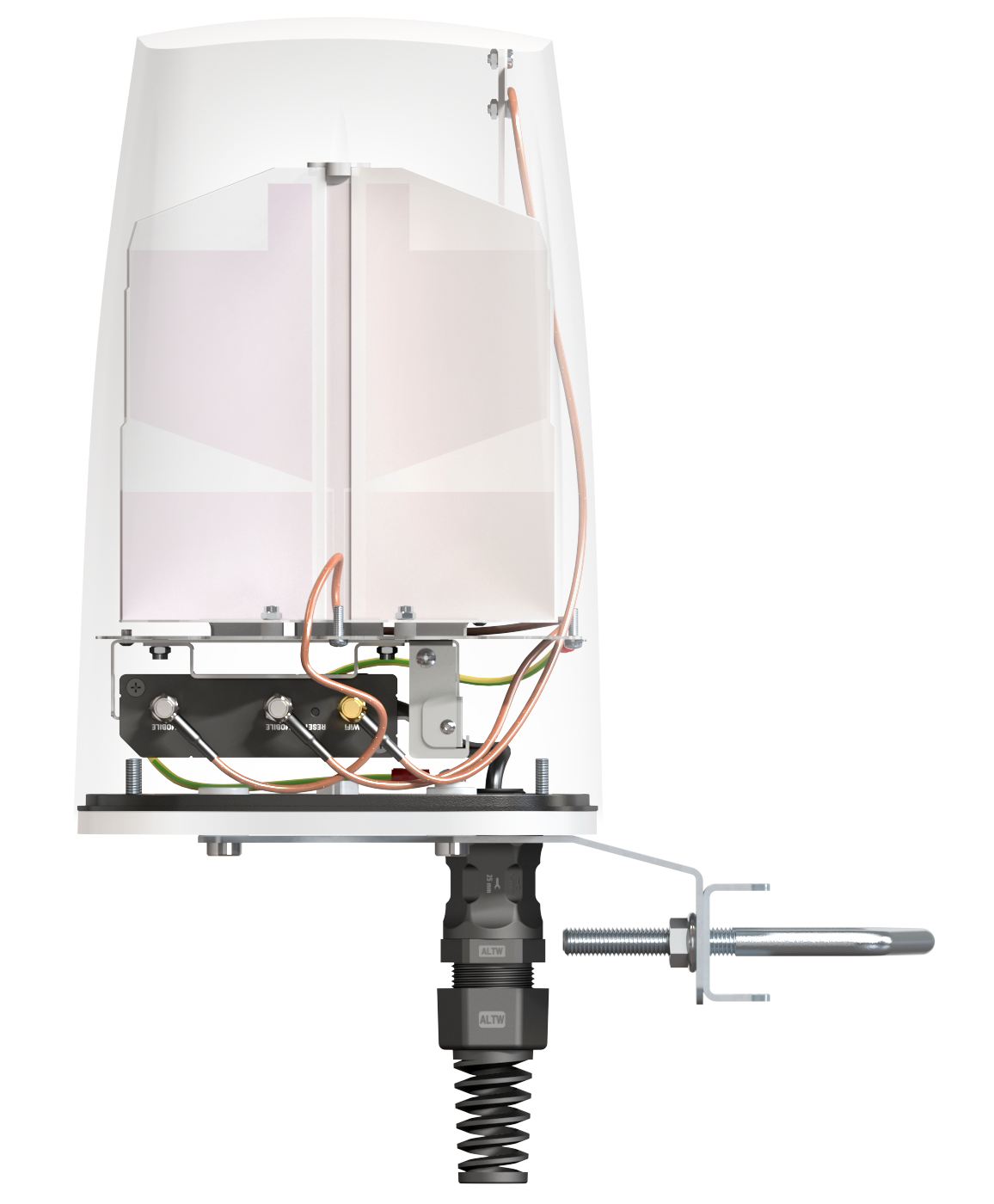

QuSpot omnidirectional LTE antenna ver. US for Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 routers is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use RUT2xx with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Why QuSpot for RUT2xx ver. US (Band71)

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Wall or mast mounting system

Made in Europe

QuSpot for RUT2xx ver. US (Band71)

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.2 GHz

2.3 - 2.7 GHz

3.3 - 3.8 GHz

Gain

617 - 960 MHz : 3 dBi

1.7 - 2.2 GHz : 3.5 dBi

2.3 - 2.7 GHz : 3.5 dBi

3.3 - 3.8 GHz : 4dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

VSWR

<1.80, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuSpot for RUT2xx ver. US (Band71)

VSWR for LTE antenna

VSWR for LTE antenna of QuSpot for RUT2xx ver. US (Band71)

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuSpot for RUT2xx ver. US (Band71)

Gain for LTE antenna

Gain for LTE antenna of QuSpot for RUT2xx ver. US (Band71)
LTE from 650MHz to 950MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
LTE from 3.3GHz to 4.0GHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for RUT2xx ver. US (Band71)QuSpot for RUT2xx ver. US (Band71)
QuSpot for RUT2xx ver. US (Band71)QuSpot for RUT2xx ver. US (Band71)

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuSpot for RUT240

Parts of QuSpot for RUT2xx ver. US (Band71)
1x With mounting for Teltonika RUT2xx
Parts of QuSpot for RUT2xx ver. US (Band71)
1x 8mm wrench
Parts of QuSpot for RUT2xx ver. US (Band71)
x4 3,1 x 12
Parts of QuSpot for RUT2xx ver. US (Band71)
4x M6 x 10
Parts of QuSpot for RUT2xx ver. US (Band71)
4x
Parts of QuSpot for RUT2xx ver. US (Band71)
1x
Parts of QuSpot for RUT2xx ver. US (Band71)
2x M8
Parts of QuSpot for RUT2xx ver. US (Band71)
1x
Parts of QuSpot for RUT2xx ver. US (Band71)
1x QuRJ45

Download

Datasheet QuSpot for RUT2xx ver. US (Band71)
Download
3D MODEL
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuSpot for RUT2xx ver. US (Band71)
Use case QuSpot for RUT2xx ver. US (Band71)
Use case QuSpot for RUT2xx ver. US (Band71)
