Accessories

PoE switch dedicated to power:

• 1x Teltonika
• RUT240 / RUT360 / RUT950 / RUT955 / RUTX09 / RUTX10 / RUTX11 / RUTX12 / RUTX14
• and 4x CCTV cameras with active PoE 802.3af/at.

This switch can be powered by two inputs: passive PoE on LAN_5 or by connecting wires directly to terminal block DC_IN. If both are used simultaneously, the source with higher voltage is the one which supply power to device. This can by used to automatically switch to backup power supply when other (with higher voltage) fails. Terminal block is capable to deliver 130W to powered devices, which is not possible through PoE due limited maximum current of Ethernet cables.

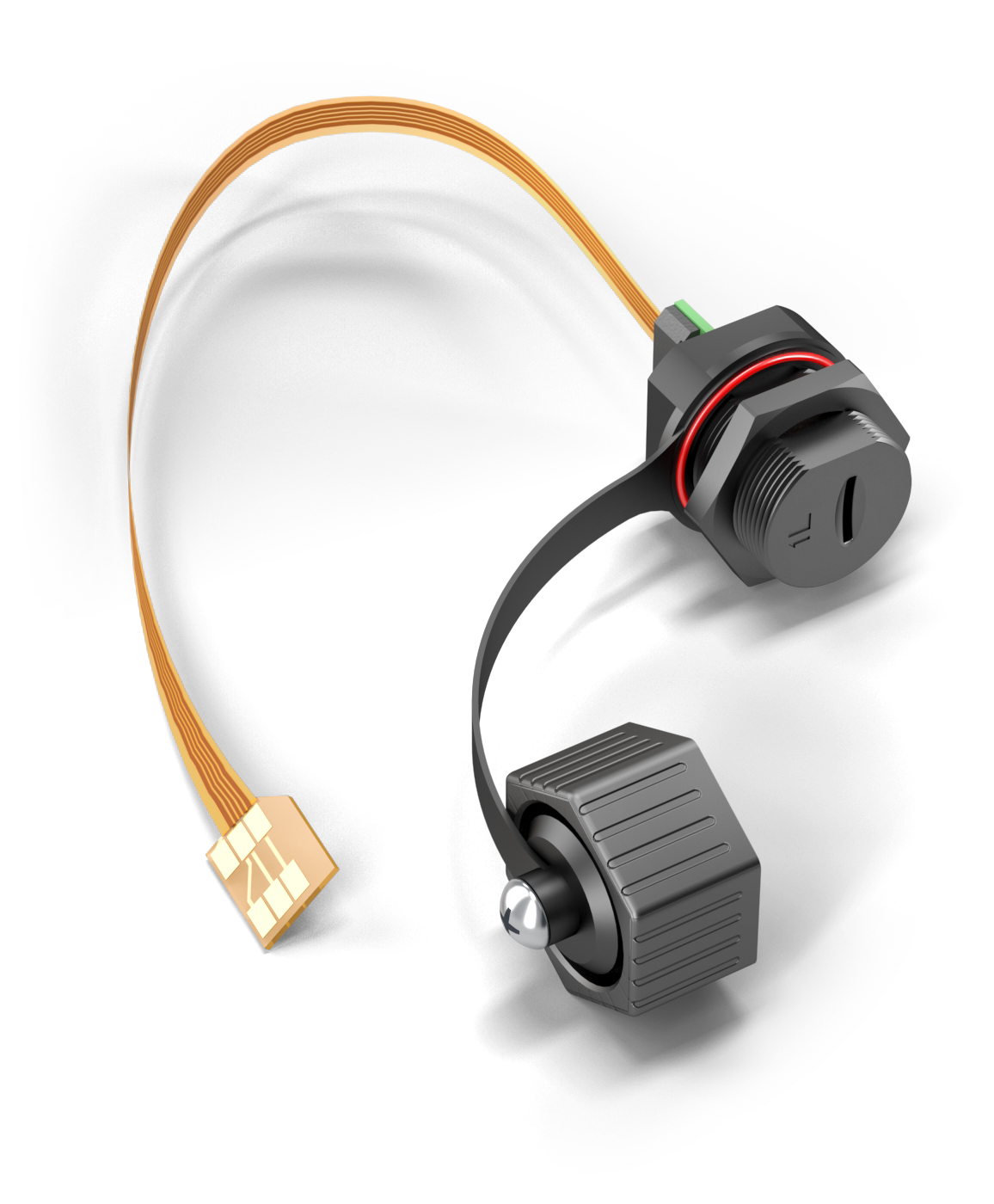

Waterproof outdoor SIM card slot adapter dedicated to all Teltonika Routers.

Waterproof outdoor SIM card slot adapter nano SIM to nano SIM for all routers & motherboards with Nano SIM slots.

Waterproof outdoor SIM card slot adapter Micro SIM to Nano SIM for all routers & motherboards with Nano SIM slots.

Waterproof outdoor SIM card slot adapter dedicated to routerboards (Mikrotik etc.).

PoE power supply dedicated to all QuSpot, QuMax and QuMini antennas with installed all Teltonika routers inside.

- Passive PoE Power Supply EU

- Output: 24V, 0.8A

- Input: AC100-240V 50/60Hz

- EU power cord

- Wall mount holder included

- CE, ATE, HIPOT

- Caution: Indoor use only

PoE power supply dedicated to all QuSpot, QuMax and QuMini antennas with installed all Teltonika routers inside.

- Passive PoE Power Supply UK

- Output: 24V, 0.8A

- Input: AC100-240V 50/60Hz

- UK power cord

- Wall mount holder included

- CE, ATE, HIPOT

- Caution: Indoor use only

Gigabit PoE power supply dedicated to all QuSpot, QuMax and QuMini antennas with installed all Teltonika routers inside.

- Passive PoE Power Supply EU

- Output: 24V, 1A

- Input: AC100-240V 50/60Hz

- EU power cord

- Wall mount holder included

- CE, ATE, HIPOT

- Caution: Indoor use only

Gigabit PoE power supply dedicated to all QuSpot, QuMax and QuMini antennas with installed all Teltonika routers inside.

- Passive PoE Power Supply UK

- Output: 24V, 1A

- Input: AC100-240V 50/60Hz

- UK power cord

- Wall mount holder included

- CE, ATE, HIPOT

- Caution: Indoor use only

PoE power supply for QuCam and QuPoE Switch SCA6E. It is dedicated to power through QuCam/QuPoE Switch:

1. 1x Teltonika RUT230/RUT240/RUT900/RUT950/RUT955

2. 4x CCTV cameras with active PoE 802.3af/at

- Passive PoE Power Supply

- Output: 56V, 1A

- Input: AC100-240V 0.8A Max 50/60Hz

- EU or UK power cord

- CE

- Caution: Indoor use only

Outdoor IP67 cable gland (M20 diameter) with Ultra Flex gasket is a perfect solution to passthrough gland any cables and connectors (it is possible for example to passthrough 2x RJ45 connectors/cables).

Waterproof IP68 outdoor RJ-45 socket adapter dedicated to all Teltonika Routers. Works with 10/100/1000Mbps networks. Standard length is 160mm, but there is available also 380mm length version (QuRJ45-380)

Waterproof IP68 outdoor RJ-45 socket adapter dedicated to all Teltonika Routers. Works with 10/100/1000Mbps networks. Standard length is 380mm, but there is available also 160mm length version (QuRJ45)

Waterproof IP68 outdoor RJ-45 socket adapter with power plug dedicated to Teltonika Routers without Passive PoE support (RUT360). Works with 10/100Mbps networks. Standard length is 160mm, but there is available also 380mm length version (QRJ45-PL)

Waterproof IP68 outdoor RJ-45 socket adapter with power plug dedicated to Teltonika Routers without Passive PoE support (RUT360). Works with 10/100Mbps networks. The length is 380mm, but there is available also 160mm length version (QRJ45-P).

Outdoor power socket & plug 2 PIN set for all cases where the User doesn’t want to use Passive PoE powering feature in all QuWireless antennas.

Outdoor power socket & plug 4 PIN set for all cases where the user doesn’t want to use Passive PoE powering feature in all QuWireless antennas.

Outdoor RS232 socket & plug set dedicated to installation on QuSpot and QuMax for Teltonika RUT955 antennas.

Cap to close the hole after QuRJ45 or QuGland M20

High quality low loss pigtail Nf bulkhead to RPSMA plug Right Angle dedicated to installation on QuSpot and QuMax antennas for outdoor Wi-Fi antennas.

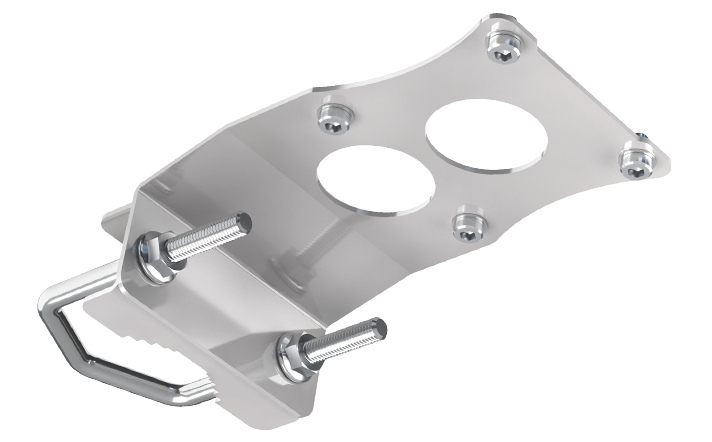

Bigger mounting elements made from class 316 Stainless steel. Fasteners made from A4 class stainless steel. Good choice for marina / sea installations.
