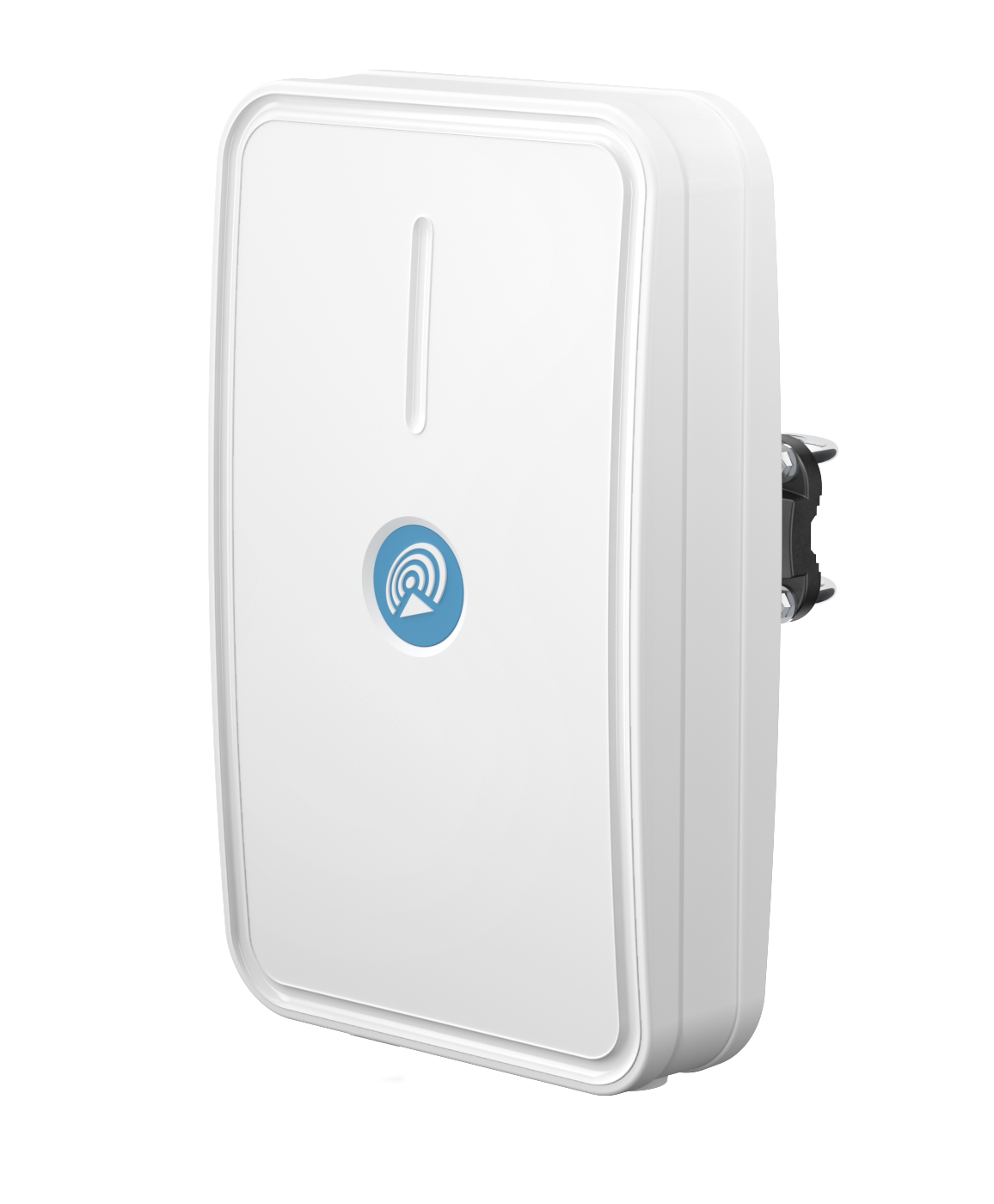

Antenna QuPanel 14 HV 5G/LTE directional MIMO 4x4

P/n: -

Directional High Gain 5G/LTE MIMO 4x4 antenna

QuPanel 14 HV 5G/LTE directional MIMO 4x4 high gain antenna is predicted for 5G and 4G LTE mainly. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for 5G bands n77, n78. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. GPS antenna and QuPoE 802.3af splitter are also included inside. Compatible with: Teltonika RUTX50

Why QuPanel 14 HV 5G/LTE directional MIMO 4x4

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Wall or mast mounting system with two planes, 60 degrees regulation

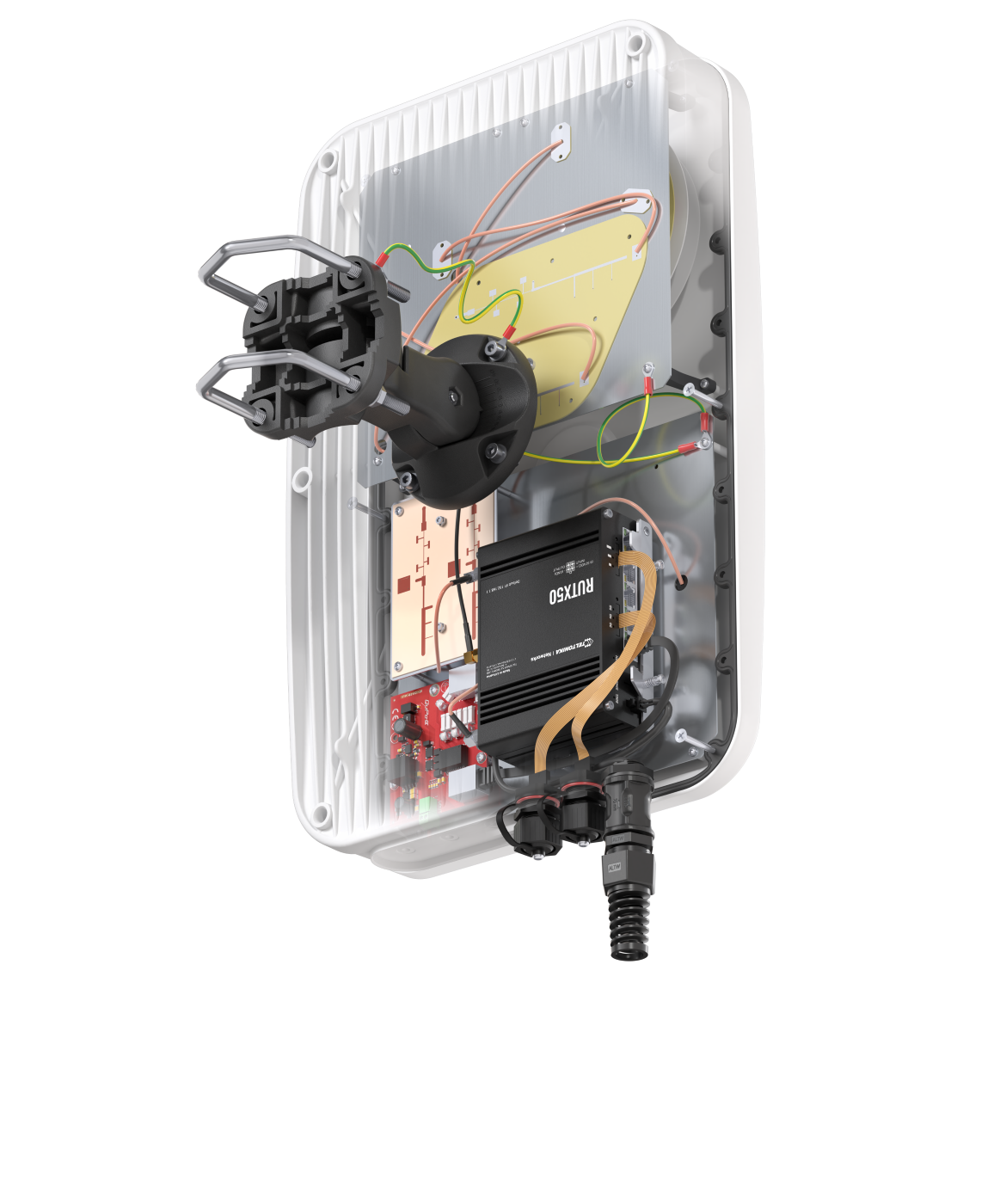

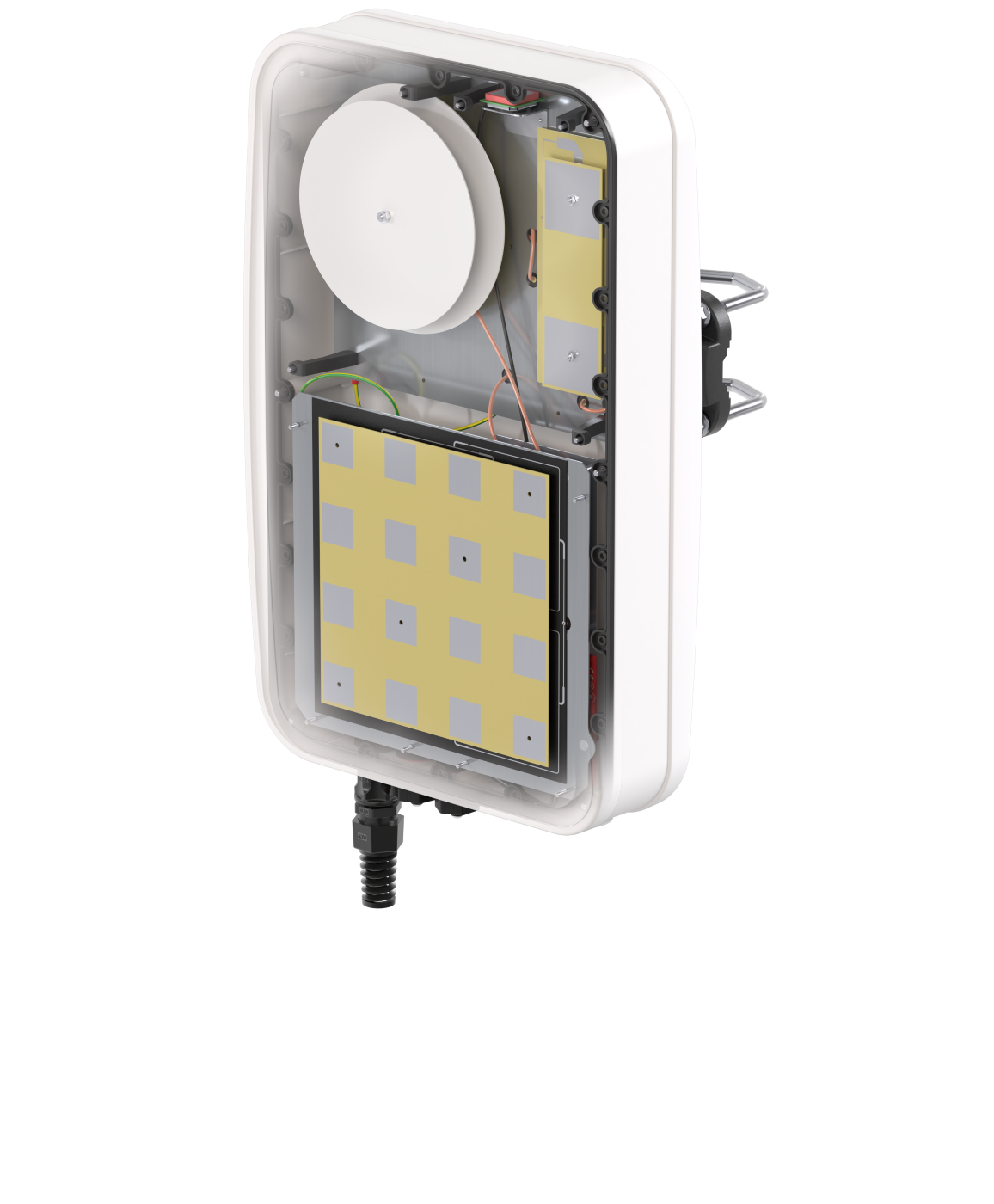

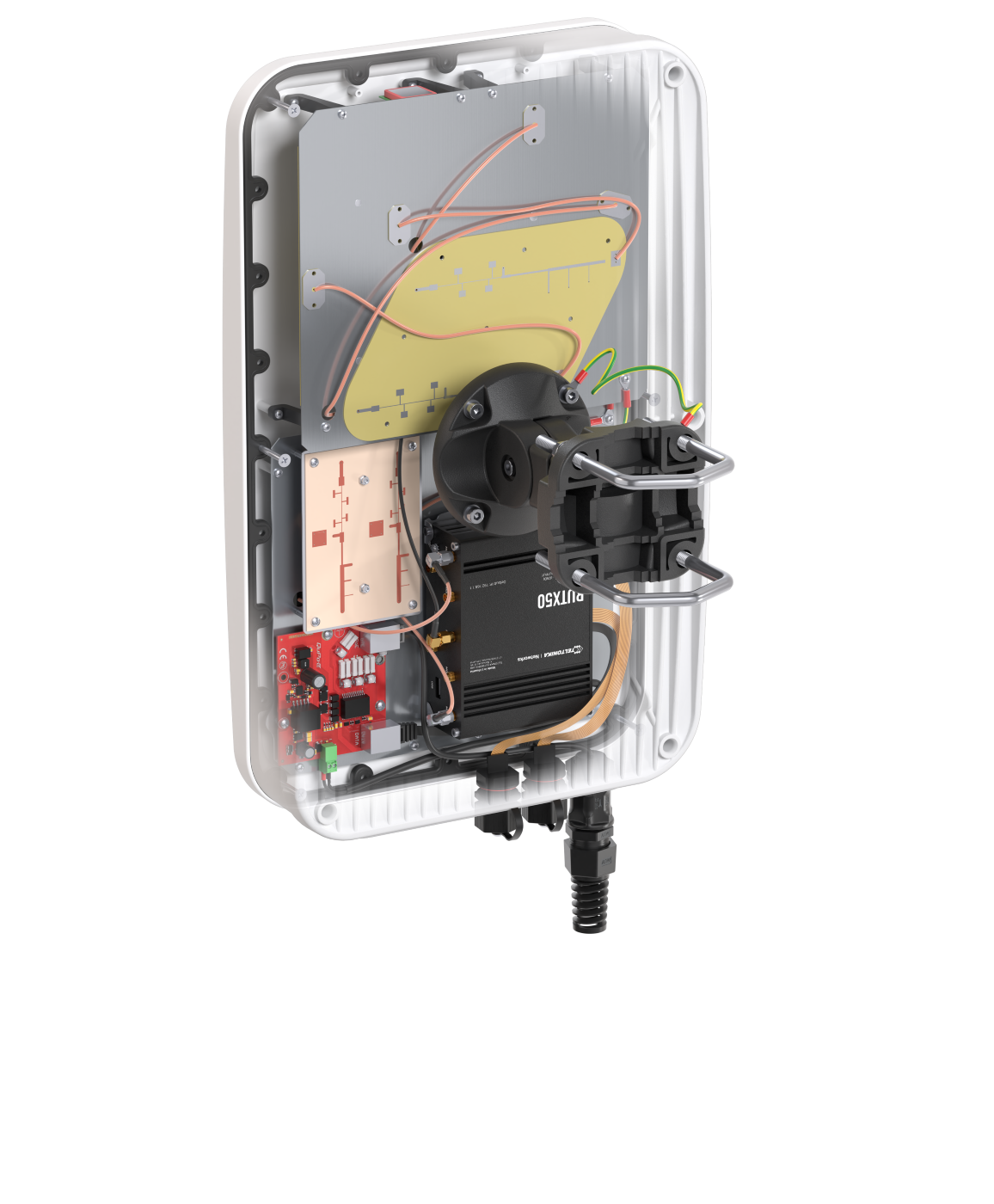

All antennas and router integrated in one enclosure

802.3af/at PoE support thanks to included splitter

Made in Europe

QuPanel 14 HV 5G/LTE directional MIMO 4x4

SPECIFICATION

PRODUCT DETAILS

ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

Frequency

700 – 805 MHz

2450 – 2700 MHz

3300 – 4200 MHz

Gain

700 – 805 MHz : ≥ ‎ ‎ dBi

2450 – 2700 MHz : ≥ ‎ ‎ dBi

3300 – 3600 MHz : ≥ ‎ ‎ dBi

3600 – 3800 MHz : ≥ ‎ ‎ dBi

3800 – 4200 MHz : ≥ ‎ ‎ dBi

Supported LTE bands

7, 28, 38, 41, 42, 43

Supported 5G bands

n7, n38, n41, n77, n78

VSWR

< 2.00

Polarization

Horizontal & Vertical

Impedance

50 Ω

DIMENSIONS

PRODUCT DETAILS
QuPanel 14 HV 5G/LTE directional MIMO 4x4QuPanel 14 HV 5G/LTE directional MIMO 4x4

PLOTS - Simulated values accounting for losses in cables, connectors, and other components.

PRODUCT DETAILS

5G/LTE Gain

5G/LTE Gain of QuPanel 14 HV 5G/LTE directional MIMO 4x4

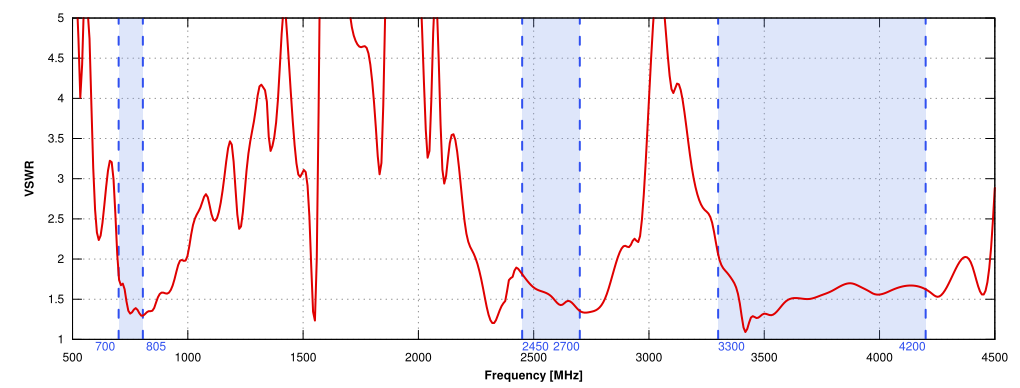

5G/LTE VSWR

5G/LTE VSWR of QuPanel 14 HV 5G/LTE directional MIMO 4x4
PORT 1 - 5G/LTE from 700MHz to 800MHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 3600MHz to 3800MHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 700MHz to 800MHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 3600MHz to 3800MHz
Elevation
Azimuth
