1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality.

Porównaj

Industrial Gateway 5G/Wi-Fi/GNSS with PoE out

Antenna Industrial Gateway 5G/Wi-Fi/GNSS with PoE out

P/n: -

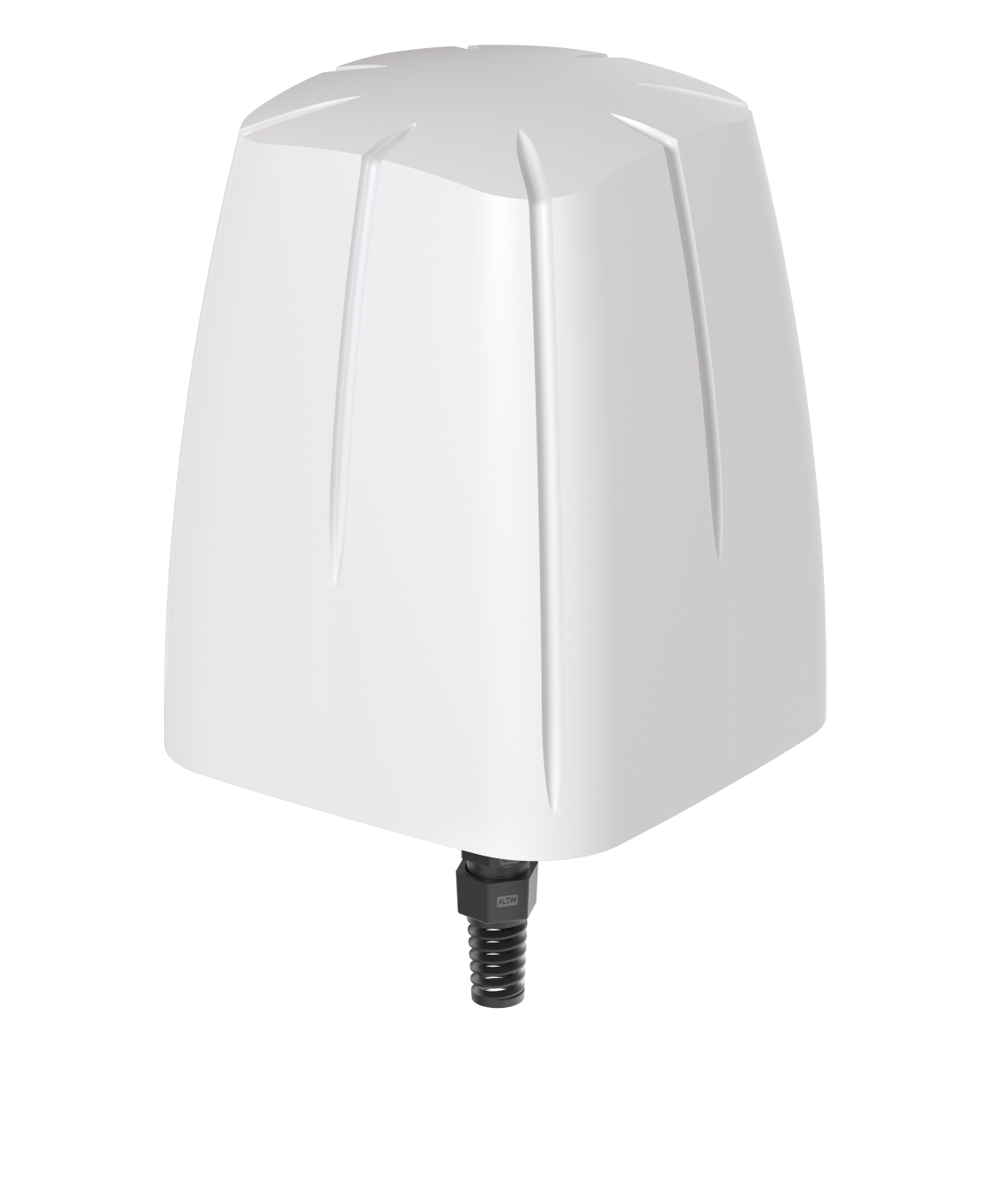

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS + PLACE TO INSTALL TELTONIKA RUTX50 (ALL-IN-ONE)

Industrial Gateway dedicated to use with the Teltonika RUTX50 router is an efficient external industrial gateway for professional applications. Gateway has built-in omnidirectional 5G/LTE, Wi-Fi and GNSS antennas.

The device can be powered from the AC power grid, as well as powered via PoE 802.3af/at (it can be powered from only one power source at the same time). When powered from the AC network, the device additionally has an active PoE 802.3af/at output power port to power the external LoRaWAN gateway.

The gateway also has a built-in converter from active PoE 802.3af to passive PoE required for the RUTX50 router.

Technical specification

Any question?

WHY INDUSTRIAL GATEWAY 5G/Wi-Fi/GNSS WITH POE OUT

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

802.3af/at PoE Support

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.3 GHz

Gain

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.3 GHz : 4.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <2.50

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for Wi-Fi antenna

Gain for 5G/LTE antenna

Gain for Wi-Fi antenna

5G/LTE from 617MHz to 960MHz

Elevation

Azimuth

5G/LTE from 1.71GHz to 2.5GHz

Elevation

Azimuth

5G/LTE from 3.3GHz to 4.2GHz

Elevation

Azimuth

Wi-Fi 2.4 GHz and 5 GHz

Elevation

Azimuth

ANY QUESTIONS?

Download

FREQUENTLY ASKED QUESTIONS

Datasheet Industrial Gateway 5G/Wi-Fi/GNSS with PoE out

Download

FREQUENTLY ASKED QUESTIONS

FIND ANSWERS

CAN'T FIND THE ANSWER FOR YOUR QUESTION?

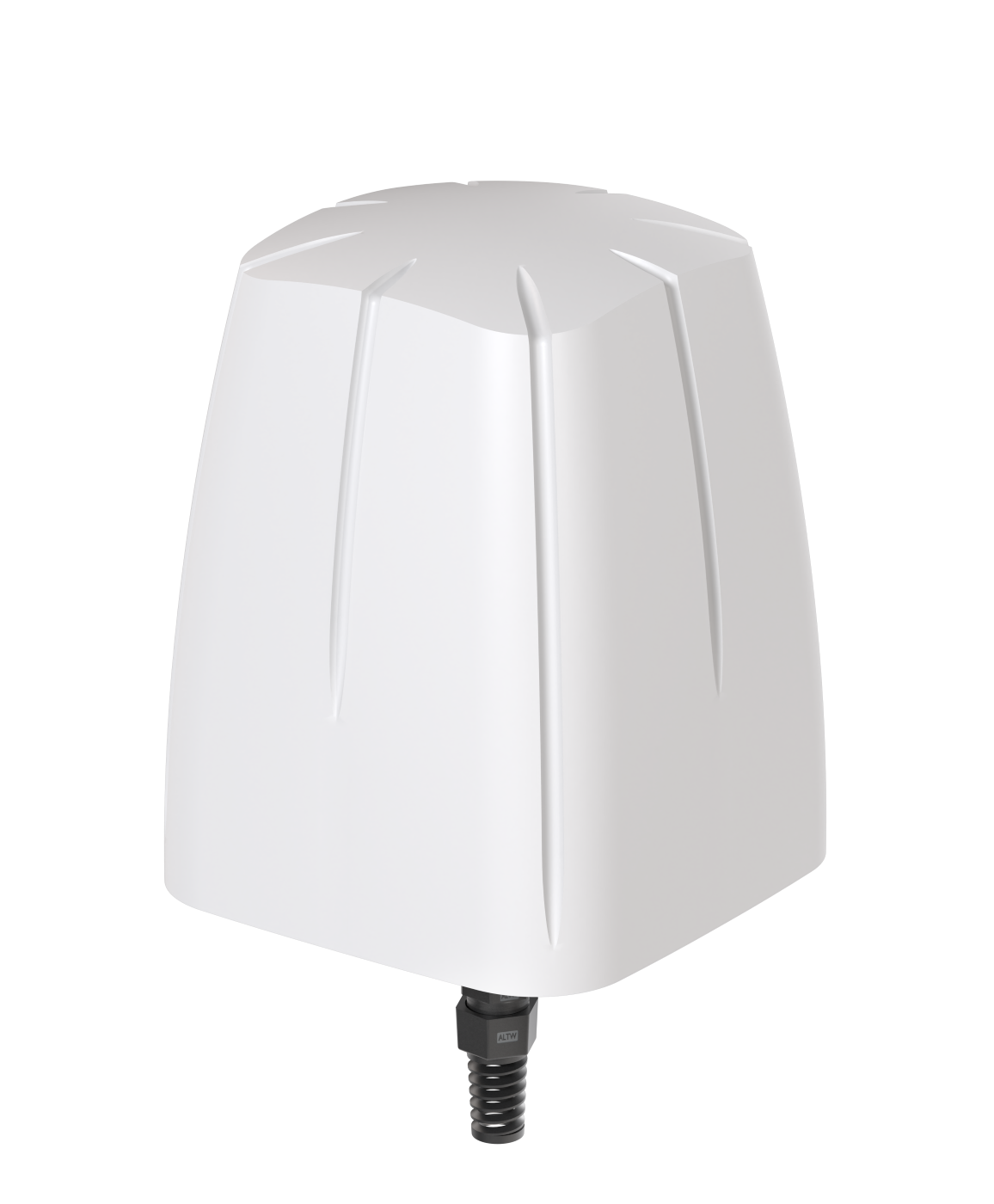

Antenna Industrial Gateway 5G/Wi-Fi/GNSS with PoE out
