QuBox Enclosure for Ajax Hub PlusQuBox Enclosure for Ajax Hub Plus
QuBox Enclosure for Ajax Hub PlusQuBox Enclosure for Ajax Hub Plus

Antenna QuBox Enclosure for Ajax Hub Plus

P/n: Ajax

Integrated outdoor enclosure + place to install Ajax Hub Plus (All-in-one)

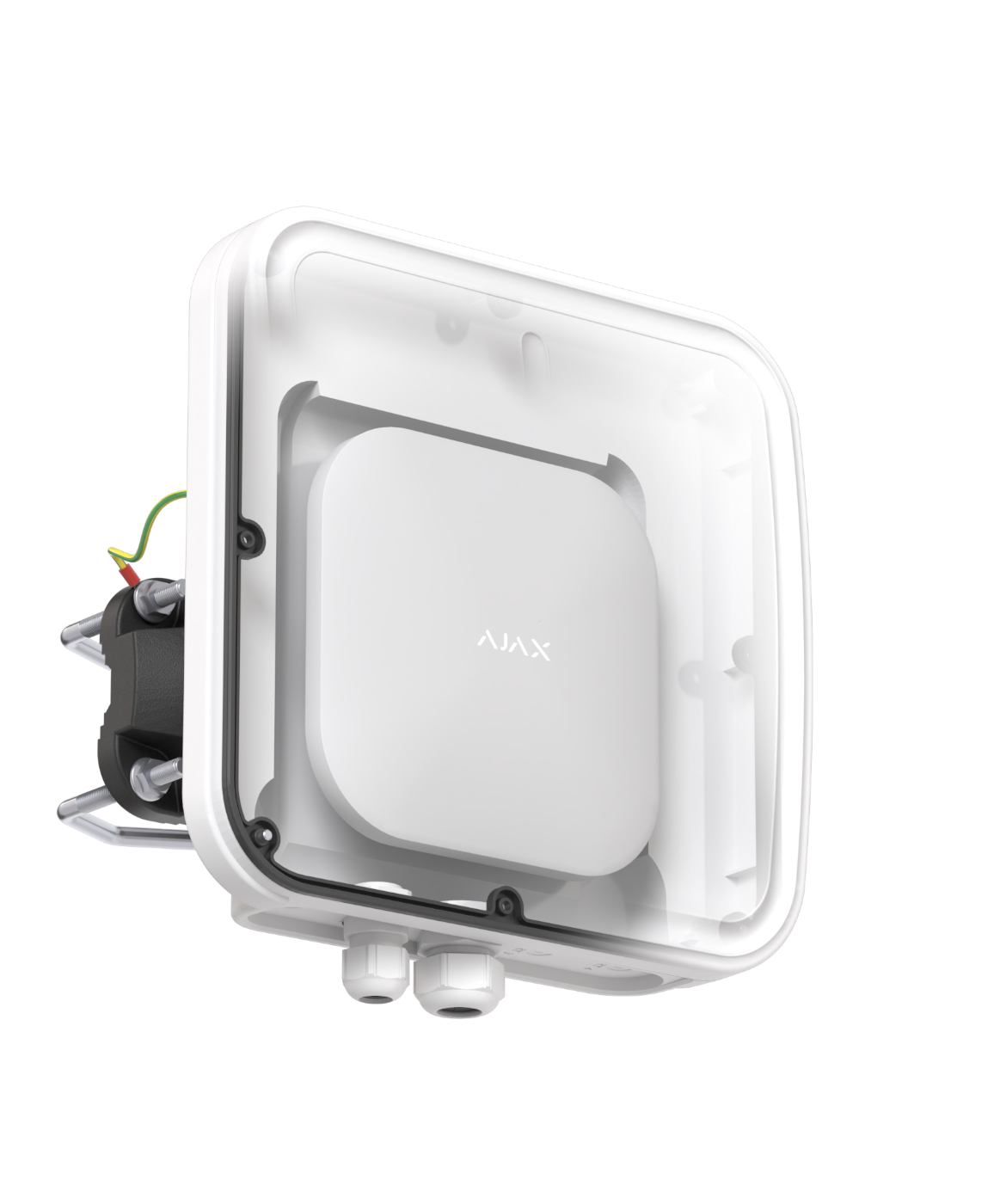

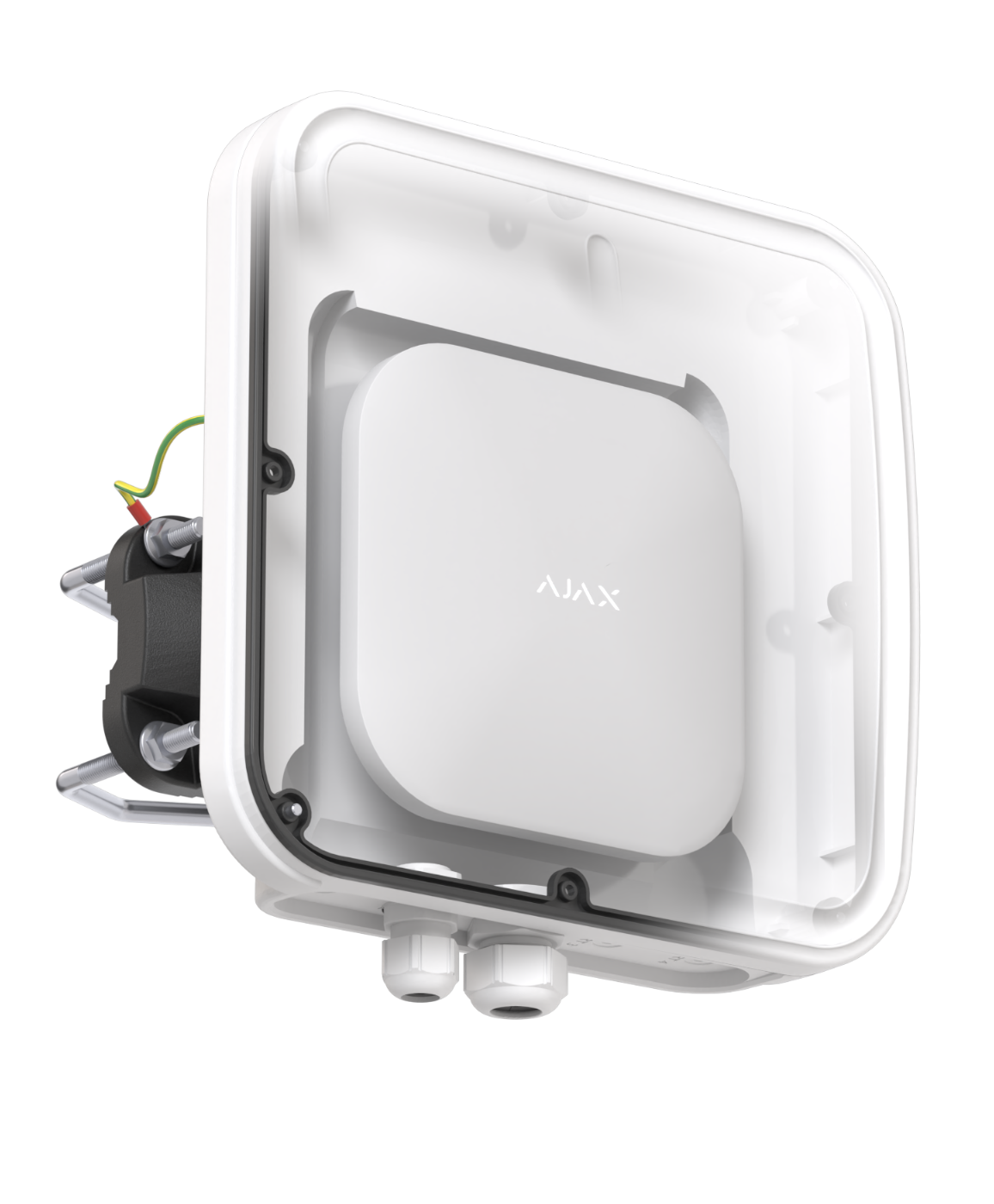

The QuBox enclosure for Ajax Hub Plus is an outdoor housing designed specifically for the installation of Ajax hub. Custom mounting system ensures easy inegration inside the enclosure.

The enclosure can be easily mounted on a wall or mast.

Made from ABS, the enclosure offers high IP67 protection, guarding the device against dust and water, making it an ideal choice for demanding environments. It is perfectly suited for public spaces such as stadiums, train stations, airports, and hotels, as well as warehouses, factories, and mines.

The product is available as OEM, allowing full customization under your brand.

Why QuBox Enclosure for Ajax Hub Plus

Learn more about your profit

Outdoor enclosure works in any weather conditions, IP67

Product can be customized to meet your specific needs.

Enclosure perfectly matched with the hub

QuGland M20 & M25 to passthrough gland any cables and connectors

Made in Europe

QuBox Enclosure for Ajax Hub Plus

SPECIFICATION

PRODUCT DETAILS

MECHANICAL SPECIFICATION

Materials

ABS, aluminum, PTFE, Fiberglass

Ingress protection

IP67

Dimensions

272 x 276 x 96 mm

10.71 x 10.87 x 3.78 inch

Weight

1.8 kg

3.97 lbs

Operating temperature

From -40°C to 80°C

From -40°F to 176°F

Mast diameter

25-60mm

0.98-2.36 inch

DIMENSIONS

PRODUCT DETAILS
QuBox Enclosure for Ajax Hub PlusQuBox Enclosure for Ajax Hub Plus
QuBox Enclosure for Ajax Hub PlusQuBox Enclosure for Ajax Hub Plus

Download

Datasheet QuBox Enclosure for Ajax Hub Plus
Download
Installation Guide
Download
IP67 Certificate
Download
