QuBox Octopus Slim

Solid QuBox IP67 enclosure for all outdoor solutions

Aesthetic design predispose them to be installed even in visible places like public/administration buildings (as hotspot). The system is predicted to be used outdoor, the IP67 waterproof level is achieved by special sealing system, what makes it resistant for any weather conditions. QuBOX enclosure has flat top which is used to mount additional devices like omnidirectional antennas in it, there is also 4 additional holes to install up to 4 another antennas on the bottom. QuBOX housing comes with made with fiberglass WiMount mounting system. The system can be ordered with any antenna board from QuWireless offer which is compatible with this box type.

Why QuBox Octopus Slim

Learn more about your profit

Solid QuBox works in any weather conditions, IP67

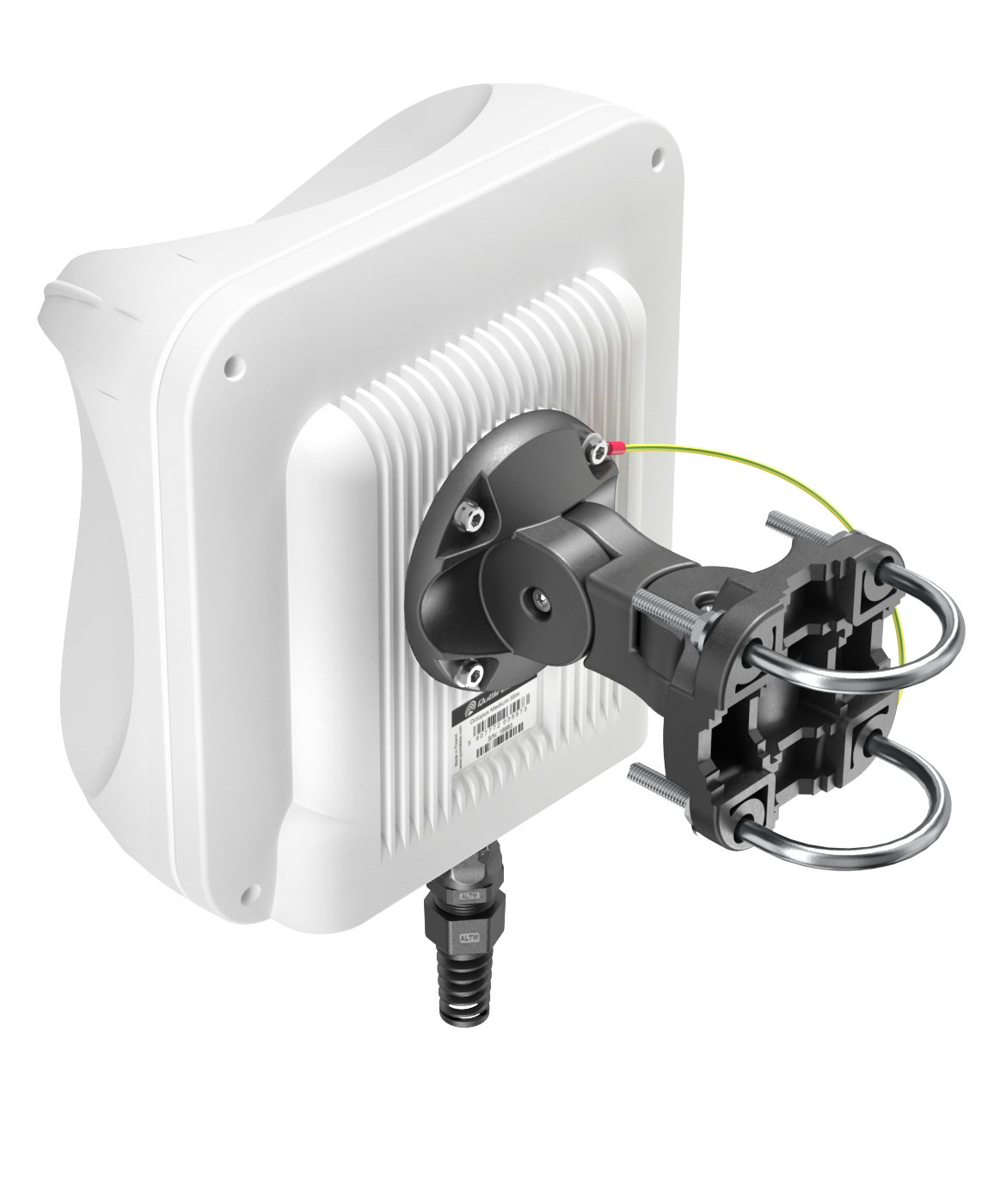

Wall or mast mounting system with two planes, 60 degrees regulation

UV-resistant ABS

Made in Europe

QuBox Octopus Slim

SPECIFICATION

PRODUCT DETAILS

Mechanical Specification

Material

ABS (UV Resistant)

Outer dimensions

27.2 x 27.6 x 9.6 cm

10.71 x 10.87 x 3.78 inch

Ingress protection

IP67

Connector

RJ45

Weight

1.44 kg

Operating temperature

from -40°C to 80°C

from -40°F to 176°F

OUTER DIMENSIONS

PRODUCT DETAILS
QuBox Octopus SlimQuBox Octopus Slim

INNER DIMENSIONS

QuBox Octopus SlimQuBox Octopus Slim

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuBox Octopus Slim

Parts of QuBox Octopus Slim
1 x
Parts of QuBox Octopus Slim
1 x
Parts of QuBox Octopus Slim
2 x
Parts of QuBox Octopus Slim
1 x
Parts of QuBox Octopus Slim
4 x M6 x 18
Parts of QuBox Octopus Slim
4 x
Parts of QuBox Octopus Slim
4 x M8

Download

Datasheet QuBox Octopus Slim
Download
IP67 Certificate
Download
3D model
Download
