Antenna QuBox Shell for MIRO-L230

P/n: MIRO

INTEGRATED OUTDOOR ENCLOSURE + PLACE TO INSTALL MIRO-L230 (ALL-IN-ONE)

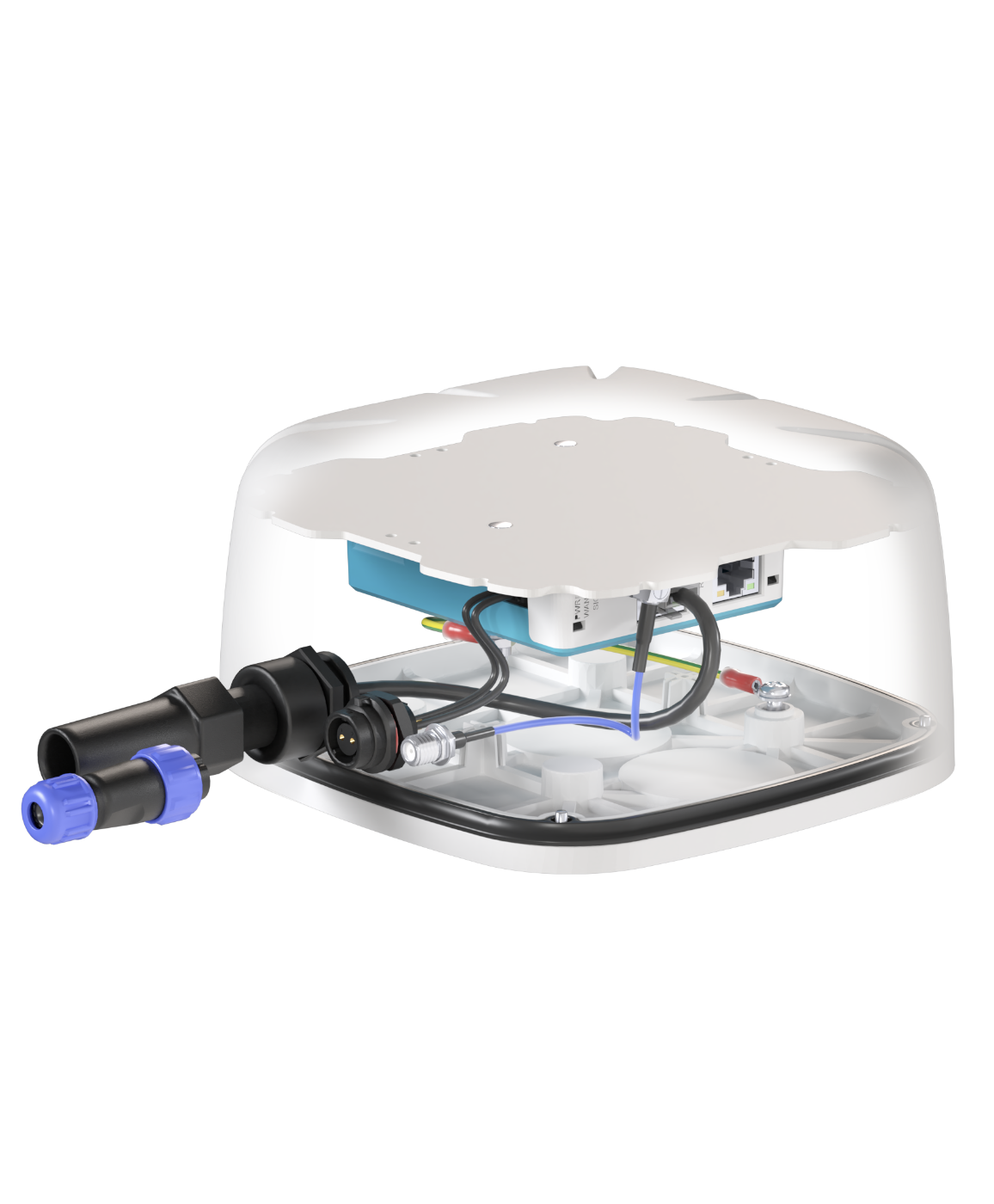

QuBox Shell for MIRO-L230 is a perfect outdoor enclosure for mobile and fixed installations. When you use MIRO-L230 with a QuBox Shell, you get an integrated enclosure with external connectors for attaching antennas and other devices.

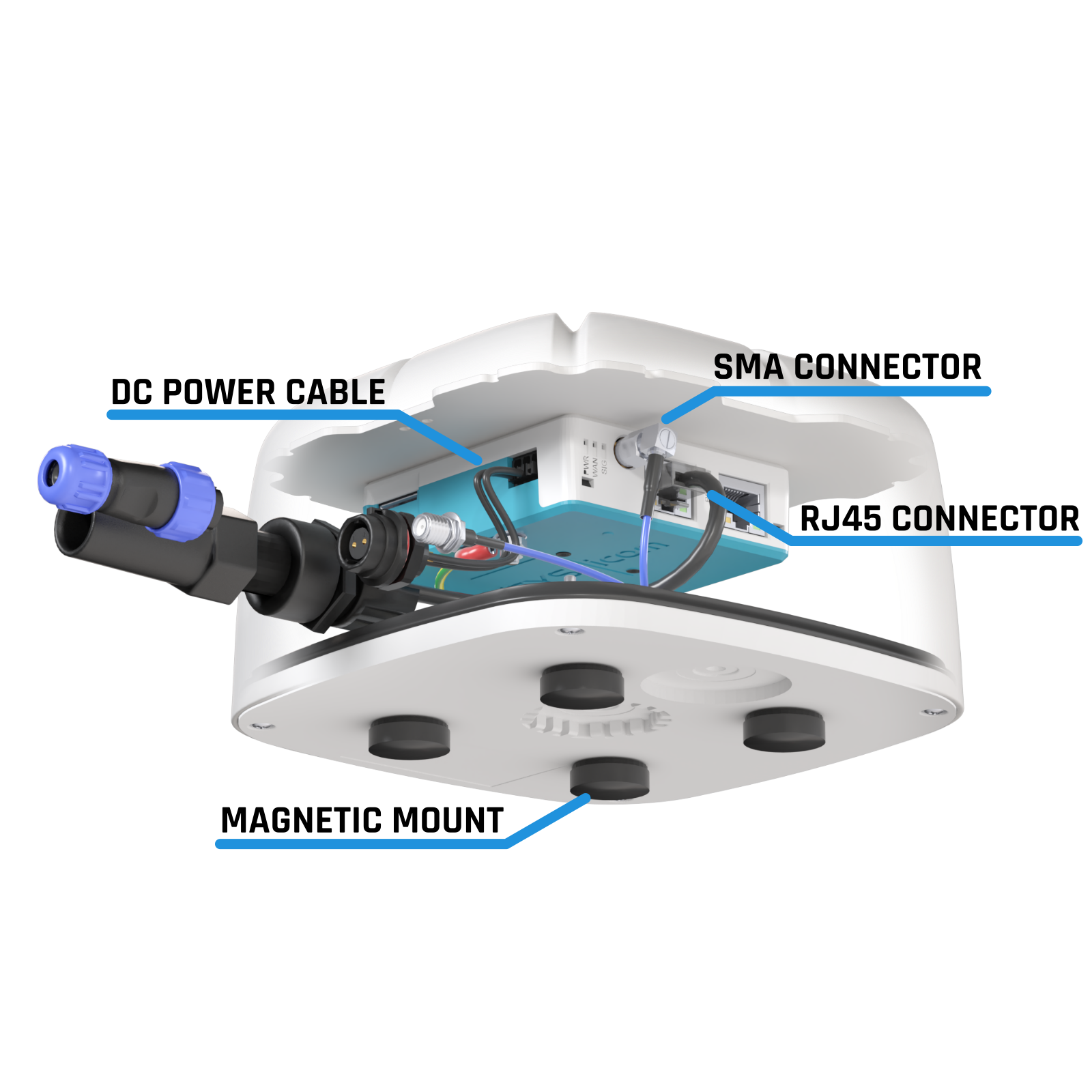

The antenna comes with a magnetic mounting system.

Why QuBox Shell for MIRO-L230

Learn more about your profit

Outdoor enclosure works in any weather conditions, IP67

Enclosure perfectly matched with the router

Made in Europe

QuBox Shell for MIRO-L230

Features

QuBox Shell for MIRO-L230QuBox Shell for MIRO-L230
QuBox Shell for MIRO-L230QuBox Shell for MIRO-L230

SPECIFICATION

PRODUCT DETAILS

MECHANICAL SPECIFICATION

Materials

ABS, PTFE

Ingress protection

IP67

Dimensions

160 x 160 x 90 mm

6.3 x 6.3 x 3.54 inch

Weight

1.05 kg

2.31 lbs

Operating temperature

From -40°C to 80°C

From -40°F to 176°F

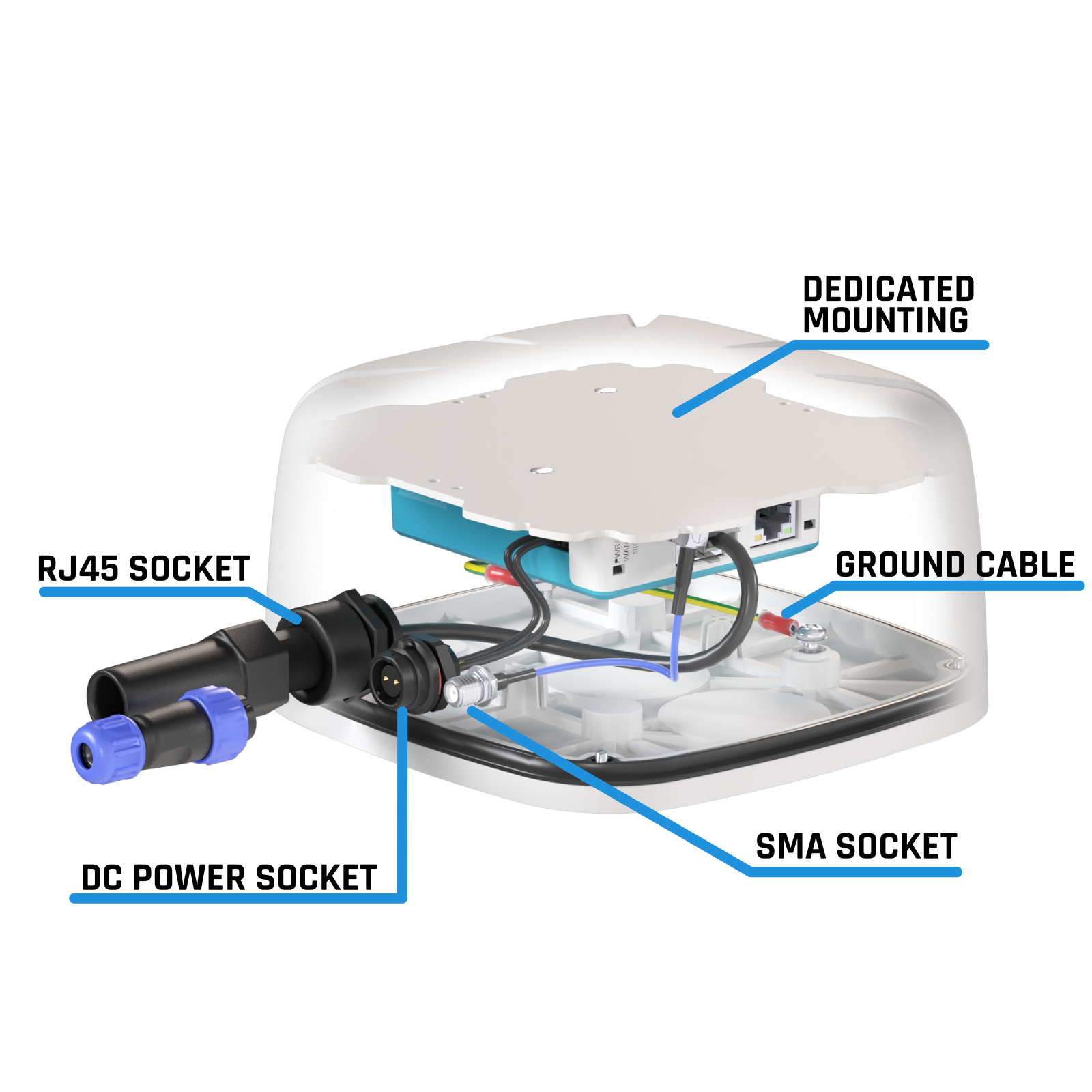

External Connectors

1x SMA

1x RJ45

1x 2 pin DC Power
