QuBox Spot Large

P/N: QBESPL

Solid QuBox IP68 enclosure for all outdoor solutions

QuBox Spot Large is a high-end IP68 enclosure for indoor & outdoor use. It's predicted for creating hotspots or another distributing systems, that´s a great base for multi-omnidirectional antennas, also the client installations on the moving vehicles. QuBox Spot Large has the installation compartment integrated. The enclosure can be installed on the mast, wall or the flat surfaces like roofs of the vehicles. The casing is made of plastic ABS material.

Why QuBox Spot Large

Learn more about your profit

Solid QuBox works in any weather conditions, IP68

UV-resistant ABS

WALL / POLE MAST OR OPTIONAL ROOF MOUNTING

Made in Europe

QuBox Spot Large

SPECIFICATION

PRODUCT DETAILS

Mechanical Specification

Material

ABS (UV Resistant)

Outer dimensions

157 x 157 x 310 mm

6.18 x 6.18 x 12.20 inch

Ingress protection

IP68

Connector

QuRJ45

Weight with mounting

1.2 kg

Operating temperature

from -40°C to 80°C

from -40°F to 176°F

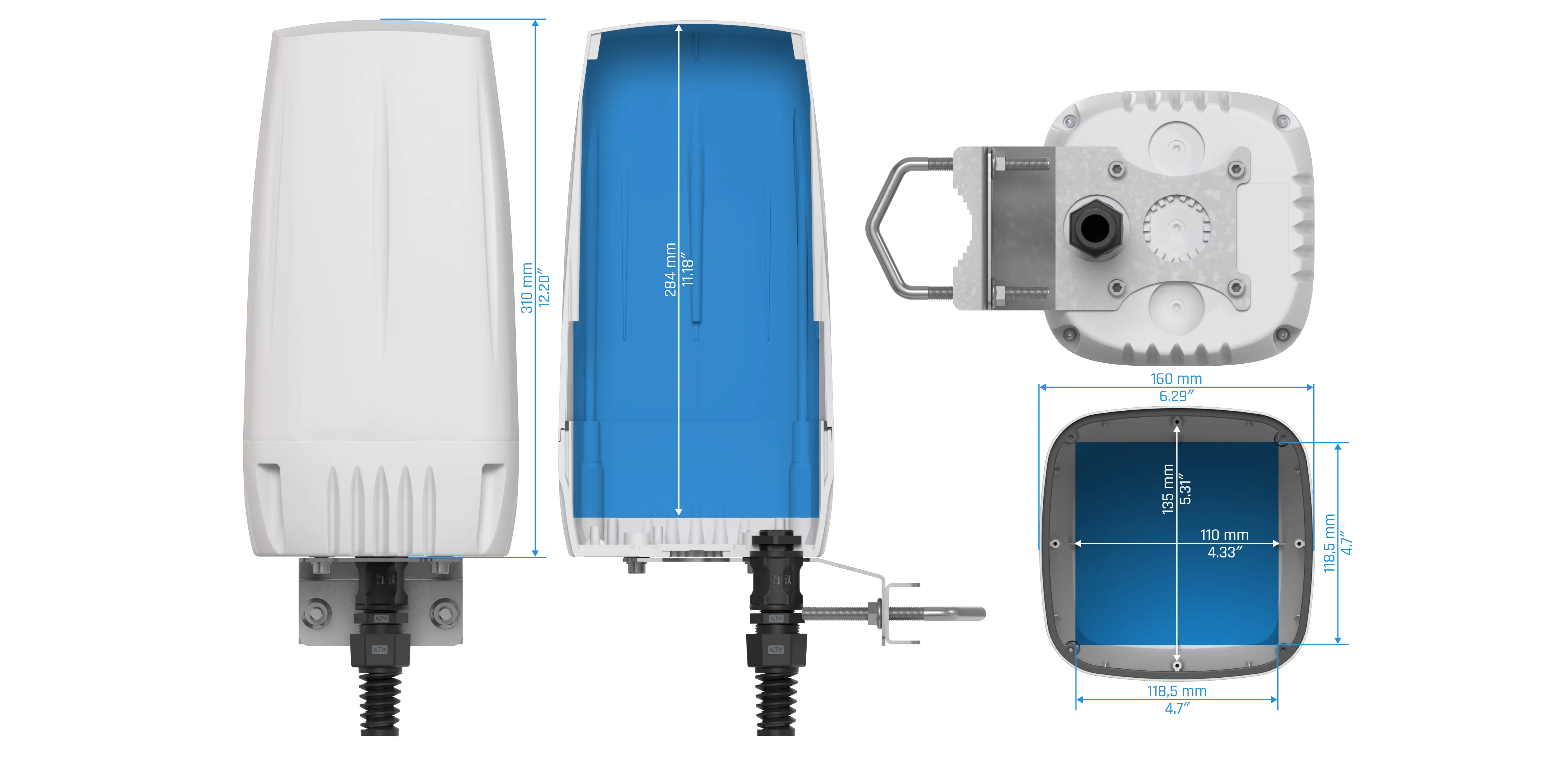

DIMENSIONS

PRODUCT DETAILS
QuBox Spot LargeQuBox Spot Large

WHAT'S IN THE BOX?

PRODUCT DETAILS

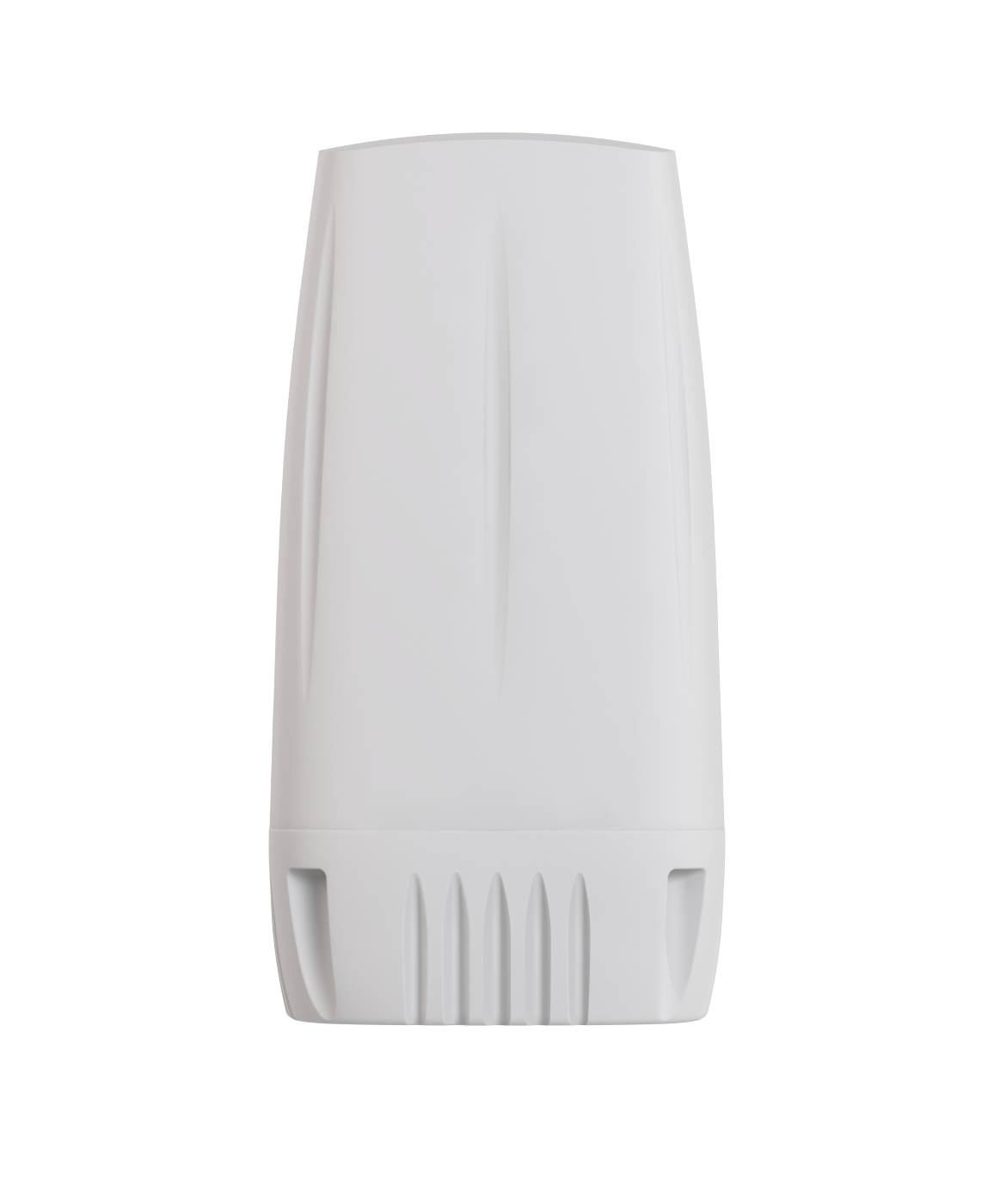

IN THE BOX

QuBox Spot Large

Parts of QuBox Spot Large
1 x
Parts of QuBox Spot Large
1 x
Parts of QuBox Spot Large
1 x
Parts of QuBox Spot Large
4 x M6 x 10
Parts of QuBox Spot Large
4 x
Parts of QuBox Spot Large
2 x M8
Parts of QuBox Spot Large
1 x QuRJ45

Download

Datasheet QuBox Spot Large
