Antenna QuCam for Teltonika RUTX50 230V

P/n: CX50AC

Outdoor CCTV LTE PoE gateway with embedded LTE router & PoE switch for CCTV cameras.

QuCam for RUTX50 is a powerful outdoor industrial gateway for professional CCTV application with embedded PoE switch for up to 3x CCTV cameras and place to install Teltonika RUTX50 (not included in gateway set). QuCam for RUTX50 also has integrated omnidirectional LTE and Wi-Fi antennas. The mobile router delivers high performance for mission-critical cellular communication in harsh and hazardous environments where a wide operating temperature is required.

Why QuCam for Teltonika RUTX50 230V

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Mounting system with two planes, 60 degrees regulation

3 x active PoE output (802.3 af / at)

SIM CARD SLOT

Made in Europe

QuCam for Teltonika RUTX50 230V

SPECIFICATION

PRODUCT DETAILS

5G/LTE Antenna Specification

Wi-Fi Antenna Specification

Power Supply Electrical Input Specification

Power Supply Electrical Output Specification

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

Gain

617 - 960 MHz : 3 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 GHz : 2.5dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.80, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR FOR WI-FI ANTENNA

VSWR FOR WI-FI ANTENNA of QuCam for Teltonika RUTX50 230V

VSWR FOR 5G/LTE ANTENNA

VSWR FOR 5G/LTE ANTENNA of QuCam for Teltonika RUTX50 230V

GAIN FOR WI-FI ANTENNA

GAIN FOR WI-FI ANTENNA of QuCam for Teltonika RUTX50 230V

GAIN FOR 5G/LTE ANTENNA

GAIN FOR 5G/LTE ANTENNA of QuCam for Teltonika RUTX50 230V
5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.0GHz
Elevation
Azimuth
5G/LTE from 4.5GHz to 5.5GHz
Elevation
Azimuth
Wi-Fi 2.4GHz to 5.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuCam for Teltonika RUTX50 230VQuCam for Teltonika RUTX50 230V

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuCam RUTX50 kit

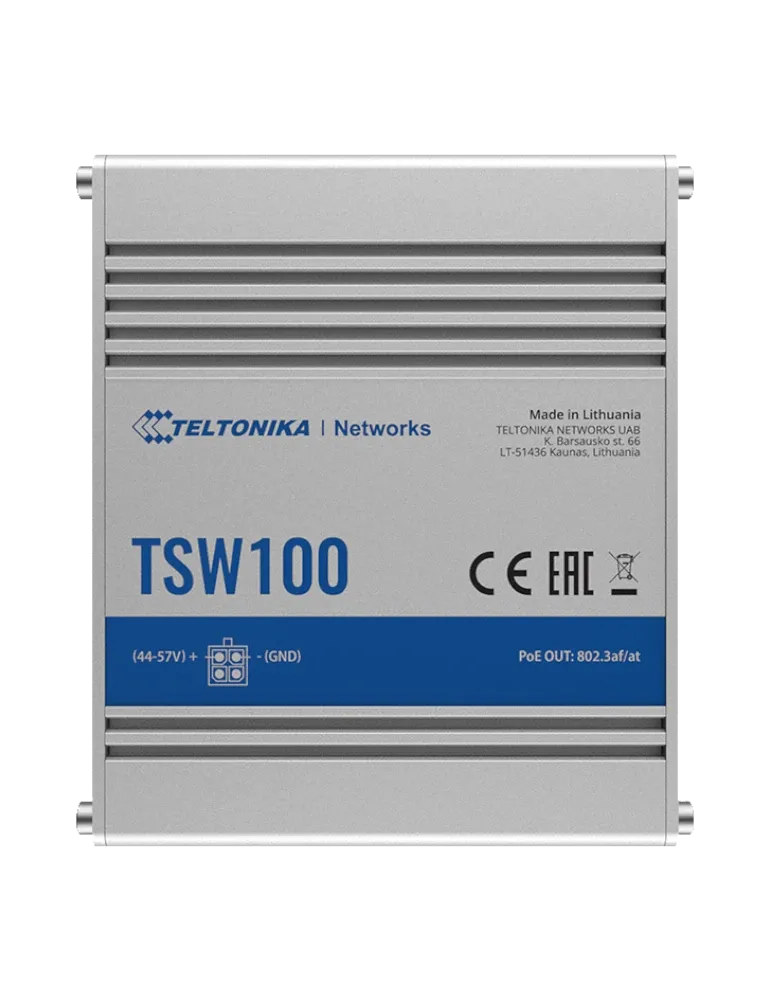

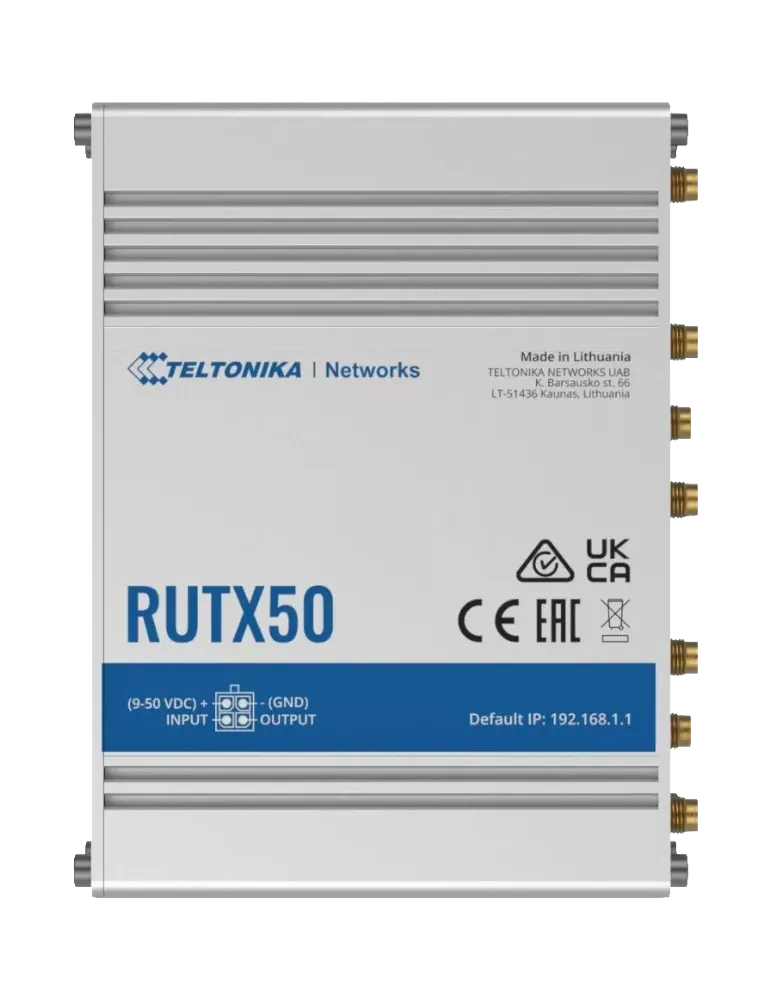

Parts of QuCam for Teltonika RUTX50 230V
1 x
Parts of QuCam for Teltonika RUTX50 230V
1 x
Parts of QuCam for Teltonika RUTX50 230V
2 x
Parts of QuCam for Teltonika RUTX50 230V
1 x
Parts of QuCam for Teltonika RUTX50 230V
1 x M6 X 18
Parts of QuCam for Teltonika RUTX50 230V
2 x M8
Parts of QuCam for Teltonika RUTX50 230V
1 x
Parts of QuCam for Teltonika RUTX50 230V
3 x
Parts of QuCam for Teltonika RUTX50 230V

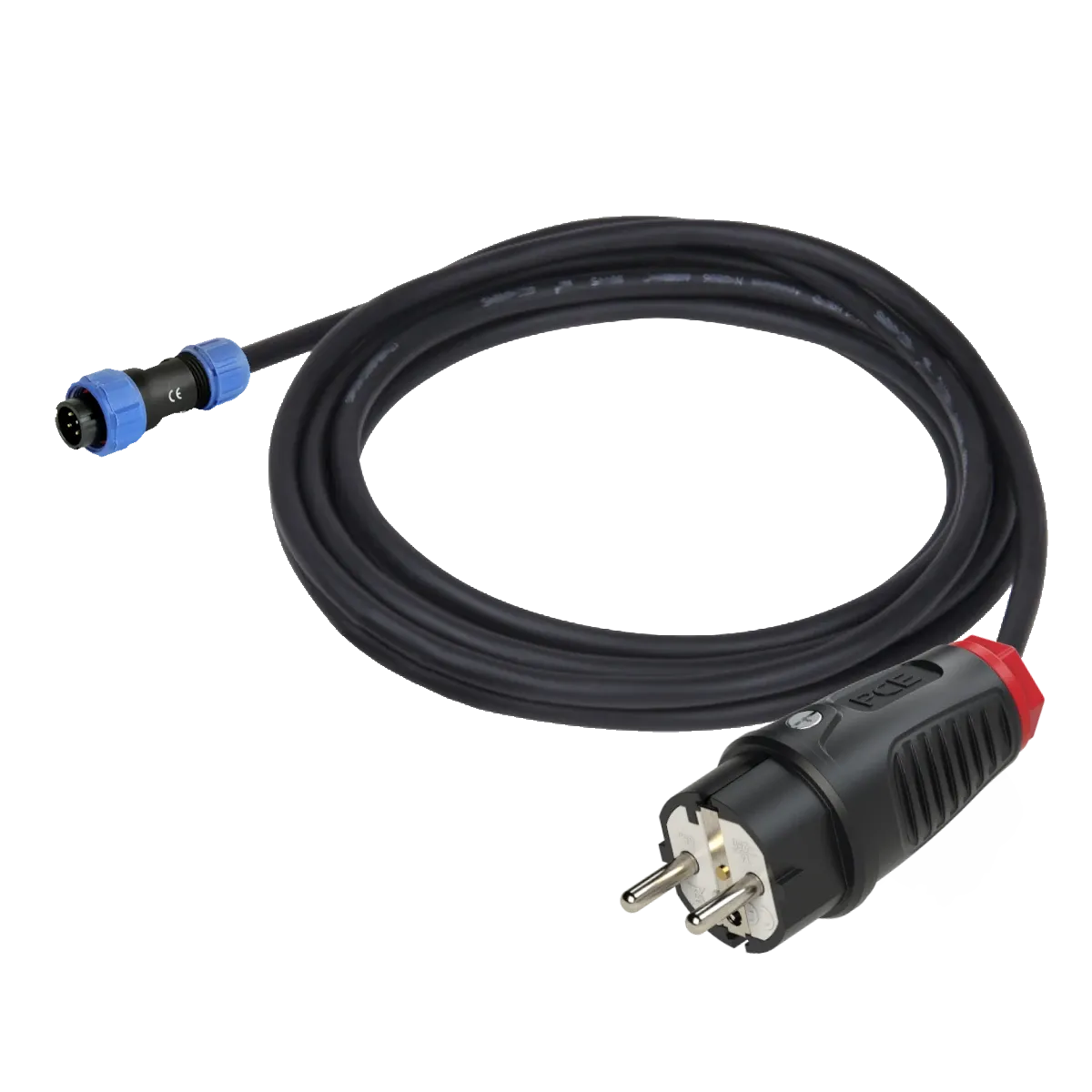

1 x QuPSU4
Parts of QuCam for Teltonika RUTX50 230V
1 x QuSIM
