1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

Antenna QuCAM (Wave) for Teltonika RUTM52 230V

P/n: CM52WAC

Outdoor CCTV 5G/LTE PoE gateway with embedded 5G/LTE router & PoE switch for CCTV cameras.

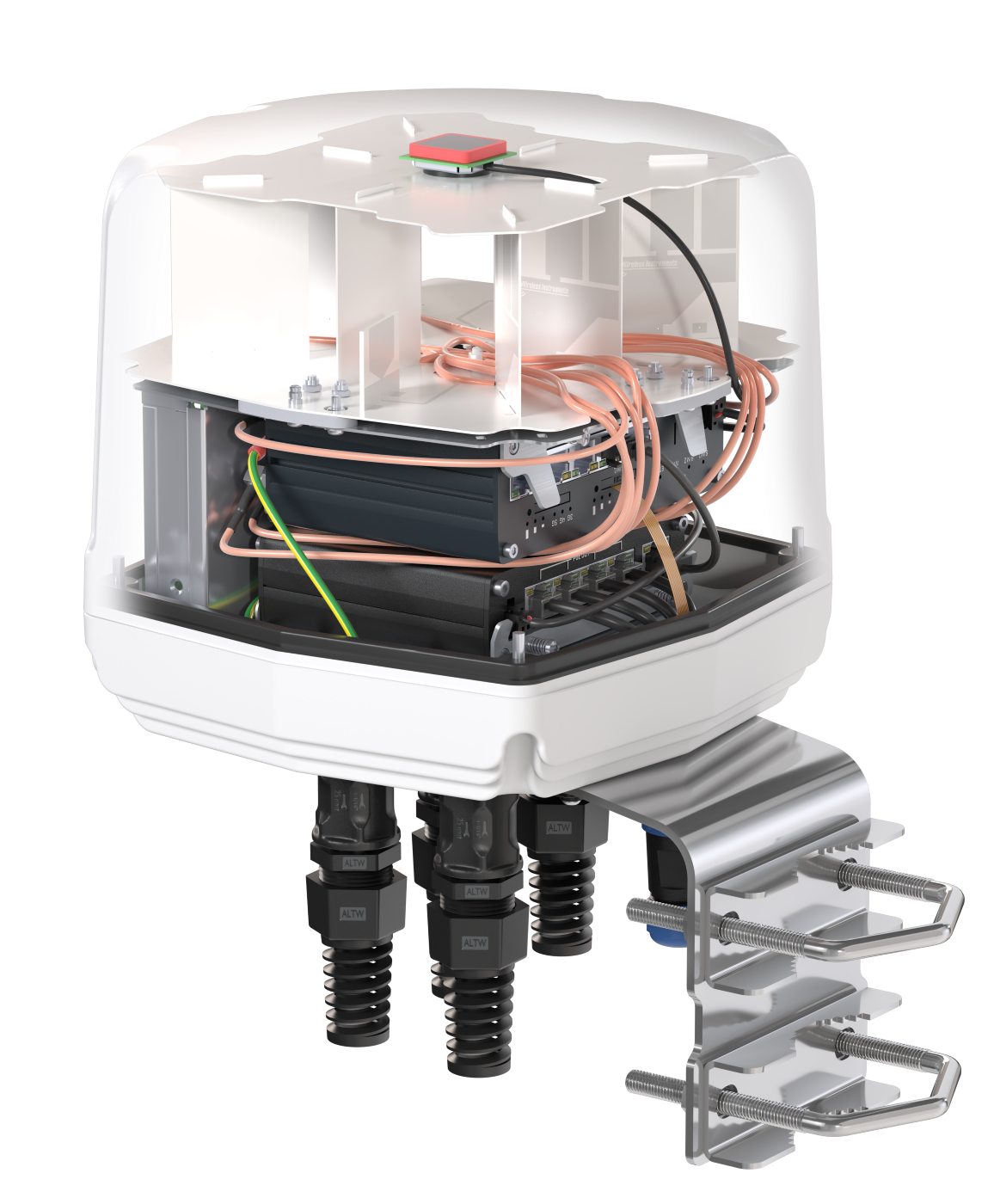

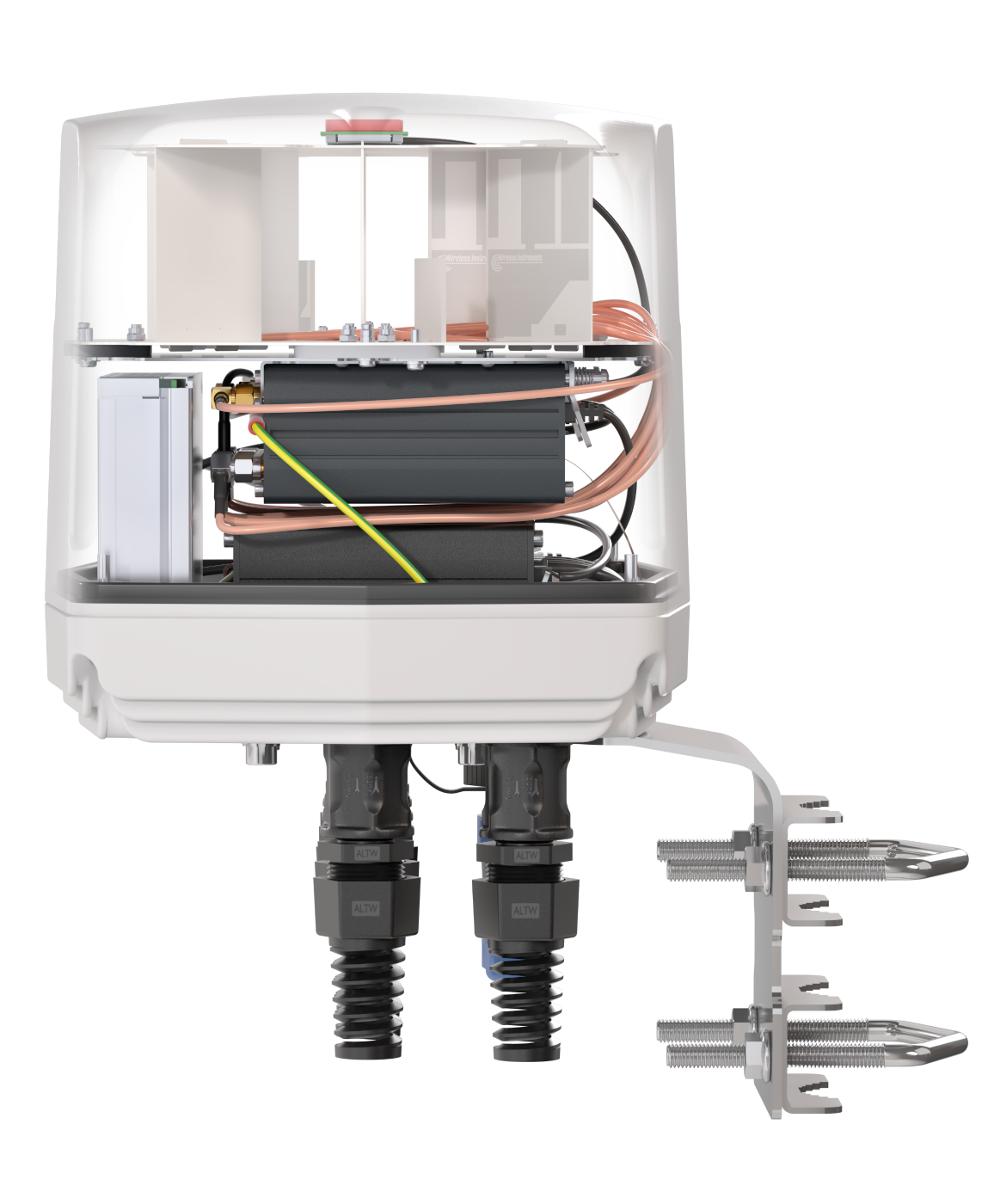

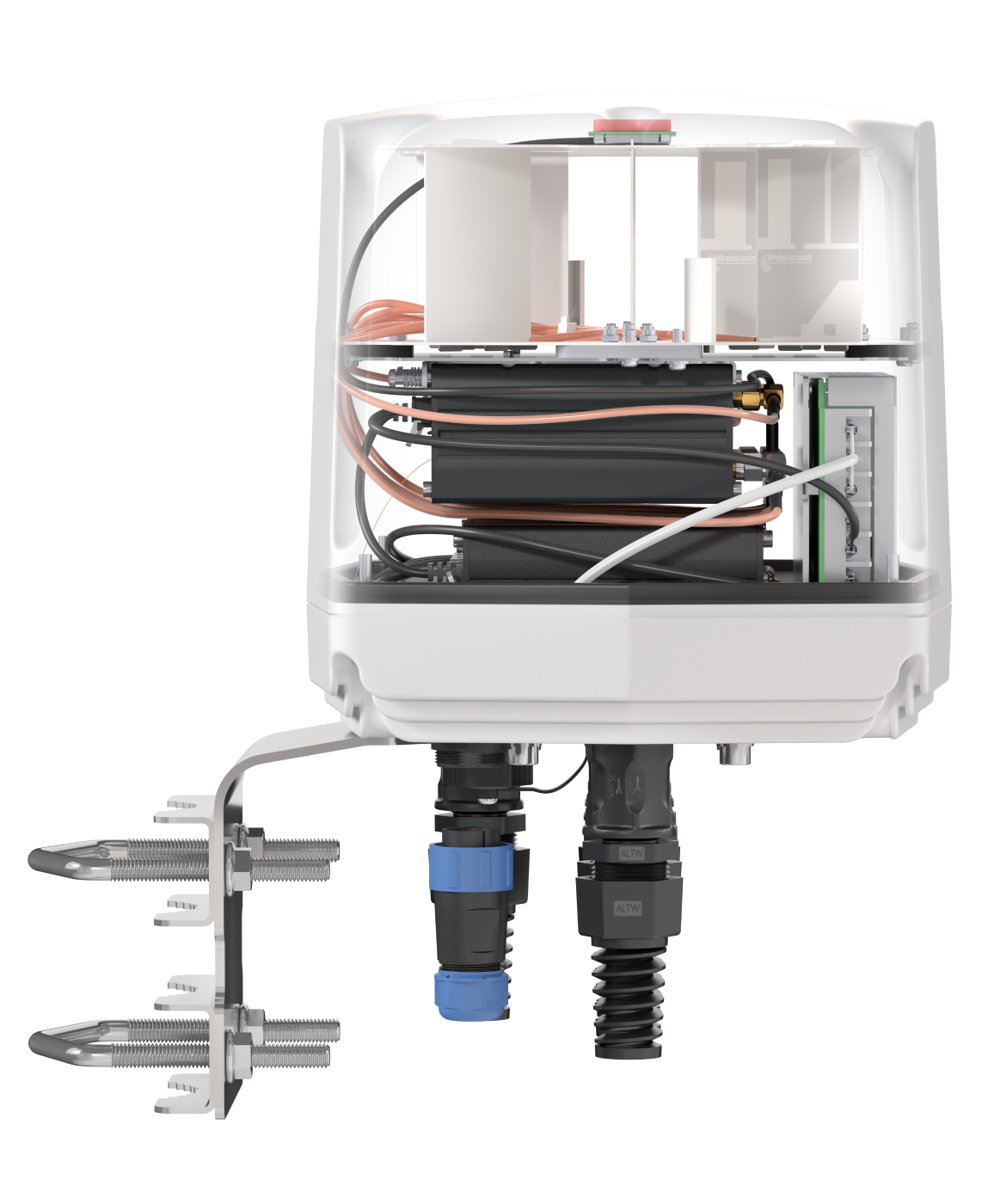

QuCam for Teltonika RUTM52 230V is a powerful outdoor industrial gateway for professional CCTV applications, featuring an installed power supply and dedicated space for mounting a Teltonika TSW100 PoE switch (for up to 4x CCTV cameras) and a Teltonika RUTM52 router (TSW100 and RUTM52 are not included in the gateway set).

QuCam for Teltonika RUTM52 230V also features integrated omnidirectional 5G/LTE, Wi-Fi and GPS antennas, as well as an external SIM holder. When equipped with the RUTM52 router, it provides high-performance cellular connectivity for mission-critical applications in demanding outdoor environments.

Technical specification

Any question?

Why QuCAM (Wave) for Teltonika RUTM52 230V

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP67

4x active PoE output (802.3 af / at)

SIM card slot

Galvanized steel, wall or pole mounting bracket

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.58 - 2.0 GHz

2.0 - 3.5 GHz

3.5 - 5.0 GHz

5.0 - 6.35 GHz

Max. Gain

0.58 - 2.0 GHz : 2 dBi

2.0 - 3.5 GHz : 3.2 dBi

3.5 - 5.0 GHz : 3.1 dBi

5.0 - 6.35 GHz : 3.8 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 74, 75, 76, 85, 103, 106, 107, 111, 252, 253, 254, 255, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n54, n65, n66, n67, n68, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n105, n106, n109, n110, n250, n251, n252, n253, n254, n255, n256

VSWR

<2.50, max <3.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

8x SMA

Cable type

RG316

PORTS

PRODUCT DETAILS

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE Gain

WI-FI VSWR

WI-FI Gain

5G/LTE From 617MHz to 960MHz

Elevation

Azimuth

5G/LTE From 1.71GHz to 2.5GHz

Elevation

Azimuth

5G/LTE From 3.3GHz to 4.2GHz

Elevation

Azimuth

5G/LTE From 4.8GHz to 5.8GHz

Elevation

Azimuth

Wi-Fi From 2.4 GHz to 5.8 GHz

Elevation

Azimuth
