1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

QuCube LTE 802.3at for Semtech RX400, EX400, RV50X and no Wi-Fi RV55

Antenna QuCube LTE 802.3at for Semtech RX400, EX400, RV50X and no Wi-Fi RV55

P/n: ASMLNCAT

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + GPS ANTENNA + ACTIVE 802.3AT POE SPLITTER + PLACE TO INSTALL SEMTECH RX400 / EX400 / RV50X / RV55 (no Wi-Fi) (ALL-IN-ONE)

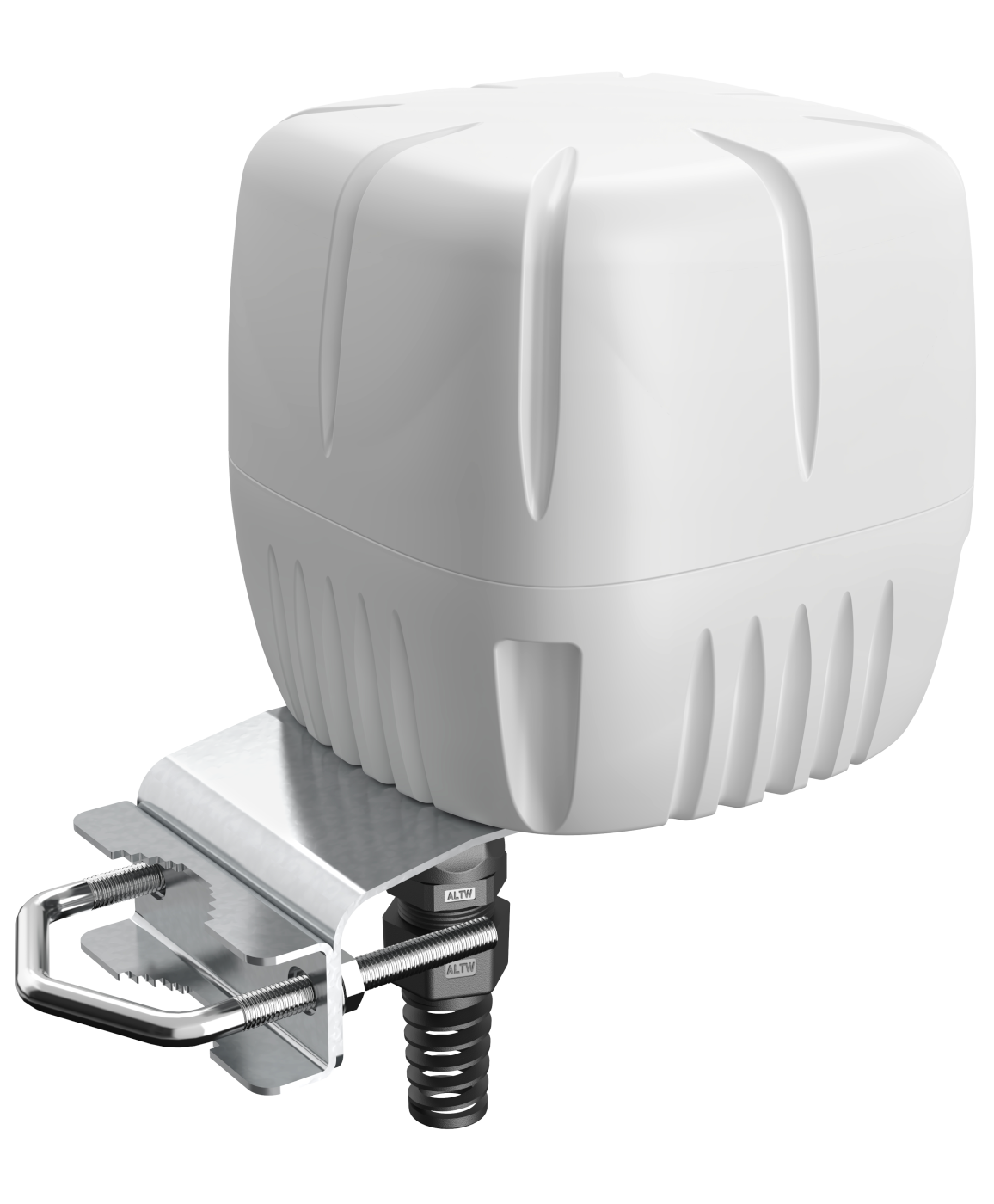

QuCube LTE 802.3at for Semtech RX400, EX400, RV50X and no Wi-Fi RV55 is a revolutionary outdoor antenna solution that combines minimized dimensions with exceptional antenna performance. Designed specifically as an antenna for Semtech RX400, EX400, RV50X and RV55 (no Wi-Fi) routers, it delivers reliable, high-speed wireless connectivity in even the most demanding environments.

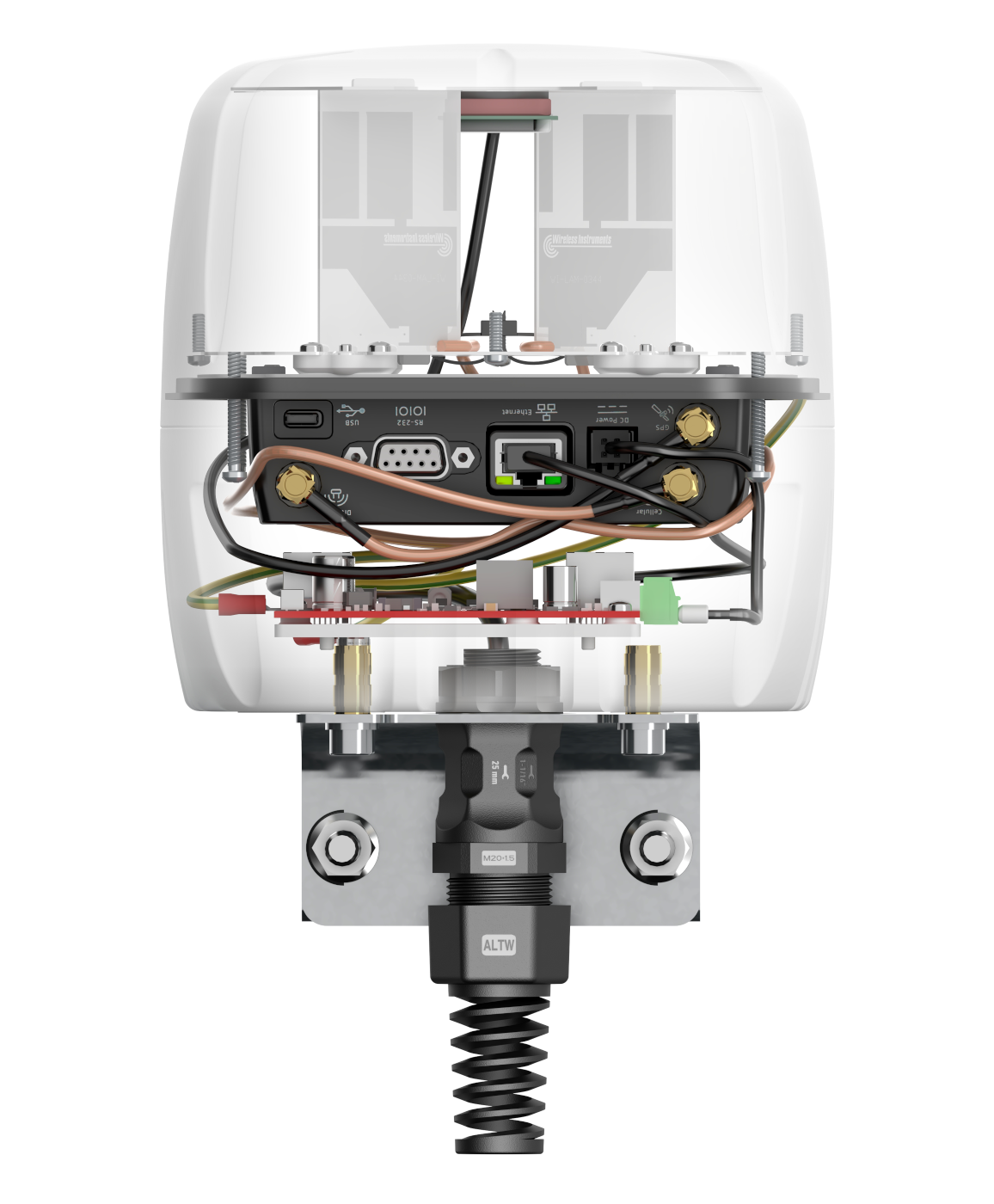

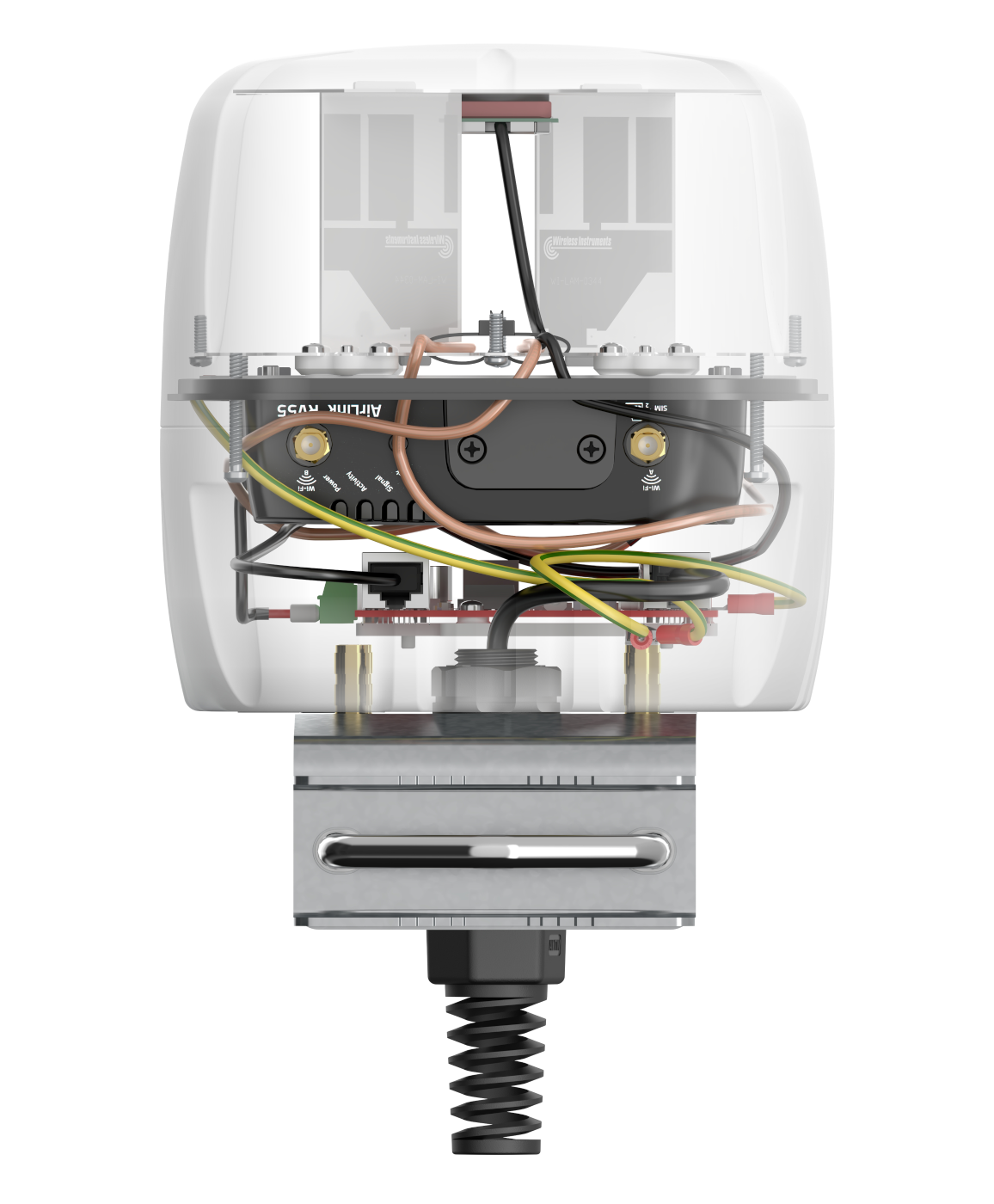

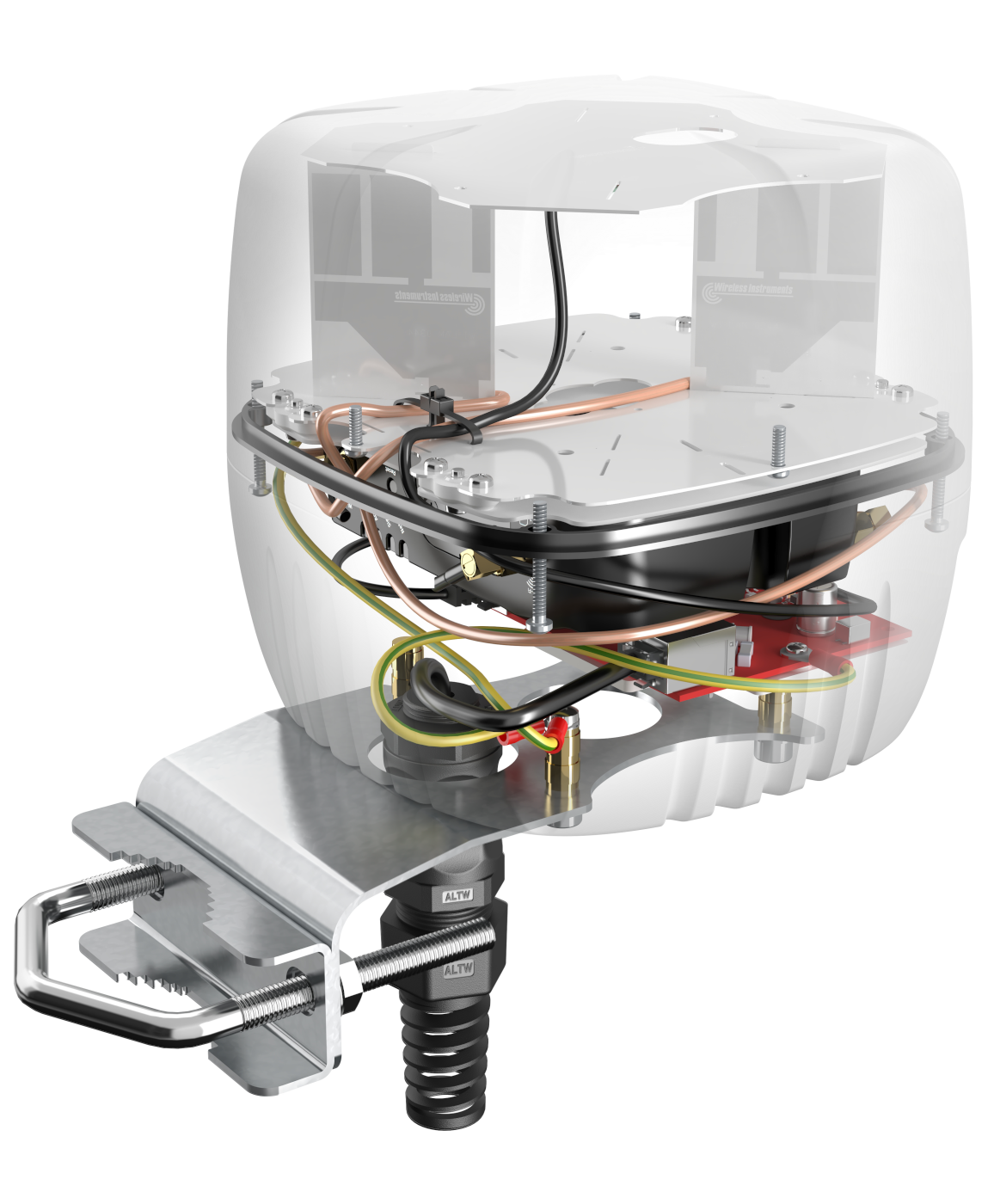

This all-in-one unit integrates high-gain omnidirectional 5G and GPS antennas with Semtech routers into a compact, rugged IP68-rated waterproof enclosure. The integration reduces installation complexity while enabling rapid deployment of advanced outdoor 5G solutions.

Engineered for outdoor and mobile applications, QuCube is ideal for use in transportation systems, for underground connectivity or urban and public installations. It ensures consistent performance wherever dependable connectivity is essential.

The set contains a 802.3at PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. Using QuWireless splitter provides 3KA surge and lightning protection.

Technical specification

Any question?

WHY QUCUBE LTE 802.3AT FOR SEMTECH RX400, EX400, RV50X AND NO Wi-Fi RV55

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Made in Europe

SPECIFICATION

PRODUCT DETAILS

FREQUENCY

0.58 - 2.0 GHz

2.0 - 3.5 GHz

3.5 - 5.0 GHz

5.0 - 6.35 GHz

MAX. GAIN

0.58 - 2.0 GHz : 2 dBi

2.0 - 3.5 GHz : 3.2 dBi

3.5 - 5.0 GHz : 3.1 dBi

5.0 - 6.35 GHz : 3.8 dBi

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 74, 75, 76, 85, 103, 106, 107, 111, 252, 253, 254, 255, 256

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n54, n65, n66, n67, n68, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n105, n106, n109, n110, n250, n251, n252, n253, n254, n255, n256

VSWR

<2.50, max <3.00

BEAMWIDTH

360°/35° ±5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω
