1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

Antenna QuCube for Robustel R1511P

P/n: AR1511PC

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI ANTENNA + PASSIVE POE SPLITTER + PLACE TO INSTALL ROBUSTEL R1511P (ALL-IN-ONE)

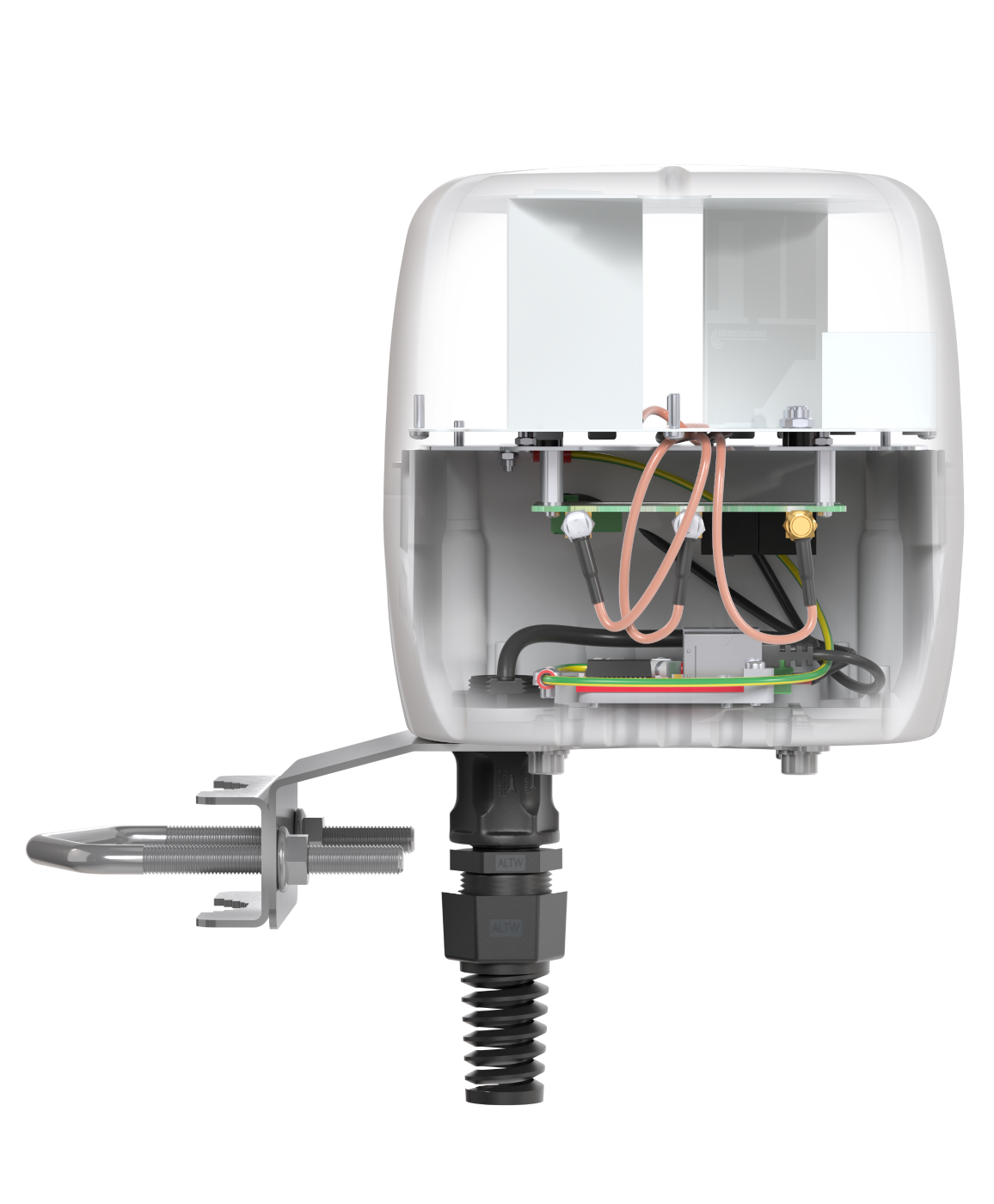

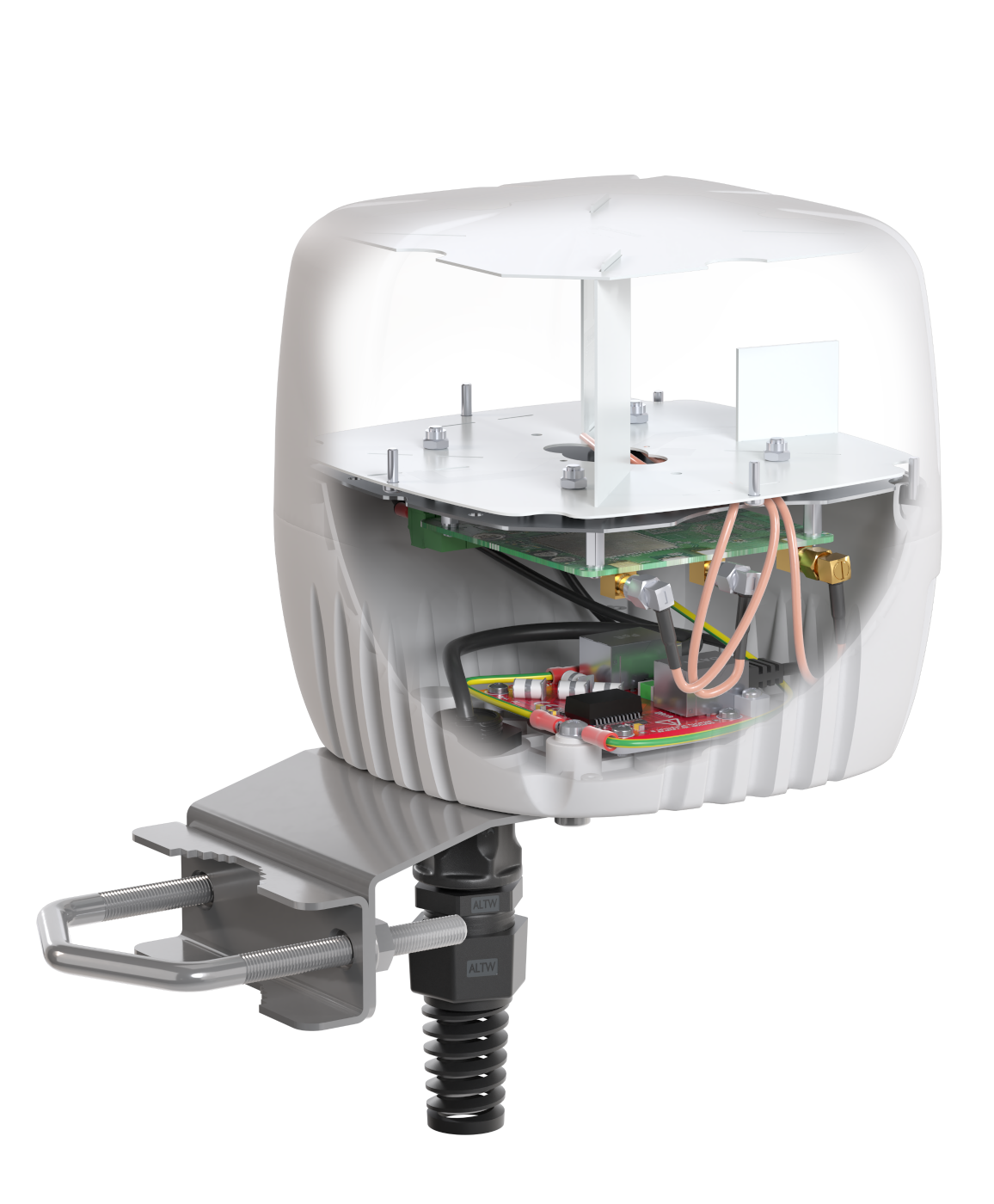

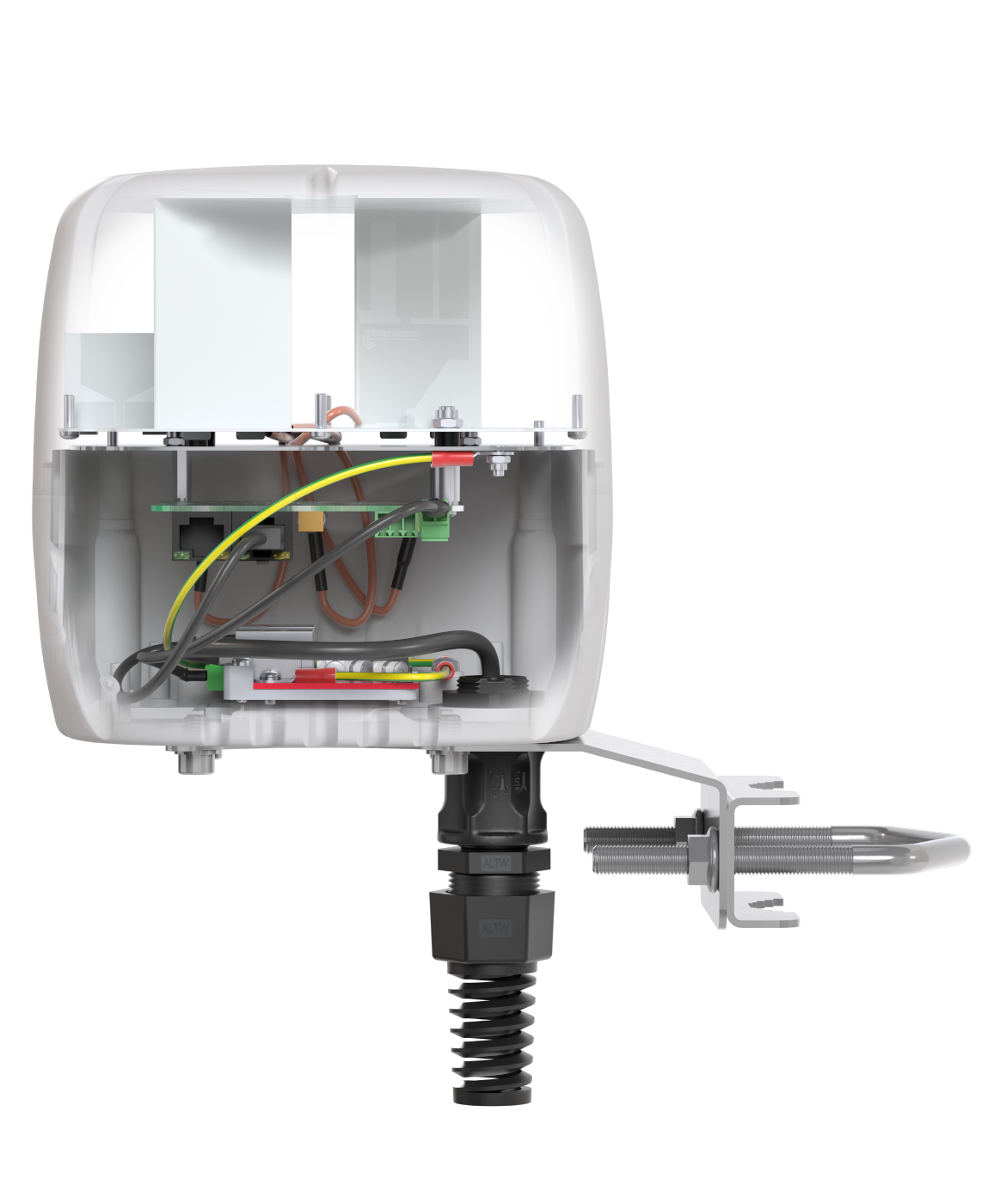

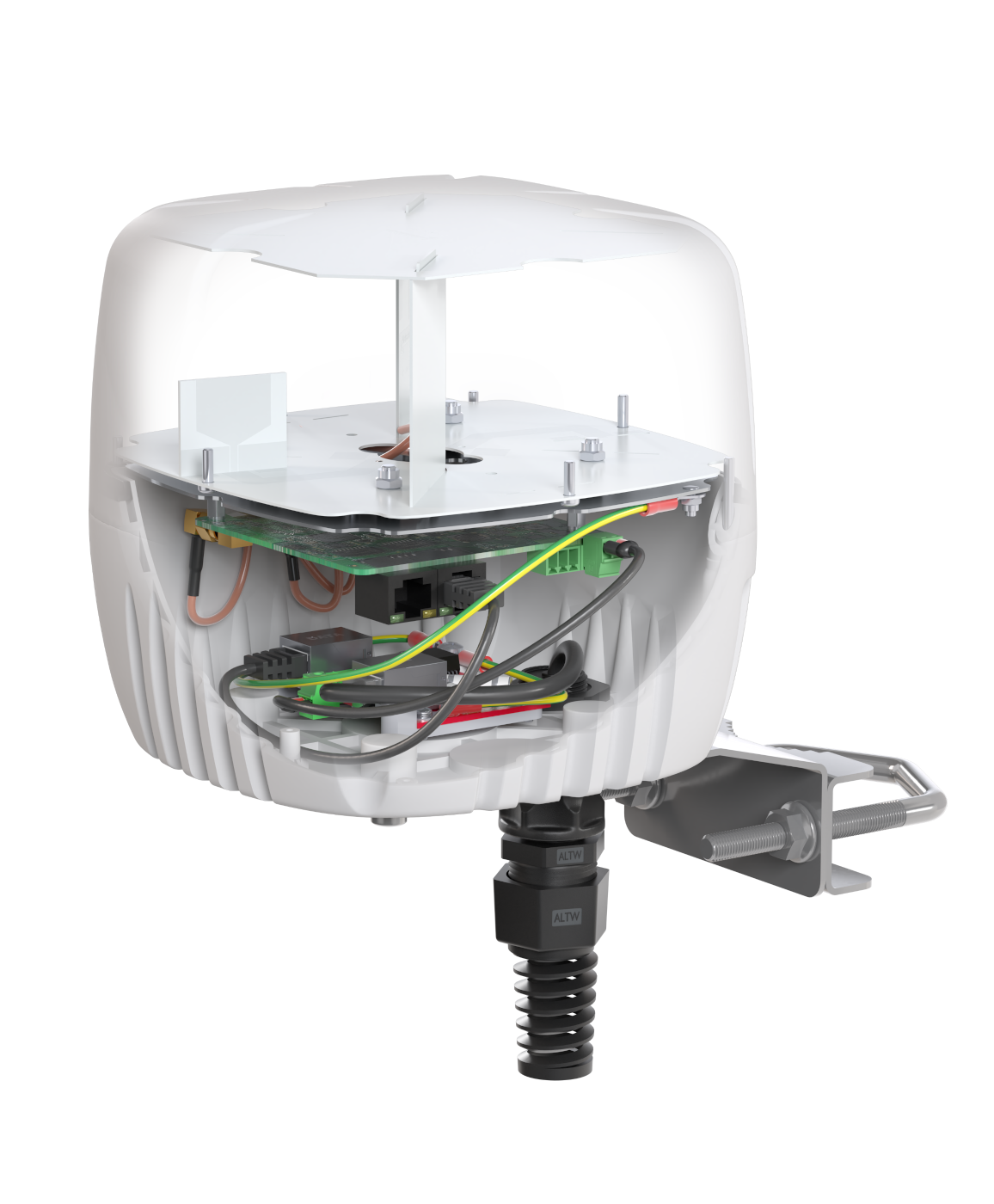

QuCube for Robustel R1511P is a revolutionary outdoor antenna solution that combines minimized dimensions with exceptional antenna performance. Designed specifically as an antenna for Robustel R1511P router, it delivers reliable, high-speed wireless connectivity in even the most demanding environments.

This all-in-one unit integrates high-gain omnidirectional 5G and Wi-Fi antennas with Robustel routers into a compact, rugged IP68-rated waterproof enclosure. The integration reduces installation complexity while enabling rapid deployment of advanced outdoor 5G solutions.

Engineered for outdoor and mobile applications, QuCube is ideal for use in transportation systems, for underground connectivity or urban and public installations. It ensures consistent performance wherever dependable connectivity is essential.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source!

Technical specification

Any question?

Why QuCube for Robustel R1511P

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Made in Europe

SPECIFICATION

PRODUCT DETAILS

FREQUENCY

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 3.8 GHz

4.2 - 6.0 GHz

GAIN

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 3 dBi

3.3 - 3.8 GHz : 3 dBi

4.2 - 6.0 GHz : 4 dBi

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.20, max <2.50

BEAMWIDTH

360°/35° ±5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω
