Antenna QuCube for Robustel R151x

P/n: AR151XC

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI ANTENNA + PASSIVE POE SPLITTER + PLACE TO INSTALL ROBUSTEL R151x (ALL-IN-ONE)

QuCube for Robustel R151x is a revolutionary outdoor antenna solution that combines minimized dimensions with exceptional antenna performance. Designed specifically as an antenna for Robustel R151x router, it delivers reliable, high-speed wireless connectivity in even the most demanding environments.

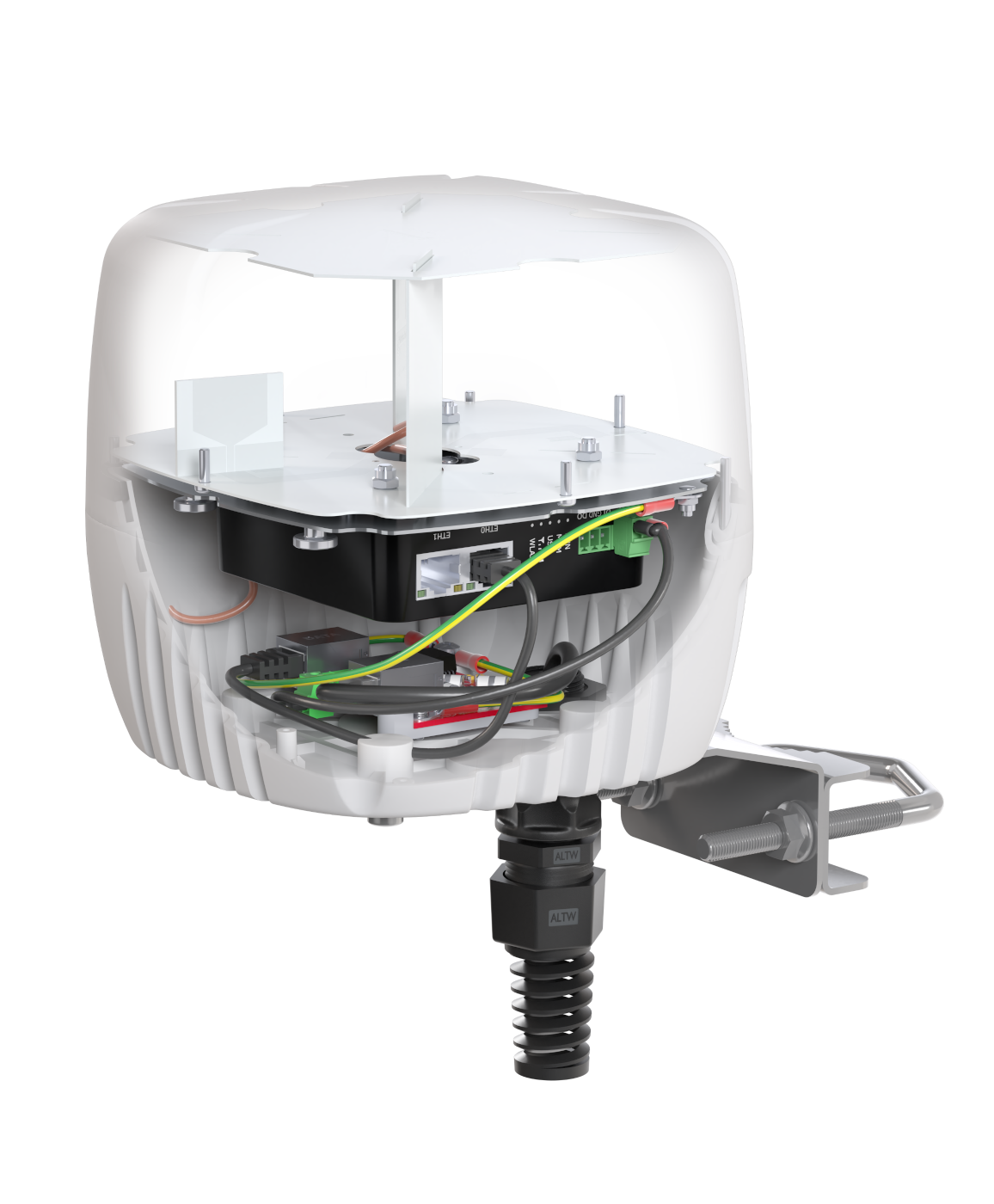

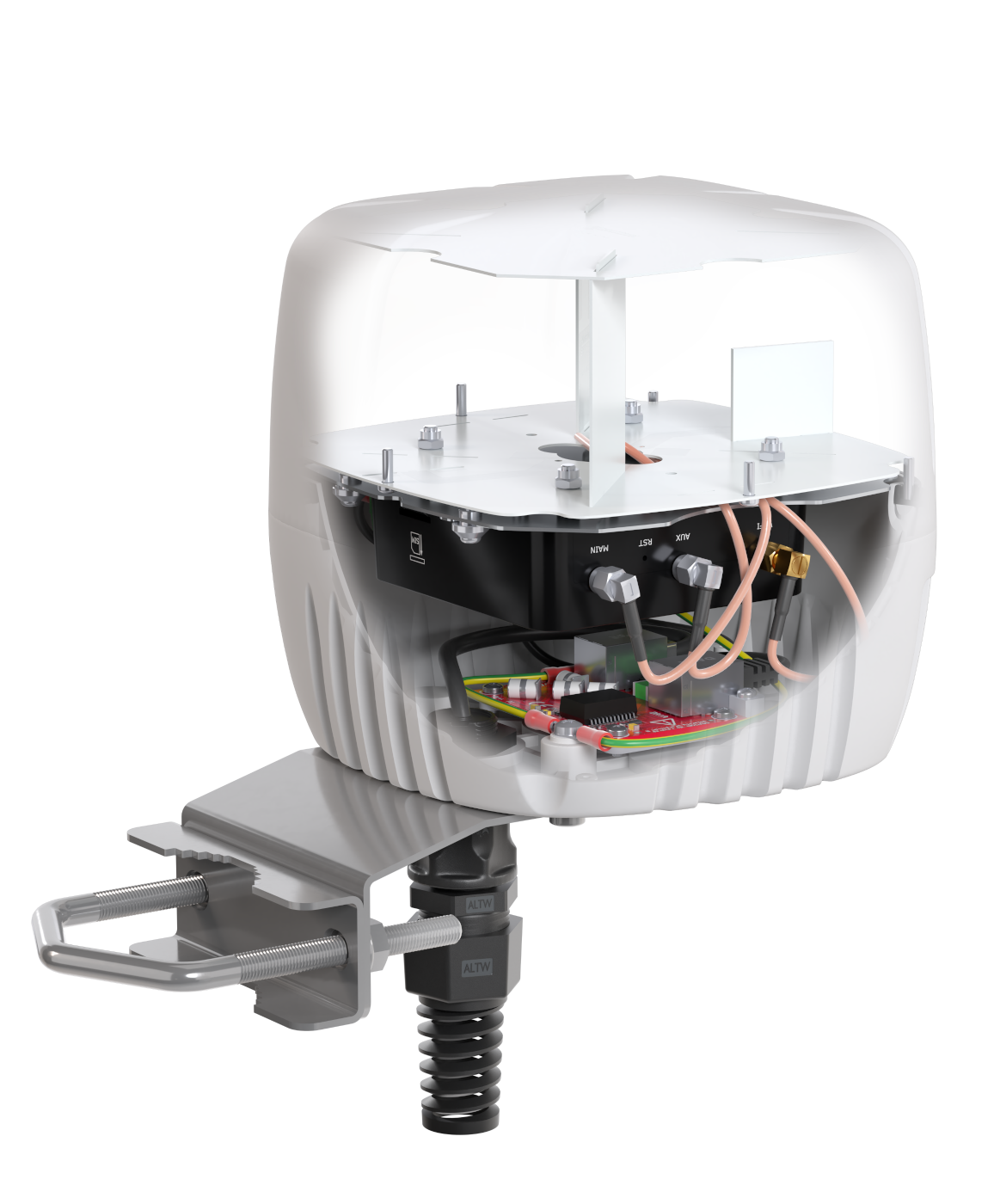

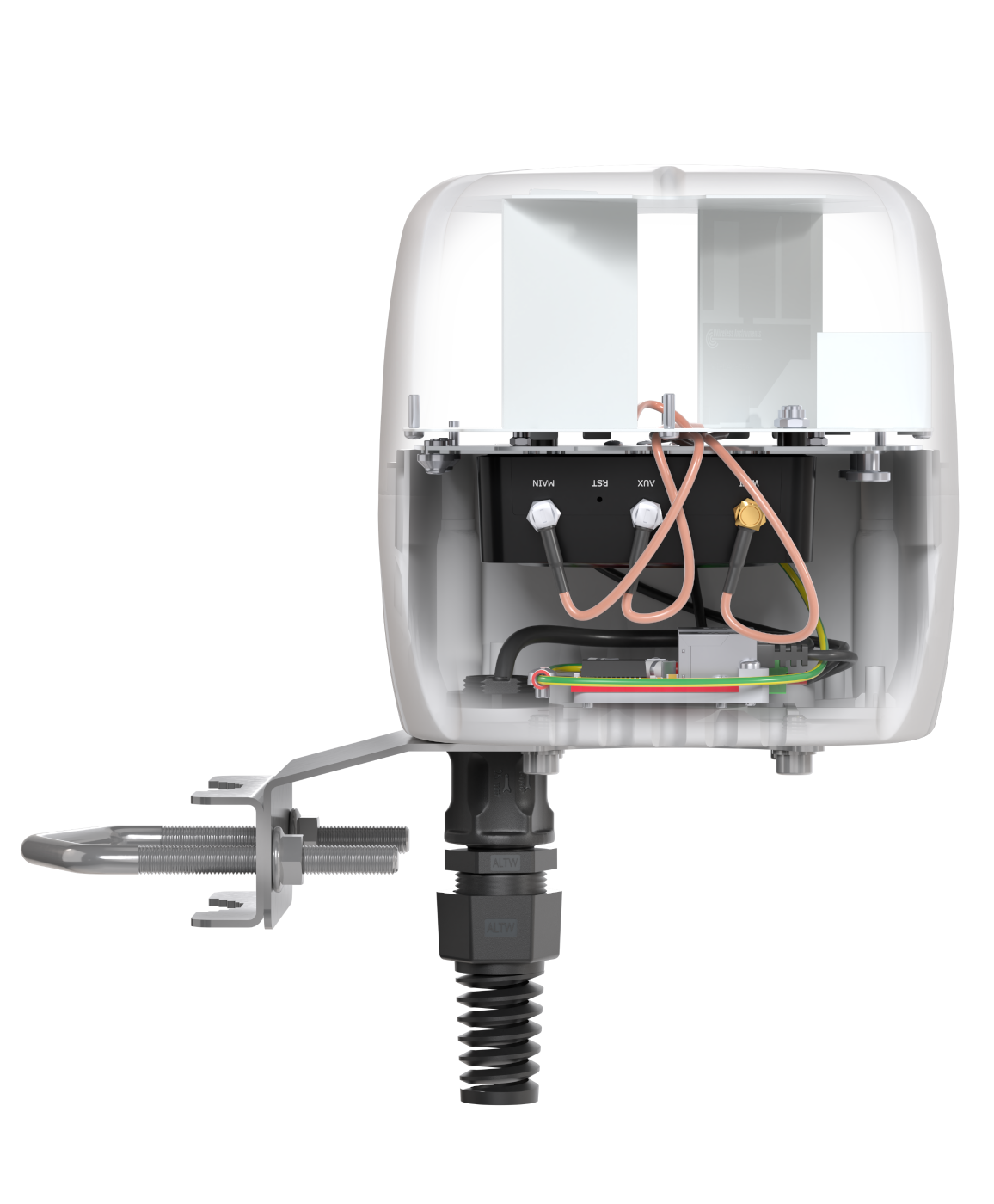

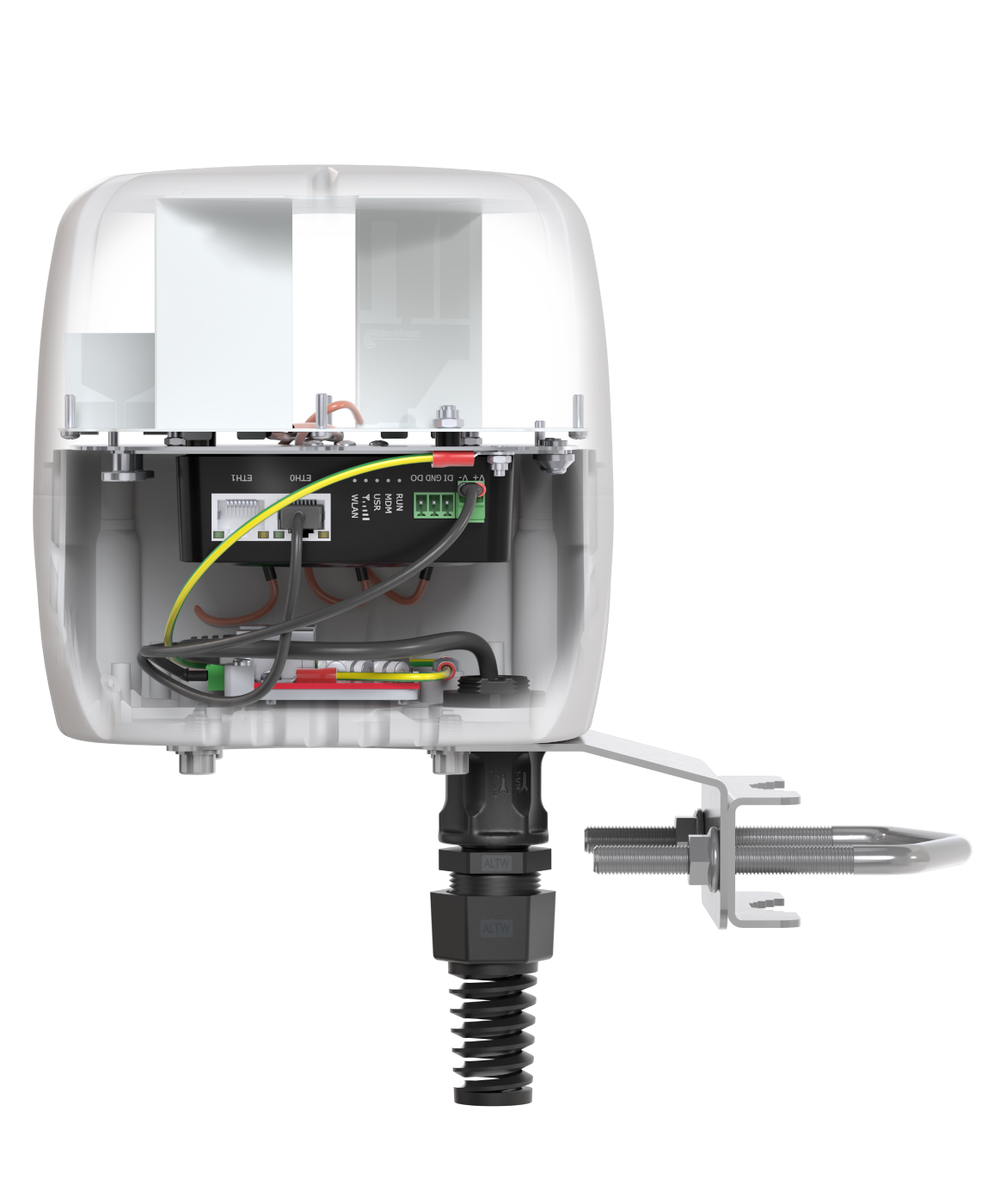

This all-in-one unit integrates high-gain omnidirectional 5G and Wi-Fi antennas with Robustel routers into a compact, rugged IP68-rated waterproof enclosure. The integration reduces installation complexity while enabling rapid deployment of advanced outdoor 5G solutions.

Engineered for outdoor and mobile applications, QuCube is ideal for use in transportation systems, for underground connectivity or urban and public installations. It ensures consistent performance wherever dependable connectivity is essential.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source!



Why QuCube for Robustel R151x

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Made in Europe

QuCube for Robustel R151x

SPECIFICATION

PRODUCT DETAILS

5G/LTE SPECIFICATION

WI-FI SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

FREQUENCY

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 3.8 GHz

4.2 - 6.0 GHz

GAIN

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 3 dBi

3.3 - 3.8 GHz : 3 dBi

4.2 - 6.0 GHz : 4 dBi

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.20, max <2.50

BEAMWIDTH

360°/35° ±5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE VSWR of QuCube for Robustel R151x

5G/LTE GAIN

5G/LTE GAIN of QuCube for Robustel R151x

Wi-Fi - V VSWR

Wi-Fi - V VSWR of QuCube for Robustel R151x

Wi-Fi - V Gain

Wi-Fi - V Gain of QuCube for Robustel R151x
5G/LTE from 617MHz to 960MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.7GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.2GHz
Elevation
Azimuth
5G/LTE from 4.8GHz to 5.8GHz
Elevation
Azimuth
Wi-Fi V From 2.4 GHz to 6.5 GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuCube for Robustel R151xQuCube for Robustel R151x
QuCube for Robustel R151xQuCube for Robustel R151x

Download

Datasheet QuCube for Robustel R151x
Download
IP68 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuCube for Robustel R151x
Use case QuCube for Robustel R151x
Use case QuCube for Robustel R151x
