Antenna QuMax 5G/LTE MIMO 4x4

P/n: AM54M

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + PLACE TO INSTALL ROUTERBOARD WITH MODEM

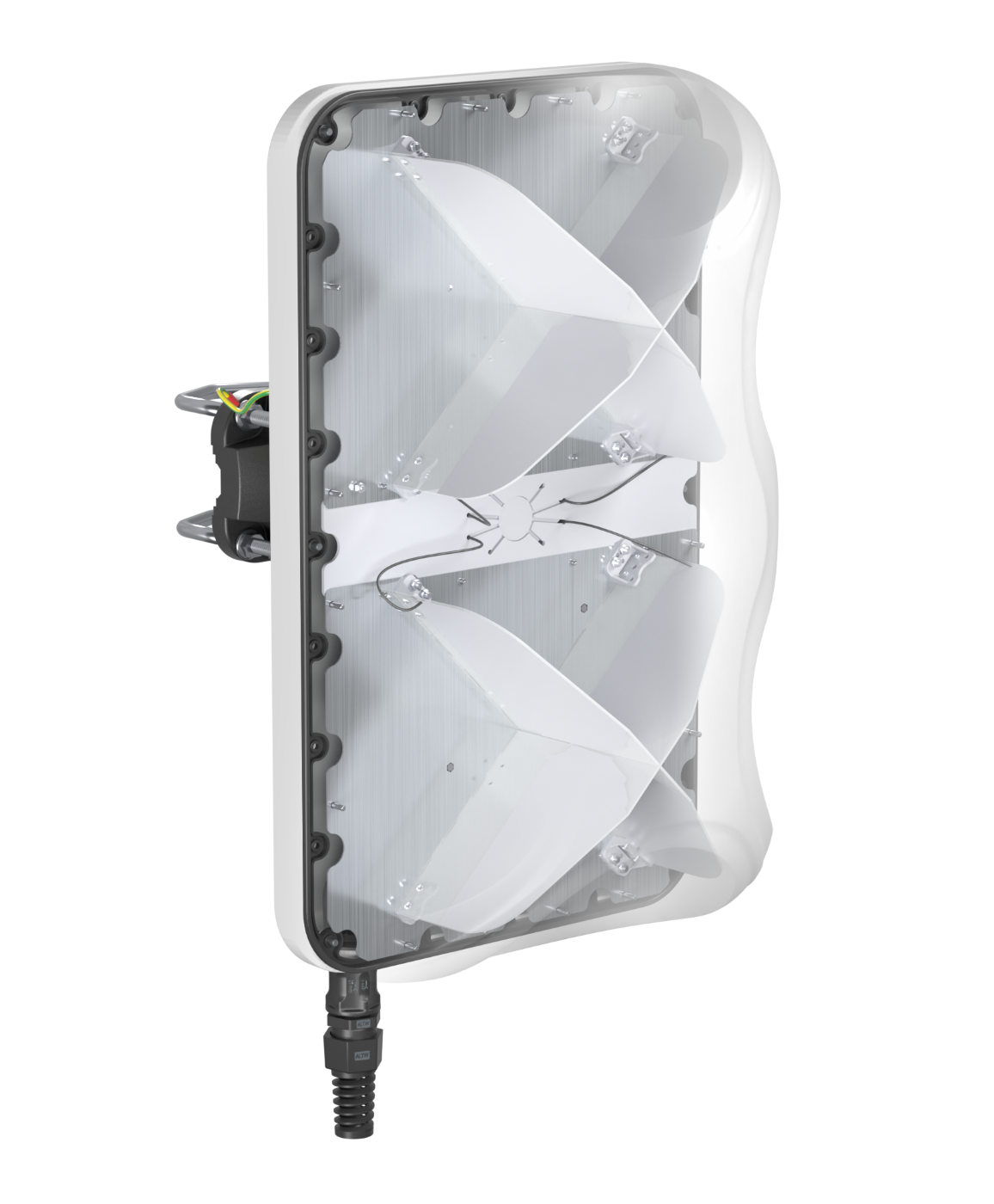

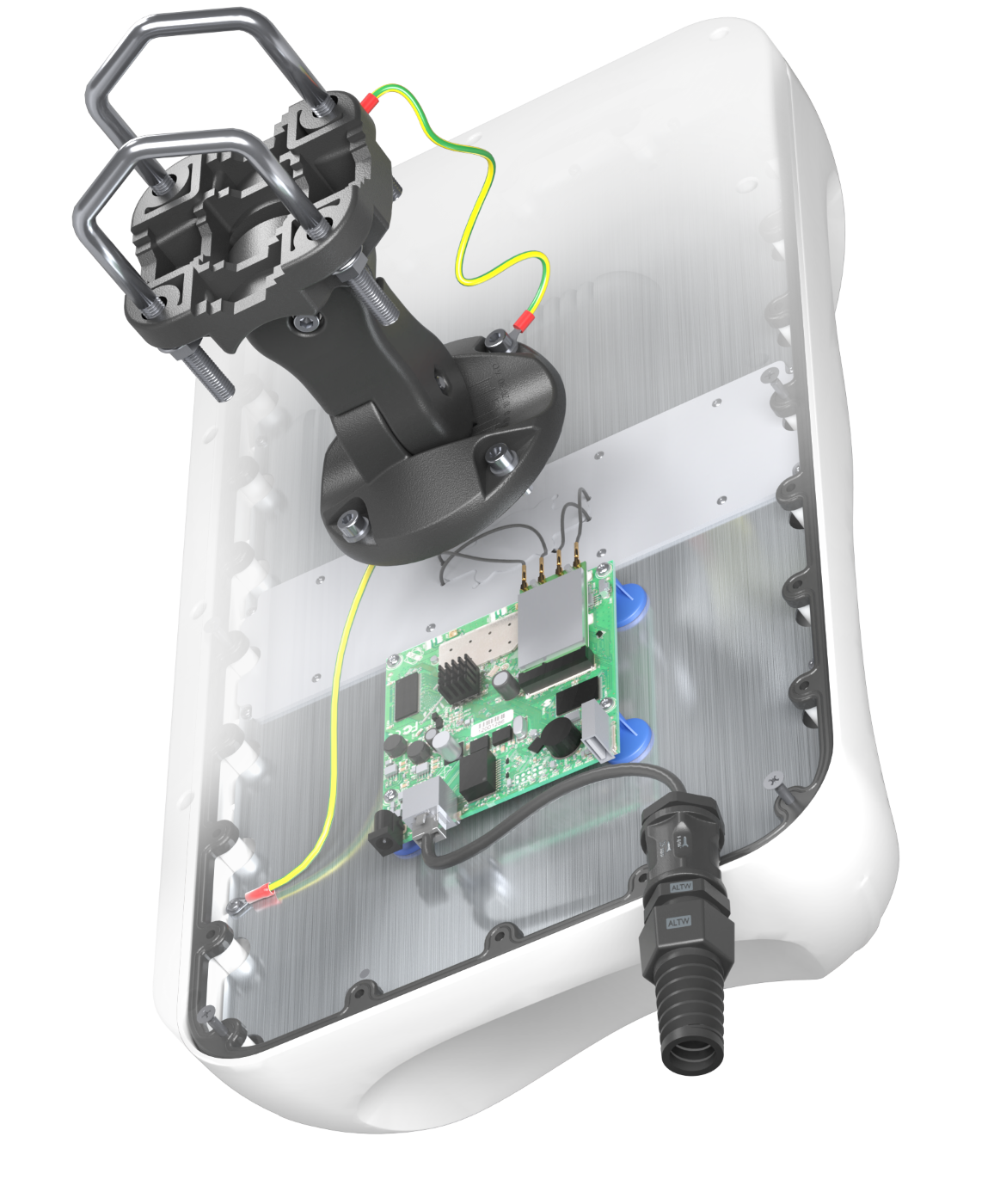

QuMax 4x4 directional 5G antenna for 5G modems is ultra wideband 5G outdoor antenna. It´s primary designed for LTE/5G/3G/2G 2x2 modems. The antenna covers many LTE bands including the new Extended LTE Band 71 and frequencies: 600 - 6000MHz. The mounting bracket allows the antenna to be installed on the pole or on the wall. It features a special place inside to mount your own electronics. The antenna is equipped with MHF4 connectors.

Why QuMax 5G/LTE MIMO 4x4

Learn more about your profit

Wide band 600-6000MHz, 5G technology

Fiberglass, wall or pole mounting bracket

80° beamwidth

7dBi gain

Made in Europe

QuMax 5G/LTE MIMO 4x4

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

617 - 960 MHz : 6 dBi

1.7 - 2.7 GHz : 7 dBi

3.3 - 4.6 GHz : 7 dBi

4.7 - 6.0 GHz : 5.5dBi

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuMax 5G/LTE MIMO 4x4

Gain

Gain of QuMax 5G/LTE MIMO 4x4
PORT 1 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

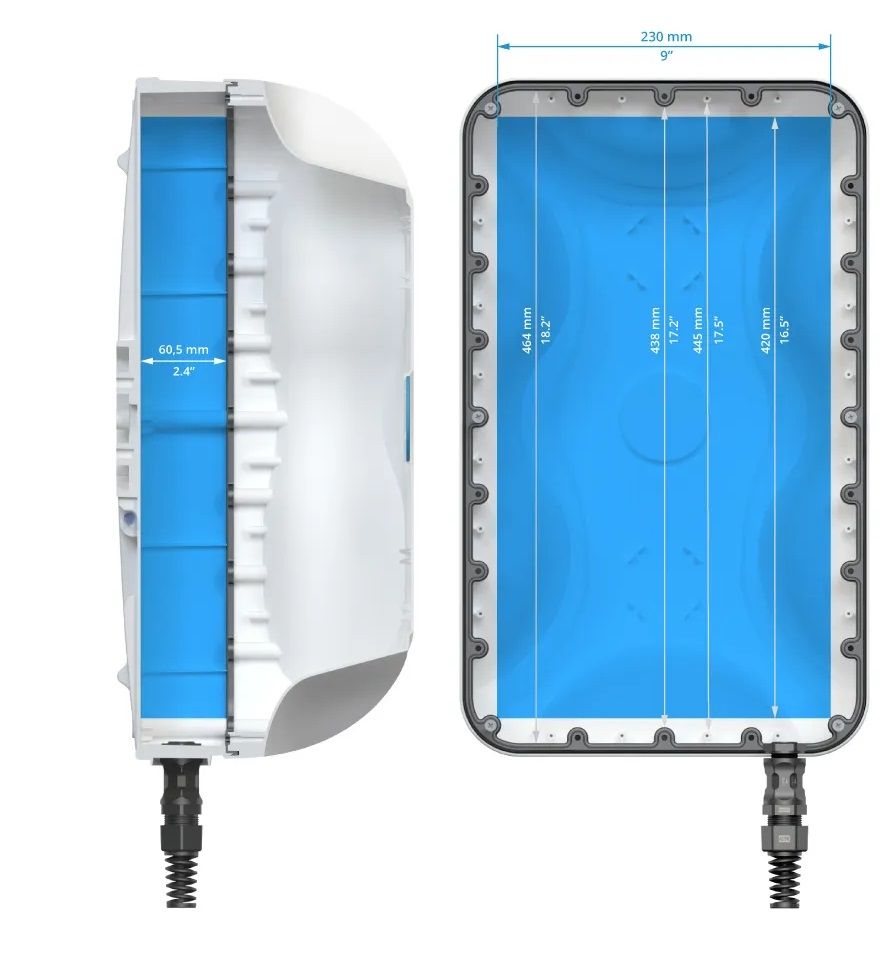

DIMENSIONS

PRODUCT DETAILS
QuMax 5G/LTE MIMO 4x4QuMax 5G/LTE MIMO 4x4
QuMax 5G/LTE MIMO 4x4QuMax 5G/LTE MIMO 4x4
QuMax 5G/LTE MIMO 4x4QuMax 5G/LTE MIMO 4x4

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuMax 5G MIMO 4x4 for 5G/LTE Modems

Parts of QuMax 5G/LTE MIMO 4x4
1 x
Parts of QuMax 5G/LTE MIMO 4x4
1 x
Parts of QuMax 5G/LTE MIMO 4x4
2 x
Parts of QuMax 5G/LTE MIMO 4x4
1 x
Parts of QuMax 5G/LTE MIMO 4x4
4 x M6 x 18
Parts of QuMax 5G/LTE MIMO 4x4
4 x
Parts of QuMax 5G/LTE MIMO 4x4
4 x M8

Download

Datasheet QuMax 5G/LTE MIMO 4x4
