Antenna QuMax for Cradlepoint IBR600C & IBR900 & R500

P/n: ACP69M

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + WI-FI 6E OMNI ANTENNA + GPS ANTENNA + POE SPLITTER + PLACE TO INSTALL CRADLEPOINT IBR600C & IBR900 & R500 (ALL-IN-ONE)

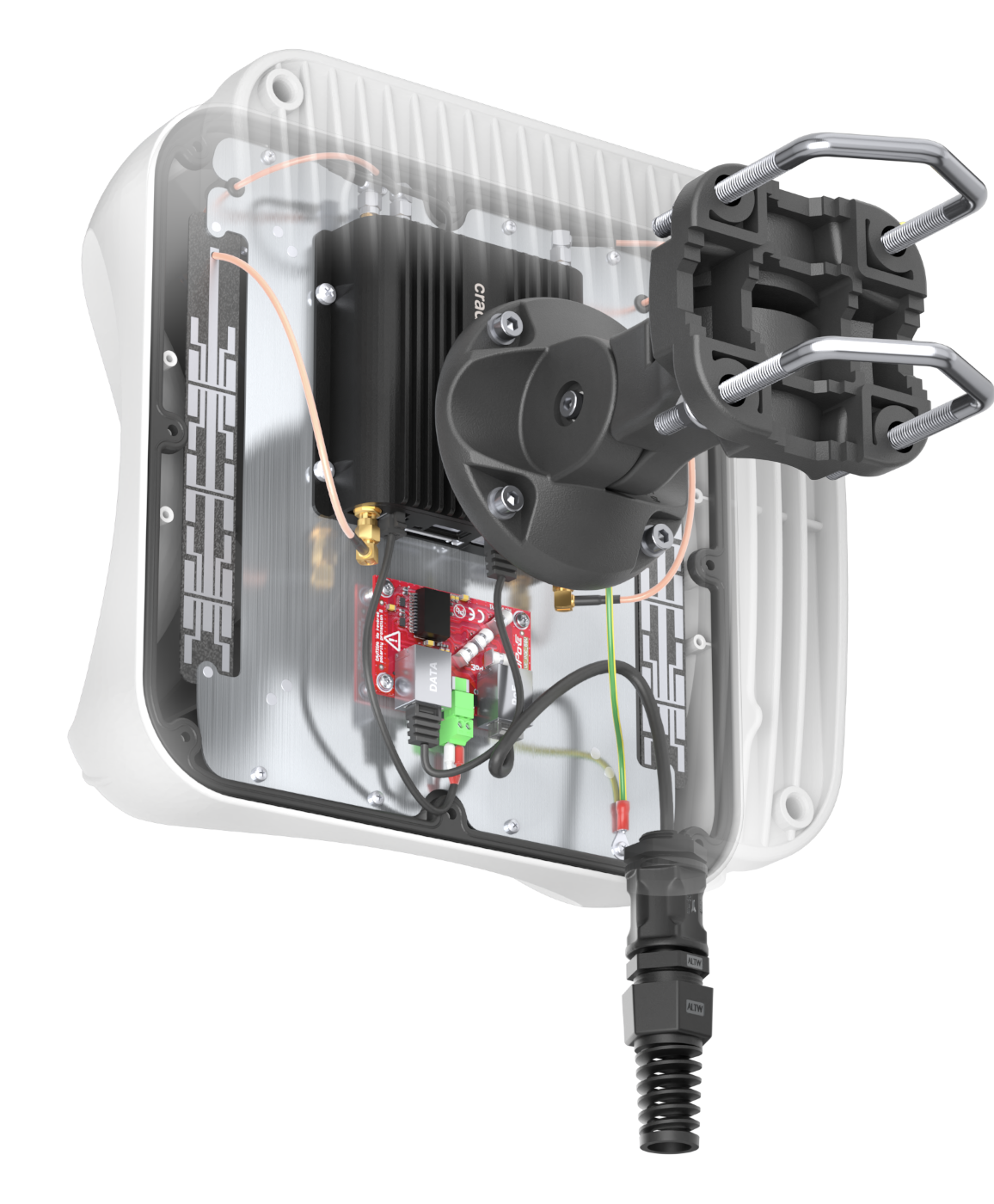

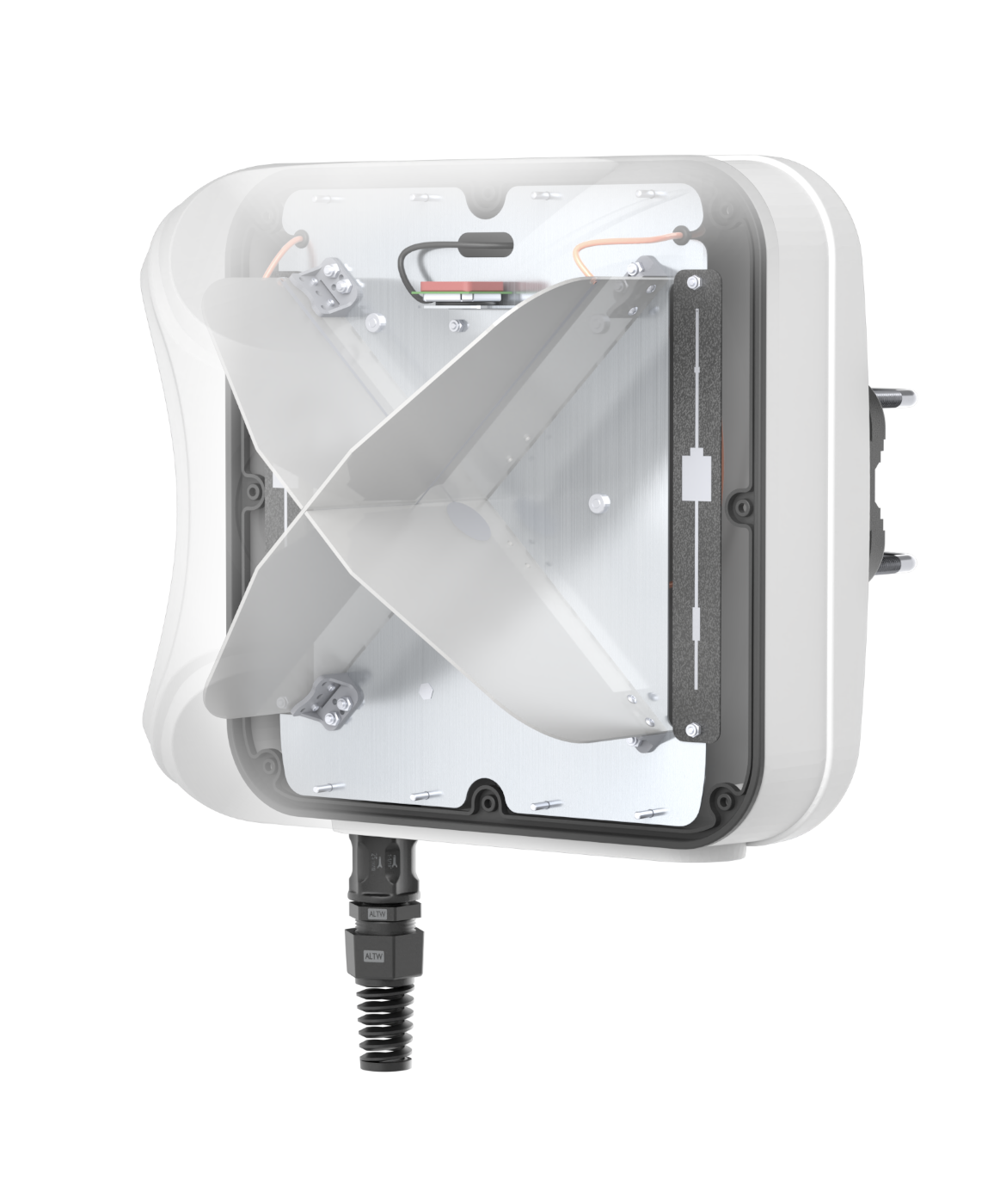

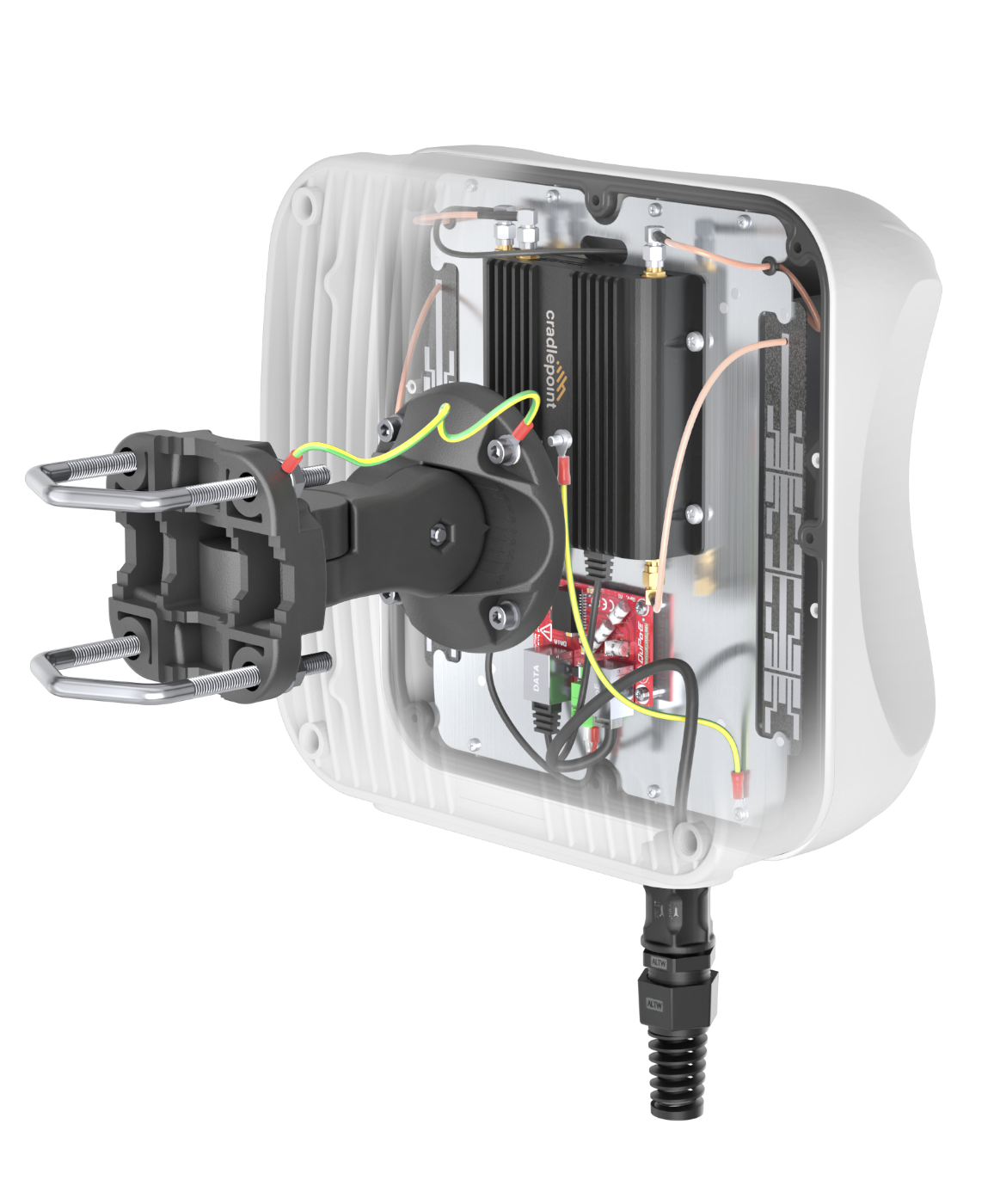

QuMax antenna for Cradlepoint IBR600C & IBR900 & R500 router is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional 5G, omni Wi-Fi and GPS antenna. If you use IBR600c, IBR900 or R500 with QuMax antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuMax for Cradlepoint IBR600C & IBR900 & R500

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP67

MOUNTING SYSTEM WITH TWO PLANES, 60 DEGREES REGULATION

Wide band 600-6000MHz, 5G technology

ANTENNA PERFECTLY MATCHED WITH THE CRADLEPOINT IBR600c & IBR900 & R500

ALL ANTENNAS AND CRADLEPOINT ROUTER INTEGRATED IN ONE ENCLOSURE

Made in Europe

QuMax for Cradlepoint IBR600C & IBR900 & R500

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

617 - 960 MHz : 6 dBi

1.7 - 2.7 GHz : 7 dBi

3.3 - 4.6 GHz : 7 dBi

4.7 - 6.0 GHz : 5.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE VSWR of QuMax for Cradlepoint IBR600C & IBR900 & R500

WI-FI VSWR

WI-FI VSWR of QuMax for Cradlepoint IBR600C & IBR900 & R500

LTE Gain

LTE Gain of QuMax for Cradlepoint IBR600C & IBR900 & R500

WI-FI Gain

WI-FI Gain of QuMax for Cradlepoint IBR600C & IBR900 & R500
PORT 1 - 5G/LTE from 700MHz to 900MHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 700MHz to 900MHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
Wi-Fi From 2.4 GHz to 6.5 GHz
Elevation
Azimuth
