Antenna QuMax for Advantech ICR-20xx & ICR-24xx

P/n: AA2024M

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + POE SPLITTER + PLACE TO INSTALL ADVANTECH ICR-20xx & ICR-24xx (ALL-IN-ONE)

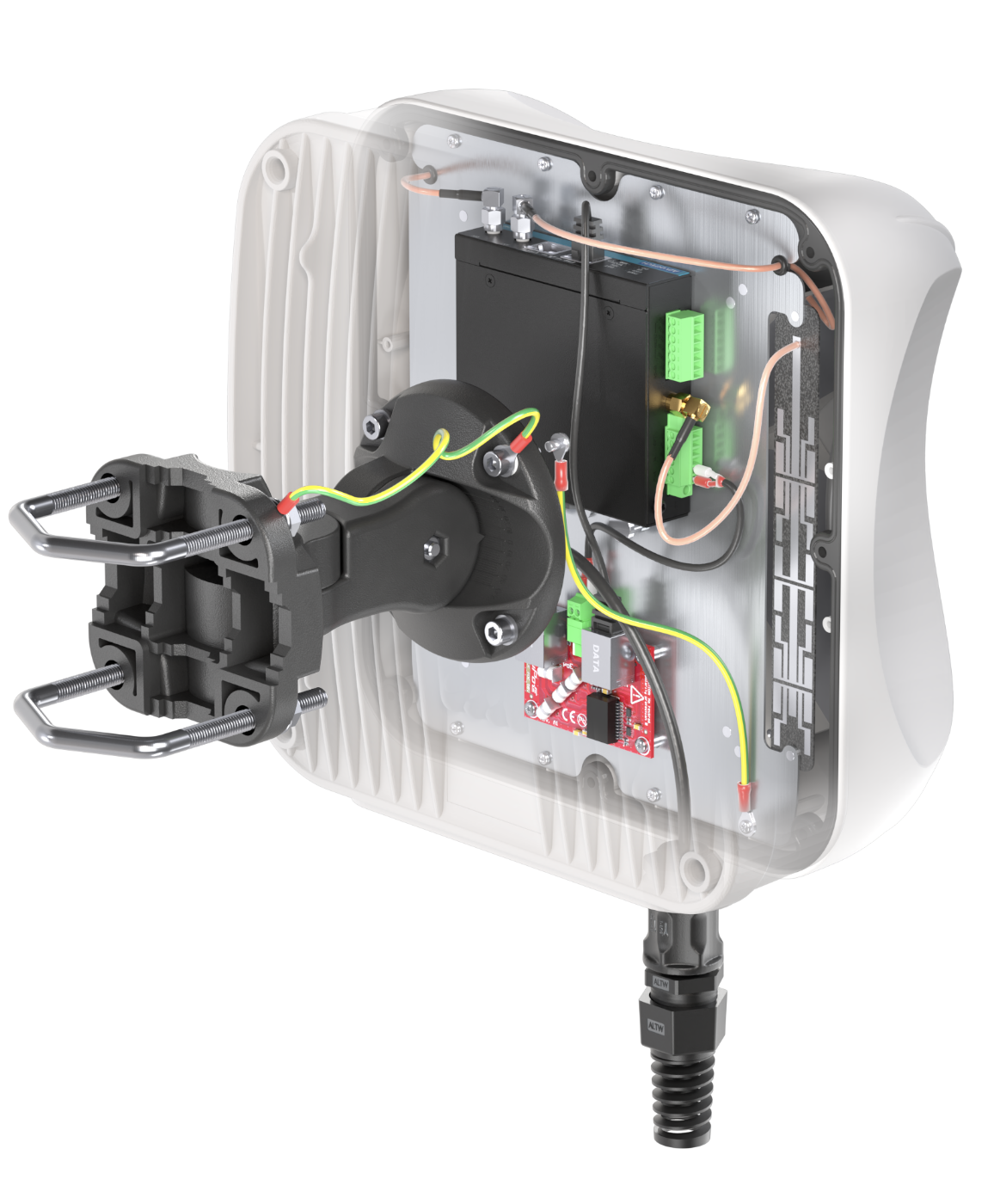

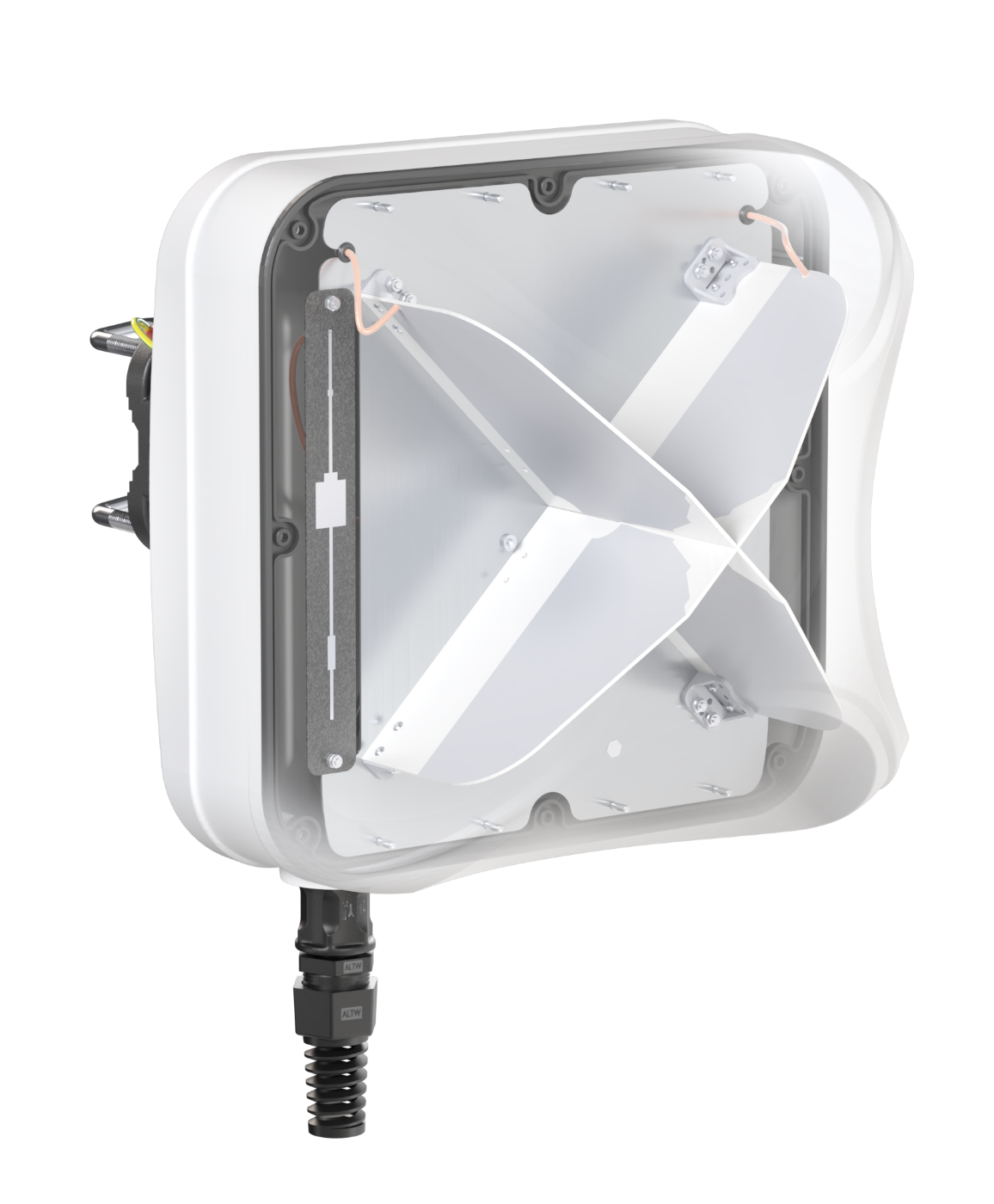

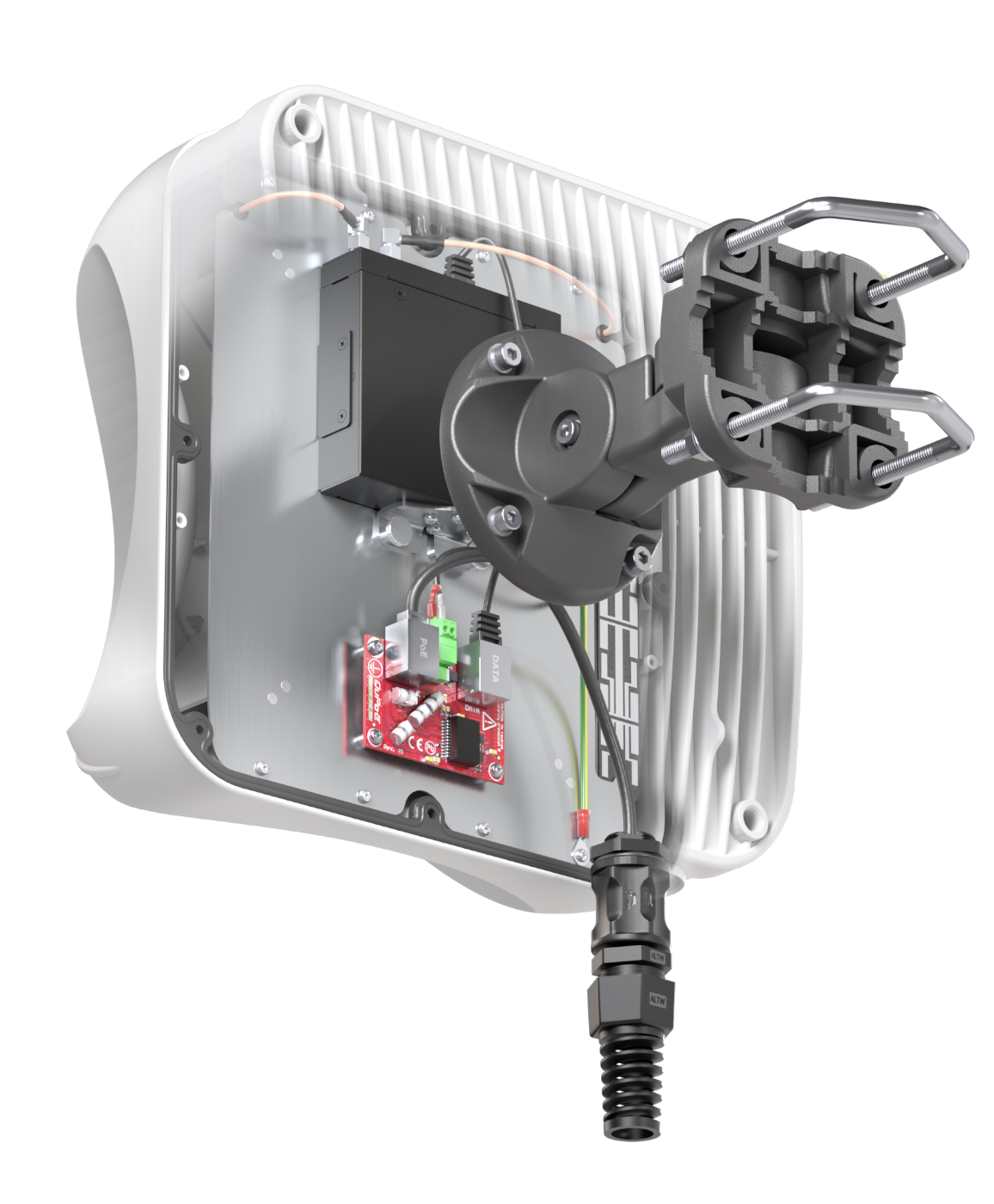

QuMax antenna for Advantech ICR-20xx & ICR-24xx router is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional 5G antenna. If you use ICR-20xx or ICR-24xx with QuMax antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuMax for Advantech ICR-20xx & ICR-24xx

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP67

MOUNTING SYSTEM WITH TWO PLANES, 60 DEGREES REGULATION

Wide band 600-6000MHz, 5G technology

ANTENNA PERFECTLY MATCHED WITH THE ADVANTECH ICR-20XX & ICR-24XX

ALL ANTENNAS AND ADVANTECH ROUTER INTEGRATED IN ONE ENCLOSURE

Made in Europe

QuMax for Advantech ICR-20xx & ICR-24xx

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

Wi-Fi SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

617 - 960 MHz : 6 dBi

1.7 - 2.7 GHz : 7 dBi

3.3 - 4.6 GHz : 7 dBi

4.7 - 6.0 GHz : 5.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

LTE VSWR

LTE VSWR of QuMax for Advantech ICR-20xx & ICR-24xx

LTE Gain

LTE Gain of QuMax for Advantech ICR-20xx & ICR-24xx

Wi-Fi VSWR

Wi-Fi VSWR of QuMax for Advantech ICR-20xx & ICR-24xx

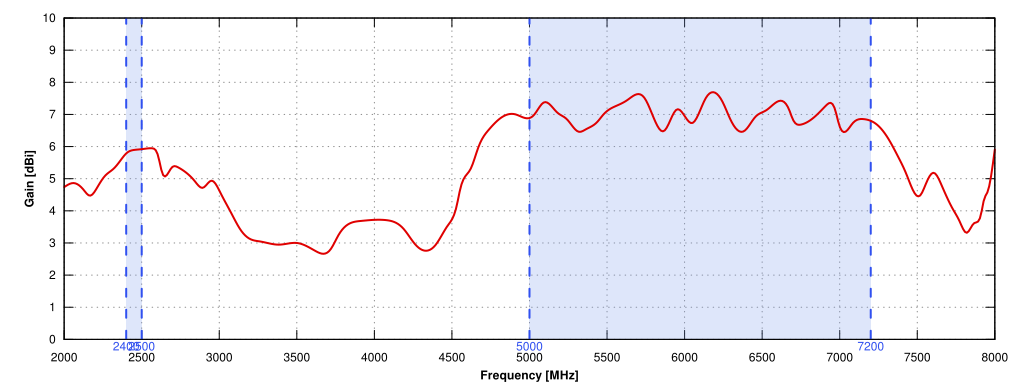

Wi-Fi Gain

Wi-Fi Gain of QuMax for Advantech ICR-20xx & ICR-24xx
PORT 1 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
Wi-Fi From 2.4 GHz to 6.5 GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS
