1. What does it mean that the antenna is directional?

Type of antenna which maximizes its gain in particular direction. Like a flashlight concentrates its light at one spot, directional antenna emits radio waves in a concentrated beam. Directioanl antenna radiation pattern: To learn more about directional antennas take a look at -> „link”

2. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

Porównaj

QuMax 5G 802.3at for Cradlepoint R1900, R980, R920, S700

Antenna QuMax 5G 802.3at for Cradlepoint R1900, R980, R920, S700

P/n: ACP1900MAT

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + WIFI OMNI ANTENNA + BLUETOOTH ANTENNA + GPS ANTENNA + 802.3AT POE SPLITTER + PLACE TO INSTALL CRADLEPOINT R1900/R980/R920/S700 (ALL-IN-ONE)

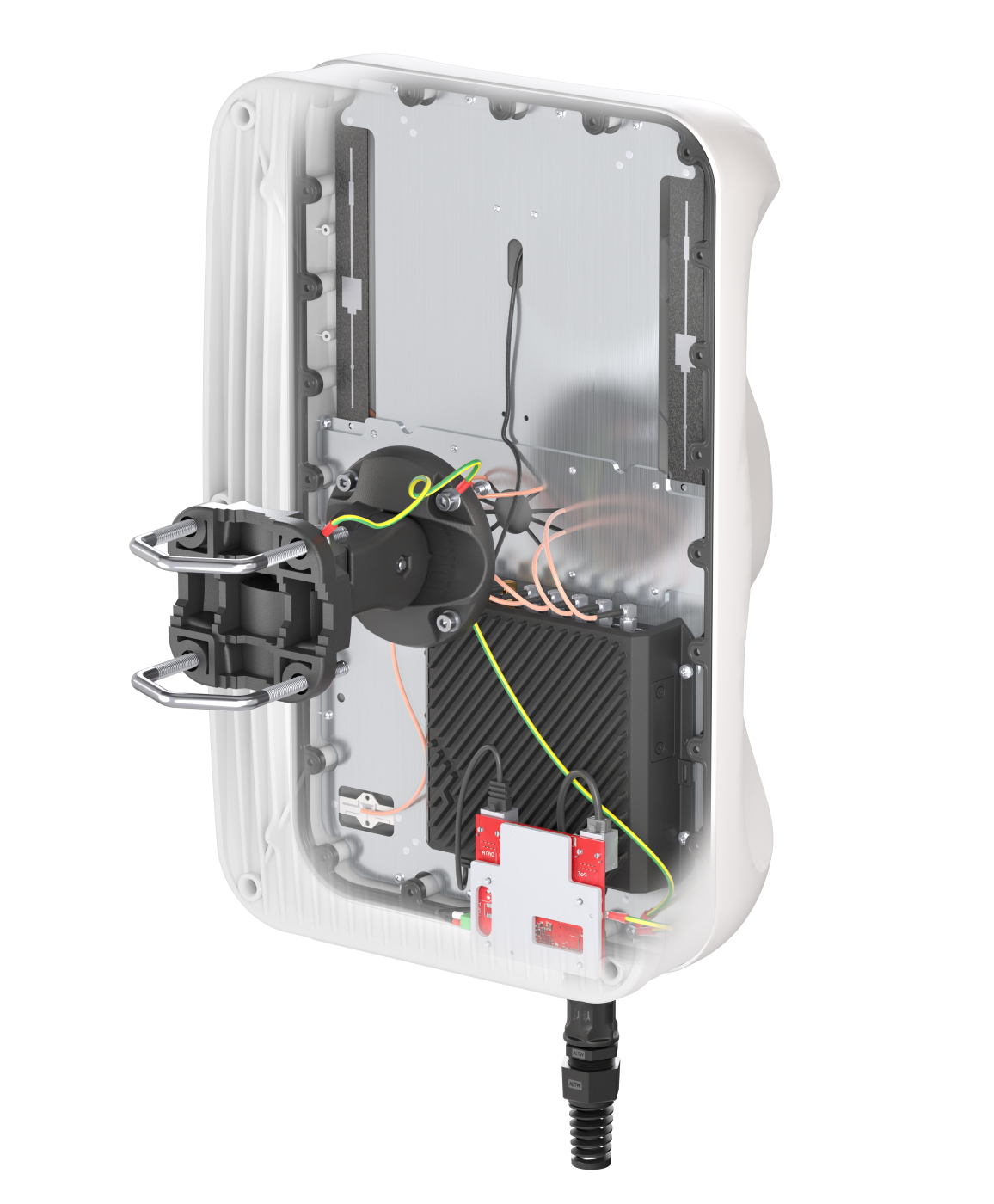

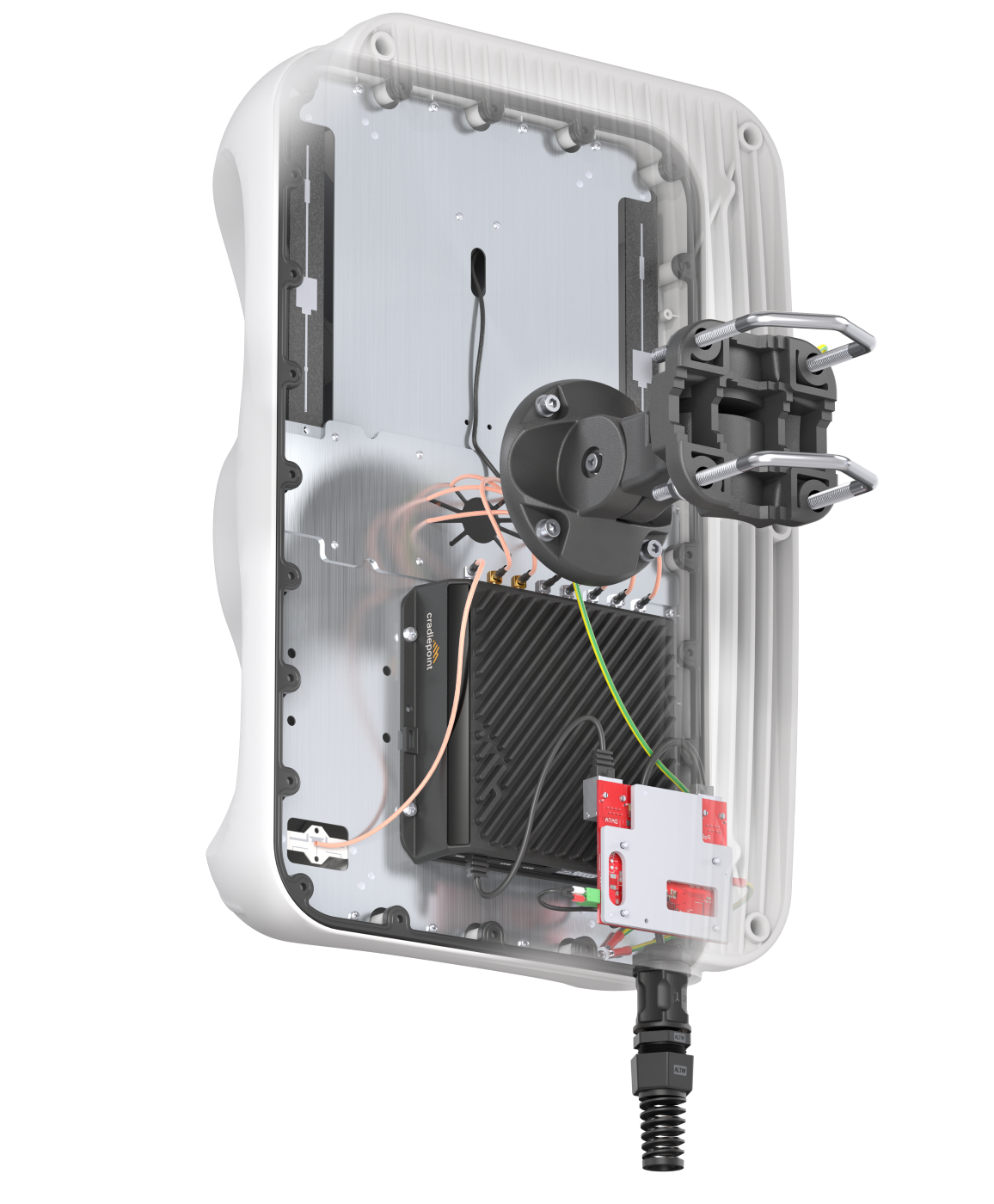

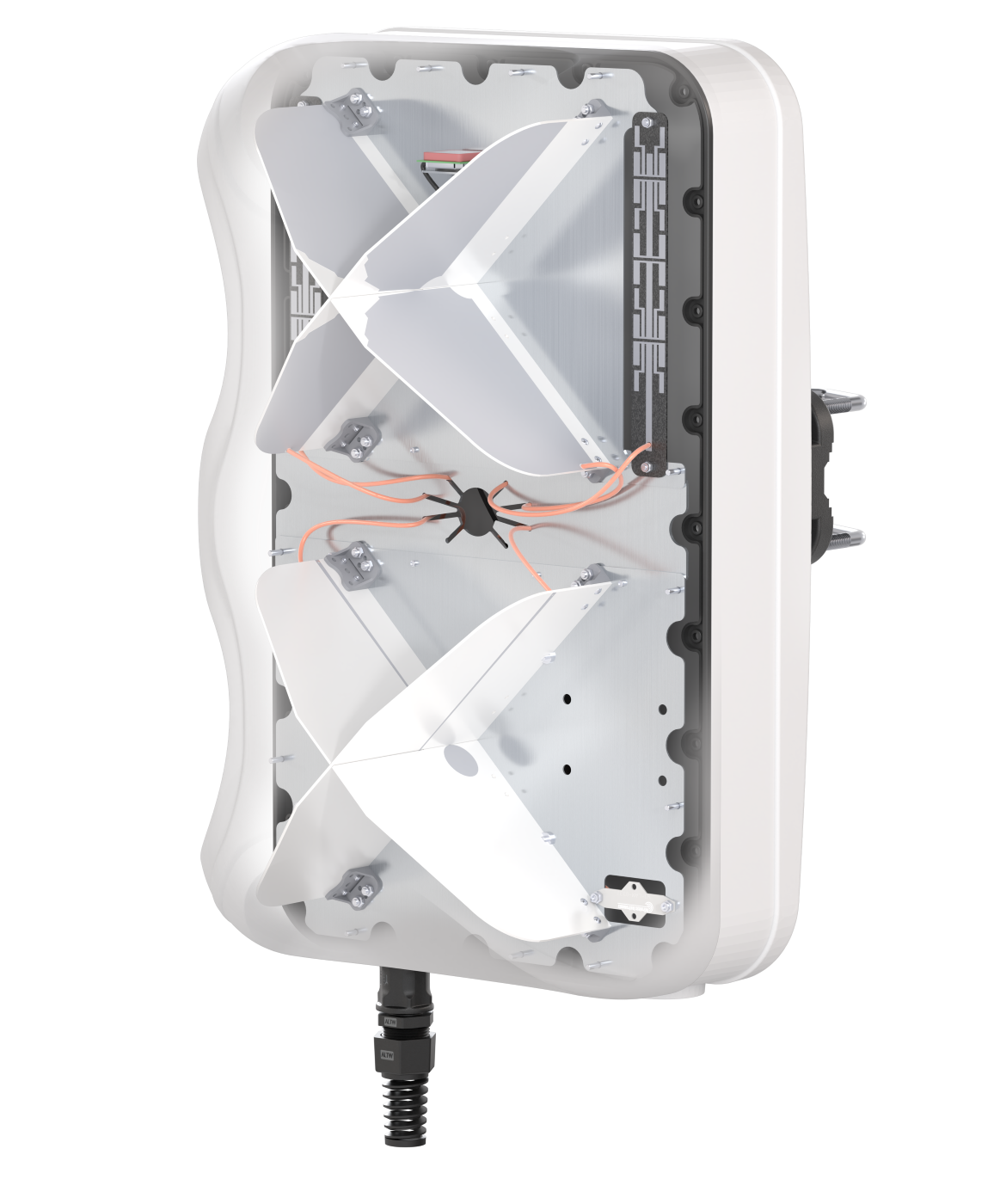

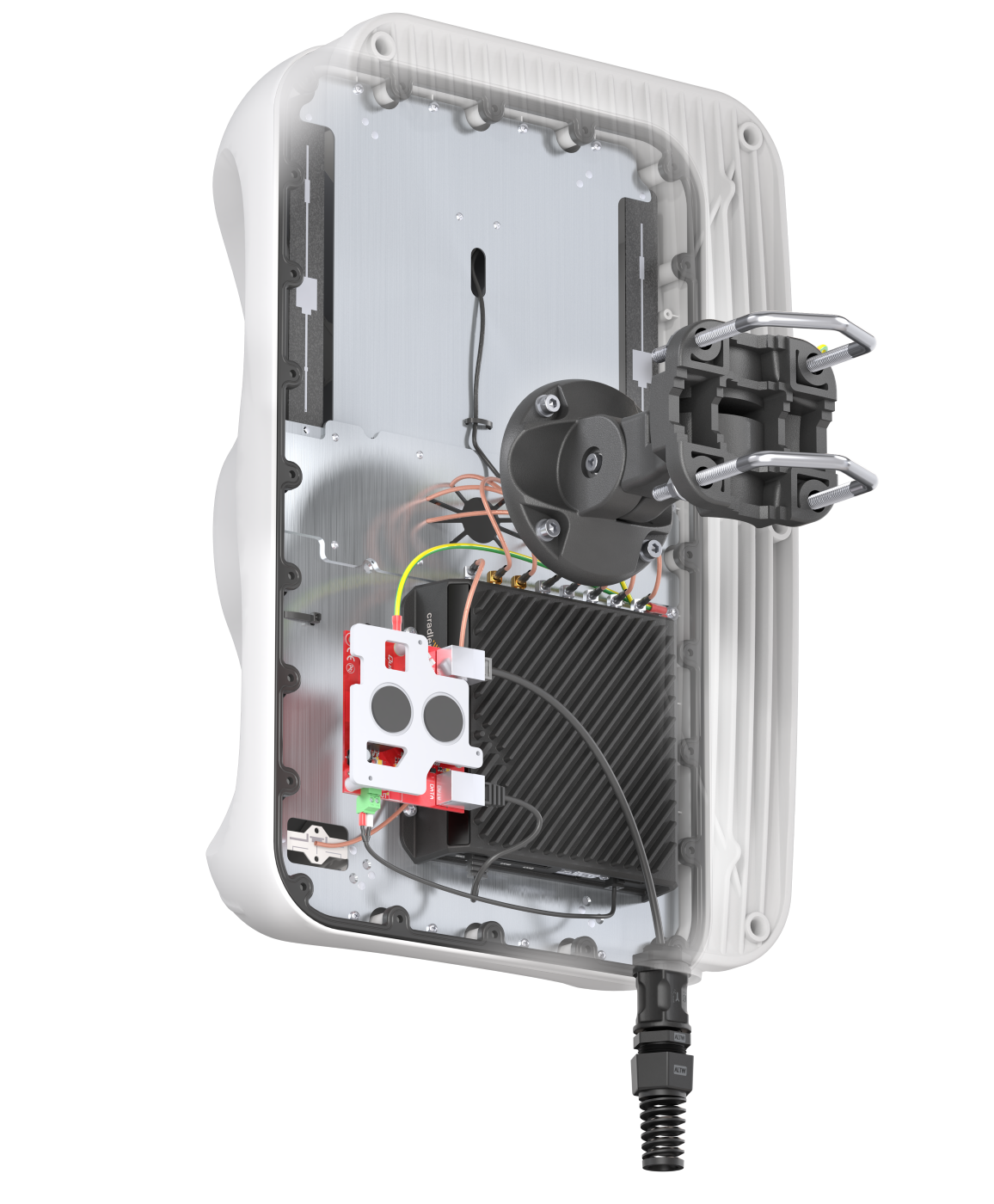

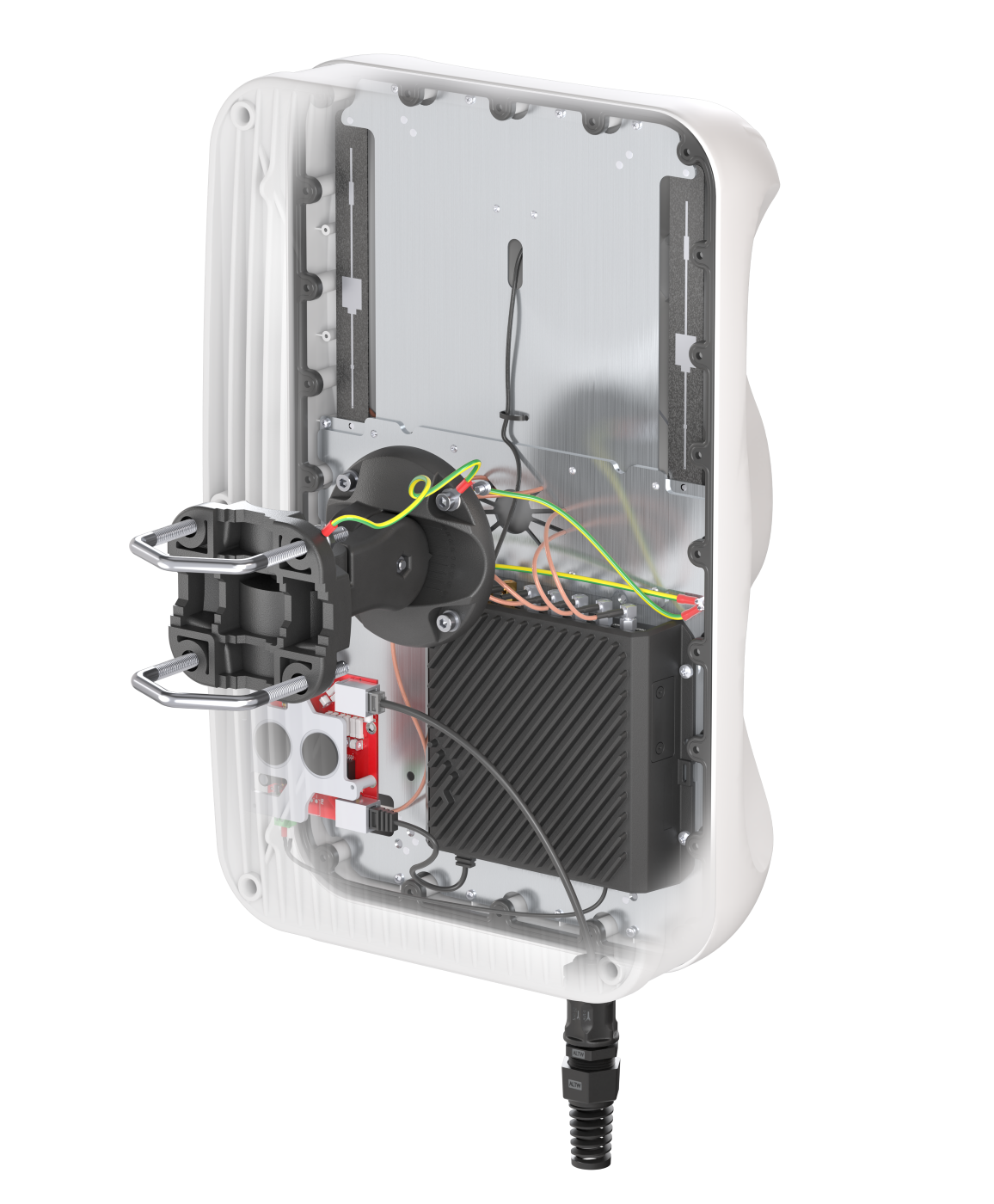

QuMax 5G 802.3at for Cradlepoint R1900, R980, R920, S700 router is dedicated to connections with long distance to base station. It has embedded directional 5G, Wi-Fi, Bluetooth and GPS antenna. If you use R1900/R980/R920/S700 with QuMax antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure. It is the first choice for fixed installations in industrial environment.

The set contains a 802.3at PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Technical specification

Any question?

Why QuMax 5G 802.3at for Cradlepoint R1900, R980, R920, S700

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the Cradlepoint R1900/R980/R920/S700

All antennas and Cradlepoint router integrated in one enclosure

Made in Europe

SPECIFICATION

PRODUCT DETAILS

FREQUENCY

0.617 - 1.0 GHz

1.0 - 3.08 GHz

3.3 - 5.0 GHz

5.0 - 6.5 GHz

MAX. GAIN

0.617 - 1.0 GHz : 6 dBi

1.0 - 3.08 GHz : 8 dBi

3.3 - 5.0 GHz : 6.8 dBi

5.0 - 6.5 GHz : 5.5 dBi

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 74, 75, 76, 85, 103, 106, 111, 252, 253, 254, 255, 256

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n54, n65, n66, n67, n68, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n102, n106, n109, n110, n250, n251, n252, n253, n254, n255, n256

VSWR

<2.00, max <3.00

BEAMWIDTH

80°/80° ±15°

POLARIZATION

Vertical

IMPEDANCE

50 Ω
