Antenna QuMax LTE 802.3at for Cradlepoint R920, S700

P/n: ACP920MAT

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + WI-FI 6E OMNI ANTENNA + BLUETOOTH ANTENNA + GPS ANTENNA + 802.3AT POE SPLITTER + PLACE TO INSTALL CRADLEPOINT R920 (ALL-IN-ONE)

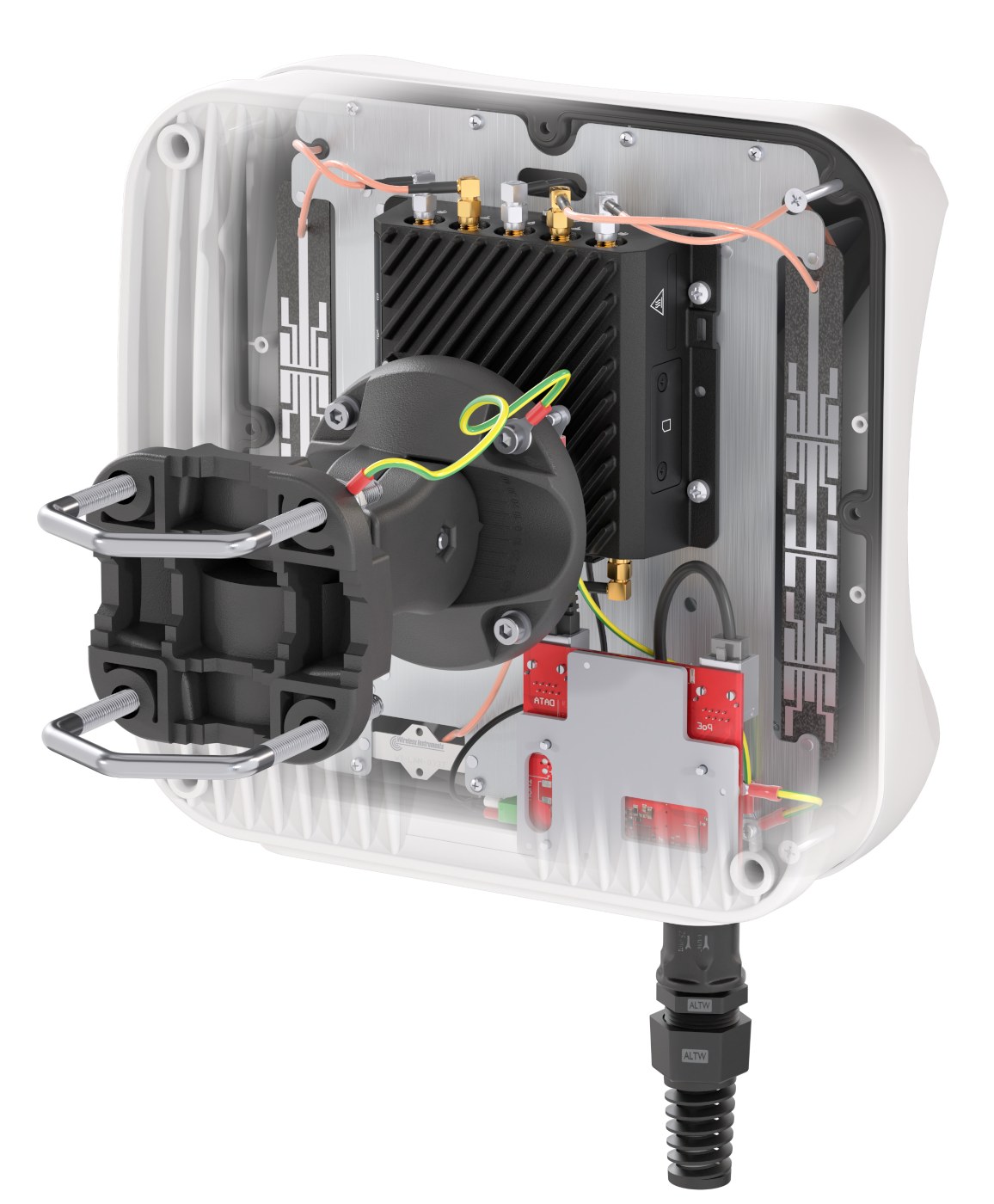

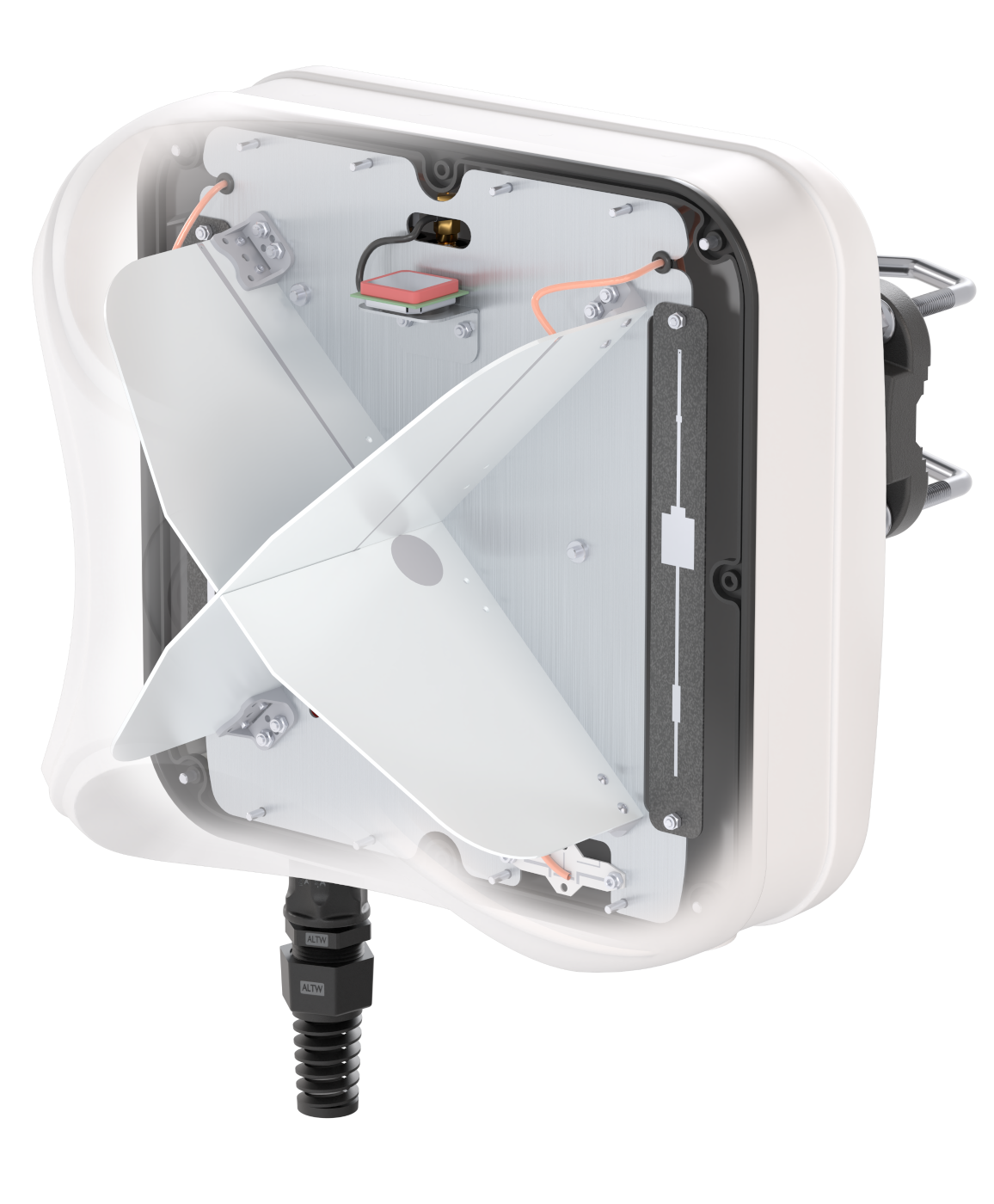

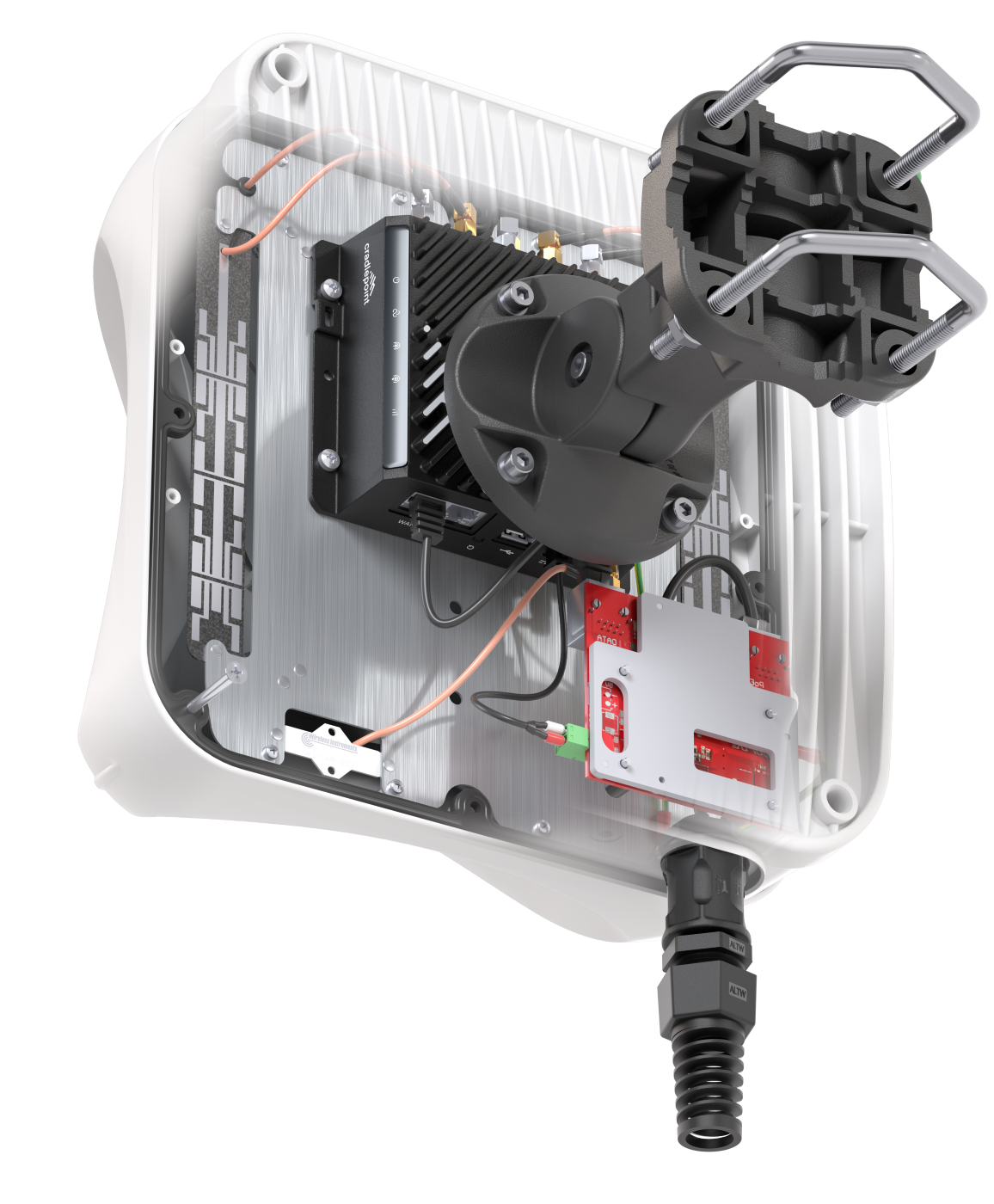

QuMax LTE 802.3at for Cradlepoint R920, S700 router is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional 5G, omni Wi-Fi, Bluetooth and GPS antenna. If you use R920 or S700 with QuMax antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a 802.3at PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Technical specification

Any question?

Contact us

Why QuMax LTE 802.3at for Cradlepoint R920, S700

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP68

MOUNTING SYSTEM WITH TWO PLANES, 60 DEGREES REGULATION

Wide band 600-6000MHz, 5G technology

ANTENNA PERFECTLY MATCHED WITH THE CRADLEPOINT R920/S700

ALL ANTENNAS AND CRADLEPOINT ROUTER INTEGRATED IN ONE ENCLOSURE

Made in Europe

QuMax LTE 802.3at for Cradlepoint R920, S700

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

GPS ACTIVE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

0.617 - 1.0 GHz

1.0 - 3.08 GHz

3.3 - 5.0 GHz

5.0 - 6.5 GHz

Max. Gain

0.617 - 1.0 GHz : 6 dBi

1.0 - 3.08 GHz : 8 dBi

3.3 - 5.0 GHz : 6.8 dBi

5.0 - 6.5 GHz : 5.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 74, 75, 76, 85, 103, 106, 111, 252, 253, 254, 255, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n54, n65, n66, n67, n68, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n102, n106, n109, n110, n250, n251, n252, n253, n254, n255, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

CONNECTOR

2x SMA

Cable type

RG316
