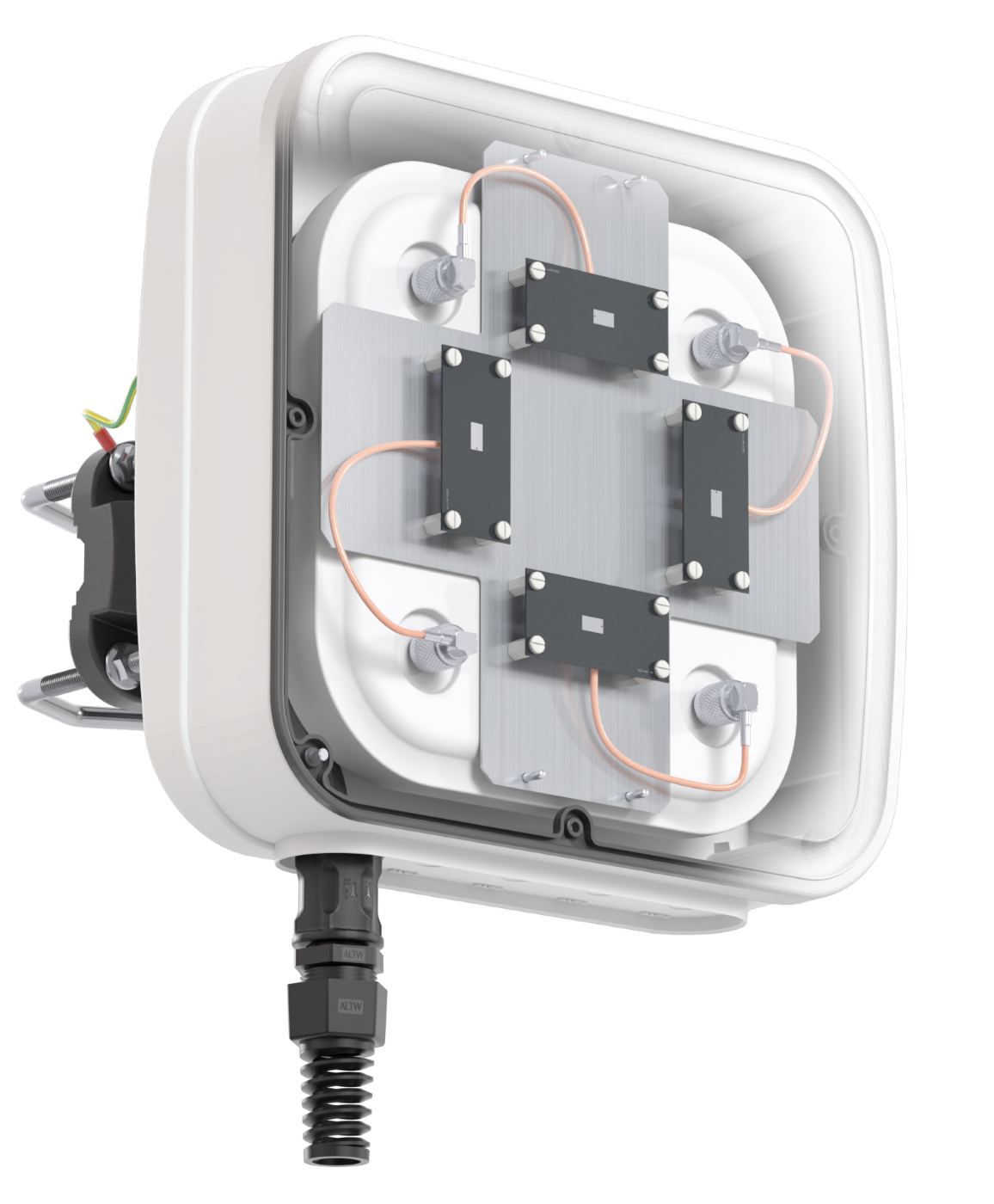

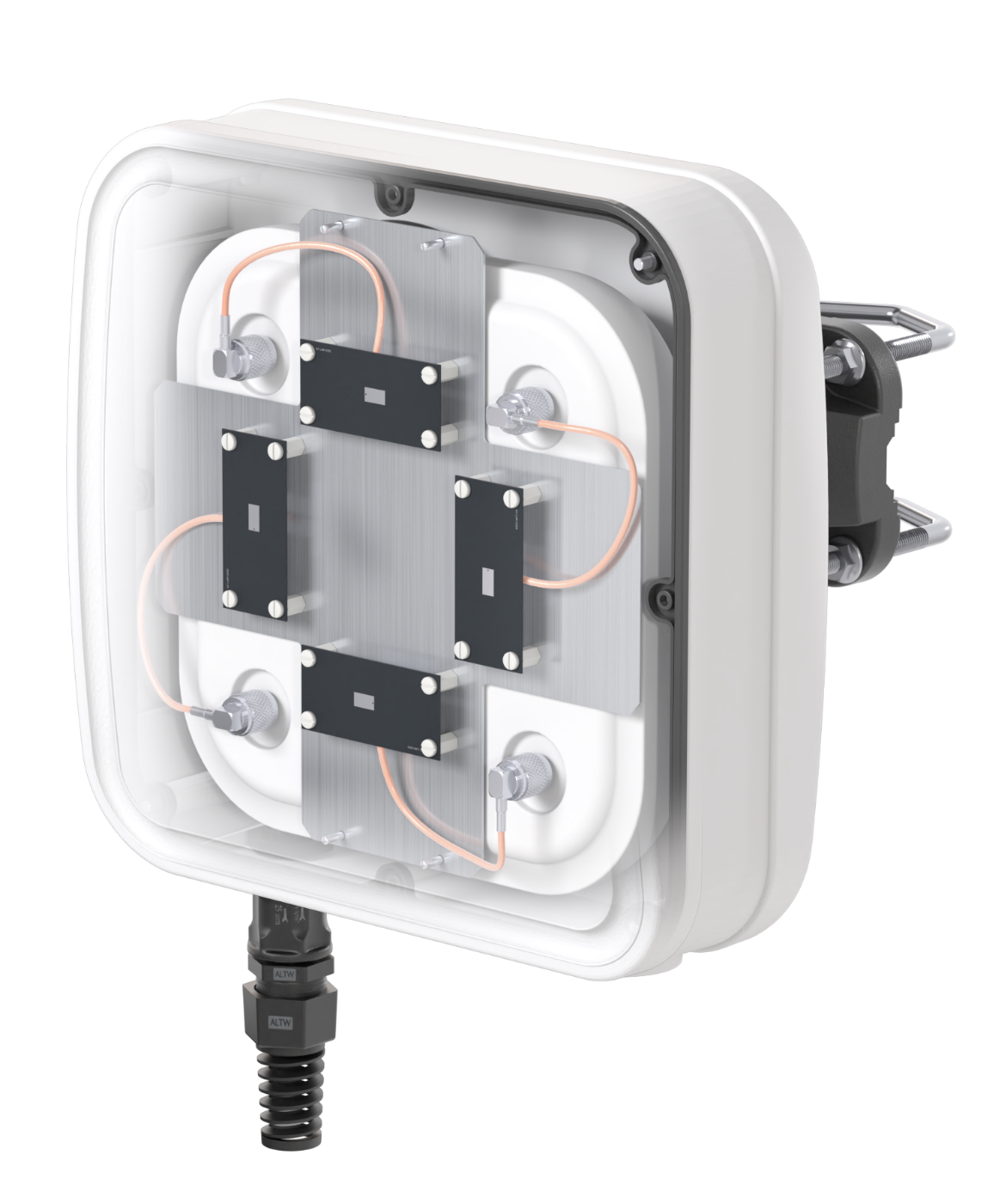

Antenna QuMax for Cisco 9120AXE

P/n: AC9120.8HV.60.M

INTEGRATED MULTI-BAND WI-FI DIRECTIONAL ANTENNA + PLACE TO INSTALL CISCO 9120AXE (ALL-IN-ONE)

QuMax for Cisco 9120AXE is an outdoor Wi-Fi antenna designed to provide reliable wireless connectivity in a variety of environments. It is dedicated to connections with long distance to base station. It is designed to have Cisco 9120AXE router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.

Why QuMax for Cisco 9120AXE

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the access point

Wall or mast mounting system with two planes, 60 degrees regulation

Made in Europe

QuMax for Cisco 9120AXE

SPECIFICATION

PRODUCT DETAILS

Wi-Fi SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

Frequency

2.4 - 2.5 GHz

5 - 7.125 GHz

Gain

2.4 - 2.5 GHz: 8 dBi

5 - 7.125 GHz: 9 dBi

VSWR

< 1.80

Beamwidth

2.4 - 2.5 GHz - 65°/65°

5 - 7.125 GHz - 60°/60°

Polarization

Horizontal

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuMax for Cisco 9120AXE

Gain

Gain of QuMax for Cisco 9120AXE
2.4GHz to 2.5GHz
PORT 1&3 Elevation
PORT 1&3 Azimuth
5GHz to 6GHz
PORT 1&3 Elevation
PORT 1&3 Azimuth
2.4GHz to 2.5GHz
PORT 2&4 Elevation
PORT 2&4 Azimuth
5GHz to 6GHz
PORT 2&4 Elevation
PORT 2&4 Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Cisco 9120AXEQuMax for Cisco 9120AXE
QuMax for Cisco 9120AXEQuMax for Cisco 9120AXE
QuMax for Cisco 9120AXEQuMax for Cisco 9120AXE

Download

Datasheet QuMax for Cisco 9120AXE
Download
Installation Guide
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax for Cisco 9120AXE
Use case QuMax for Cisco 9120AXE
Use case QuMax for Cisco 9120AXE
