1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

QuMax for Peplink MAX BR1 Mini (HW3) & M2M

Antenna QuMax for Peplink MAX BR1 Mini (HW3) & M2M

P/n: APBM3M

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + WI-FI OMNI ANTENNA + GPS ANTENNA + PLACE TO INSTALL PEPLINK MAX BR1 MINI (HW3) & M2M (ALL-IN-ONE)

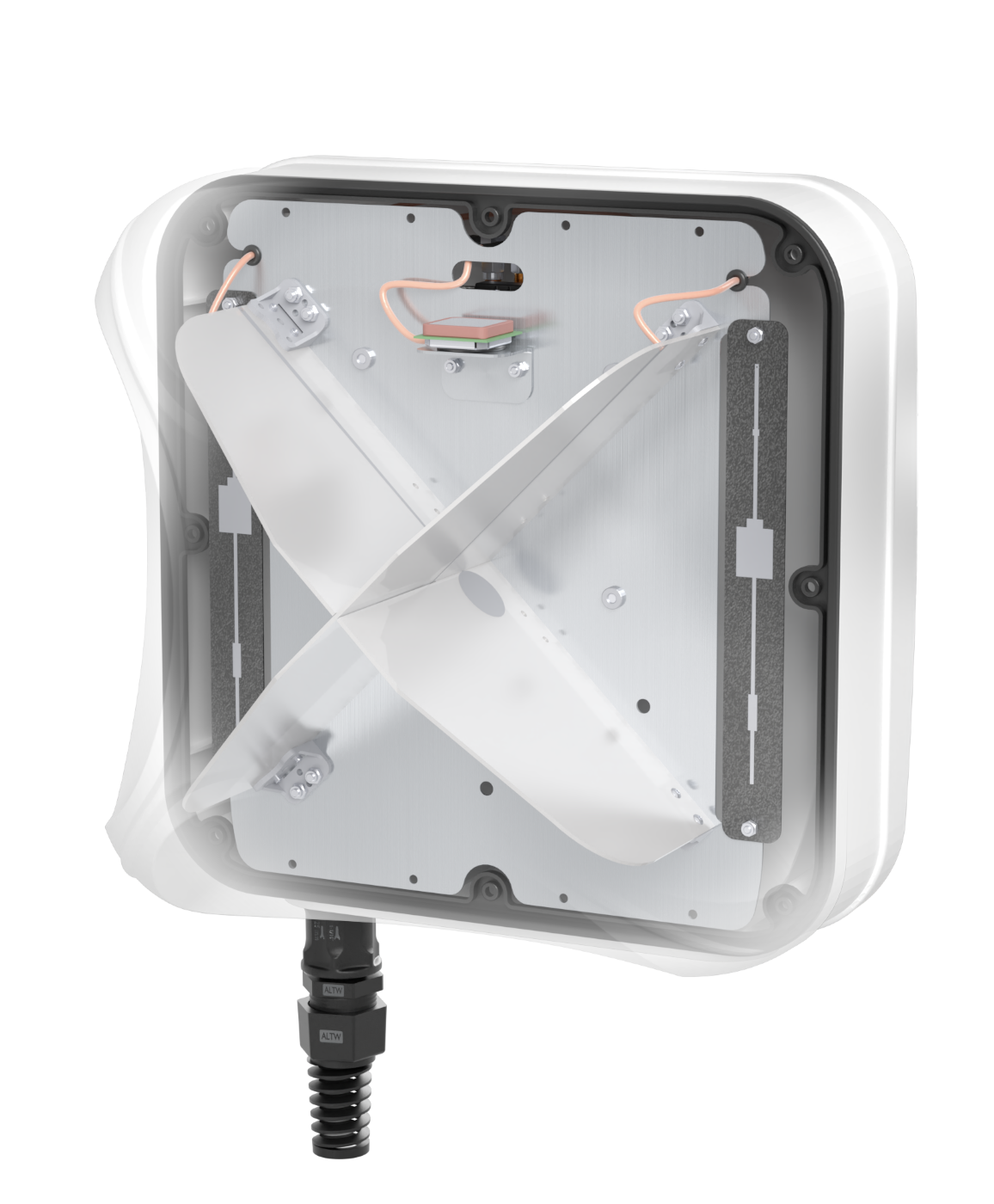

QuMax antenna for Peplink MAX BR1 Mini (HW3) & M2M router is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional 5G, omni Wi-Fi and GPS antenna. If you use MAX BR1 Mini (HW3) or M2M with QuMax antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Technical specification

Any question?

Why QuMax for Peplink MAX BR1 Mini (HW3) & M2M

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP67

MOUNTING SYSTEM WITH TWO PLANES, 60 DEGREES REGULATION

Wide band 600-6000MHz, 5G technology

ANTENNA PERFECTLY MATCHED WITH THE Peplink MAX BR1 Mini (HW3) & M2M

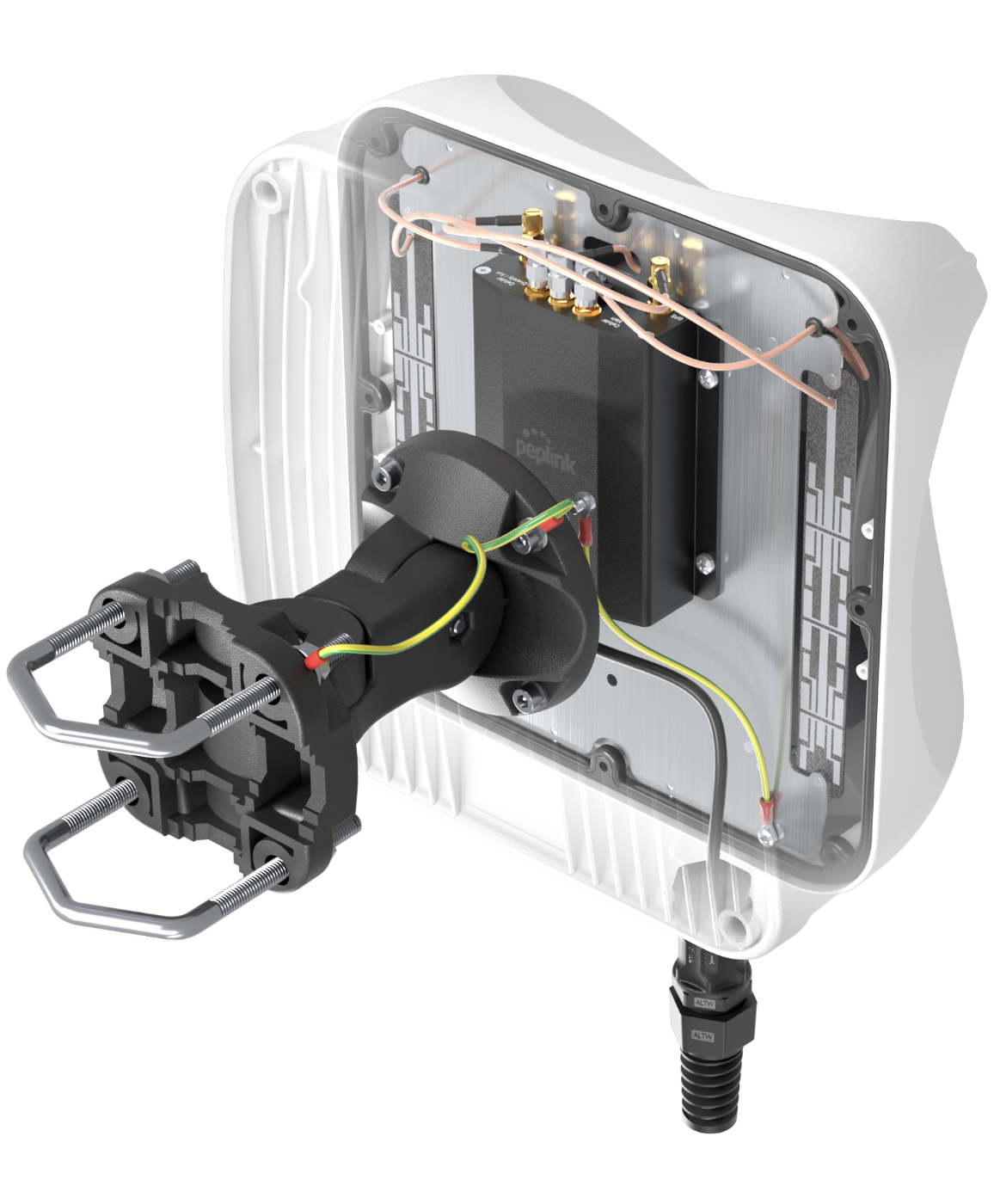

ALL ANTENNAS AND Peplink ROUTER INTEGRATED IN ONE ENCLOSURE

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

617 - 960 MHz : 6 dBi

1.7 - 2.7 GHz : 7 dBi

3.3 - 4.6 GHz : 7 dBi

4.7 - 6.0 GHz : 5.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω
