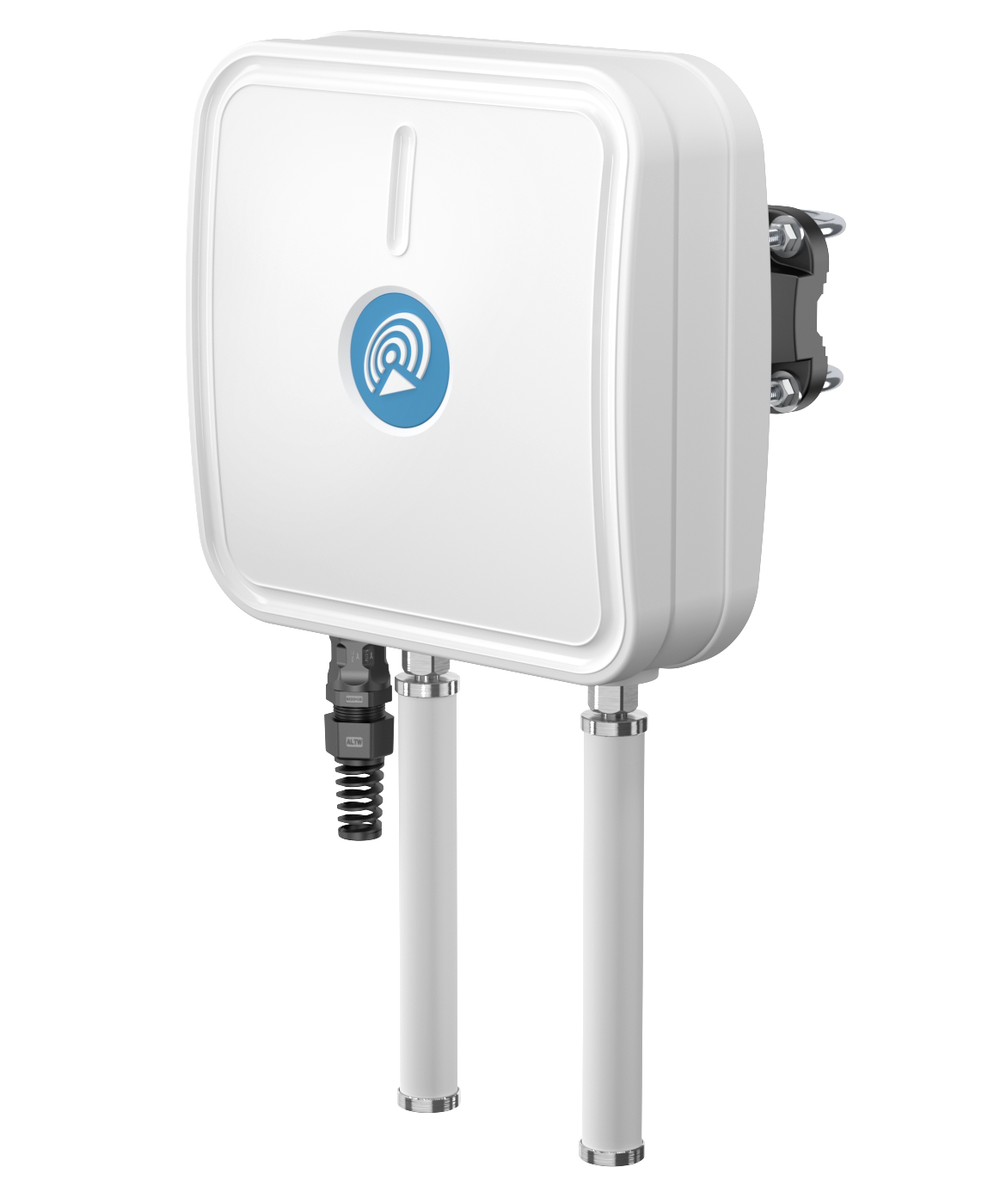

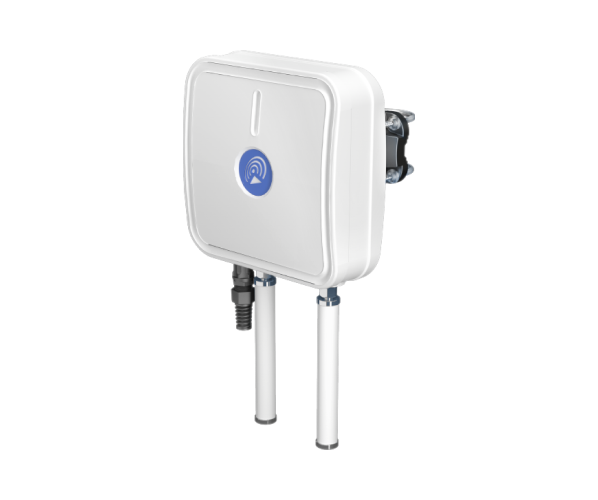

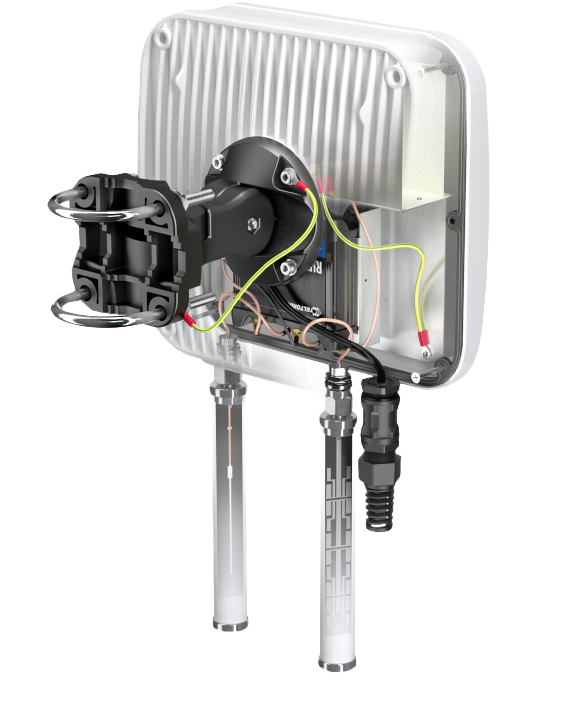

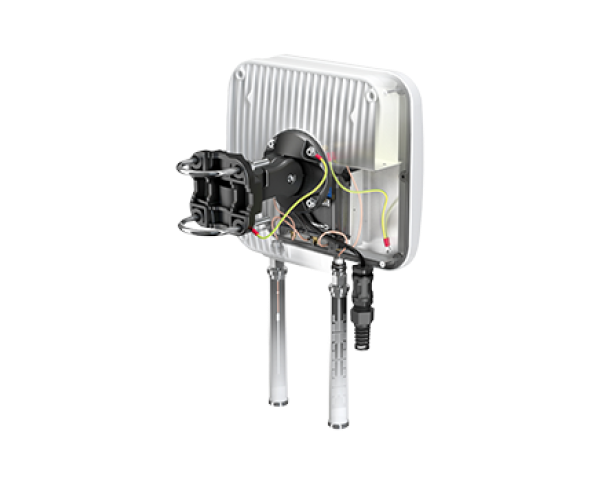

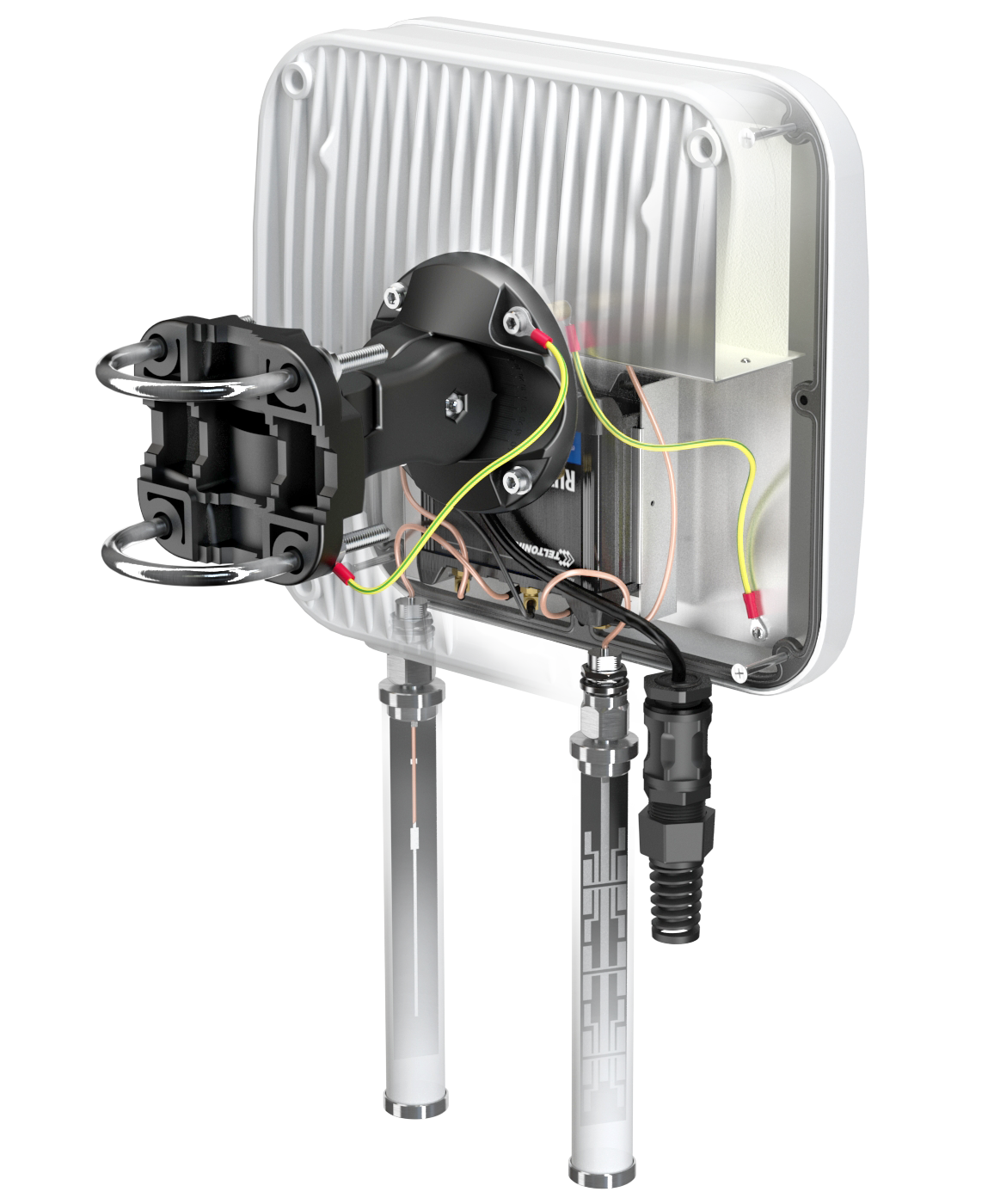

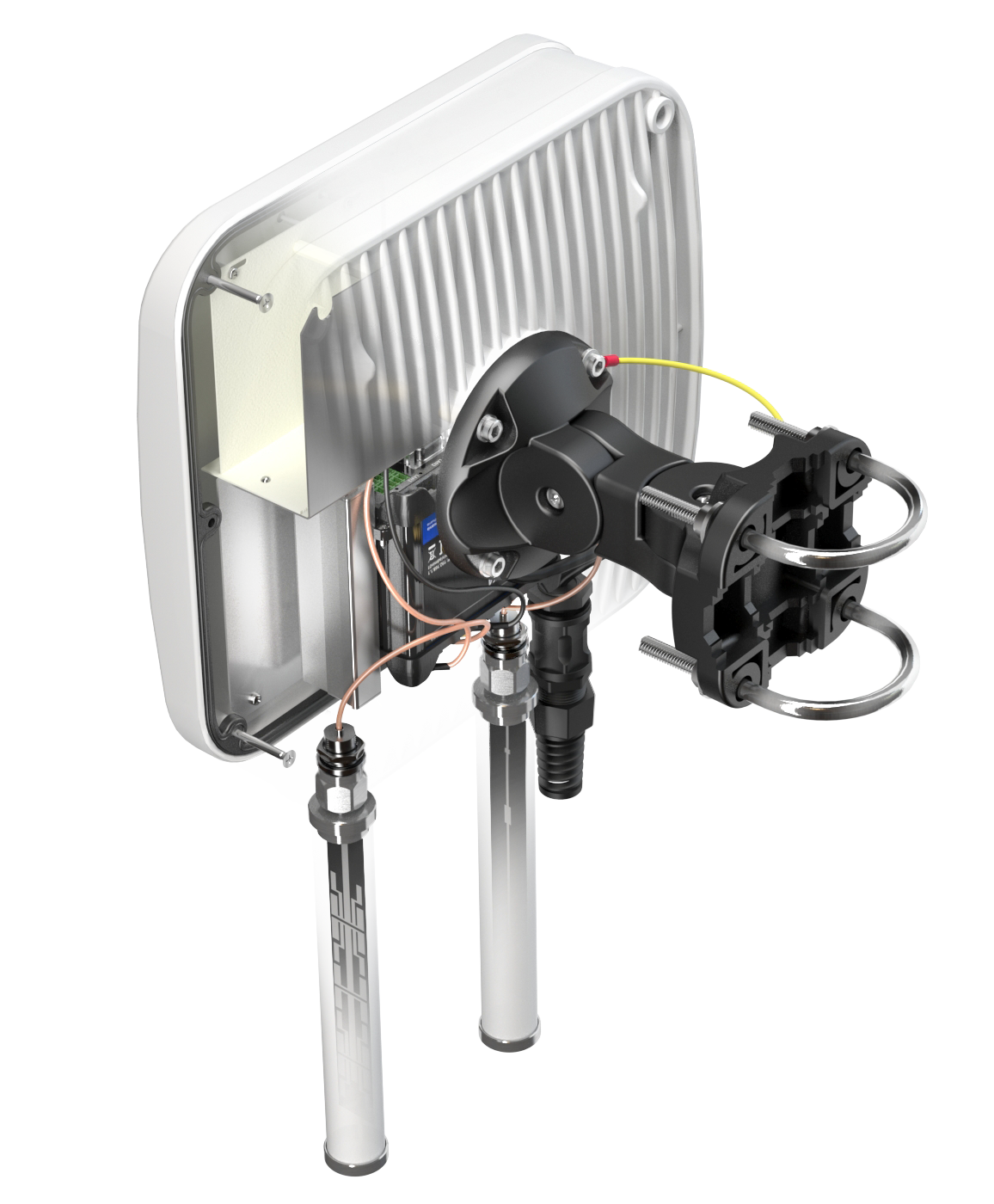

Antenna QuMax for Teltonika RUT956/RUT955

P/n: A955M

Integrated outdoor multi-band high power LTE directional antenna + outdoor Wi-Fi omni antenna + GPS antenna + place to install Teltonika RUT956 or RUT955 (All-in-one)

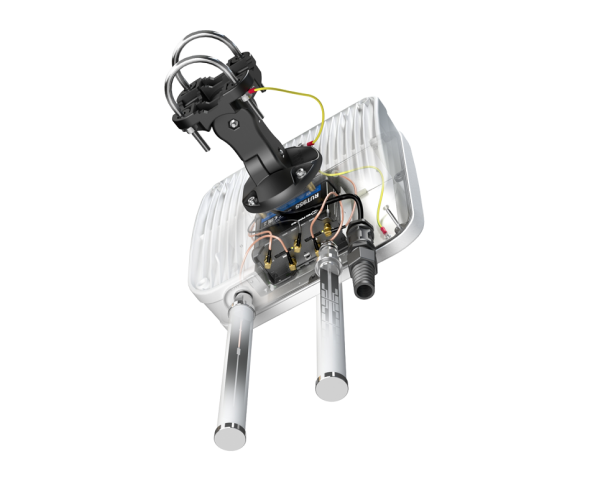

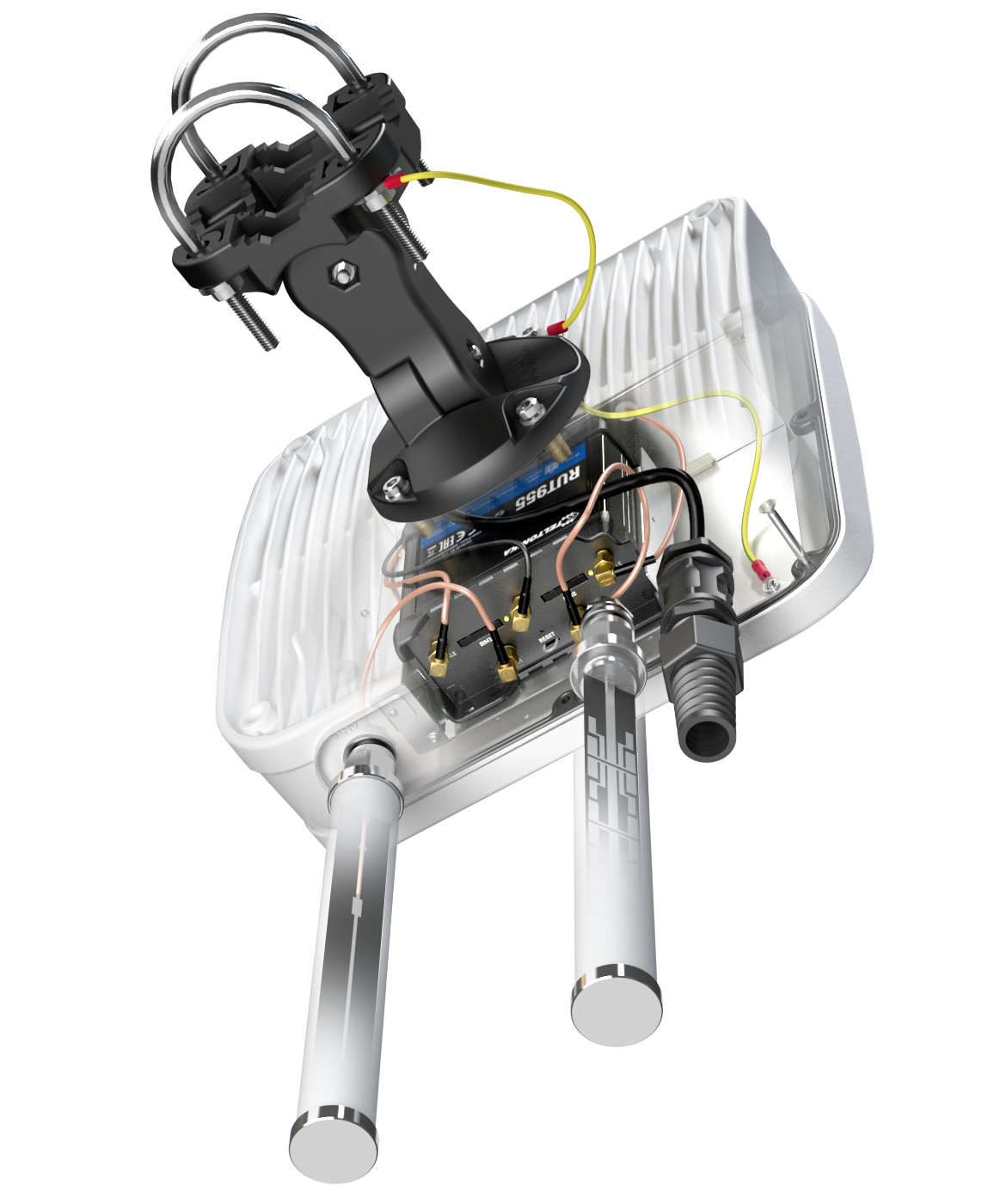

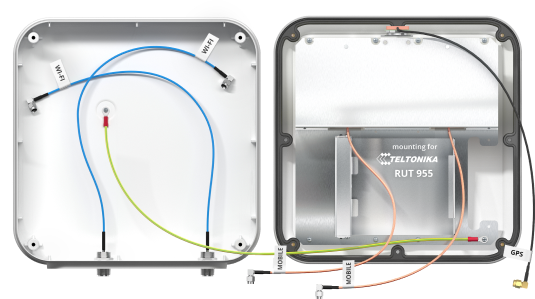

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT956, RUT955 or RUT906 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna and outdoor Wi-Fi omni antennas.

Why QuMax for Teltonika RUT956/RUT955

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

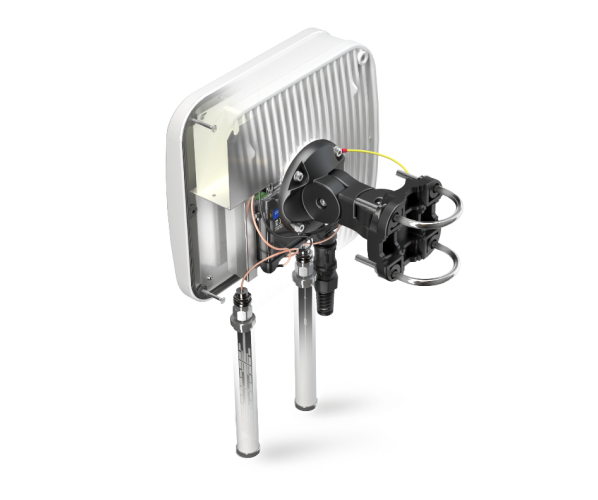

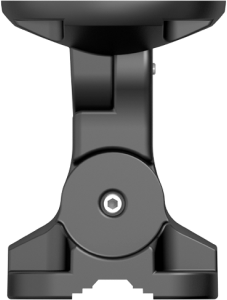

Mounting system with two planes, 60 degrees regulation

Antenna perfectly matched with the router

Passive PoE support

Made in Europe

QuMax for Teltonika RUT956/RUT955

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

Wi-Fi ANTENNA SPECIFICATION

GPS Active antenna specification

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

694 - 960 MHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.2 - 2.7 GHz : 6 dBi

Front-to-Back

>8 dB

VSWR

<1.30, max <1.80

Beamwidth

90°/90° ±30°

Polarization

Vertical

Impedance

50 Ω

Connector

2x SMA

Cable type

RG316

PLOTS

PRODUCT DETAILS

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuMax for Teltonika RUT956/RUT955

VSWR for LTE antenna

VSWR for LTE antenna of QuMax for Teltonika RUT956/RUT955

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuMax for Teltonika RUT956/RUT955

Gain for LTE antenna

Gain for LTE antenna of QuMax for Teltonika RUT956/RUT955
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.3GHz to 2.7MHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Teltonika RUT956/RUT955QuMax for Teltonika RUT956/RUT955
QuMax for Teltonika RUT956/RUT955QuMax for Teltonika RUT956/RUT955
QuMax for Teltonika RUT956/RUT955QuMax for Teltonika RUT956/RUT955

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuMax for RUT955

Parts of QuMax for Teltonika RUT956/RUT955
4 x M4 x 40
Parts of QuMax for Teltonika RUT956/RUT955
1 x
Parts of QuMax for Teltonika RUT956/RUT955
1 x QuRJ45
Parts of QuMax for Teltonika RUT956/RUT955

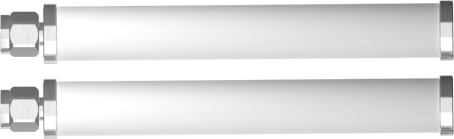

1 x Antennas Wi-Fi
Parts of QuMax for Teltonika RUT956/RUT955
1 x
Parts of QuMax for Teltonika RUT956/RUT955
4 x M8
Parts of QuMax for Teltonika RUT956/RUT955
1 X 8mm wrench
Parts of QuMax for Teltonika RUT956/RUT955
4 x M6 x 18
Parts of QuMax for Teltonika RUT956/RUT955
4 x
Parts of QuMax for Teltonika RUT956/RUT955
2 x
Parts of QuMax for Teltonika RUT956/RUT955
1 x

Download

Datasheet QuMax for Teltonika RUT956/RUT955
Download
3D MODEL
Download
QuMax for RUT955 QUICK START GUIDE
Download
Installation Guide
Download
IP67 Certificate
Download
