Antenna QuMax XR LTE

P/n: AXRL

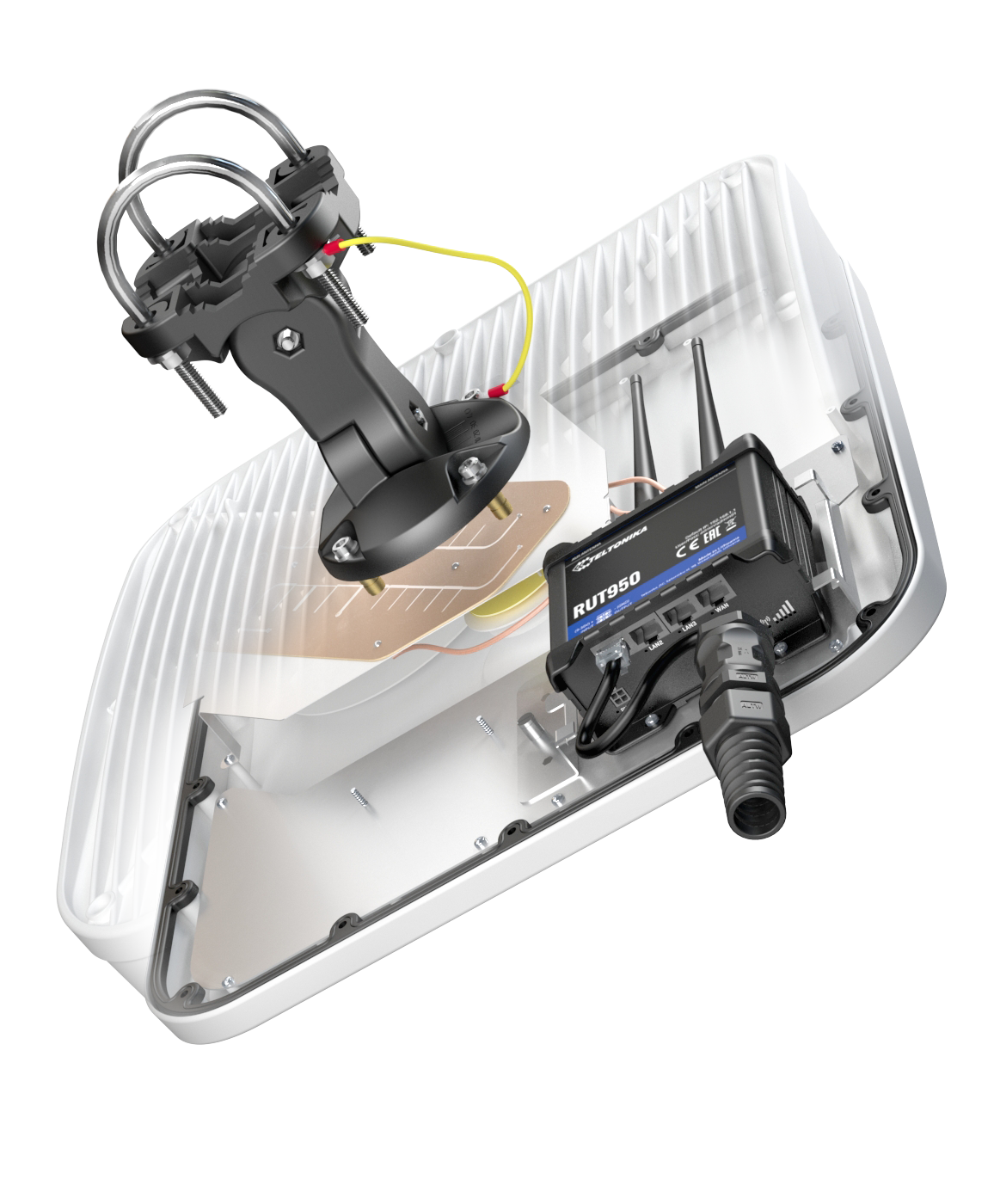

Integrated outdoor multi band eXtra Range LTE directional antenna + place to install Teltonika RUT200/240/241/950/951/955/956/X09/X11

QuMAX eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure.

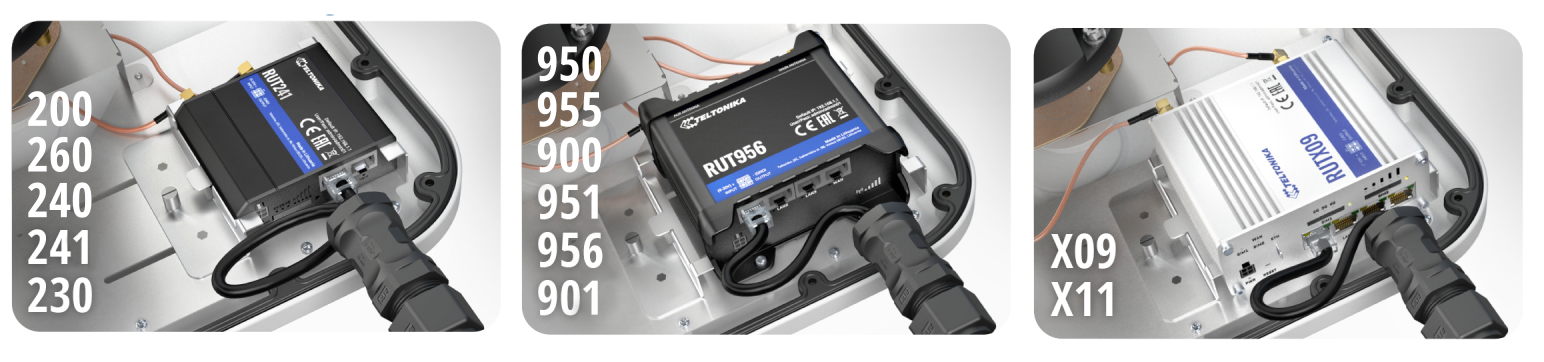

Compatible Teltonika routers: RUT200, RUT240, RUT241, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11.


NOTE: There is also available version with extreme high gain antenna for high bands (2300-2700 MHz) – QuMax XR LTE High Band

Why QuMax XR LTE

Learn more about your profit

Passive PoE support

Antenna perfectly matched with the router

Outdoor antenna works in any weather conditions, IP67

Made in Europe

QuMax XR LTE

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

694 - 960 MHz : 7 dBi

1.7 - 2.2 GHz : 7 dBi

2.2 - 2.7 GHz : 7 dBi

VSWR

<1.70, max <2.00

Beamwidth

70°/70° ±15°

Polarization

Dual polarized X-Pol

Impedance

50 Ω

Front-to-Back

>10 dB

Universal mounting bracket

Working scheme of QuMax XR LTE

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna PORT 1

VSWR for LTE antenna PORT 1 of QuMax XR LTE

VSWR for LTE antenna PORT 2

VSWR for LTE antenna PORT 2 of QuMax XR LTE

Gain for LTE antenna

Gain for LTE antenna of QuMax XR LTE
Port 1 700MHz to 900MHz
Elevation
Azimuth
Port 1 1.71GHz to 2.17GHz
Elevation
Azimuth
Port 1 2.3GHz to 2.7GHz
Elevation
Azimuth
Port 2 700MHz to 900MHz
Elevation
Azimuth
Port 2 1.71GHz to 2.17GHz
Elevation
Azimuth
Port 2 2.3GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax XR LTEQuMax XR LTE
QuMax XR LTEQuMax XR LTE
QuMax XR LTEQuMax XR LTE

WHAT'S IN THE BOX?

PRODUCT DETAILS

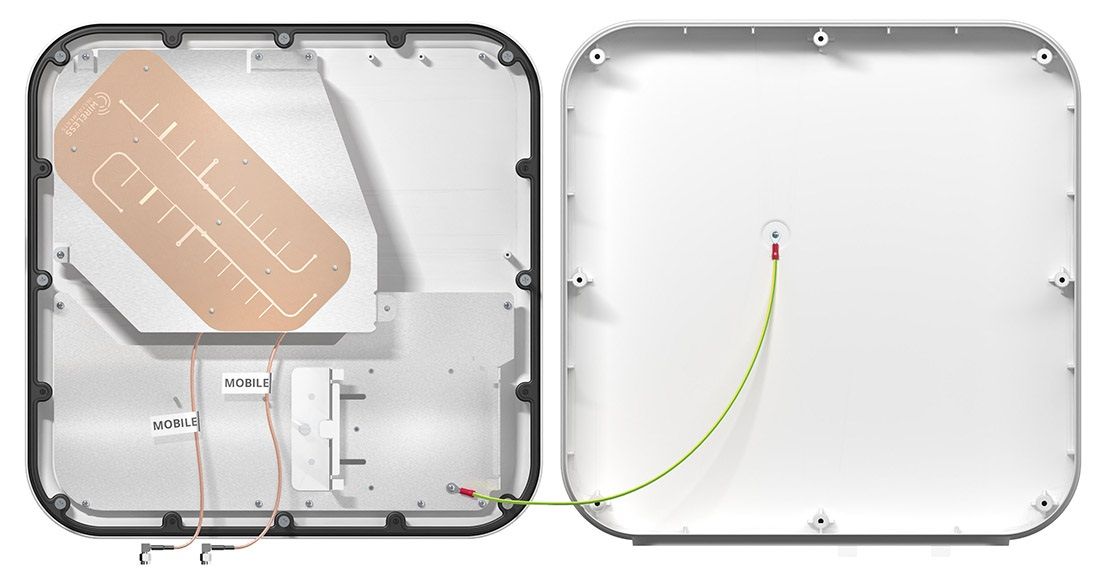

IN THE BOX

QuMax for Teltonika RUT200/240/241/950/951/955/956/X09/X11

Parts of QuMax XR LTE
1 x
Parts of QuMax XR LTE
1 x
Parts of QuMax XR LTE
1 x QuRJ45
Parts of QuMax XR LTE
2 x
Parts of QuMax XR LTE
1 x 8mm wrench
Parts of QuMax XR LTE
1 x
Parts of QuMax XR LTE
4 x M6 x 18
Parts of QuMax XR LTE
4 x
Parts of QuMax XR LTE
4 x M8
Parts of QuMax XR LTE
6 x M3
Parts of QuMax XR LTE
5 x M4 x 40

Download

Datasheet QuMax XR LTE
Download
3D MODEL
Download
Installation Guide
Download
IP67 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax XR LTE
Use case QuMax XR LTE
Use case QuMax XR LTE
