Antenna QuMax Omni for Cisco 3802E

P/n: AC3802EMO

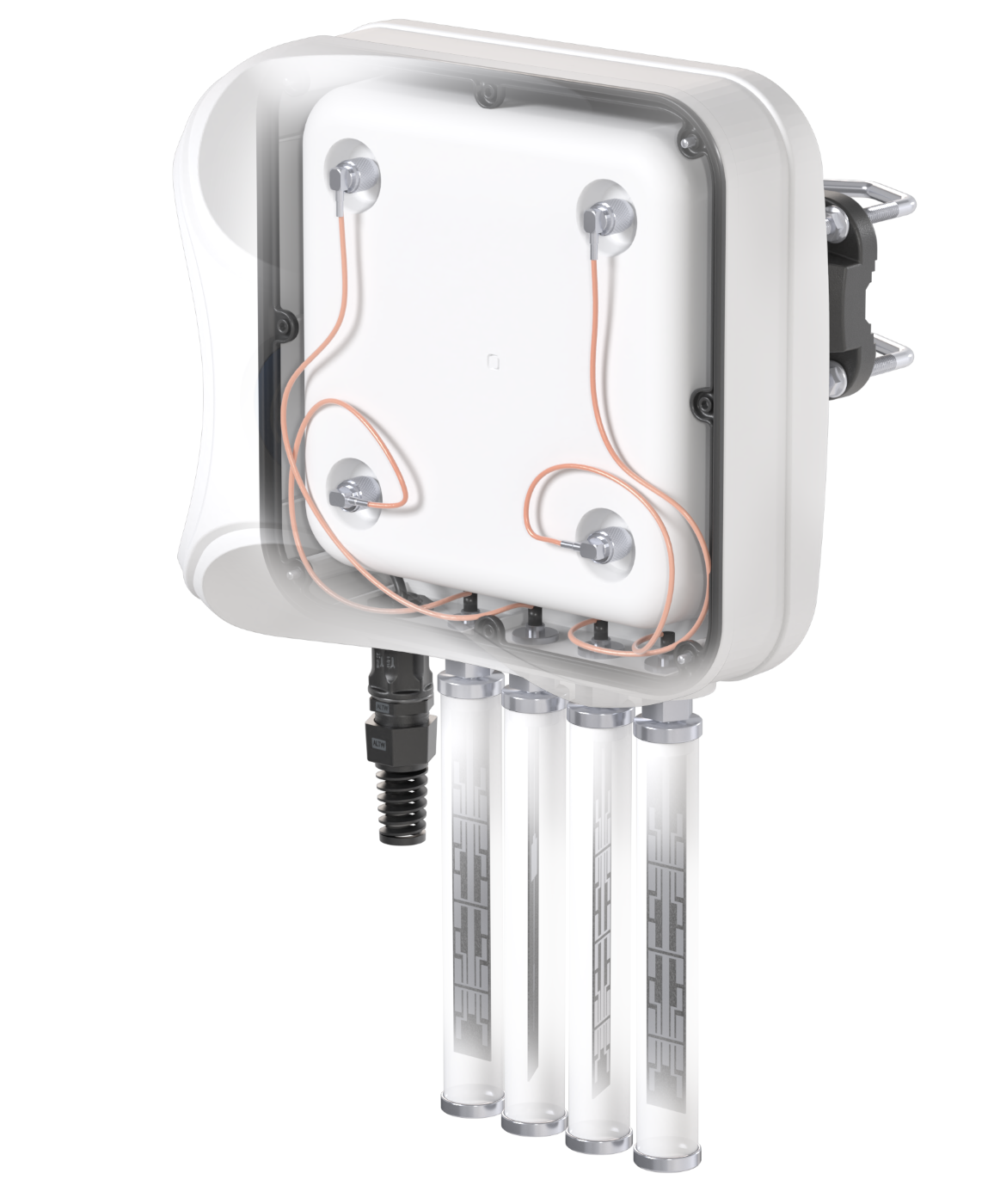

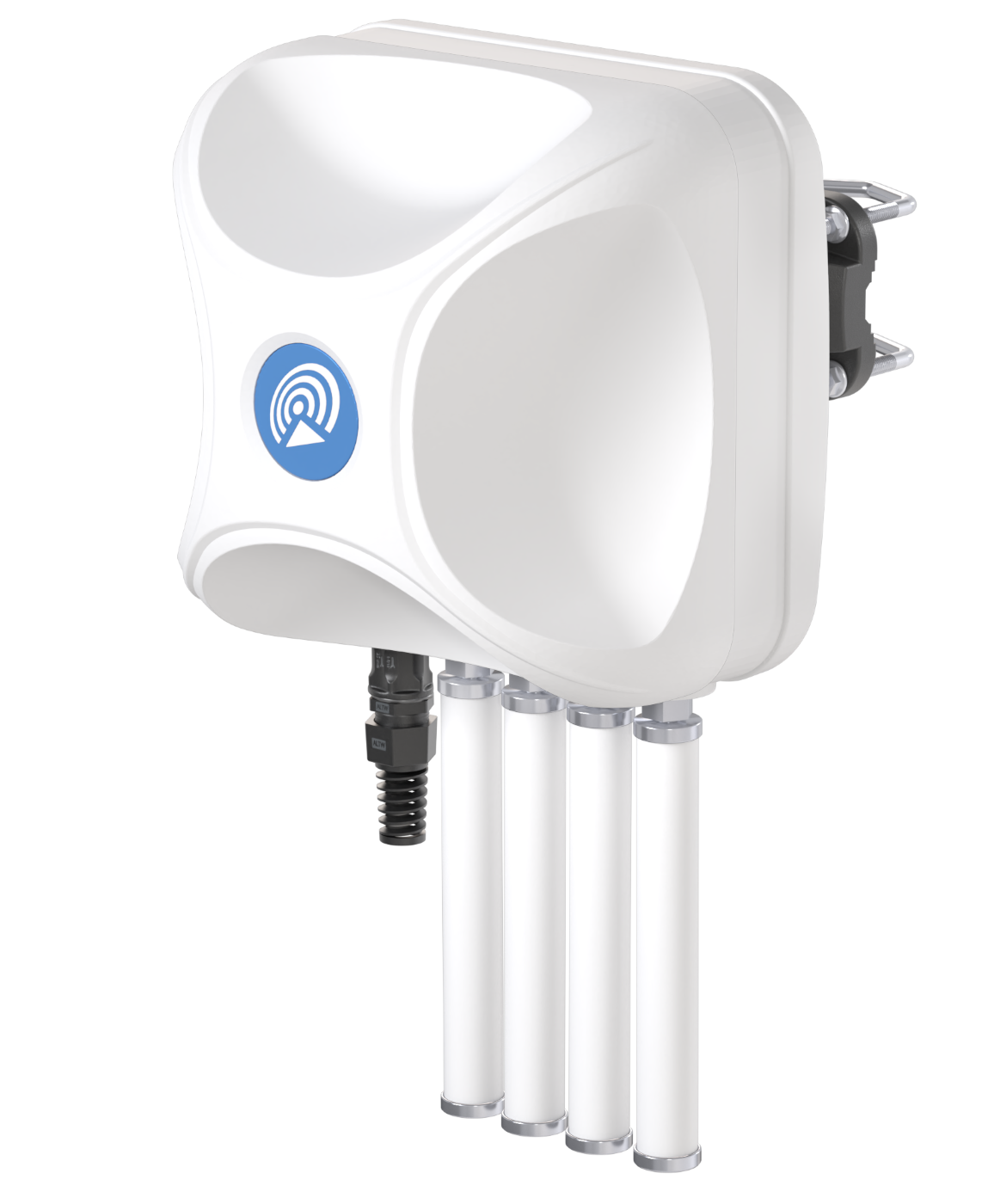

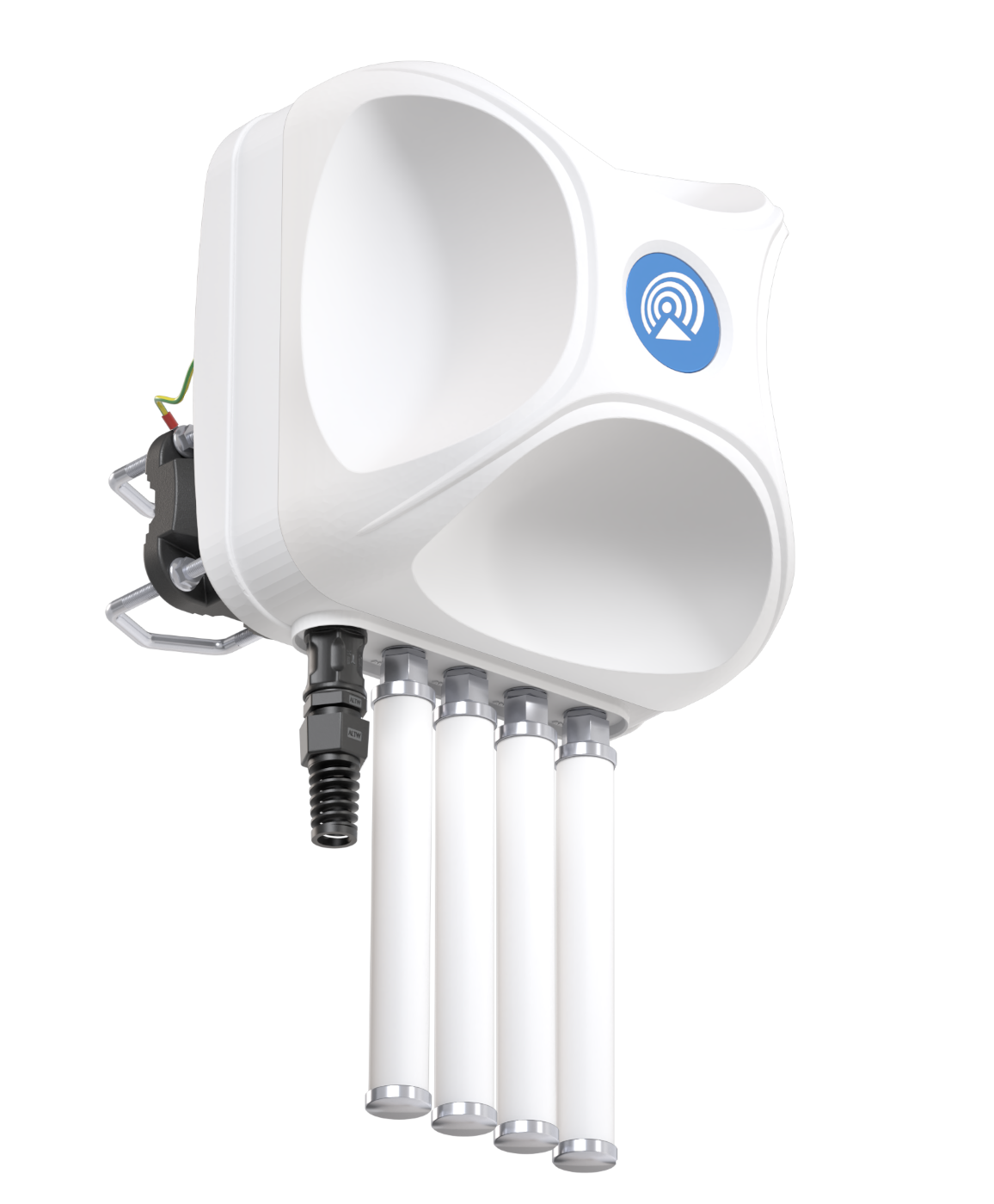

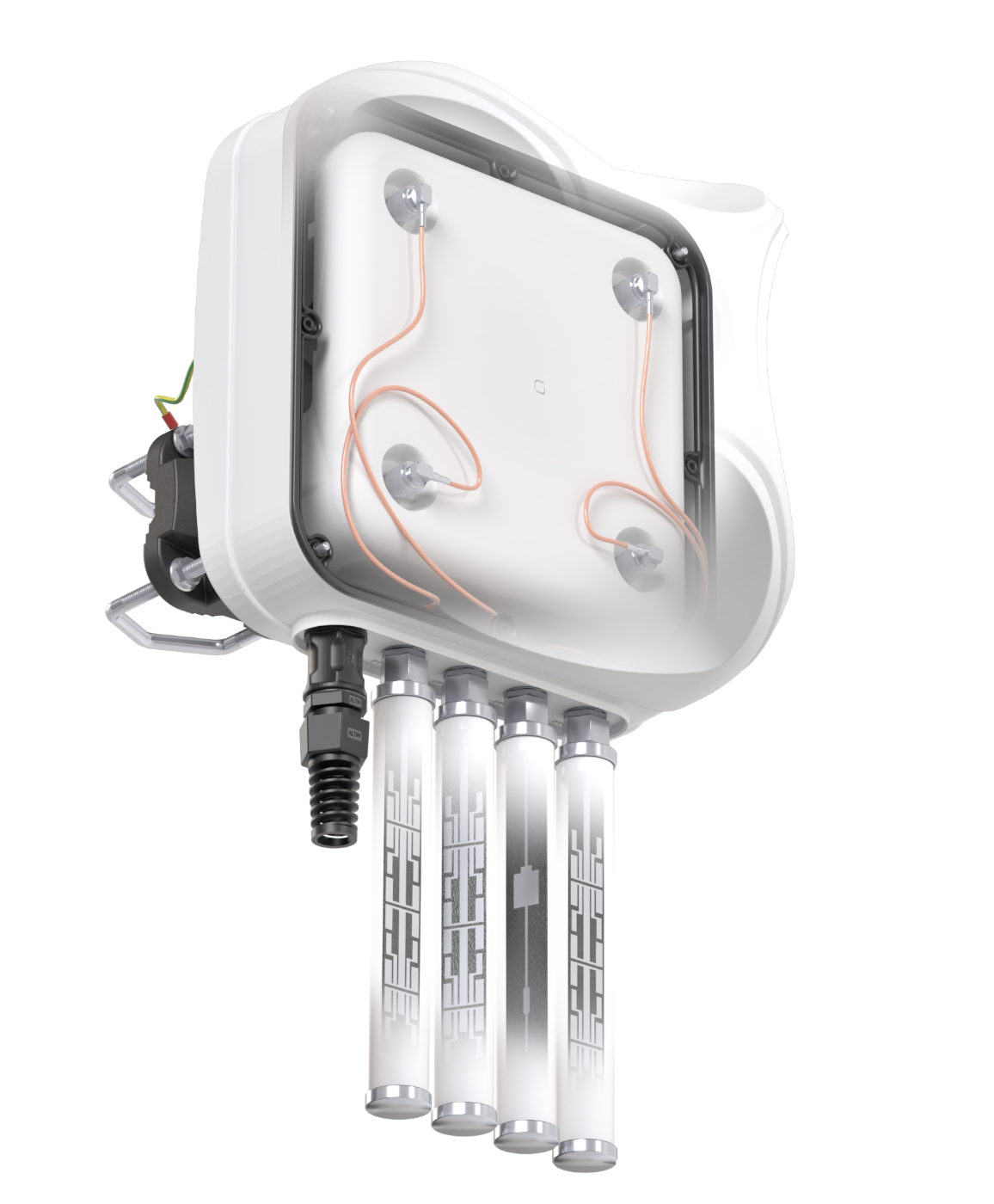

Integrated outdoor enclosure + 4x Wi-Fi Omni Antenna + place to install Cisco 3802E (All-in-one)

The QuMax Omni all-in-one antenna, designed for the Cisco 3802E access point, is an ideal outdoor solution for both mobile and fixed installations, including industrial setups, public spaces, CCTV, hotspots, yachts, boats, campers, and RVs. It features 4 omni-directional Wi-Fi antennas and is built to withstand harsh environments with its IP67-rated enclosure, ensuring protection against dust and water.

Additionally, the antenna offers a custom, easy-to-use mounting system for securely installing the access point inside the enclosure.

When paired with the 3802E, the QuMax Omni antenna provides a fully integrated solution with a built-in access point, offering seamless connectivity for a wide range of applications.

Why QuMax Omni for Cisco 3802E

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

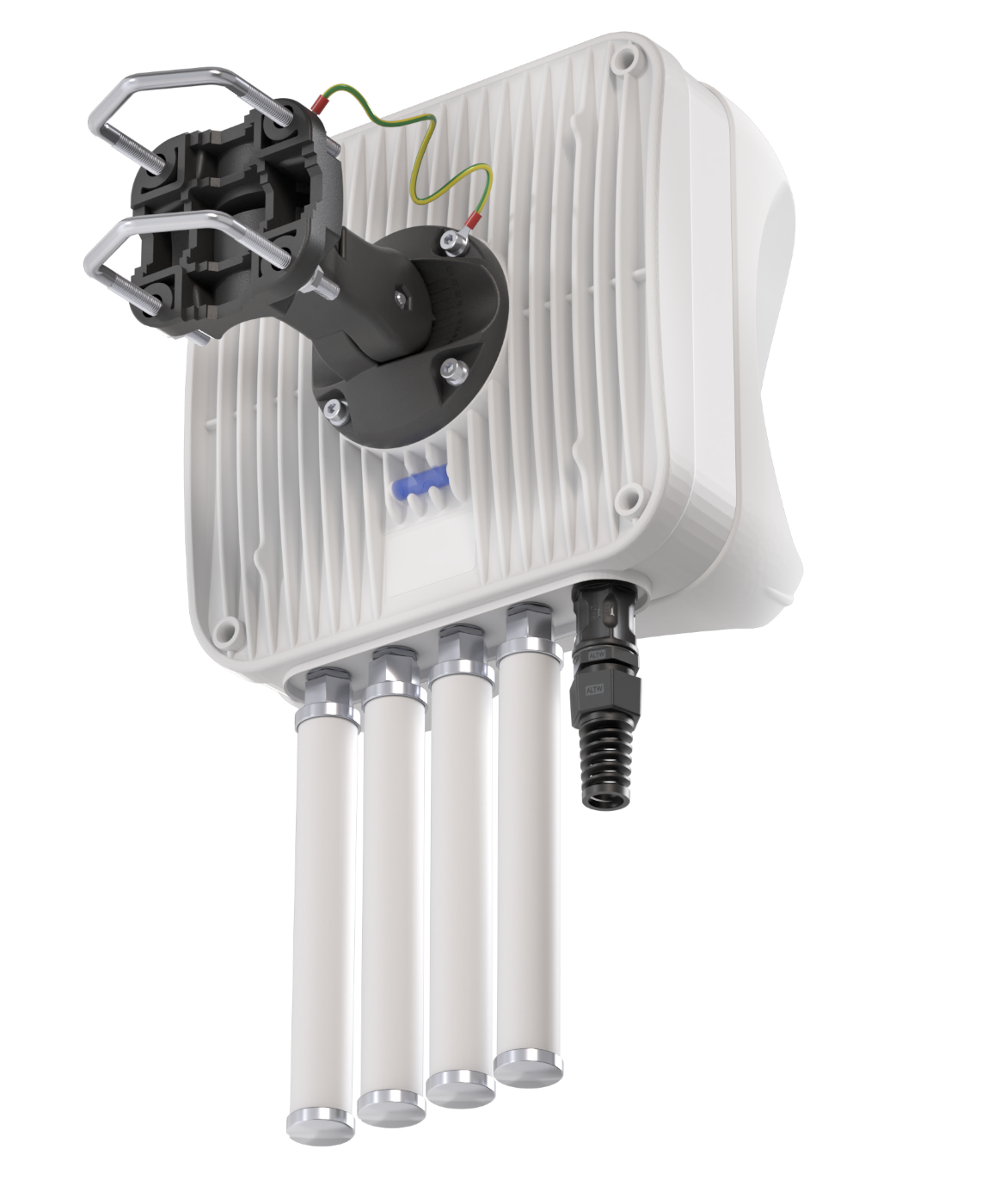

Mounting system with two planes, 60 degrees regulation

Antenna perfectly matched with the router

Made in Europe

QuMax Omni for Cisco 3802E

SPECIFICATION

PRODUCT DETAILS

WI-FI SPECIFICATION

MECHANICAL SPECIFICATION

COMPATIBLE ROUTERS

FREQUENCY

2.4 - 2.5 GHz

5.0 - 7.2 GHz

GAIN

2.4 - 2.5 GHz: 6 dBi

5.0 - 6.0 GHz: 7.5 dBi

VSWR

<1.70, max <2.00

BEAMWIDTH

360°/25° +/- 5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

CONNECTOR

4x RPTNC to external NF

Cable type

RG316

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuMax Omni for Cisco 3802E

GAIN

GAIN of QuMax Omni for Cisco 3802E
Wi-Fi From 2.4 GHz to 6.5 GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

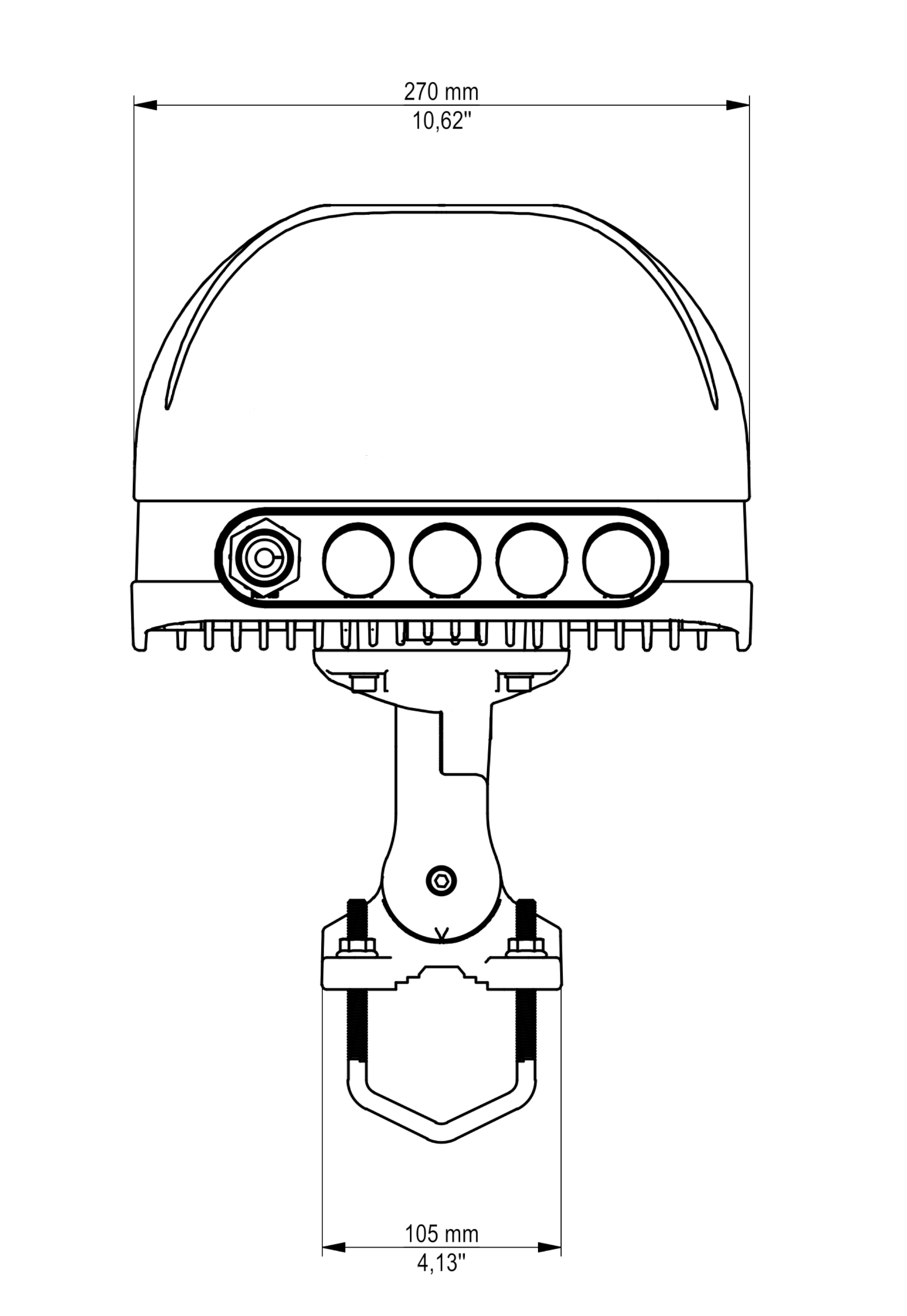

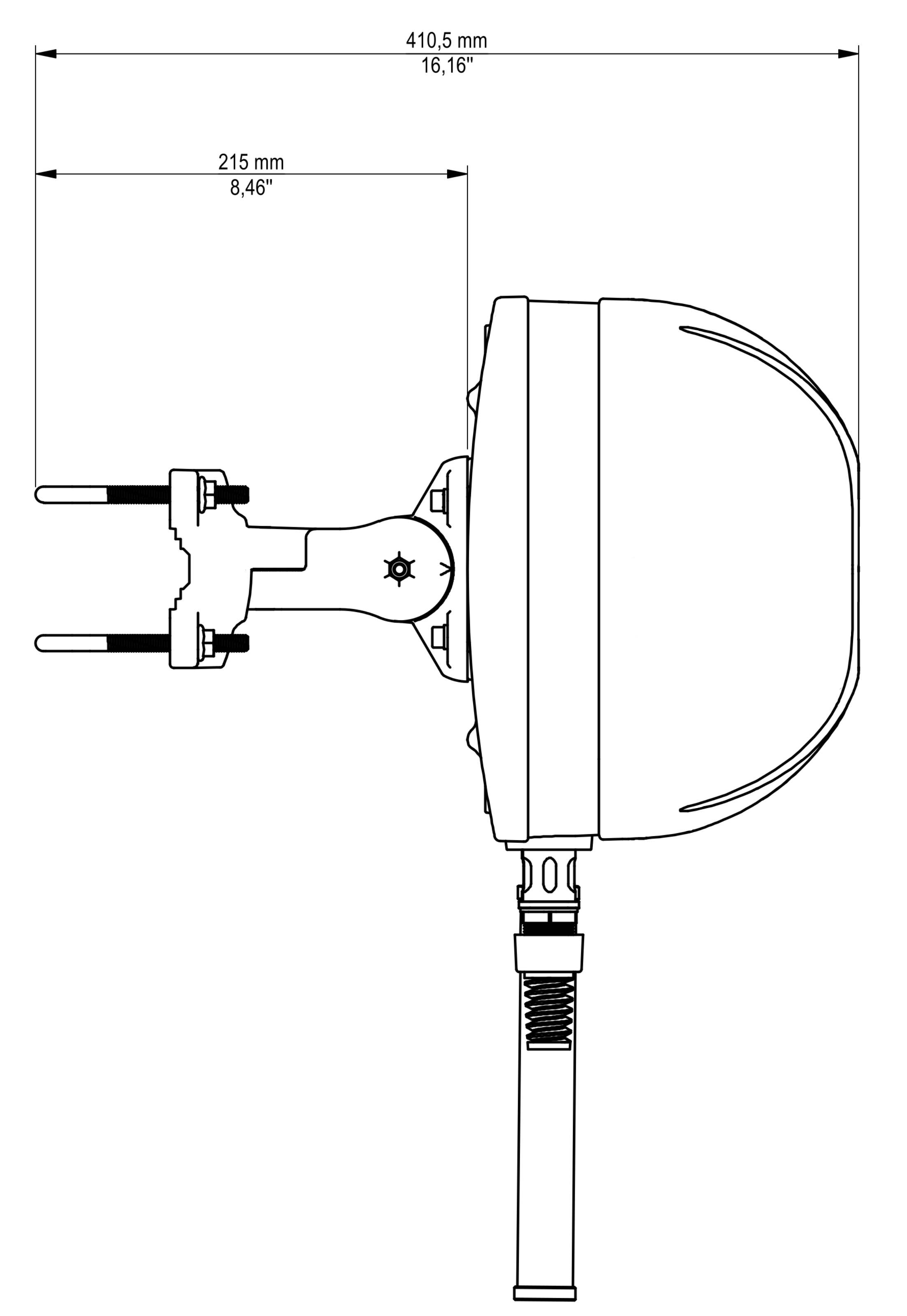

DIMENSIONS

PRODUCT DETAILS
QuMax Omni for Cisco 3802EQuMax Omni for Cisco 3802E
QuMax Omni for Cisco 3802EQuMax Omni for Cisco 3802E
QuMax Omni for Cisco 3802EQuMax Omni for Cisco 3802E

Download

Datasheet QuMax Omni for Cisco 3802E
Download
Installation Guide
Download
IP67 Certificate
Download
IP68 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax Omni for Cisco 3802E
Use case QuMax Omni for Cisco 3802E
Use case QuMax Omni for Cisco 3802E
