1. What does it mean that the antenna is directional?

Type of antenna which maximizes its gain in particular direction. Like a flashlight concentrates its light at one spot, directional antenna emits radio waves in a concentrated beam. Directioanl antenna radiation pattern: To learn more about directional antennas take a look at -> „link”

2. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

Porównaj

QuMax Omni for Ericsson (Cradlepoint) R980

Antenna QuMax Omni for Ericsson (Cradlepoint) R980

P/n: AE980MO

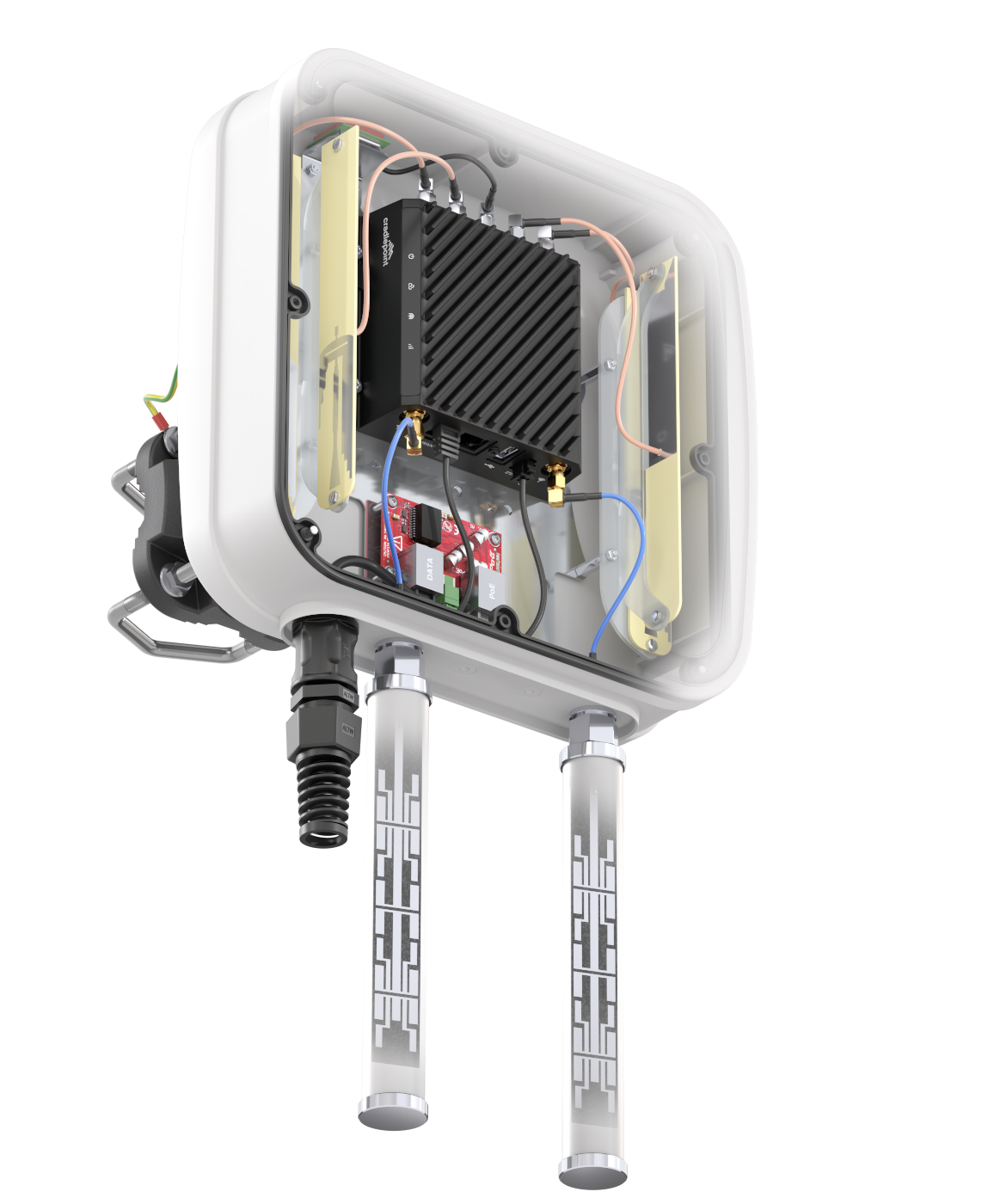

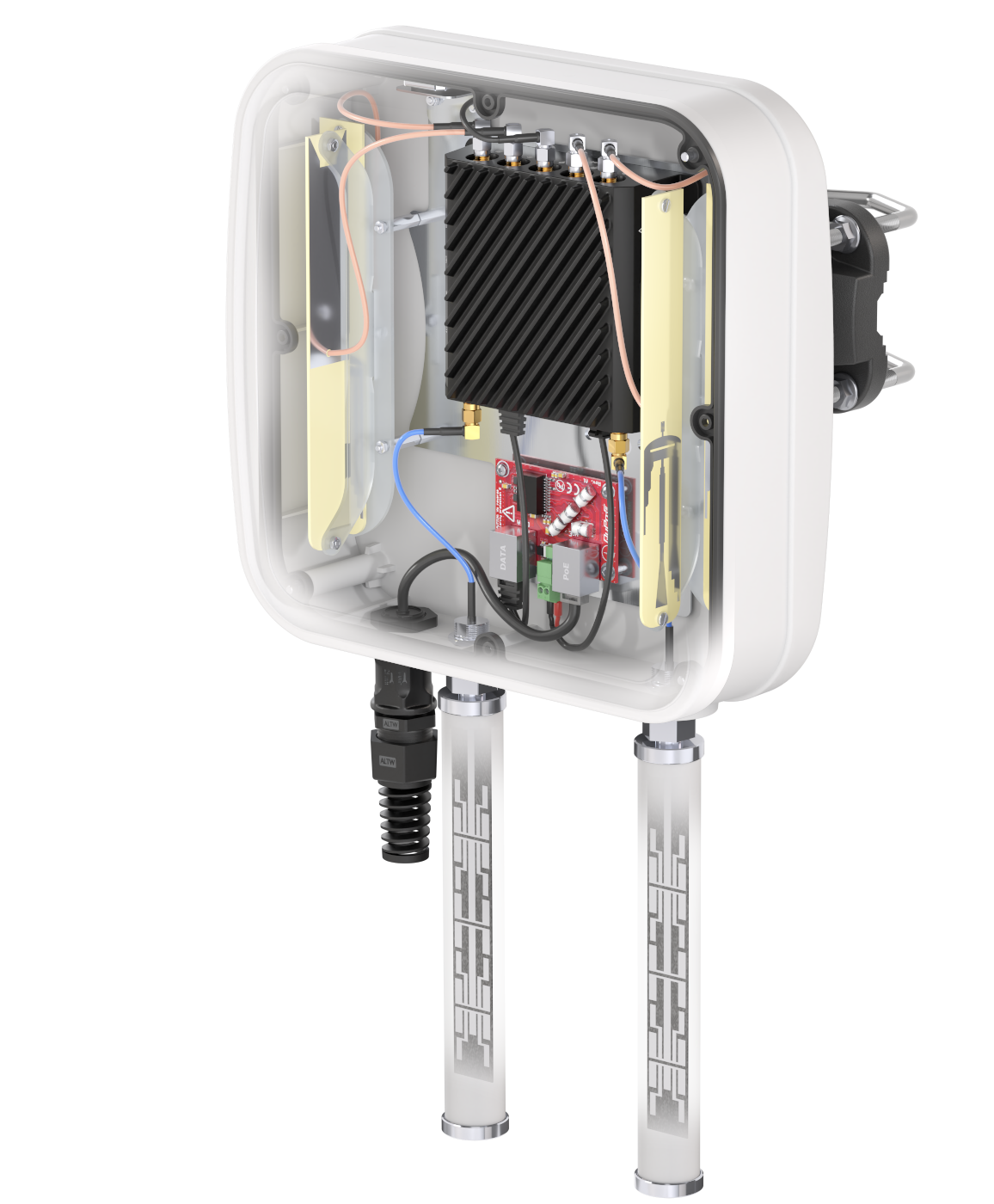

INTEGRATED MULTI-BAND 5G OMNI ANTENNA + WIFI OMNI ANTENNA + PLACE TO INSTALL ERICSSON (CRADLEPOINT) R980 (ALL-IN-ONE)

QuMax Omni all-in-one antenna for Ericsson (Cradlepoint) R980 router is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni 4*5G and 2*Wi-Fi antenna. If you use R980 with QuMax Omni antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Wi-Fi 6E support!

Technical specification

Any question?

Why QuMax Omni for Ericsson (Cradlepoint) R980

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the Ericsson (Cradlepoint) R980

All antennas and Ericsson (Cradlepoint) router integrated in one enclosure

Made in Europe

SPECIFICATION

PRODUCT DETAILS

FREQUENCY

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

GAIN

617 - 960 MHz : 3 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 : 2.5dBi

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.80, max <2.00

BEAMWIDTH

360°/35° +/- 5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

WI-FI VSWR

5G/LTE Gain

Wi-Fi Gain

5G/LTE from 650MHz to 950MHz

Elevation

Azimuth

5G/LTE from 1.71GHz to 2.5GHz

Elevation

Azimuth

5G/LTE from 3.3GHz to 4.0GHz

Elevation

Azimuth

5G/LTE from 4.5GHz to 5.5GHz

Elevation

Azimuth

Wi-Fi 2.4GHz and 5GHz and 6GHz

Elevation

Azimuth

ANY QUESTIONS?

DIMENSIONS

PRODUCT DETAILS

Download

Datasheet QuMax Omni for Ericsson (Cradlepoint) R980

Download

IP67 Certificate

Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA

Use case QuMax Omni for Ericsson (Cradlepoint) R980

FREQUENTLY ASKED QUESTIONS

FIND ANSWERS

CAN'T FIND THE ANSWER FOR YOUR QUESTION?

Antenna QuMax Omni for Ericsson (Cradlepoint) R980

INTEGRATED MULTI-BAND 5G OMNI ANTENNA + WIFI OMNI ANTENNA + PLACE TO INSTALL ERICSSON (CRADLEPOINT) R980 (ALL-IN-ONE)

Why QuMax Omni for Ericsson (Cradlepoint) R980

SPECIFICATION

5G / LTE SPECIFICATION

WI-FI SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS
