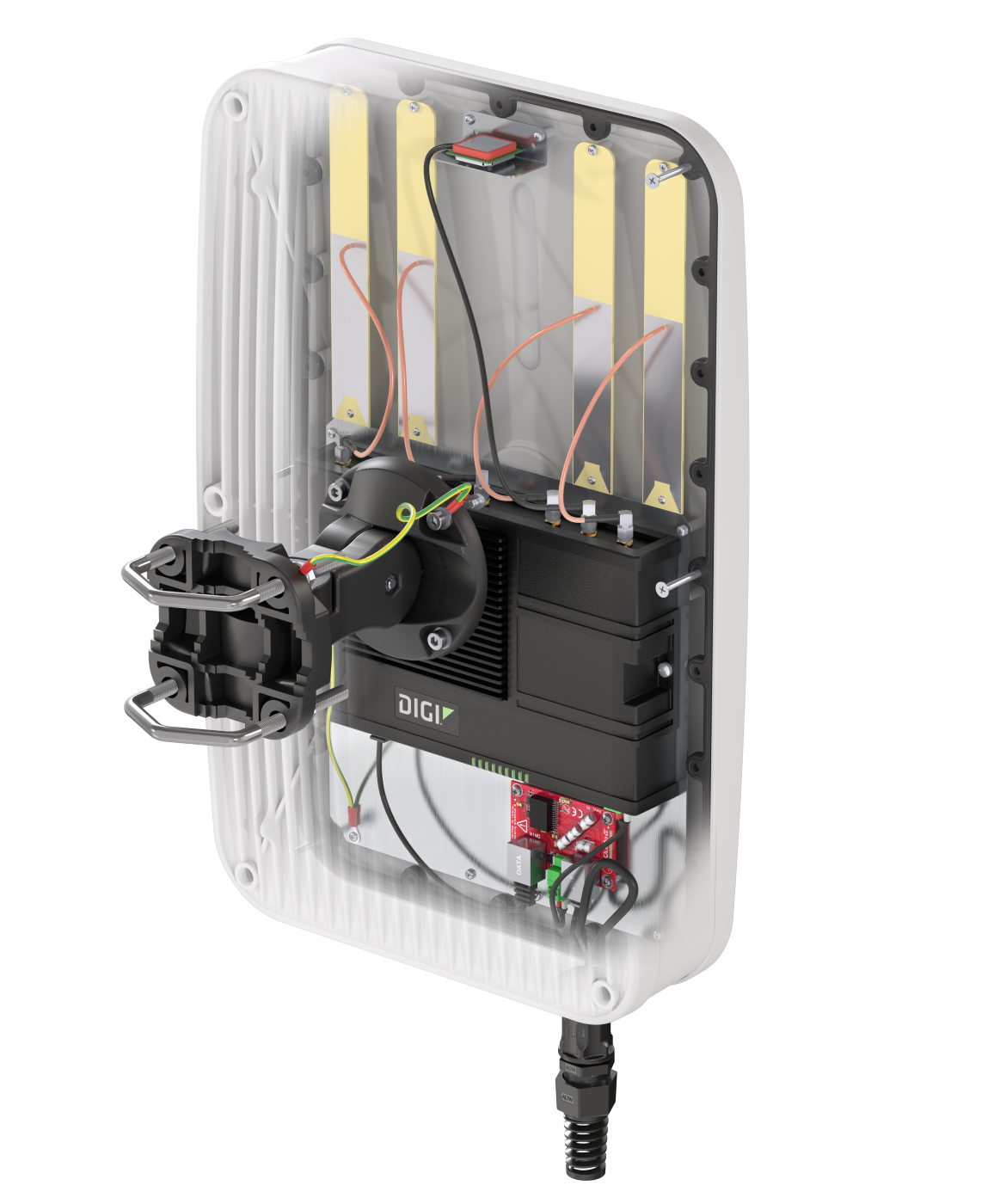

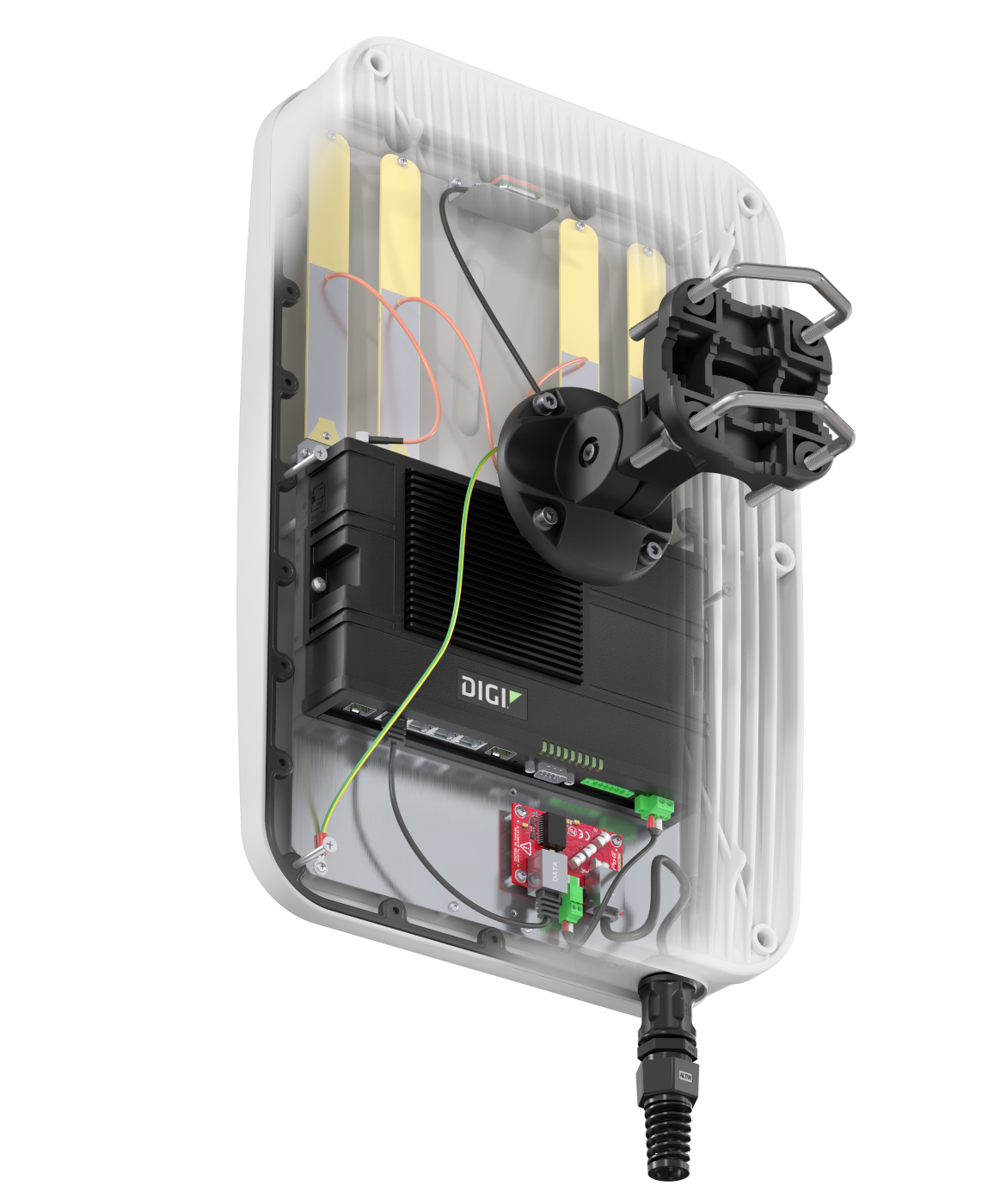

Antenna QuMax Omni for DIGI IX40

P/n: ADIX40MO

INTEGRATED MULTI-BAND 5G OMNI ANTENNA + GPS ANTENNA + PASSIVE POE SPLITTER + PLACE TO INSTALL DIGI IX40 (ALL-IN-ONE)

QuMax Omni all-in-one antenna for DIGI IX40 router is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni 5G and GPS antenna. If you use IX40 with QuMax Omni antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Technical specification

Any question?

Contact us

Why QuMax Omni for DIGI IX40

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the DIGI IX40

All antennas and DIGI router integrated in one enclosure

Made in Europe

QuMax Omni for DIGI IX40

SPECIFICATION

PRODUCT DETAILS

5G/LTE SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

FREQUENCY

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

GAIN

617 - 960 MHz : 3 dBi

1.7 - 2.2 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 GHz : 2.5dBi

VSWR

<1.80, max <2.00

BEAMWIDTH

360°/35° ±5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuMax Omni for DIGI IX40

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuMax Omni for DIGI IX40
5G/LTE from 617MHz to 960MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.2GHz
Elevation
Azimuth
5G/LTE from 4.6 GHz to 5.5 GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax Omni for DIGI IX40QuMax Omni for DIGI IX40

WHAT'S IN THE BOX?

PRODUCT DETAILS

In the box

QuMax Omni for DIGI IX40

Parts of QuMax Omni for DIGI IX40
1 x
Parts of QuMax Omni for DIGI IX40
1 x
Parts of QuMax Omni for DIGI IX40
2 x
Parts of QuMax Omni for DIGI IX40
1 x
Parts of QuMax Omni for DIGI IX40
1 x QuRJ45
Parts of QuMax Omni for DIGI IX40
1 x 8mm wrench
Parts of QuMax Omni for DIGI IX40
4 x M8
Parts of QuMax Omni for DIGI IX40
6 x M4 x 40
Parts of QuMax Omni for DIGI IX40
4 x M6 x 18
Parts of QuMax Omni for DIGI IX40
4 x
Parts of QuMax Omni for DIGI IX40
1 x PAS-FP - Already installed inside

Designed For

Download

Datasheet QuMax Omni for DIGI IX40
Download
IP67 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax Omni for DIGI IX40
Use case QuMax Omni for DIGI IX40
Use case QuMax Omni for DIGI IX40
