Antenna QuMax Omni for Teltonika TRB500

P/n: A500MO

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + PLACE TO INSTALL TELTONIKA TRB500 (ALL-IN-ONE)

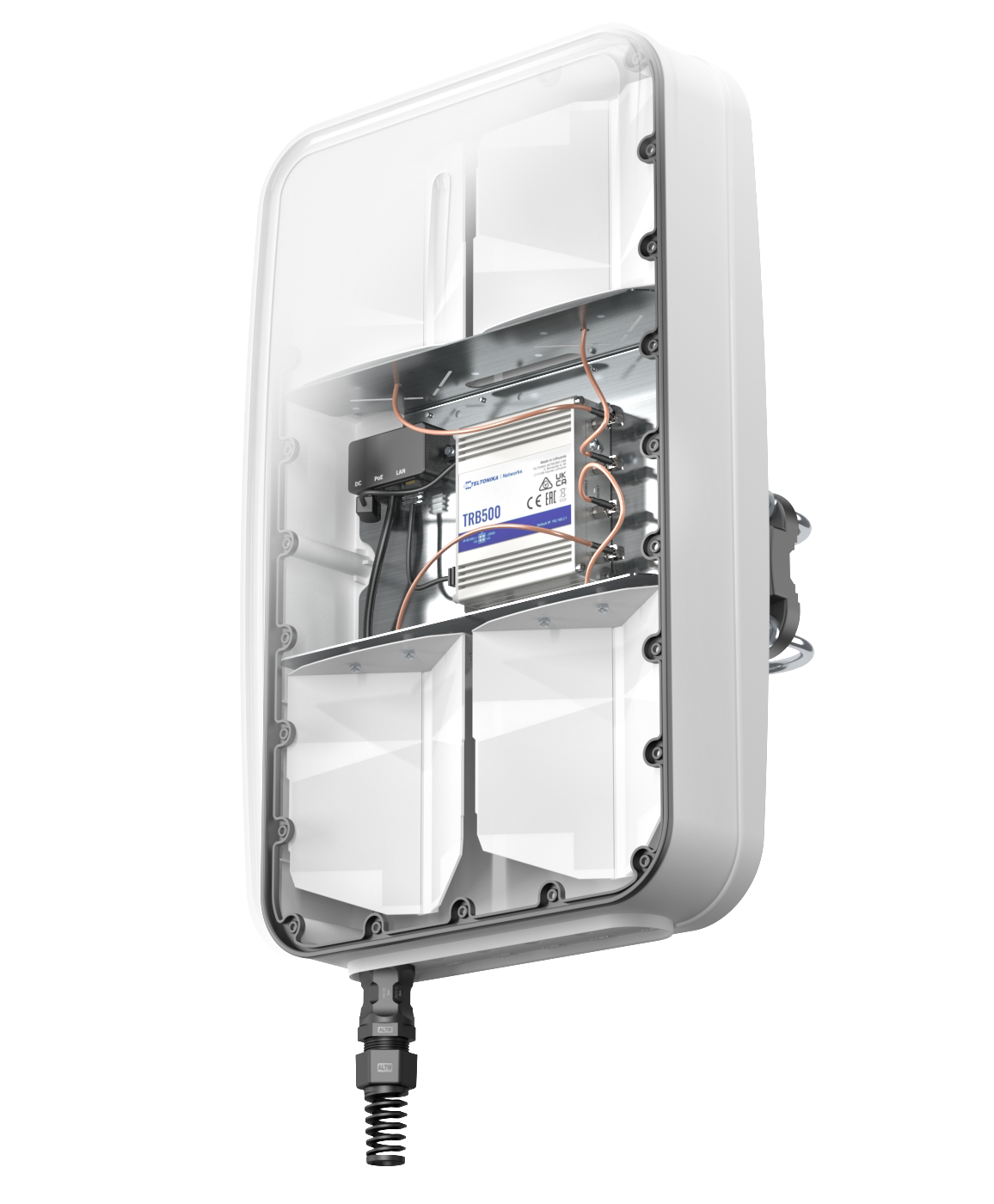

QuMax Omni is a 5G omnidirectional MIMO 4x4 antenna for the Teltonika TRB500 gateway. The antenna covers a wide frequency range from 617MHz (Band71) to 3.8GHz. Additional router compartment inside the housing creates a variety of new outdoor (IP67) scenarios. It is recommended for moving applications, like trains, buses, yachts or campers, but also to improve signal quality in rural areas.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source!

NOTE! The antenna doesn’t support B32 band and n77 (above 3800MHz) band!

Why QuMax Omni for Teltonika TRB500

Learn more about your profit

Passive PoE support

Antenna perfectly matched with the router

Outdoor antenna works in any weather conditions, IP67

Made in Europe

QuMax Omni for Teltonika TRB500

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

POE SPECIFICATION

COMPATIBLE ROUTERS

Frequency

0.617 - 0.96 GHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

3.3 – 3.8 GHz

Gain

0.617 - 0.96 GHz: 3 dBi

1.7 - 2.2 GHz: 3,5 dBi

2.3 - 2.7 GHz: 3,5 dBi

3.3 – 3.8 GHz: 4 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.80, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna

VSWR for LTE antenna of QuMax Omni for Teltonika TRB500

Gain for LTE antenna

Gain for LTE antenna of QuMax Omni for Teltonika TRB500
5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.0GHz
Elevation
Azimuth
5G/LTE from 4.5GHz to 5.5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax Omni for Teltonika TRB500QuMax Omni for Teltonika TRB500

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuMax Omni for Teltonika TRB500

Parts of QuMax Omni for Teltonika TRB500
1 x
Parts of QuMax Omni for Teltonika TRB500
1 x
Parts of QuMax Omni for Teltonika TRB500
1 x QuRJ45
Parts of QuMax Omni for Teltonika TRB500
2 x
Parts of QuMax Omni for Teltonika TRB500
1 x 8mm wrench
Parts of QuMax Omni for Teltonika TRB500
1 x
Parts of QuMax Omni for Teltonika TRB500
4 x M6 x 18
Parts of QuMax Omni for Teltonika TRB500
4 x
Parts of QuMax Omni for Teltonika TRB500
4 x M8
Parts of QuMax Omni for Teltonika TRB500
6 x M3
Parts of QuMax Omni for Teltonika TRB500
5 x M4 x 40
Parts of QuMax Omni for Teltonika TRB500
1 x QuPoe58V
