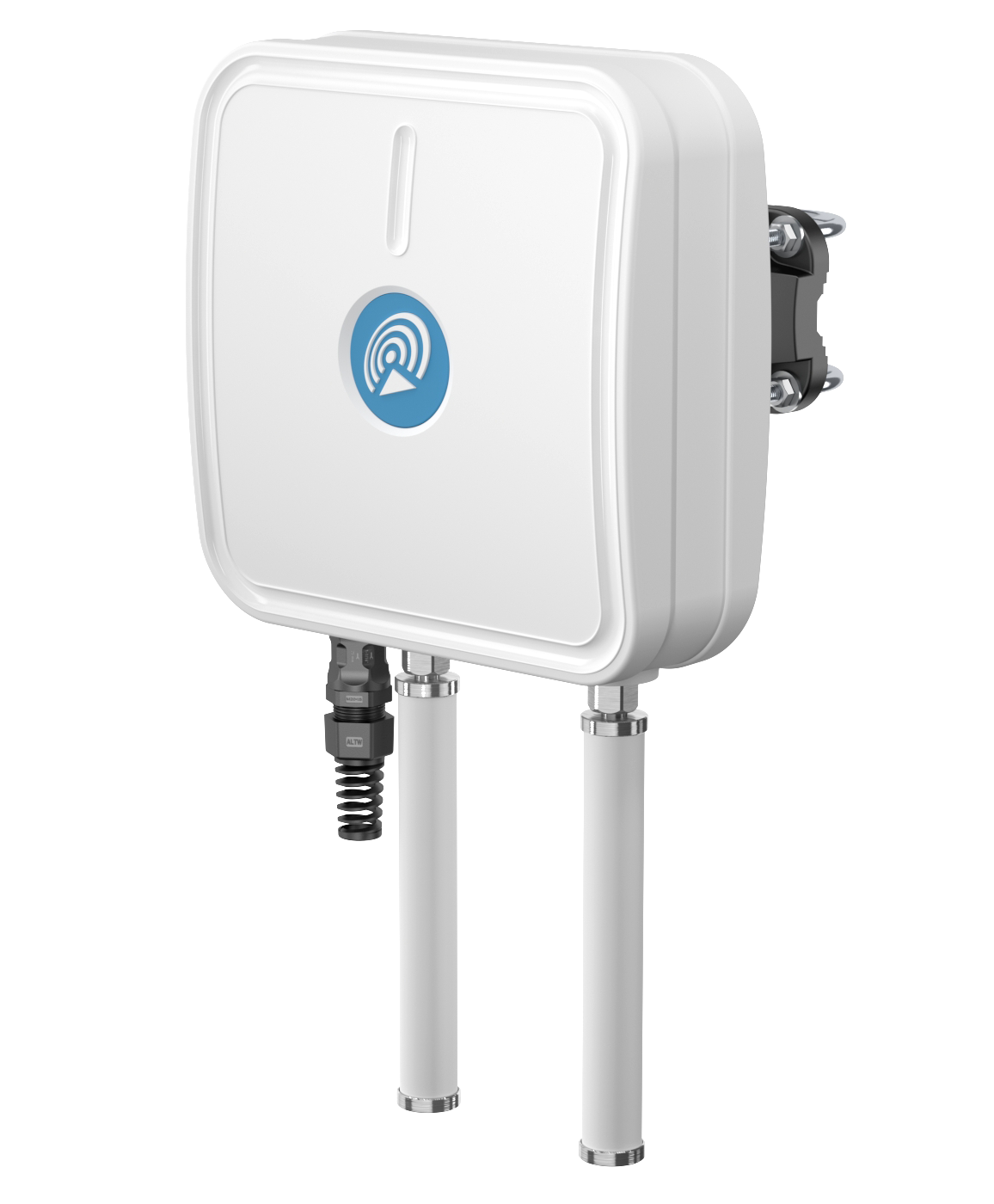

Antenna QuMax Omni for Peplink MAX BR1 Mini 5G

P/n: APBM5MO

INTEGRATED MULTI-BAND 5G OMNI ANTENNA + PLACE TO INSTALL PEPLINK MAX BR1 MINI 5G (ALL-IN-ONE)

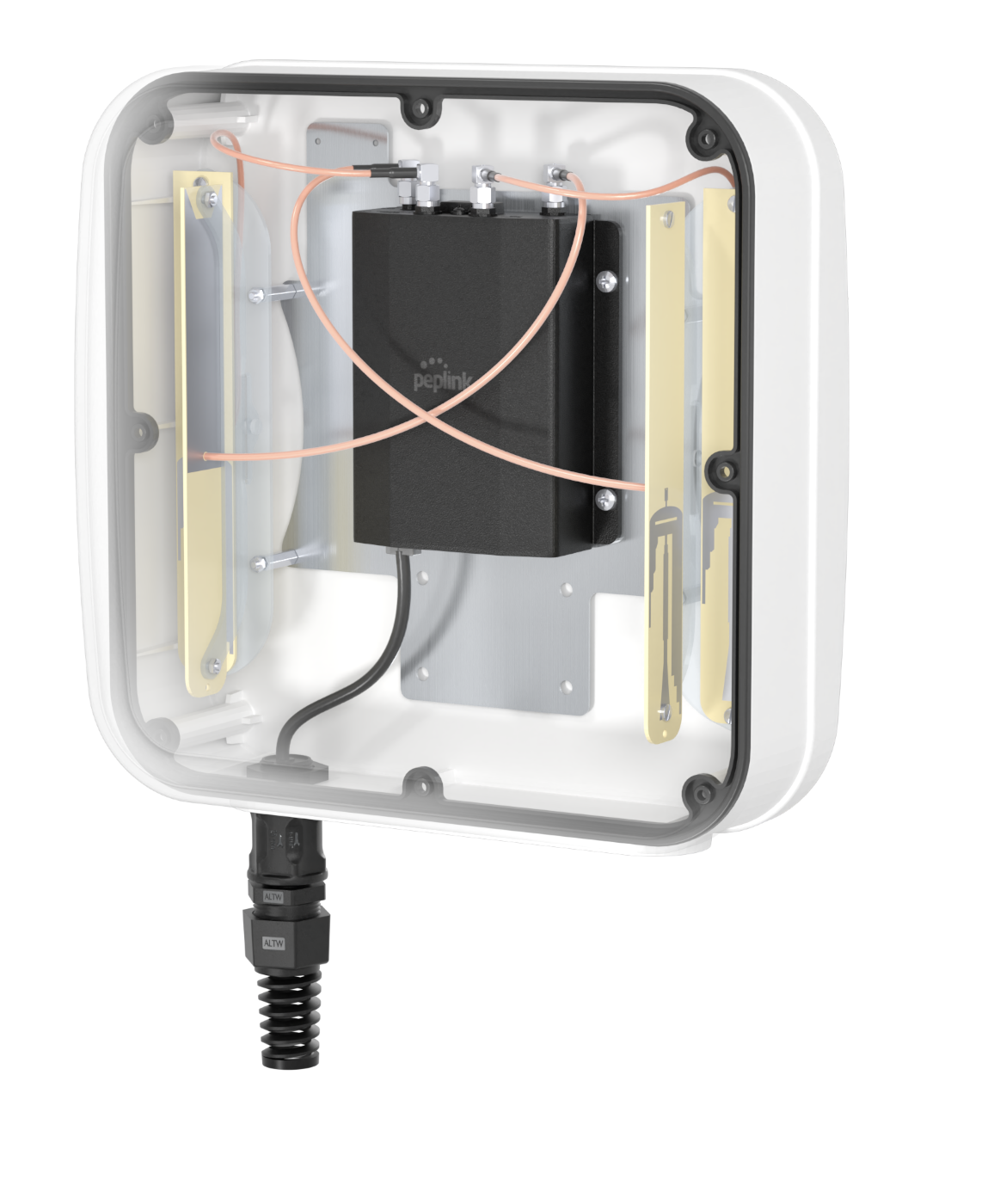

QuMax Omni all-in-one antenna for Peplink MAX BR1 Mini 5G router is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni 4*5G antenna. If you use MAX BR1 Mini 5G with QuMax Omni antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Why QuMax Omni for Peplink MAX BR1 Mini 5G

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the Peplink MAX BR1 Mini 5G

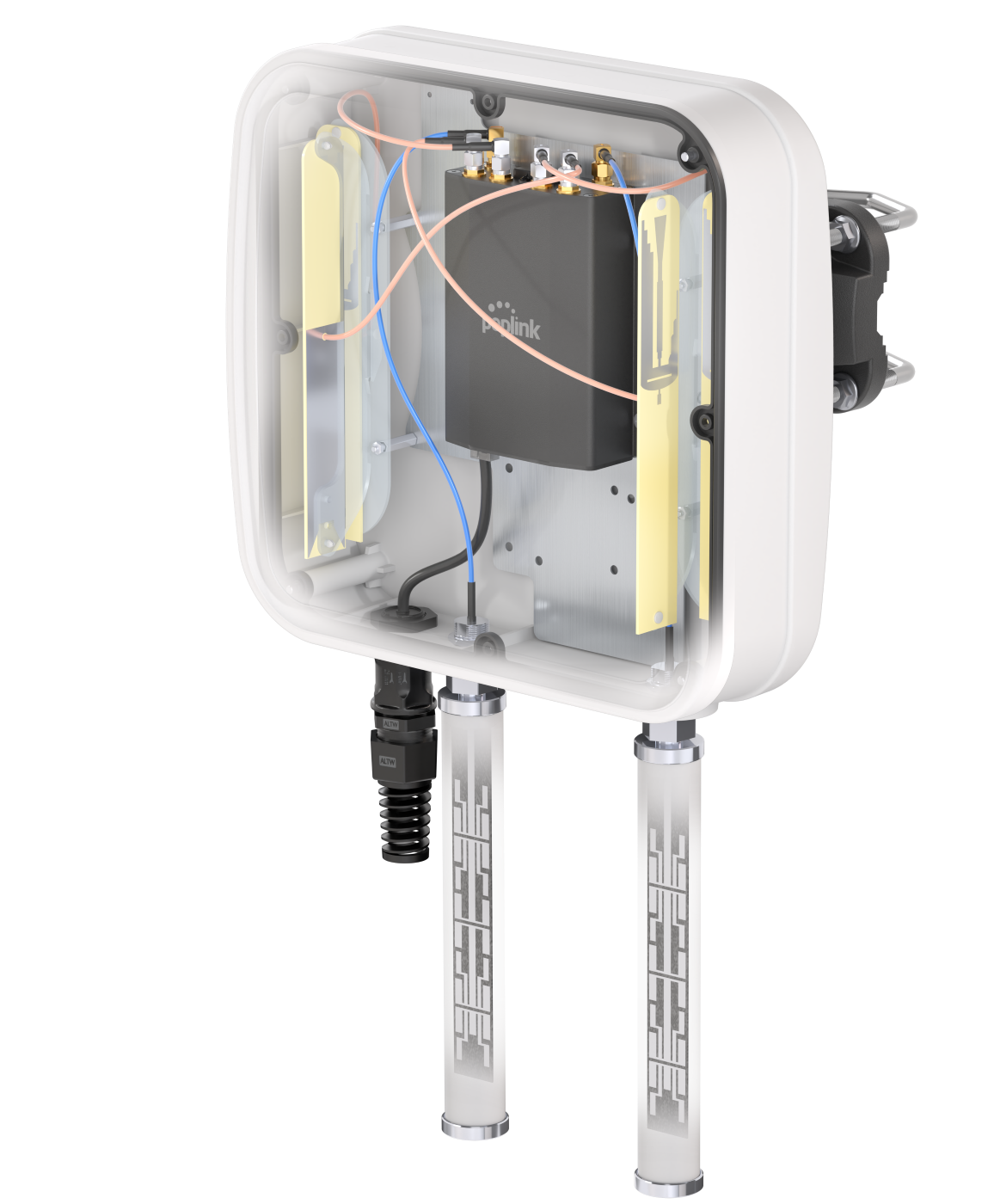

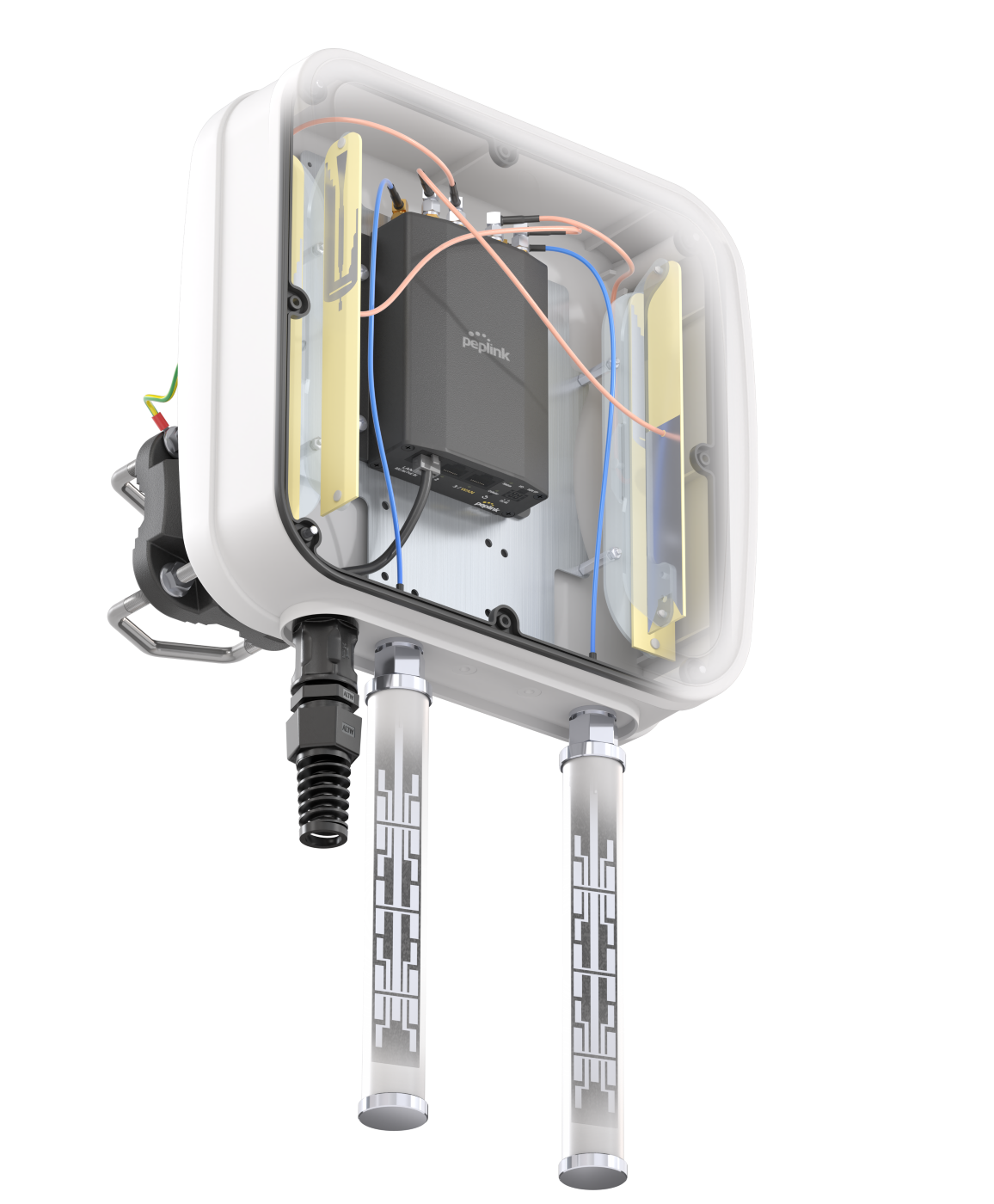

All antennas and Peplink router integrated in one enclosure

Made in Europe

QuMax Omni for Peplink MAX BR1 Mini 5G

SPECIFICATION

PRODUCT DETAILS

5G / LTE SPECIFICATION

MECHANICAL SPECIFICATION

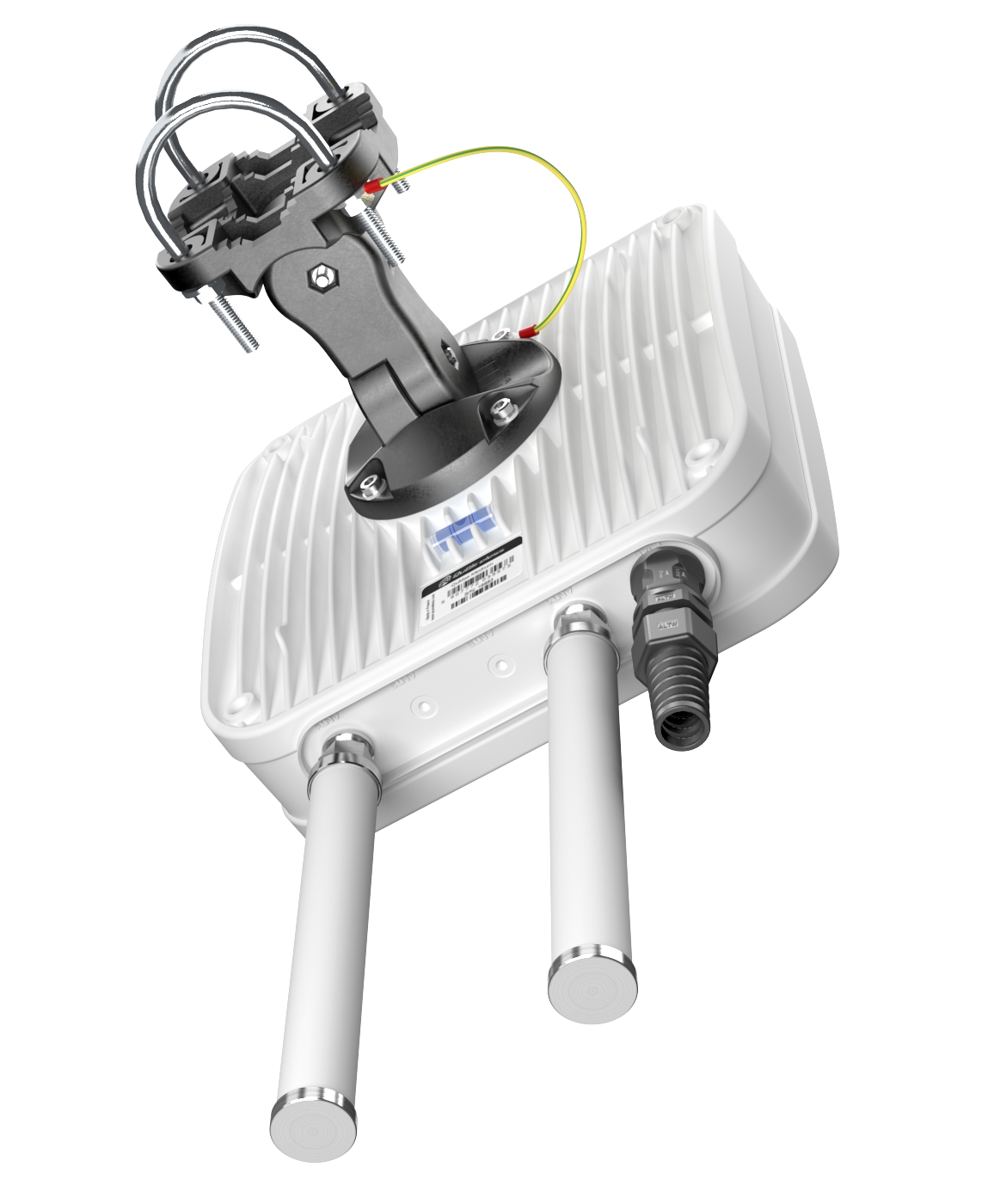

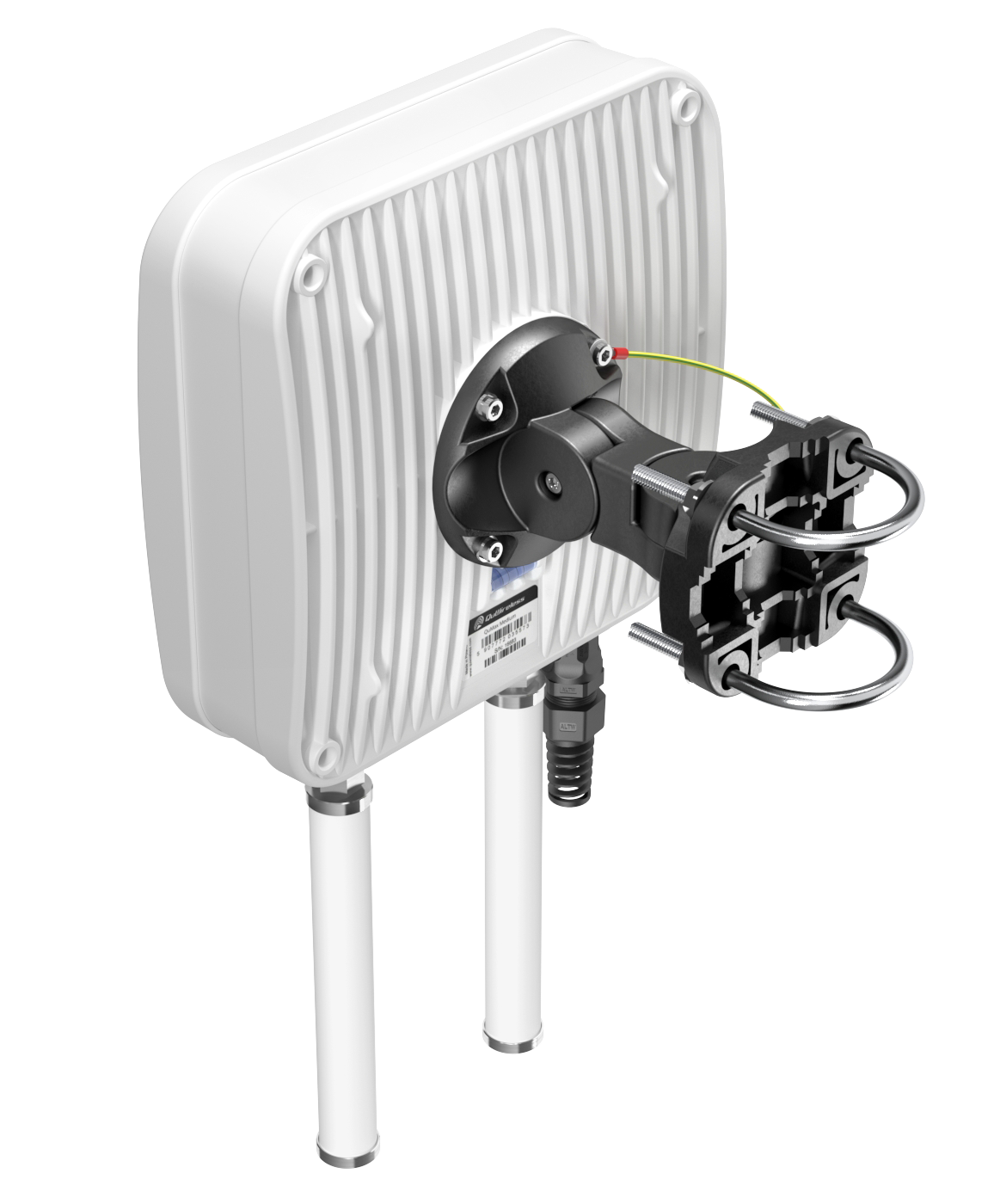

MOUNTING KIT

COMPATIBLE ROUTERS

FREQUENCY

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

GAIN

617 - 960 MHz : 3 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 : 2.5dBi

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.80, max <2.00

BEAMWIDTH

360°/35° +/- 5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE VSWR of QuMax Omni for Peplink MAX BR1 Mini 5G

5G/LTE Gain

5G/LTE Gain of QuMax Omni for Peplink MAX BR1 Mini 5G
5G/LTE from 617MHz to 950MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.2GHz
Elevation
Azimuth
5G/LTE from 4.6GHz to 5.5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax Omni for Peplink MAX BR1 Mini 5GQuMax Omni for Peplink MAX BR1 Mini 5G

Download

Datasheet QuMax Omni for Peplink MAX BR1 Mini 5G
Download
IP67 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax Omni for Peplink MAX BR1 Mini 5G
Use case QuMax Omni for Peplink MAX BR1 Mini 5G
Use case QuMax Omni for Peplink MAX BR1 Mini 5G
