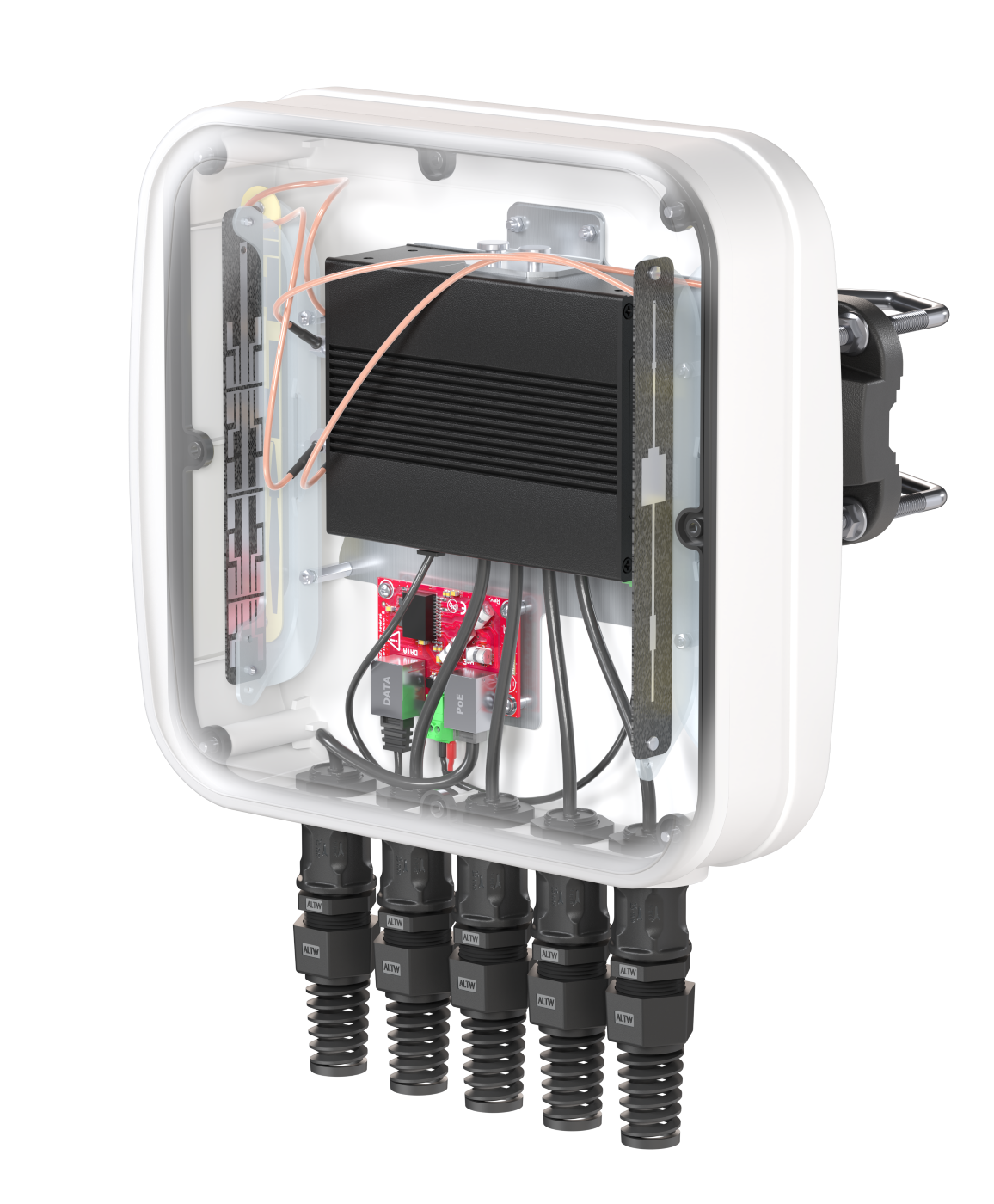

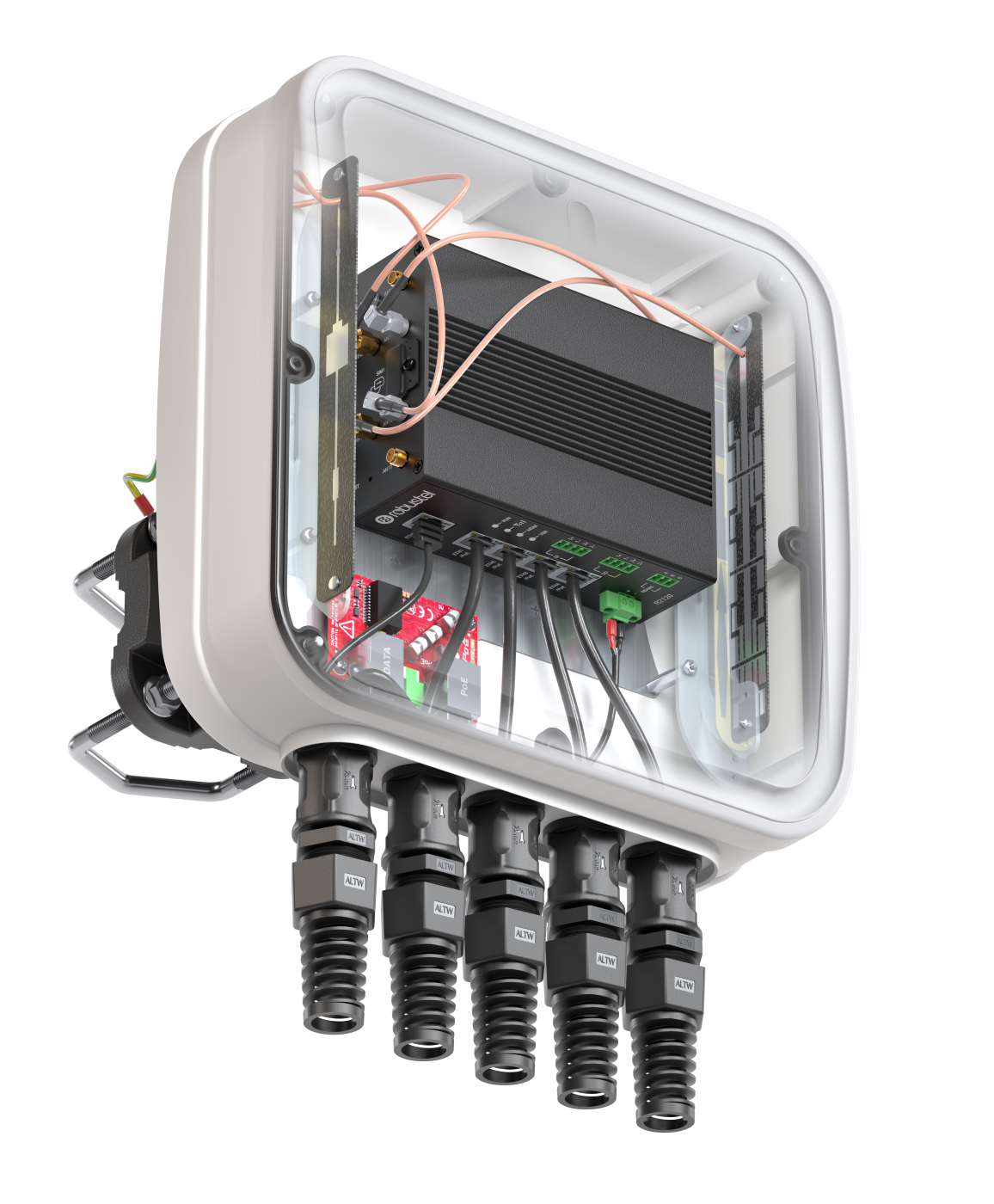

Antenna QuMax Omni for Robustel R2120

P/n: AR2120MO

INTEGRATED MULTI-BAND LTE OMNI ANTENNA + WI-FI 6E ANTENNA + POE SPLITTER + PLACE TO INSTALL ROBUSTEL R2120 (ALL-IN-ONE)

QuMax Omni all-in-one antenna for Robustel R2120 gateway is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni LTE and Wi-Fi 6E antenna. If you use R2120 with QuMax Omni antenna, you get an integrated complete solution with embedded gateway, multi band antennas and 4x PoE 802.3af/at to power external devices in one enclosure.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuMax Omni for Robustel R2120

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

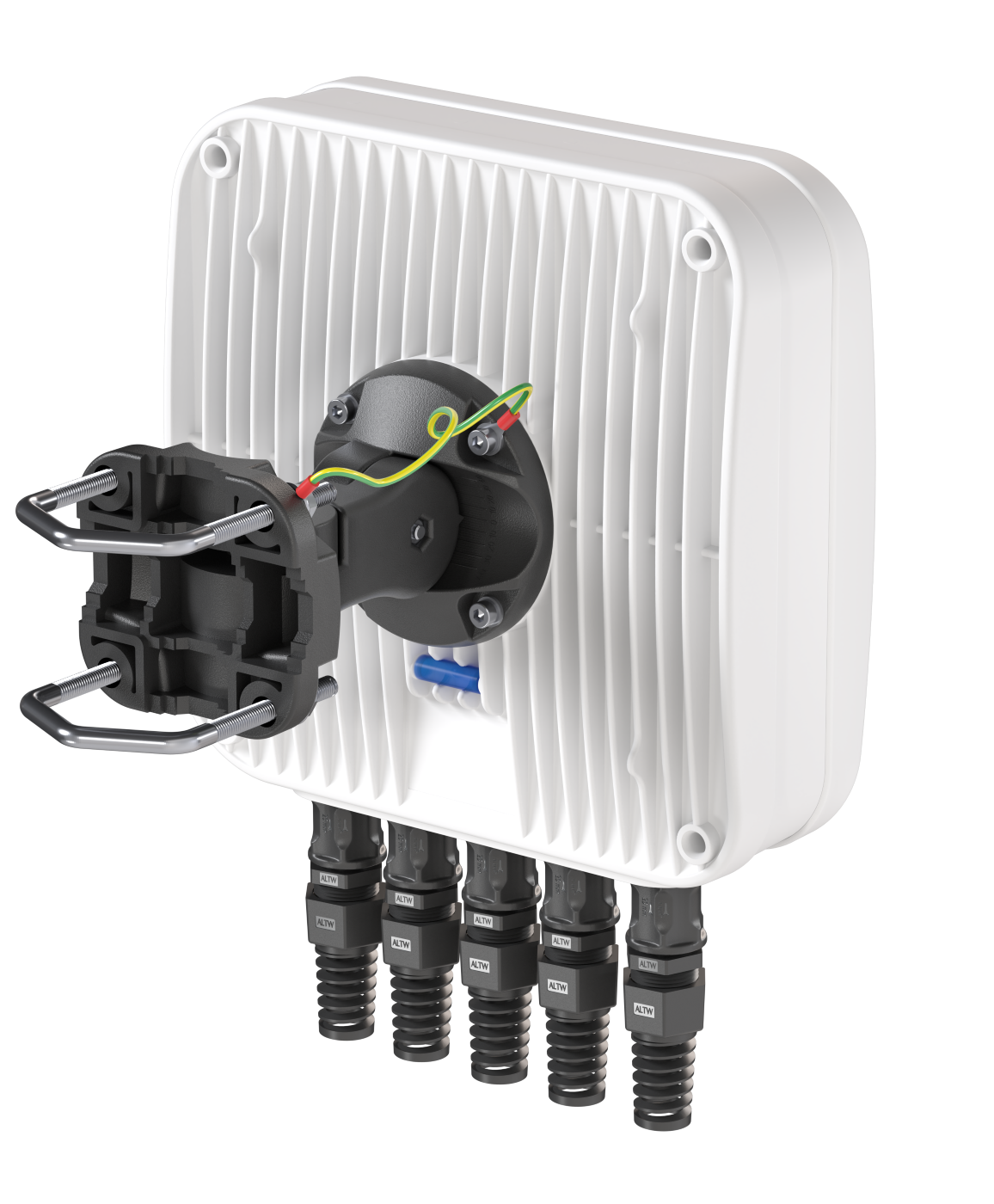

MOUNTING SYSTEM WITH TWO PLANES, 60 DEGREES REGULATION

ANTENNA PERFECTLY MATCHED WITH THE ROBUSTEL R2120

ALL ANTENNAS AND ROBUSTEL GATEWAY INTEGRATED IN ONE ENCLOSURE

Made in Europe

QuMax Omni for Robustel R2120

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.5 - 2.7 GHz

Gain

694 - 960 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.5 - 2.7 GHz : 3 dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n95, n98, n100, n101, n256

VSWR

<1.50, max <2.50

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

LTE VSWR

LTE VSWR of QuMax Omni for Robustel R2120

Wi-Fi VSWR

Wi-Fi VSWR of QuMax Omni for Robustel R2120

LTE Gain

LTE Gain of QuMax Omni for Robustel R2120

Wi-Fi Gain

Wi-Fi Gain of QuMax Omni for Robustel R2120
LTE From 700MHz to 900MHz
Elevation
Azimuth
LTE From 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE From 2.5GHz to 2.7GHz
Elevation
Azimuth
Wi-Fi From 2.4GHz to 6.5GHz
Elevation
Azimuth
