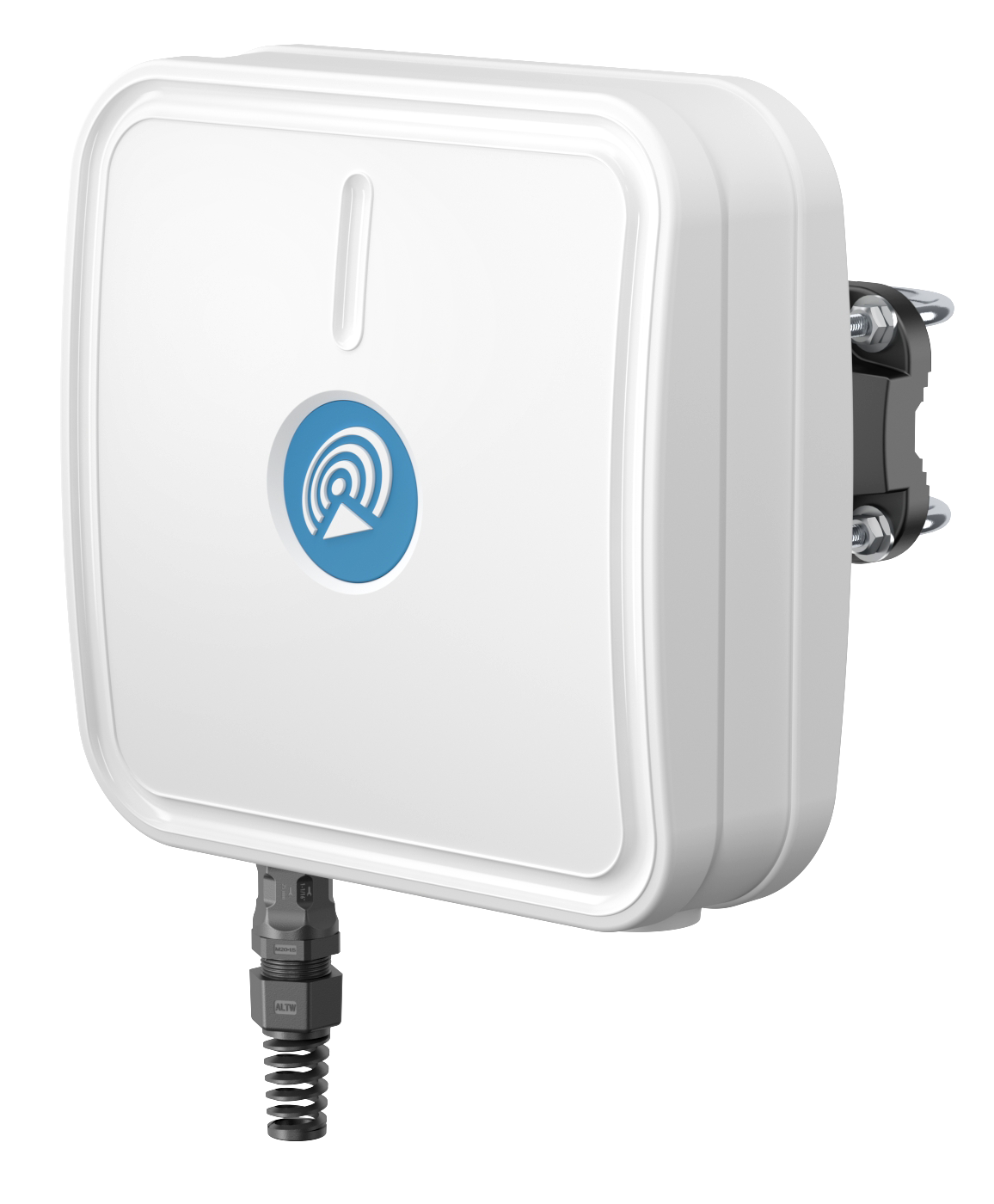

Antenna QuMax Omni for Robustel R3000

P/n: AR3000MO

INTEGRATED MULTI-BAND LTE OMNI ANTENNA + WI-FI 6E OMNI ANTENNA + GPS ANTENNA + POE SPLITTER + PLACE TO INSTALL ROBUSTEL R3000 (ALL-IN-ONE)

QuMax Omni all-in-one antenna for Robustel R3000 router is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni LTE, omni Wi-Fi 6E and GPS antenna. If you use R3000 with QuMax Omni antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuMax Omni for Robustel R3000

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the Robustel R3000

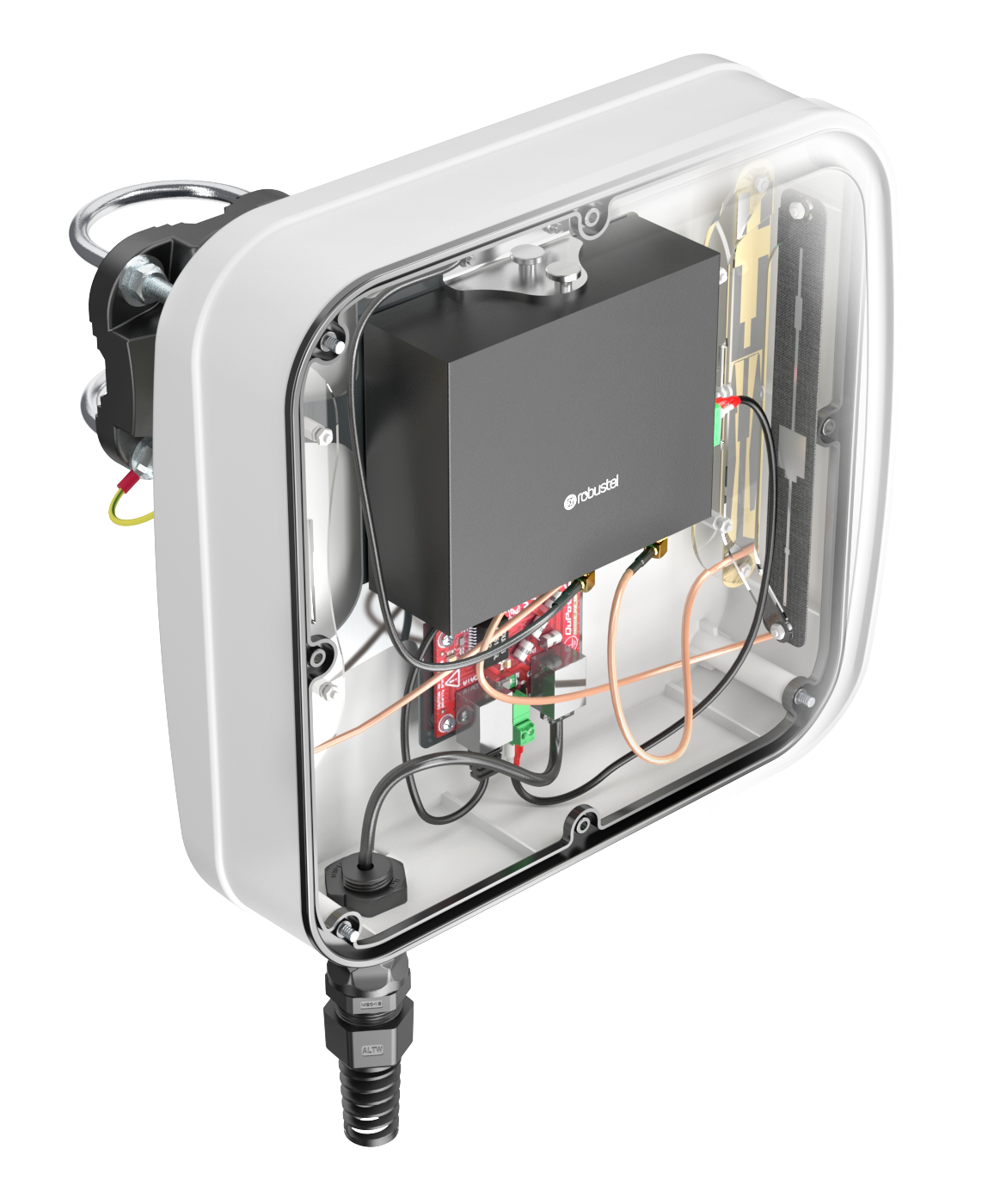

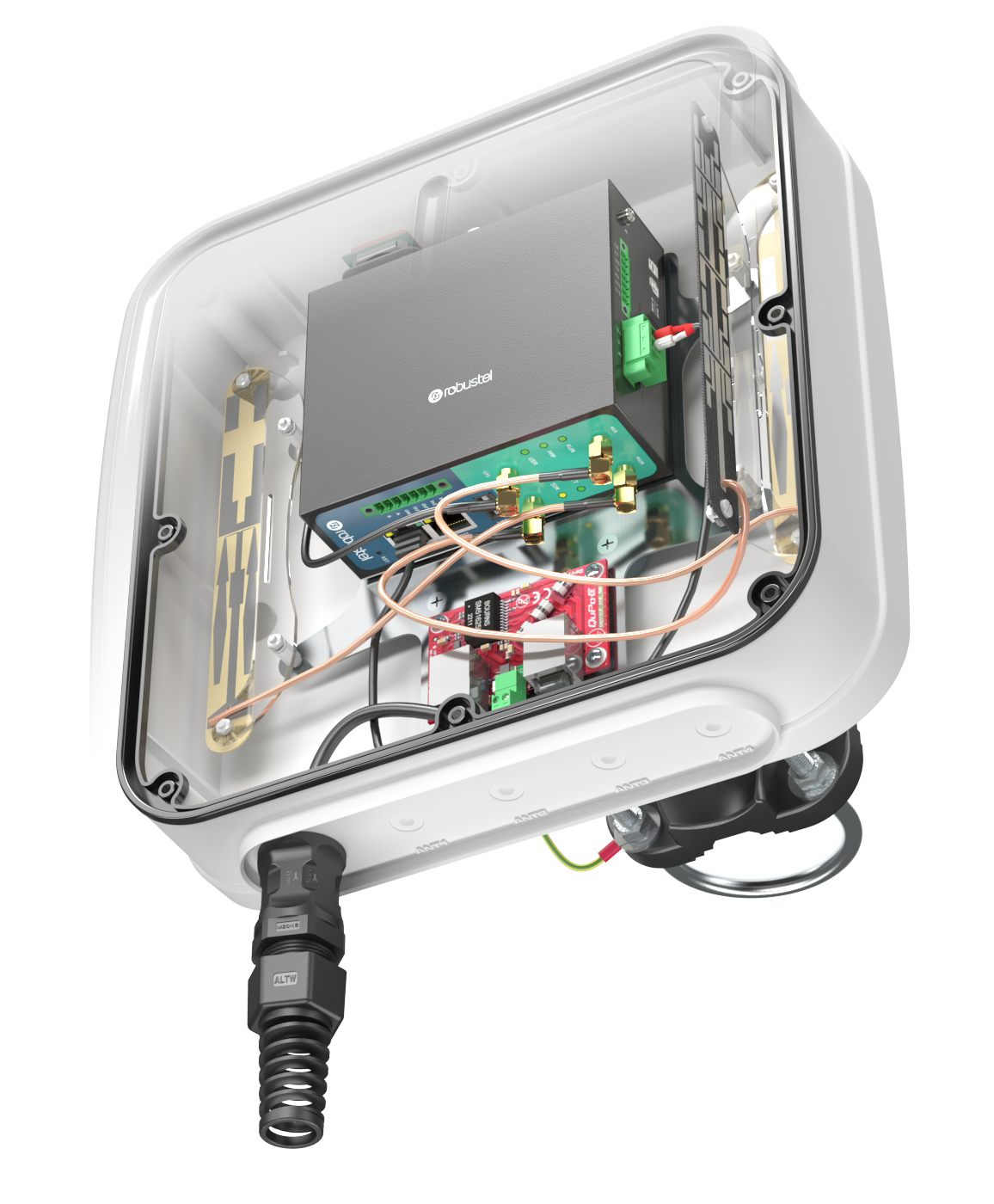

All antennas and Robustel router integrated in one enclosure

Made in Europe

QuMax Omni for Robustel R3000

SPECIFICATION

PRODUCT DETAILS

LTE SPECIFICATION

WI-FI SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

FREQUENCY

0.694-0.96 GHz

1.7 - 2.2 GHz

2.5 - 2.7 GHz

SUPPORTED LTE/5G BANDS

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95

GAIN

0.694 - 0.96 GHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.5 - 2.7 GHz : 6 dBi

VSWR

<1.50, max <2.50

BEAMWIDTH

360°/25° +/- 5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

LTE VSWR

LTE VSWR of QuMax Omni for Robustel R3000

WI-FI VSWR

WI-FI VSWR of QuMax Omni for Robustel R3000

LTE Gain

LTE Gain of QuMax Omni for Robustel R3000

WI-FI Gain

WI-FI Gain of QuMax Omni for Robustel R3000
LTE From 700MHz to 900MHz
Elevation
Azimuth
LTE From 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE From 2.3GHz to 2.7GHz
Elevation
Azimuth
WI-FI From 2.4GHz to 6.5GHz
Elevation
Azimuth
