Antenna QuMax Omni for Milesight UR35

P/n: AMUR35MO

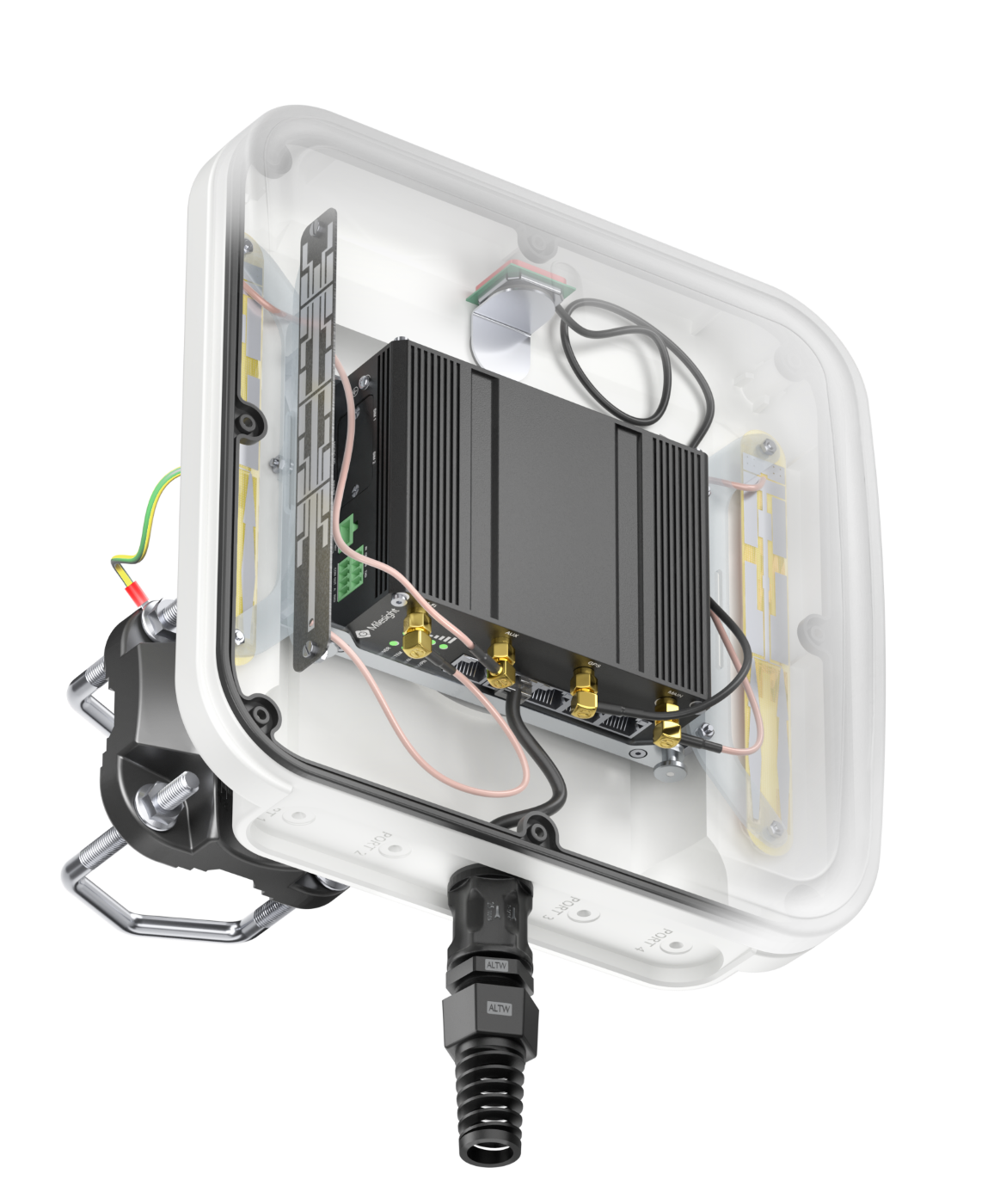

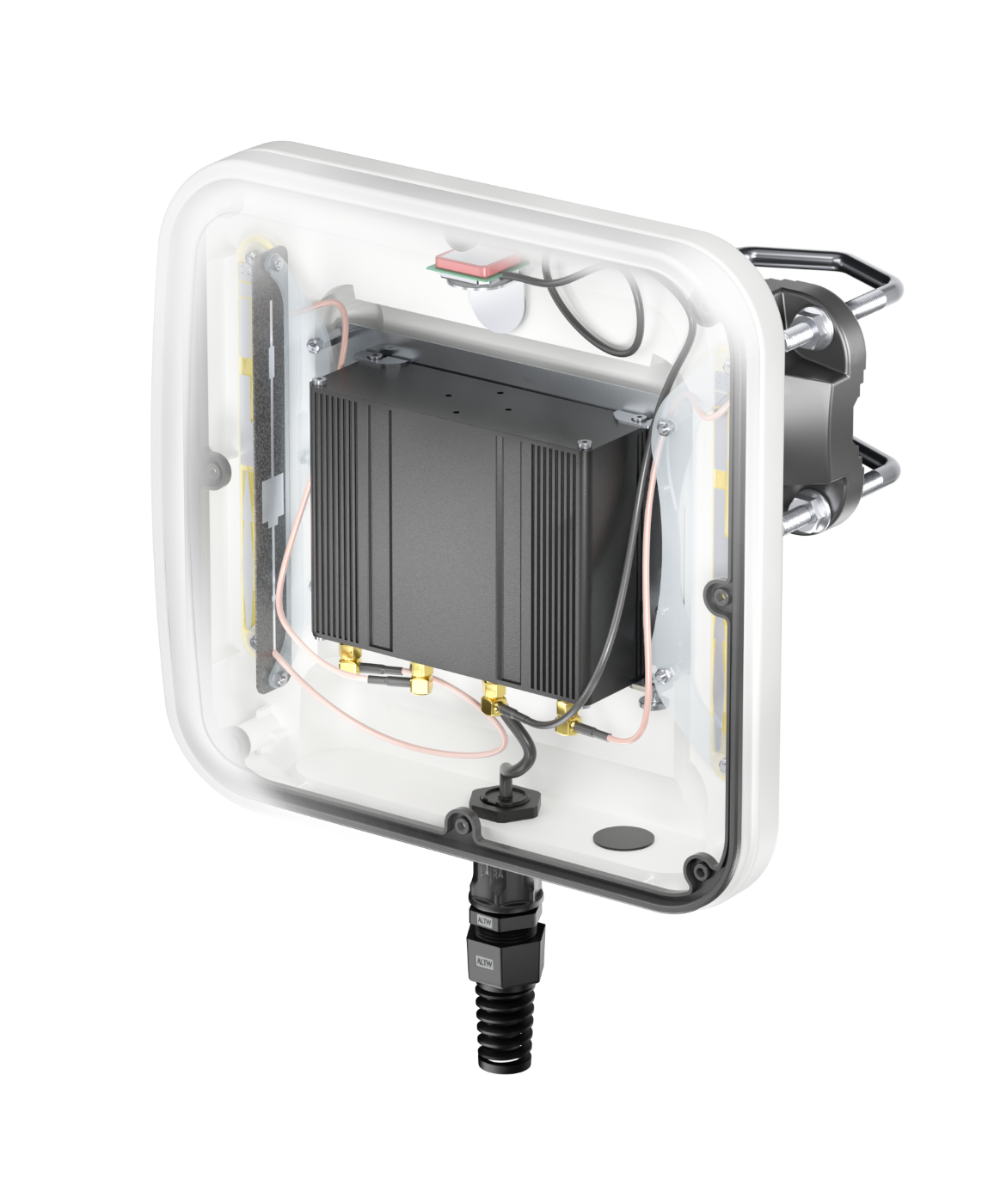

INTEGRATED MULTI-BAND LTE OMNI ANTENNA + WIFI OMNI ANTENNA + GPS ANTENNA + PLACE TO INSTALL MILESIGHT UR35 (ALL-IN-ONE)

QuMax Omni all-in-one antenna for Milesight UR35 router is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni LTE, Wi-Fi and GPS antenna. If you use UR35 with QuMax Omni antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Why QuMax Omni for Milesight UR35

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the Milesight UR35

All antennas and Milesight router integrated in one enclosure

Made in Europe

QuMax Omni for Milesight UR35

SPECIFICATION

PRODUCT DETAILS

LTE SPECIFICATION

WI-FI SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

FREQUENCY

0.694-0.96 GHz

1.7 - 2.2 GHz

2.5 - 2.7 GHz

SUPPORTED LTE/5G BANDS

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95

GAIN

0.694 - 0.96 GHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.5 - 2.7 GHz : 6 dBi

VSWR

<1.50, max <2.50

BEAMWIDTH

360°/25° +/- 5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna

VSWR for LTE antenna of QuMax Omni for Milesight UR35

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuMax Omni for Milesight UR35

Gain for LTE antenna

Gain for LTE antenna of QuMax Omni for Milesight UR35

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuMax Omni for Milesight UR35
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
Wi-Fi 2.4GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax Omni for Milesight UR35QuMax Omni for Milesight UR35

Download

Datasheet QuMax Omni for Milesight UR35
Download
IP67 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax Omni for Milesight UR35
Use case QuMax Omni for Milesight UR35
Use case QuMax Omni for Milesight UR35
