Antenna QuMax for Cradlepoint R1900

P/n: ACP1900M

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + WIFI OMNI ANTENNA + BLUETOOTH ANTENNA + GPS ANTENNA + PLACE TO INSTALL CRADLEPOINT R1900 (ALL-IN-ONE)

QuMax all-in-one antenna for Cradlepoint R1900 router is dedicated to connections with long distance to base station. It has embedded directional 5G, Wi-Fi, Bluetooth and GPS antenna. If you use R1900 with QuMax Omni antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure. It is the first choice for fixed installations in industrial environment.

Why QuMax for Cradlepoint R1900

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the Cradlepoint R1900

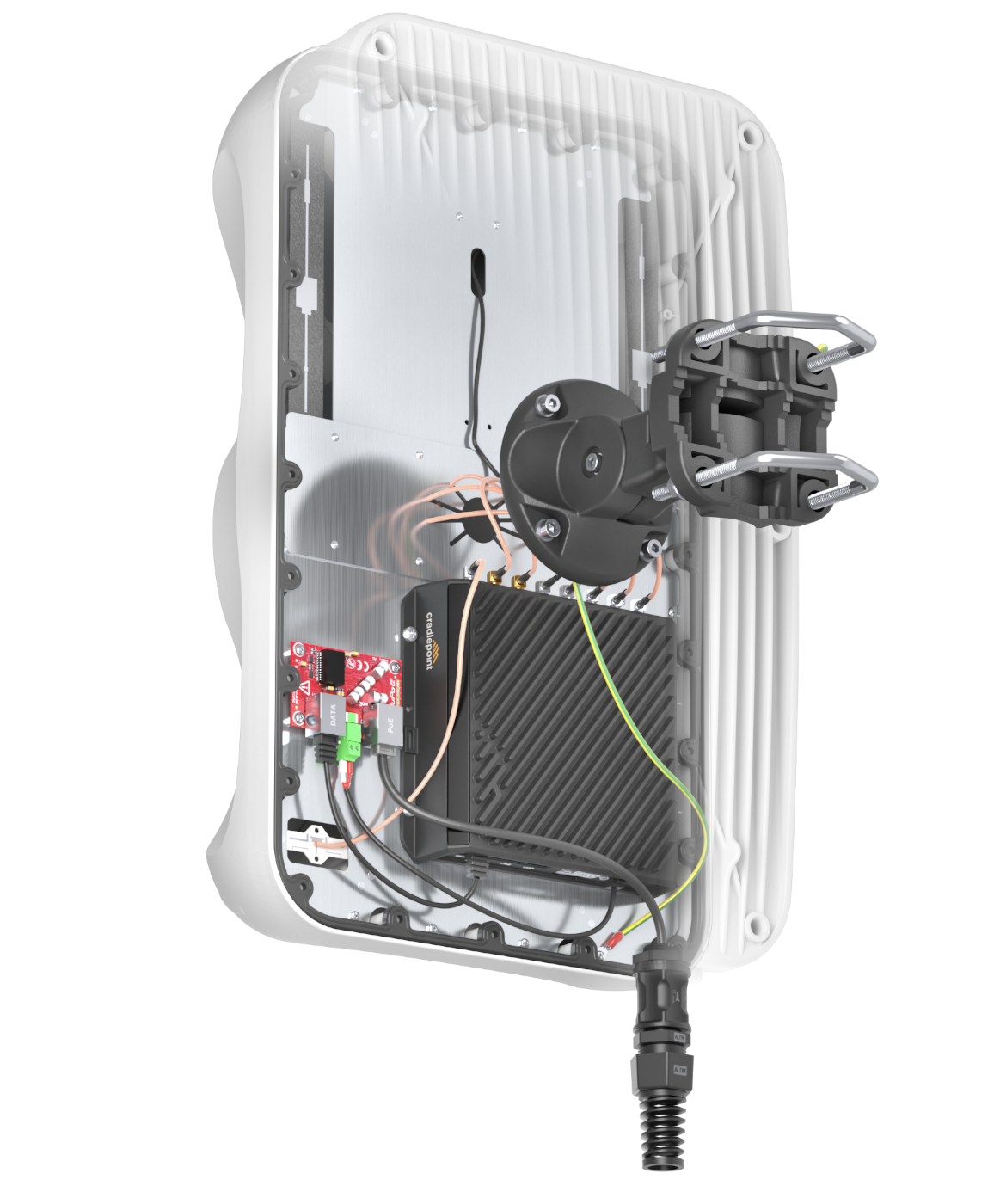

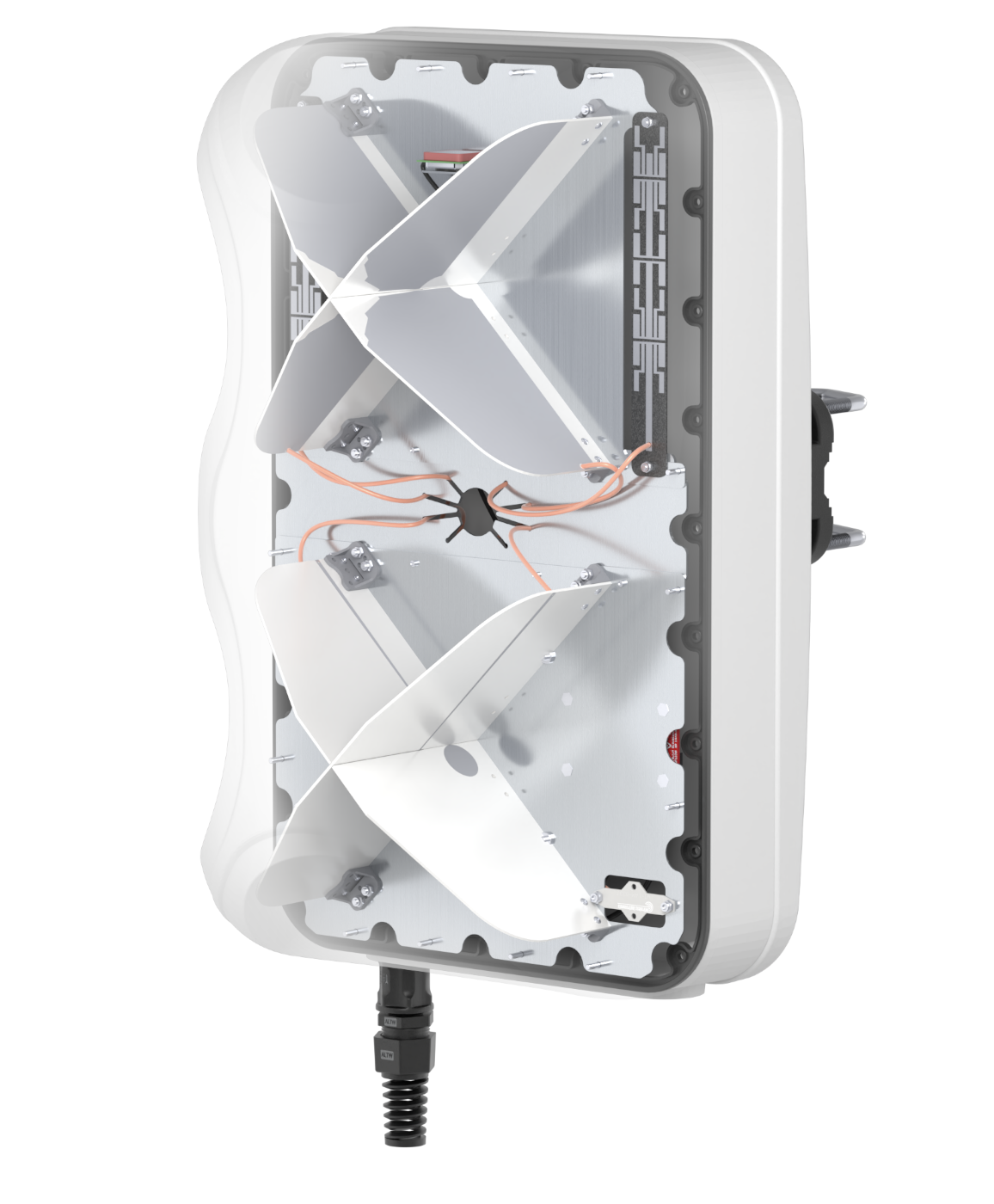

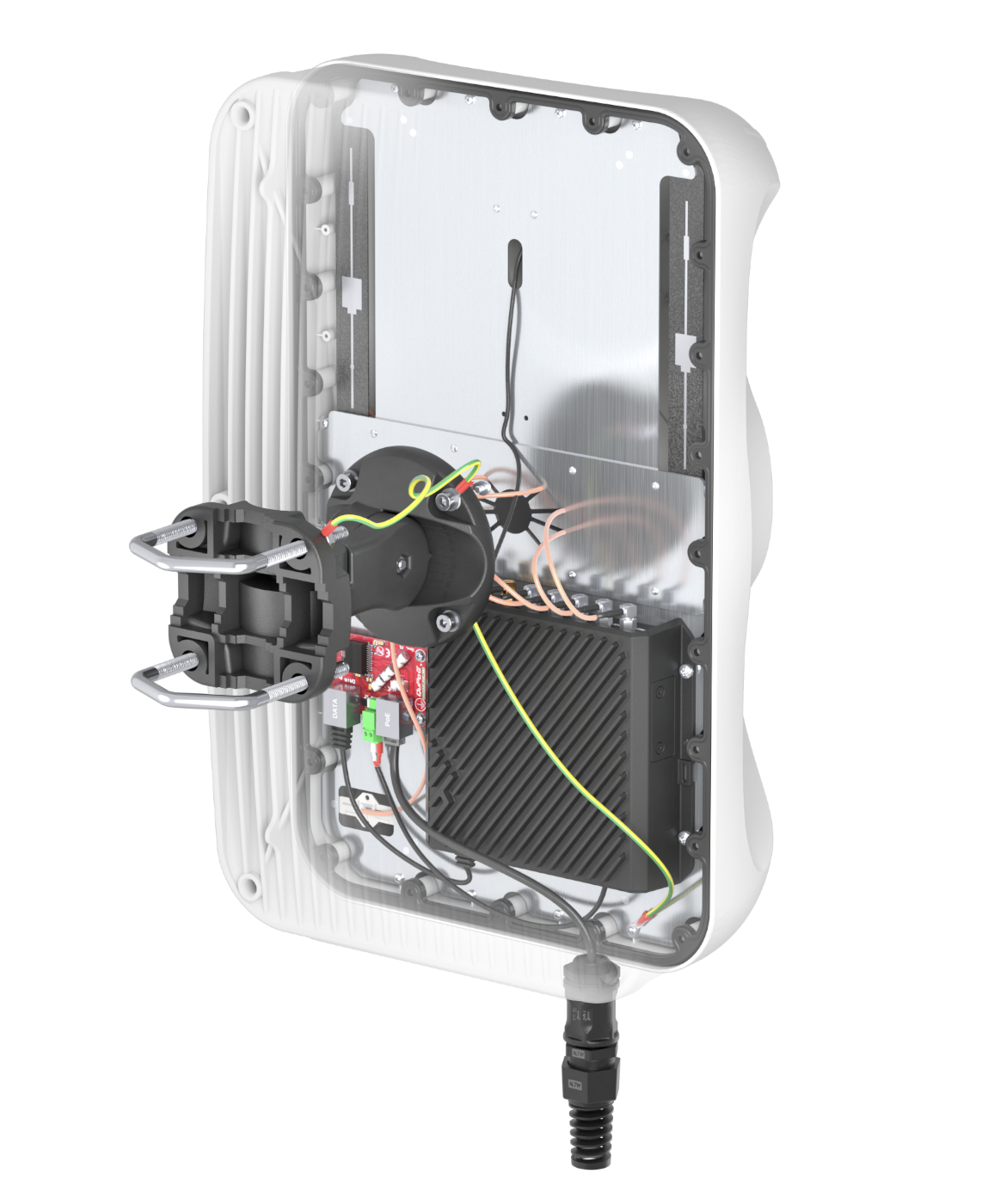

All antennas and Cradlepoint router integrated in one enclosure

Made in Europe

QuMax for Cradlepoint R1900

SPECIFICATION

PRODUCT DETAILS

5G/LTE SPECIFICATION

WI-FI SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

FREQUENCY

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

GAIN

617 - 960 MHz : 6 dBi

1.7 - 2.7 GHz : 7 dBi

3.3 - 4.6 GHz : 7 dBi

4.7 - 6.0 GHz : 5.5dBi

VSWR

<2.00, max <3.00

BEAMWIDTH

80°/80° ±15°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuMax for Cradlepoint R1900

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuMax for Cradlepoint R1900

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuMax for Cradlepoint R1900

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuMax for Cradlepoint R1900
5G/LTE Port 1/3 from 650MHz to 950MHz
Elevation
Azimuth
5G/LTE Port 1/3 from 1.71GHz to 2.17GHz
Elevation
Azimuth
5G/LTE Port 1/3 from 2.3GHz to 2.7GHz
Elevation
Azimuth
5G/LTE Port 1/3 from 3.3 GHz to 3.8 GHz
Elevation
Azimuth
5G/LTE Port 1/3 from 4.2 GHz to 4.6 GHz
Elevation
Azimuth
5G/LTE Port 1/3 from 5.0 GHz to 5.9 GHz
Elevation
Azimuth
5G/LTE Port 2/4 from 650 MHz to 950 MHz
Elevation
Azimuth
5G/LTE Port 2/4 from 1.71 GHz to 2.17 GHz
Elevation
Azimuth
5G/LTE Port 2/4 from 2.3 GHz to 2.7 GHz
Elevation
Azimuth
5G/LTE Port 2/4 from 3.3 GHz to 3.8 GHz
Elevation
Azimuth
5G/LTE Port 2/4 from 4.2 GHz to 4.6 GHz
Elevation
Azimuth
5G/LTE Port 2/4 from 5.0 GHz to 5.9 GHz
Elevation
Azimuth
Wi-Fi From 2.4 GHz to 6.5 GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Cradlepoint R1900QuMax for Cradlepoint R1900

Download

Datasheet QuMax for Cradlepoint R1900
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax for Cradlepoint R1900
Use case QuMax for Cradlepoint R1900
Use case QuMax for Cradlepoint R1900
