Antenna QuMax for Robustel R5020

To check PN please select variant below

INTEGRATED MULTI-BAND LTE & 5G PANEL ANTENNA + WI-FI OMNI ANTENNA + GPS + PLACE TO INSTALL Robustel R5020 (ALL-IN-ONE)

QuMax for Robustel R5020 is a high performance directional antenna designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G, Wi-Fi and GPS antennas, integrated in IP67 enclosure. It offers 7.5 dBi gain and wide beam width, which makes it suitable for use in both urban and rural environments.

Combining QuMax with R5020 inside the antenna housing gives you complete outdoor solution with mulitple use scenatios such as transportation public, energy, mining IoT and more.

Wi-Fi 6E support!

Note! This antenna comes in two different versions, depending on your router configuration. When you use R5020 supporting Power over Ethernet (PoE) please choose version "no PoE splitter'. For R5020 without PoE support, please choose "PoE splitter" version. Compatible Robustel part numbers available in the specification below.


Variants:

no PoE splitter

PoE splitter

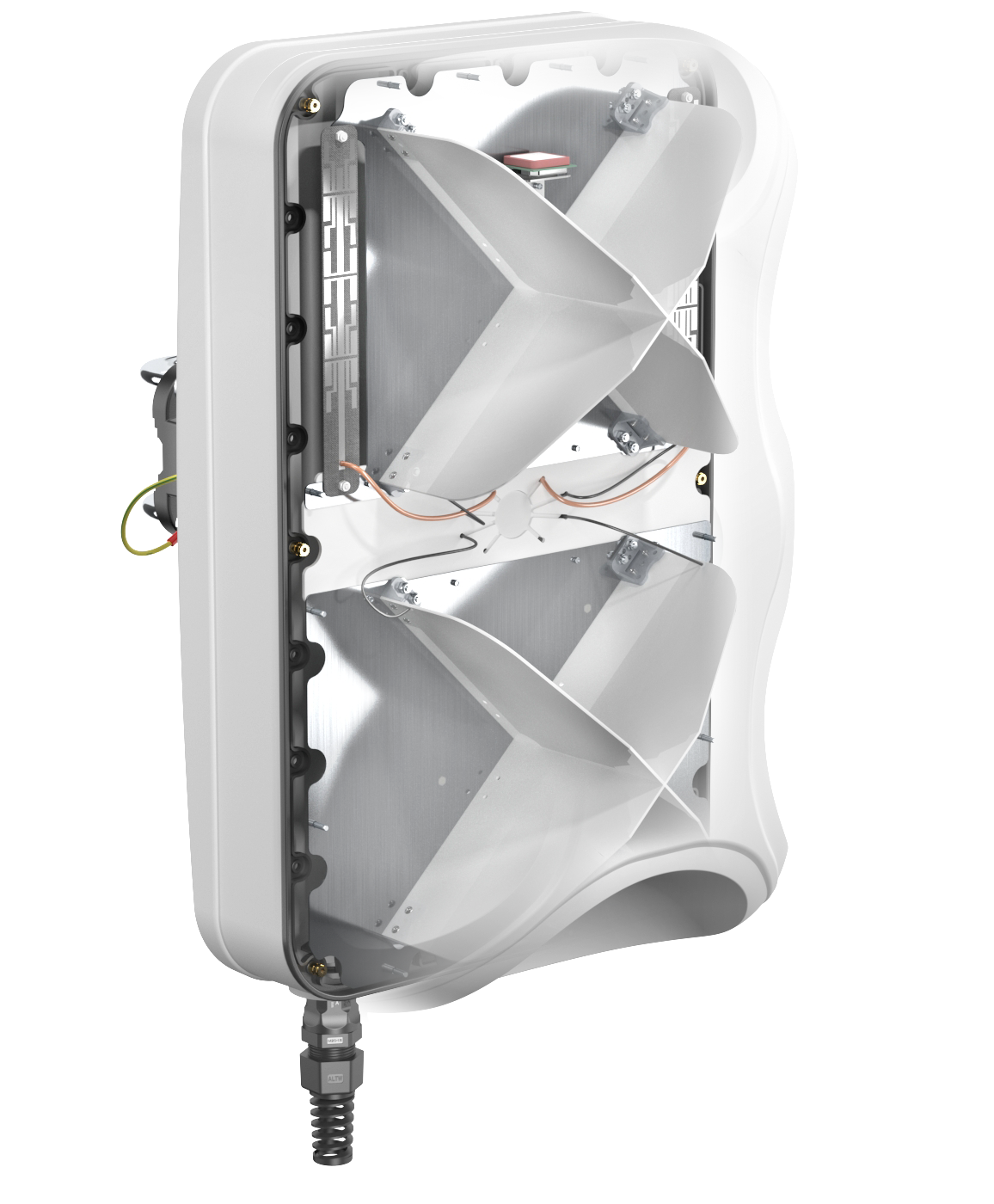

Why QuMax for Robustel R5020

Learn more about your profit

All antennas and Robustel router integrated in one enclosure

Antenna perfectly matched with the router

Outdoor antenna works in any weather conditions, IP67

Made in Europe

QuMax for Robustel R5020

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

Wi-Fi antenna specification

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE PART NUMBERS

COMPATIBLE ROUTERS

Frequency

0.617 - 0.96 GHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

0.617 - 0.96 GHz: 6 dBi

1.7 - 2.7 GHz: 7 dBi

3.3 - 4.6 GHz: 7 dBi

4.7 - 6.0 GHz: 5.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuMax for Robustel R5020

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuMax for Robustel R5020

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuMax for Robustel R5020

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuMax for Robustel R5020
PORT 1&3 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5GHz and 6GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Robustel R5020QuMax for Robustel R5020

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuMax for Robustel R5020 Lite

Parts of QuMax for Robustel R5020
1 x
Parts of QuMax for Robustel R5020
1 x
Parts of QuMax for Robustel R5020
1 x QuRJ45
Parts of QuMax for Robustel R5020
2 x
Parts of QuMax for Robustel R5020
1 x 8mm wrench
Parts of QuMax for Robustel R5020
1 x
Parts of QuMax for Robustel R5020
4 x M6 x 18
Parts of QuMax for Robustel R5020
4 x
Parts of QuMax for Robustel R5020
4 x M8
Parts of QuMax for Robustel R5020
6 x M3
Parts of QuMax for Robustel R5020
5 x M4 x 40
