Antenna QuMax for Sierra Wireless XR60

P/n: AXR60M

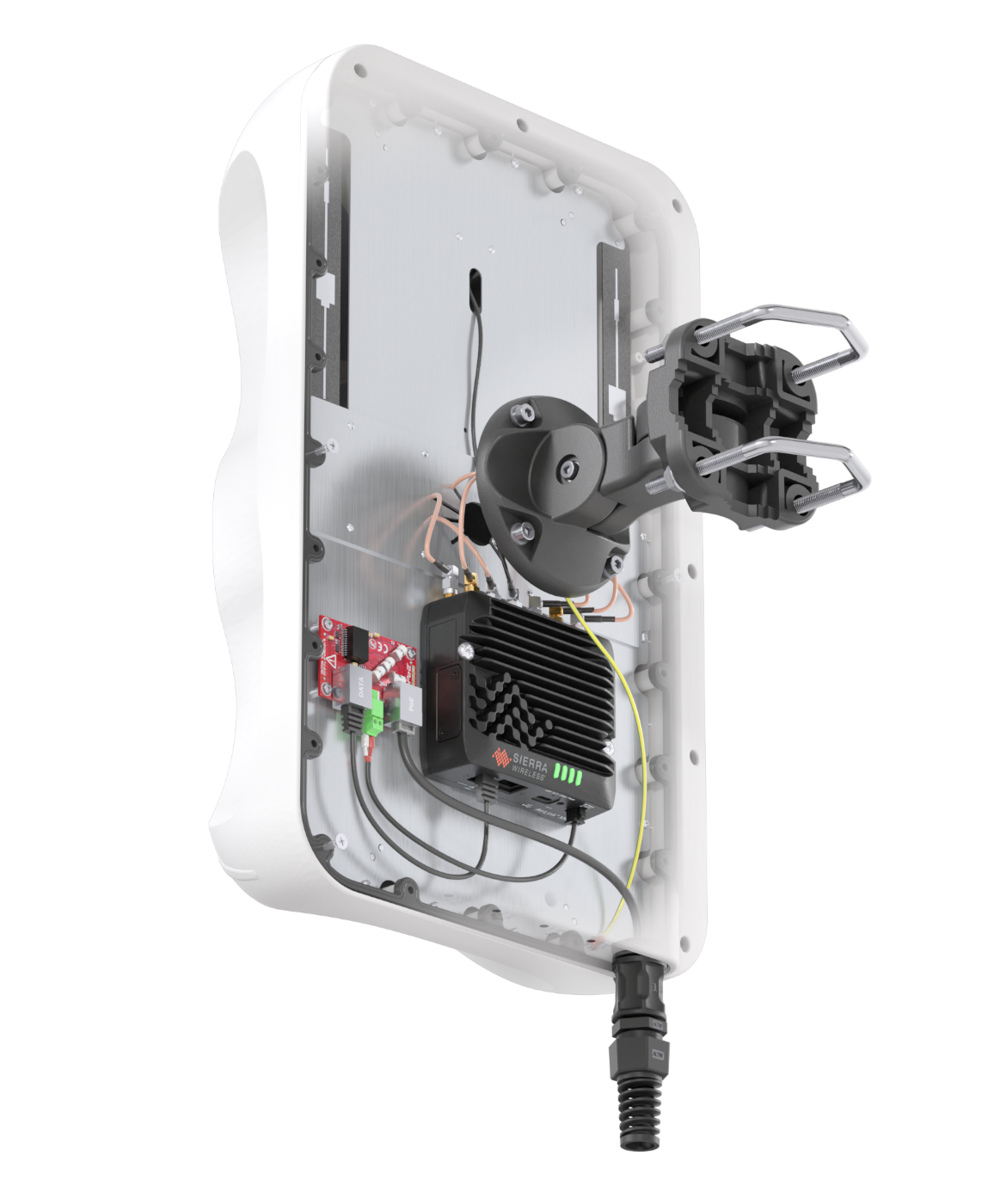

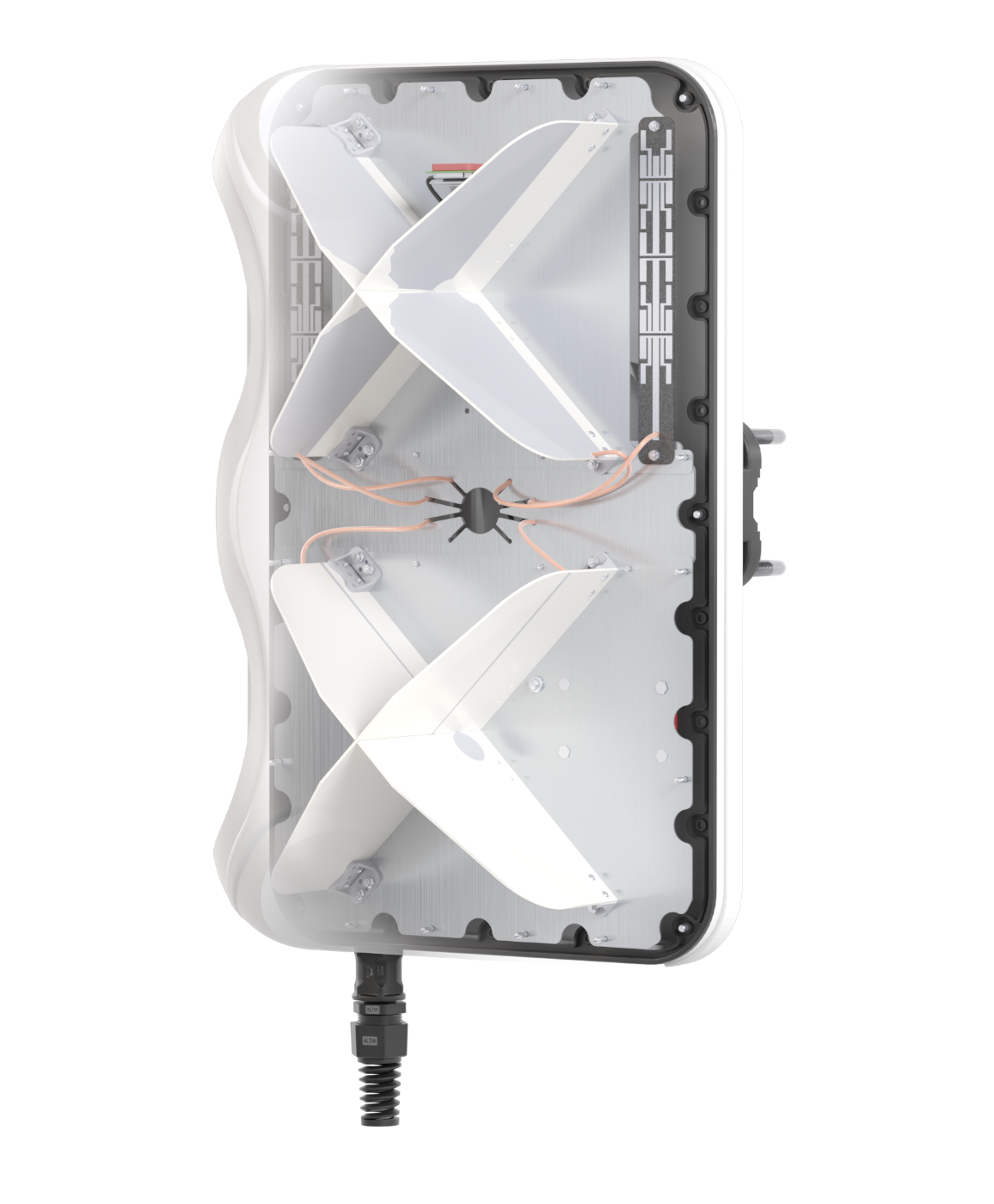

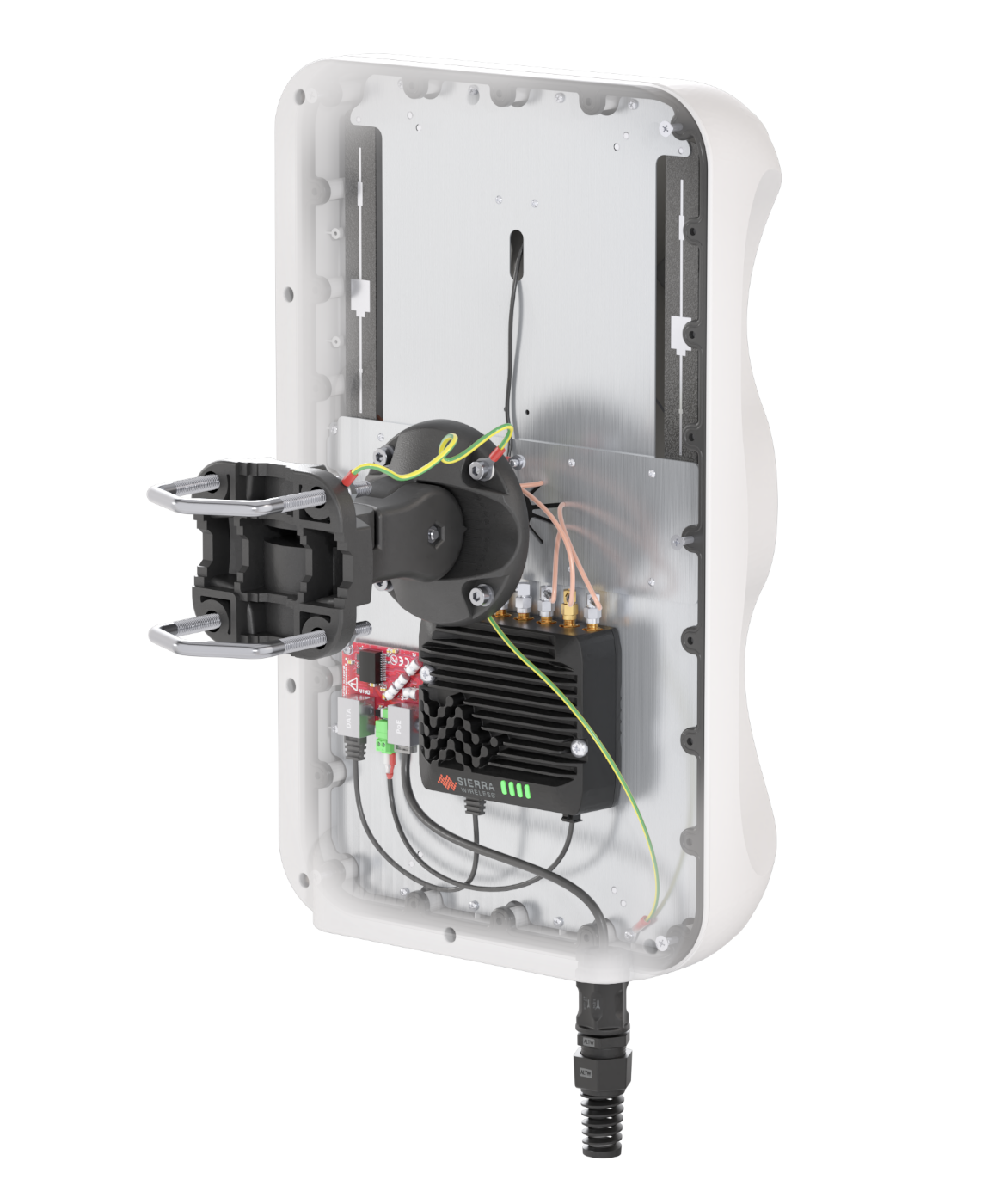

INTEGRATED MULTI-BAND LTE & 5G PANEL ANTENNA + WI-FI OMNI ANTENNA + GPS ACTIVE ANTENNA + PLACE TO INSTALL Sierra Wireless XR60 (ALL-IN-ONE)

QuMax for Sierra Wireless XR60 is a high performance directional antenna designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G, Wi-Fi and GPS antennas, integrated in IP67 enclosure. It offers 7.5 dBi gain and wide beam width, which makes it suitable for use in both urban and rural environments.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Combining QuMax with XR60 inside the antenna housing gives you complete outdoor solution with mulitple use scenatios such as transportation public, energy, mining IoT and more.

Why QuMax for Sierra Wireless XR60

Learn more about your profit

Embedded PoE splitter

Antenna perfectly matched with the router

Outdoor antenna works in any weather conditions, IP67

Made in Europe

QuMax for Sierra Wireless XR60

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

GPS ACTIVE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

0.617 - 0.96 GHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

0.617 - 0.96 GHz: 6 dBi

1.7 - 2.7 GHz: 7 dBi

3.3 - 4.6 GHz: 7 dBi

4.7 - 6.0 GHz: 5.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

Connector

4x SMA

Cable type

RG316

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuMax for Sierra Wireless XR60

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuMax for Sierra Wireless XR60

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuMax for Sierra Wireless XR60

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuMax for Sierra Wireless XR60
PORT 1&3 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5GHz and 6GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Sierra Wireless XR60QuMax for Sierra Wireless XR60

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuMax for Sierra Wireless XR60

Parts of QuMax for Sierra Wireless XR60
1 x
Parts of QuMax for Sierra Wireless XR60
1 x
Parts of QuMax for Sierra Wireless XR60
1 x QuRJ45
Parts of QuMax for Sierra Wireless XR60
2 x
Parts of QuMax for Sierra Wireless XR60
1 x 8mm wrench
Parts of QuMax for Sierra Wireless XR60
2 x
Parts of QuMax for Sierra Wireless XR60
4 x M6 x 18
Parts of QuMax for Sierra Wireless XR60
4 x
Parts of QuMax for Sierra Wireless XR60
4 x M8
Parts of QuMax for Sierra Wireless XR60
6 x M4 x 40
