1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

Antenna QuMax for Teltonika RUT951 POE+

P/n: A951PM

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + WI-FI OMNI ANTENNA + PLACE TO INSTALL TELTONIKA RUT951 POE+ (ALL-IN-ONE)

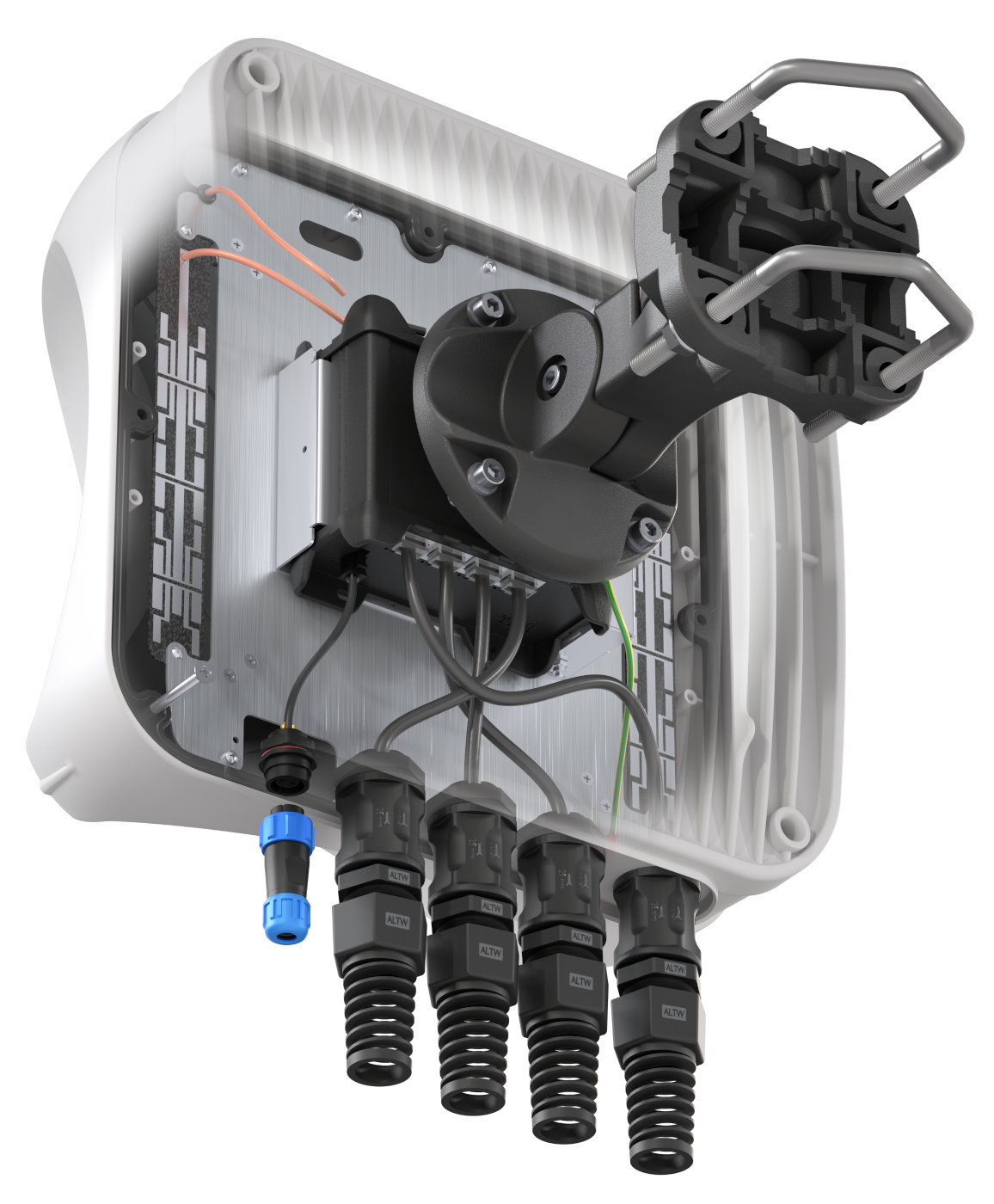

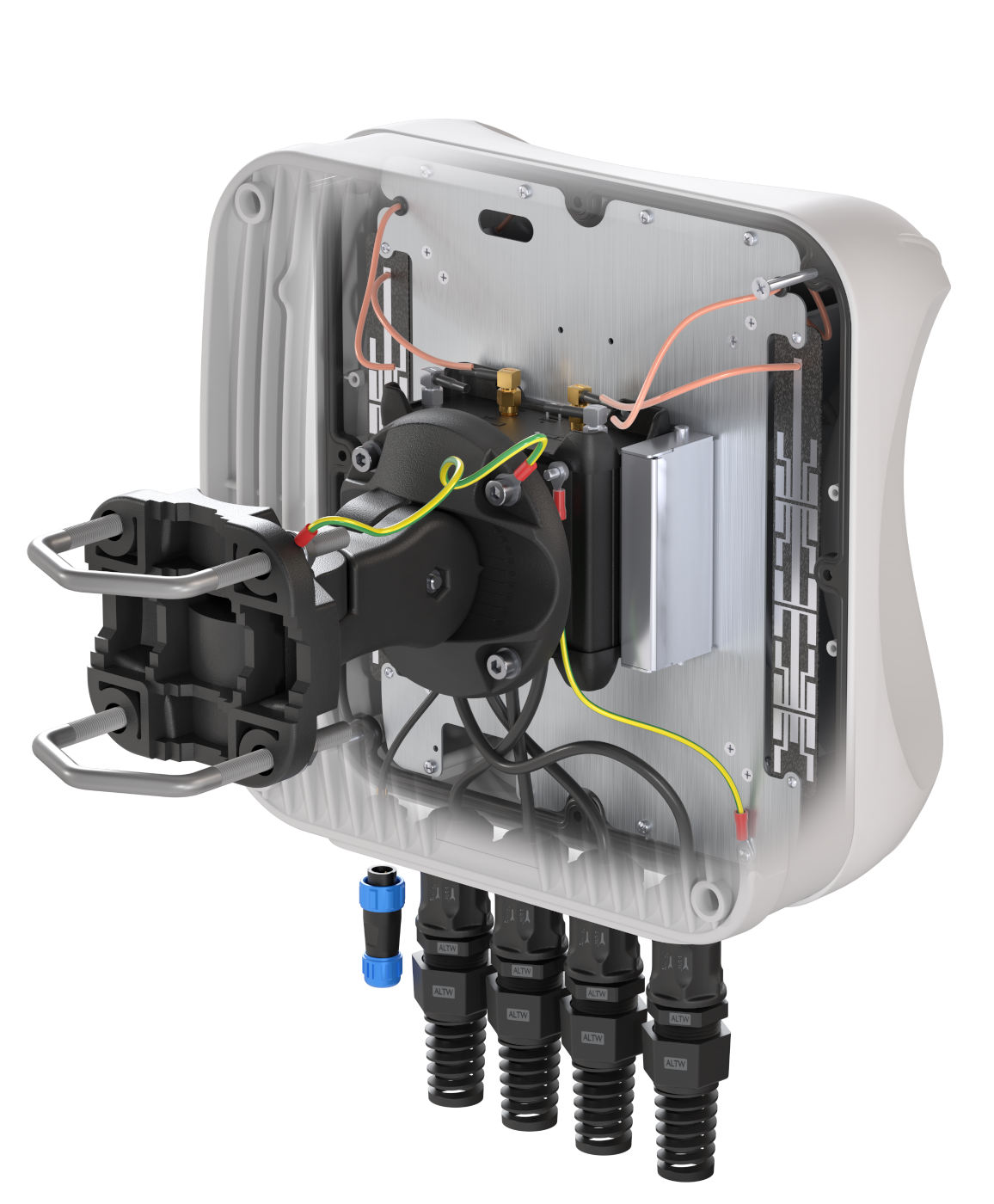

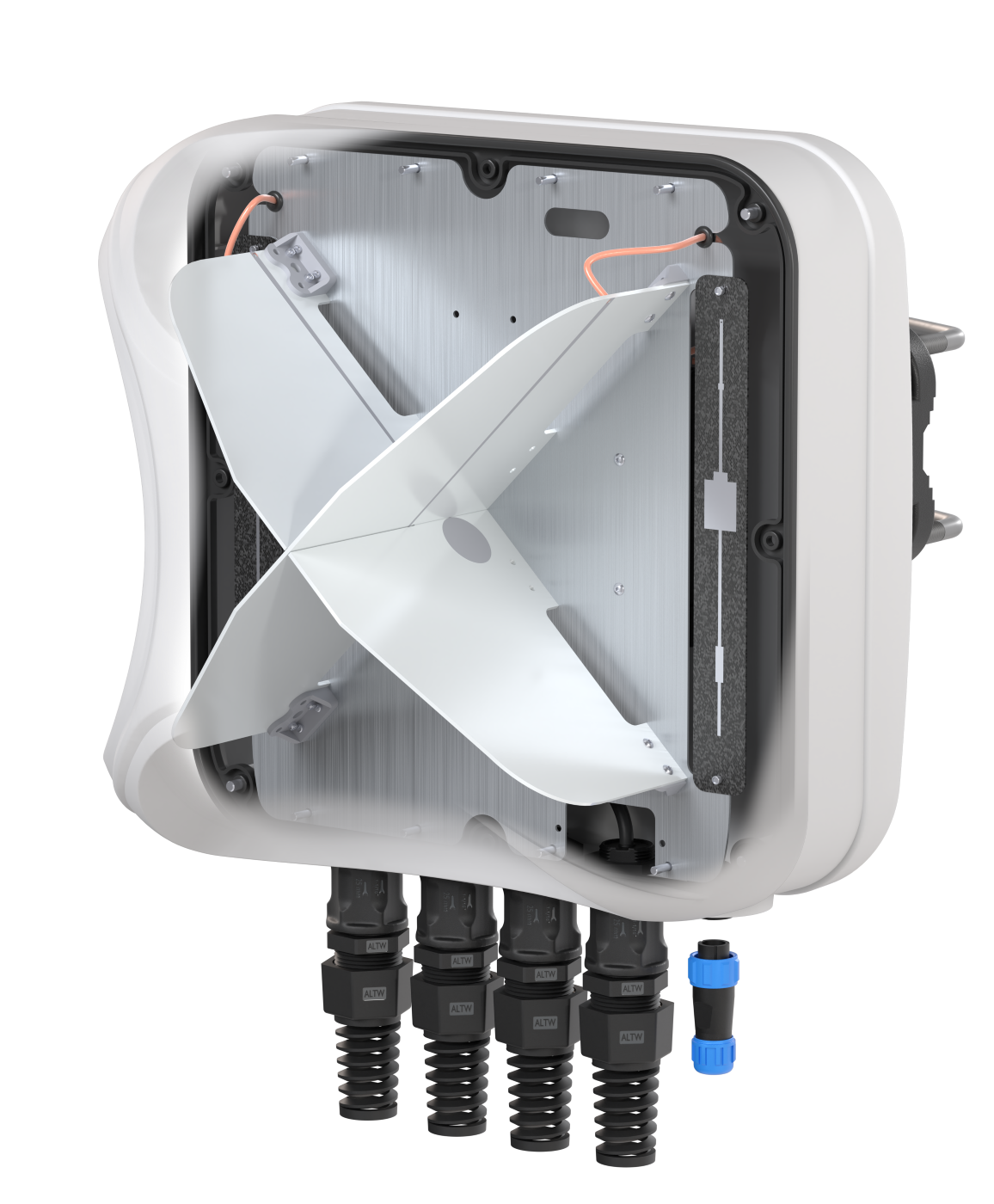

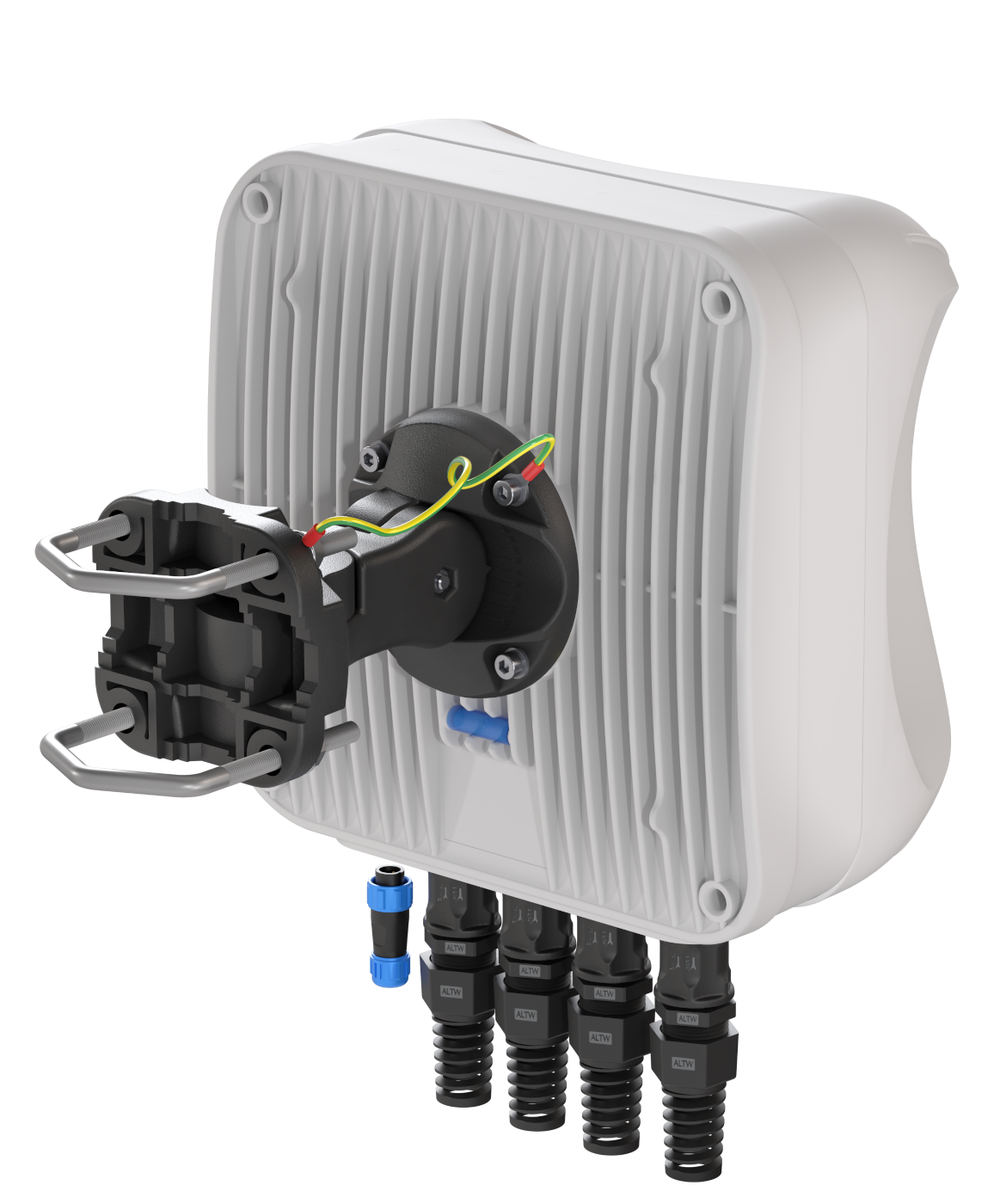

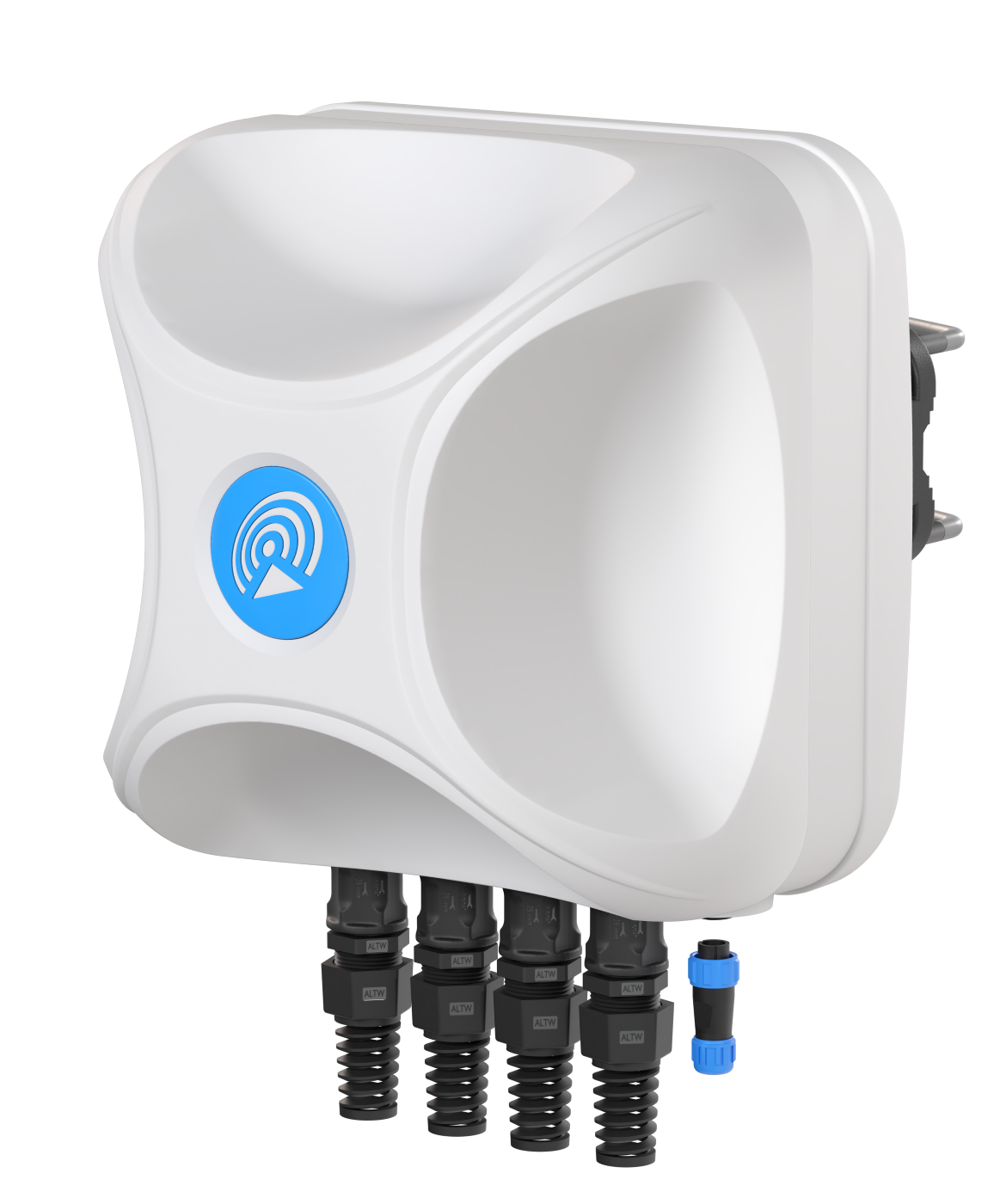

QuMax for Teltonika RUT951 PoE+ router features integrated directional 5G/LTE and Wi-Fi antennas, an internal mounting system for the router, and a bracket for pole or wall installation. To fully utilize the router’s capabilities, it includes four RJ45 ports:

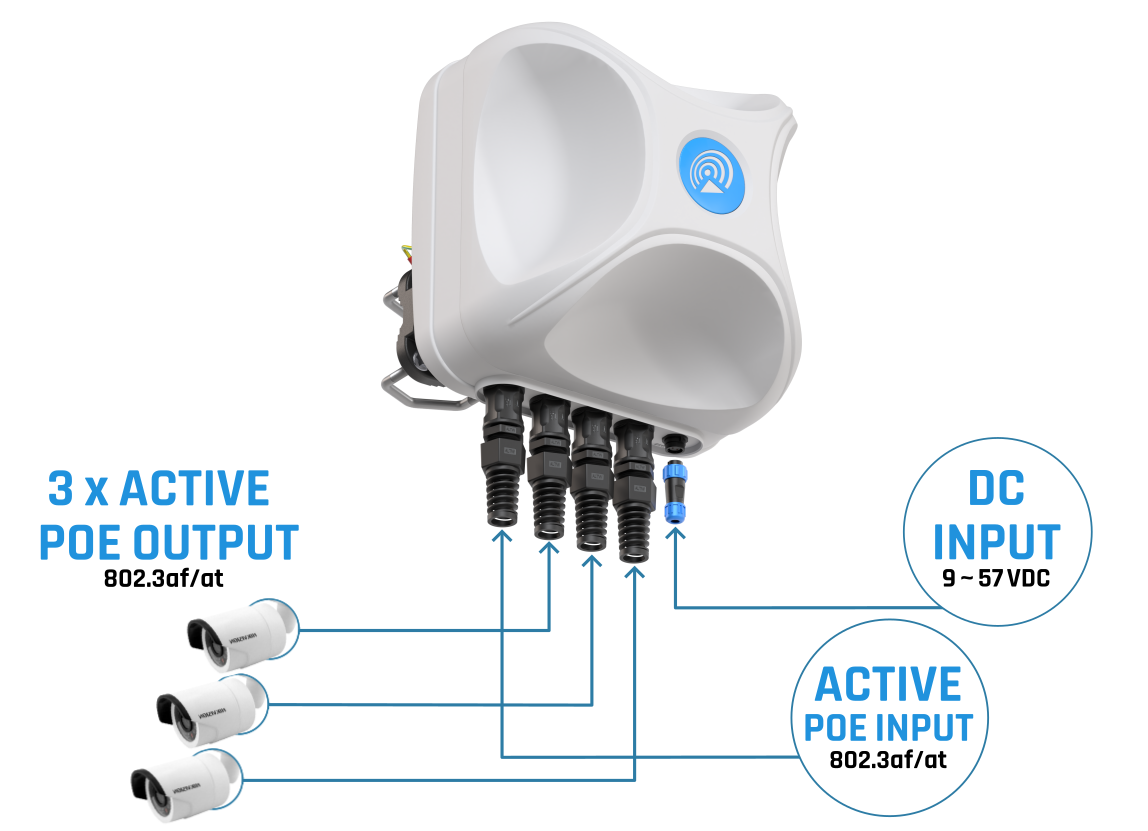

1x PoE IN 802.3af/at
3x PoE OUT 802.3af/at; 30W max per port; 90W total

It also comes equipped with a DC connector, supporting power input from a 9–57V DC source.

This all-in-one, versatile solution is ideal for a wide range of security applications. In addition to powering CCTV cameras, it can support various other PoE-enabled devices such as sensors, sirens, panic buttons, and more. QuMax simplifies advanced security deployments with a compact, integrated design.

Technical specification

Any question?

Why QuMax for Teltonika RUT951 POE+

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP68

MOUNTING SYSTEM WITH TWO PLANES, 60 DEGREES REGULATION

Wide band 600-6000MHz, 5G technology

ALL ANTENNAS AND TELTONIKA ROUTER INTEGRATED IN ONE ENCLOSURE

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

617 - 960 MHz : 6 dBi

1.7 - 2.7 GHz : 7 dBi

3.3 - 4.6 GHz : 7 dBi

4.7 - 6.0 GHz : 5.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

Connector

2x SMA

Cable type

RG316
