1. What does it mean that the antenna is directional?

Type of antenna which maximizes its gain in particular direction. Like a flashlight concentrates its light at one spot, directional antenna emits radio waves in a concentrated beam. Directioanl antenna radiation pattern: To learn more about directional antennas take a look at -> „link”

2. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality.

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

Porównaj

Antenna QuMax for Teltonika RUTM30/RUTM31

P/n: AM30M

INTEGRATED MULTI-BAND LTE & 5G PANEL ANTENNA + WI-FI OMNI ANTENNA + PLACE TO INSTALL TELTONIKA RUTM30/RUTM31 (ALL-IN-ONE)

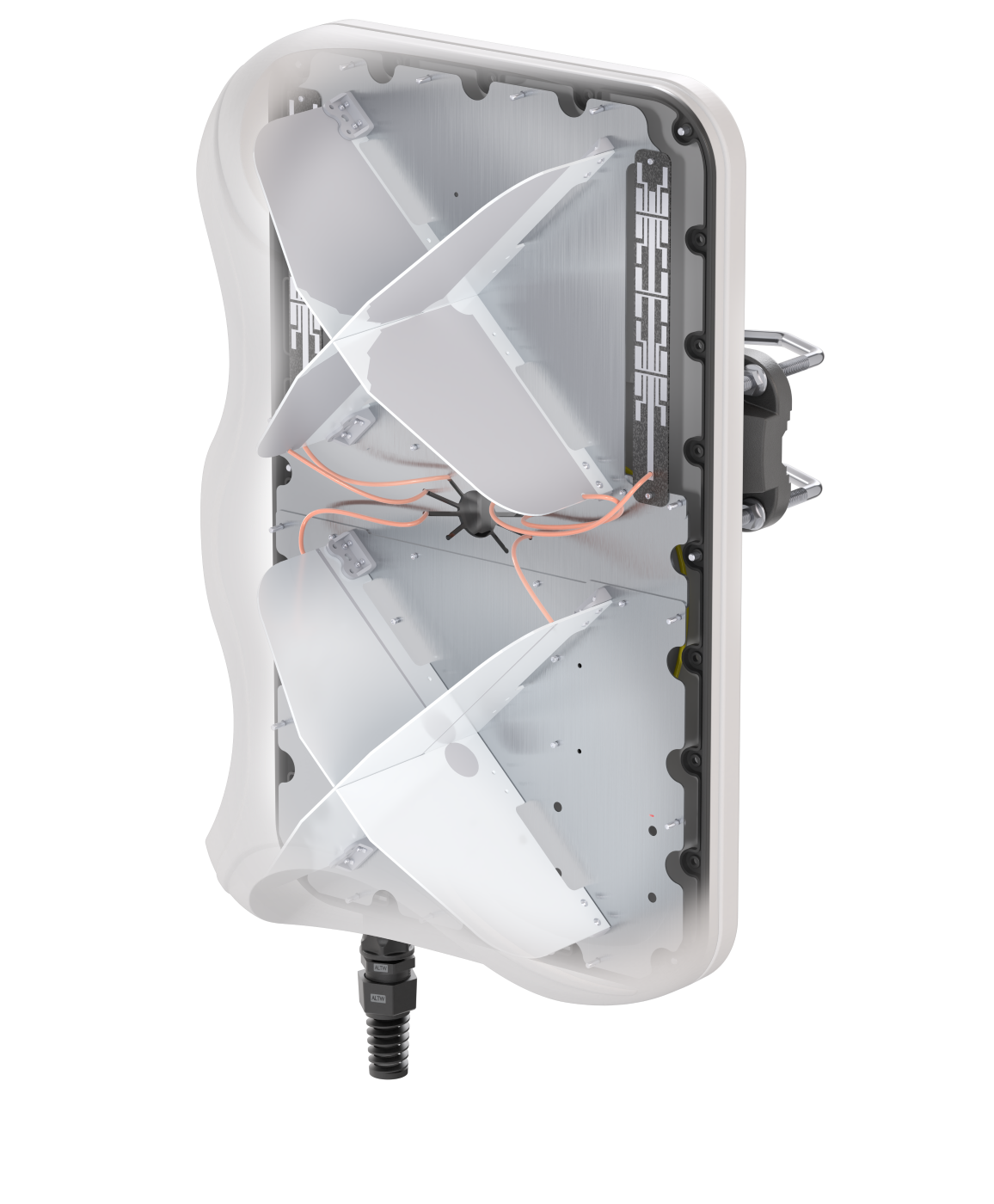

QuMax for Teltonika RUTM30/RUTM31 is a high performance directional antenna designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G and Wi-Fi antennas, integrated in IP68 enclosure. It offers 7.5 dBi gain and wide beam width, which makes it suitable for use in both urban and rural environments.

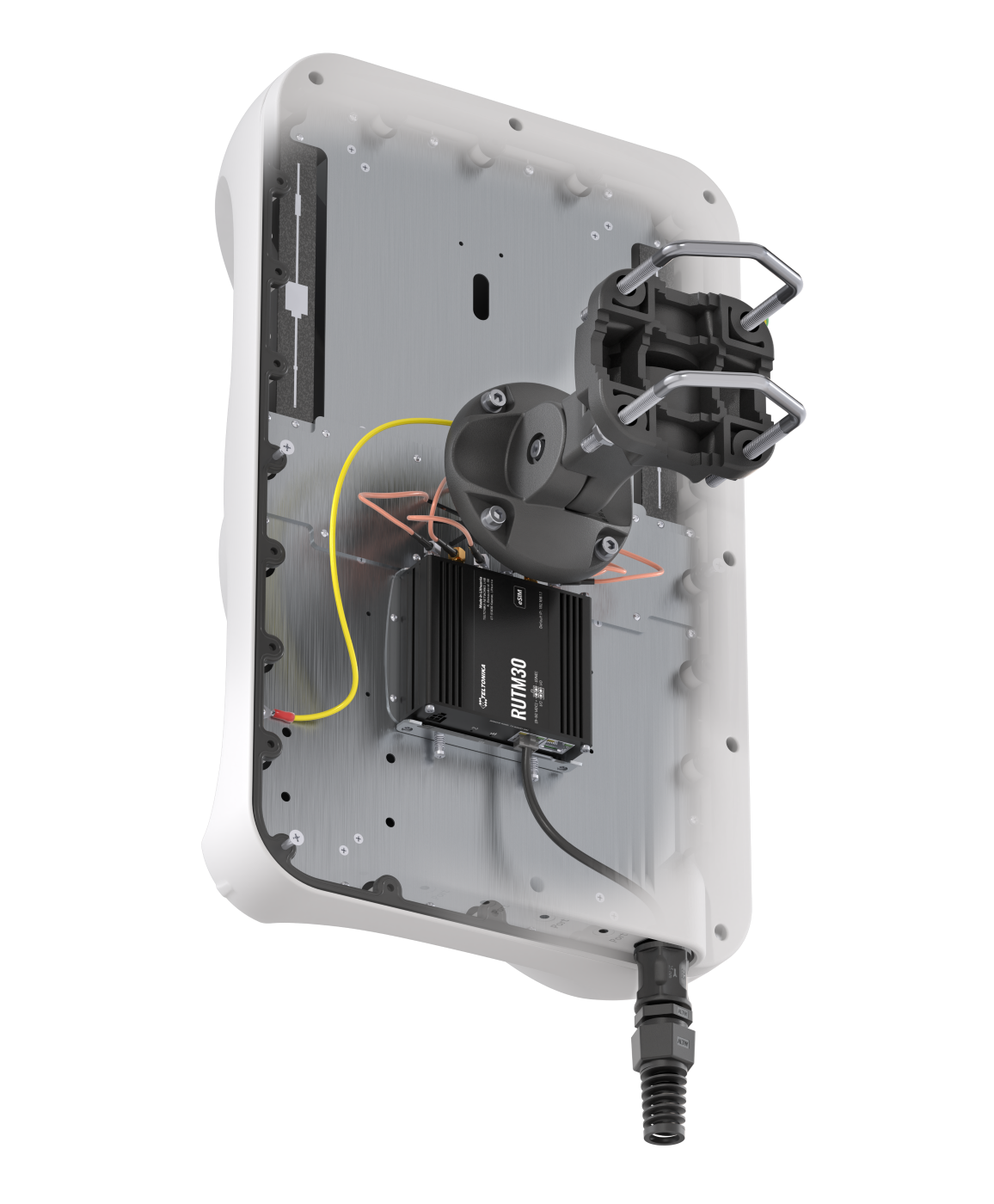

Combining QuMax with RUTM30/RUTM31 inside the antenna housing gives you complete outdoor solution with mulitple use scenatios such as transportation public, energy, mining IoT and more.

Technical specification

Any question?

Why QuMax for Teltonika RUTM30/RUTM31

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.617 - 0.96 GHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

0.617 - 0.96 GHz: 6 dBi

1.7 - 2.7 GHz: 7 dBi

3.3 - 4.6 GHz: 7 dBi

4.7 - 6.0 GHz: 5.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω
