Antenna QuMax for Teltonika RUTM50

P/n: AM50M

INTEGRATED MULTI-BAND LTE & 5G PANEL ANTENNA + WI-FI OMNI ANTENNA + GPS + PLACE TO INSTALL TELTONIKA RUTM50 (ALL-IN-ONE)

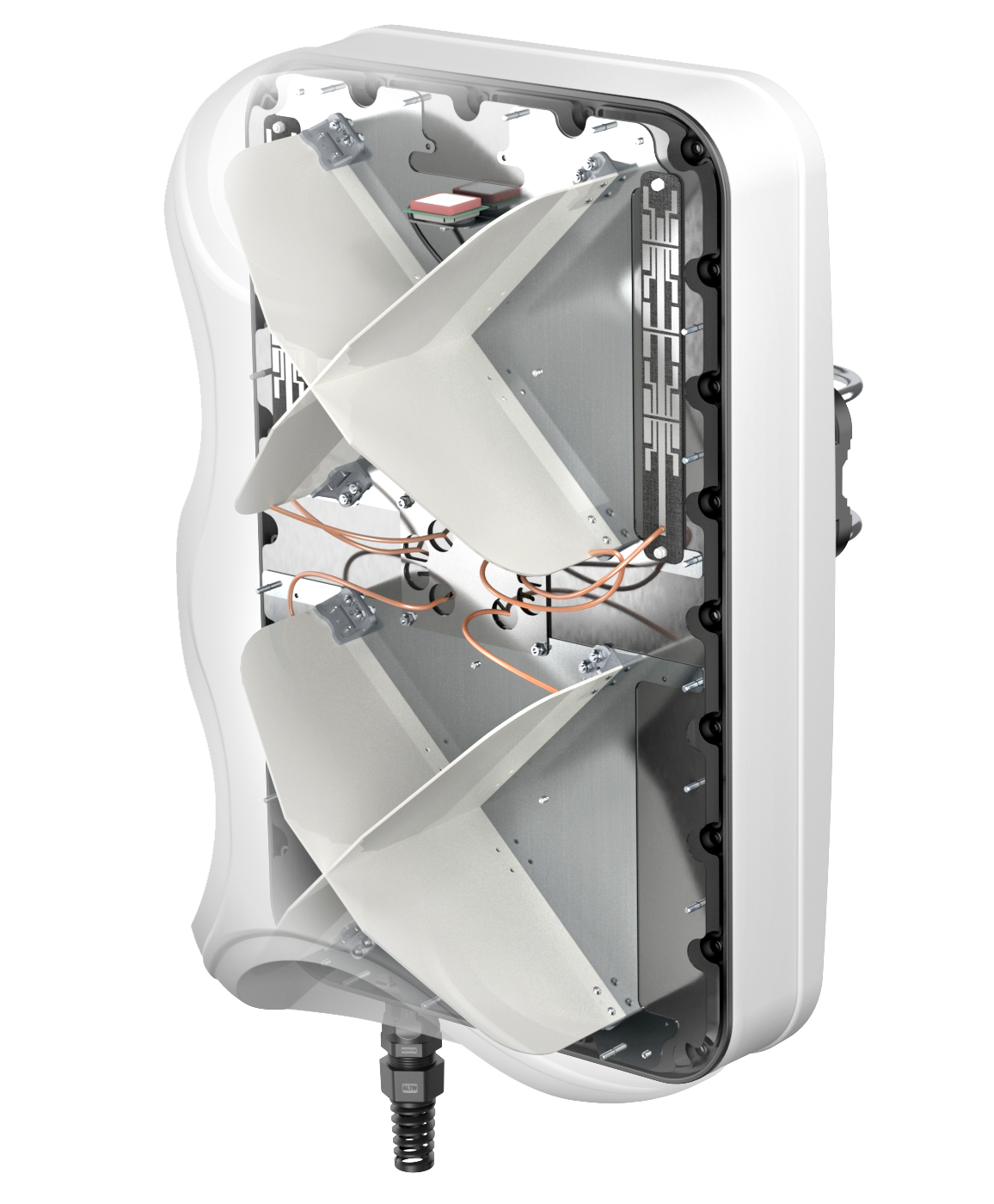

QuMax for RUTM50 is a high performance directional antenna designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G, Wi-Fi and GPS antennas integrated in IP68 (IP67) enclosure. It offers 7.5 dBi gain and wide beamwidth, which makes it suitable for use in both urban and rural environments.

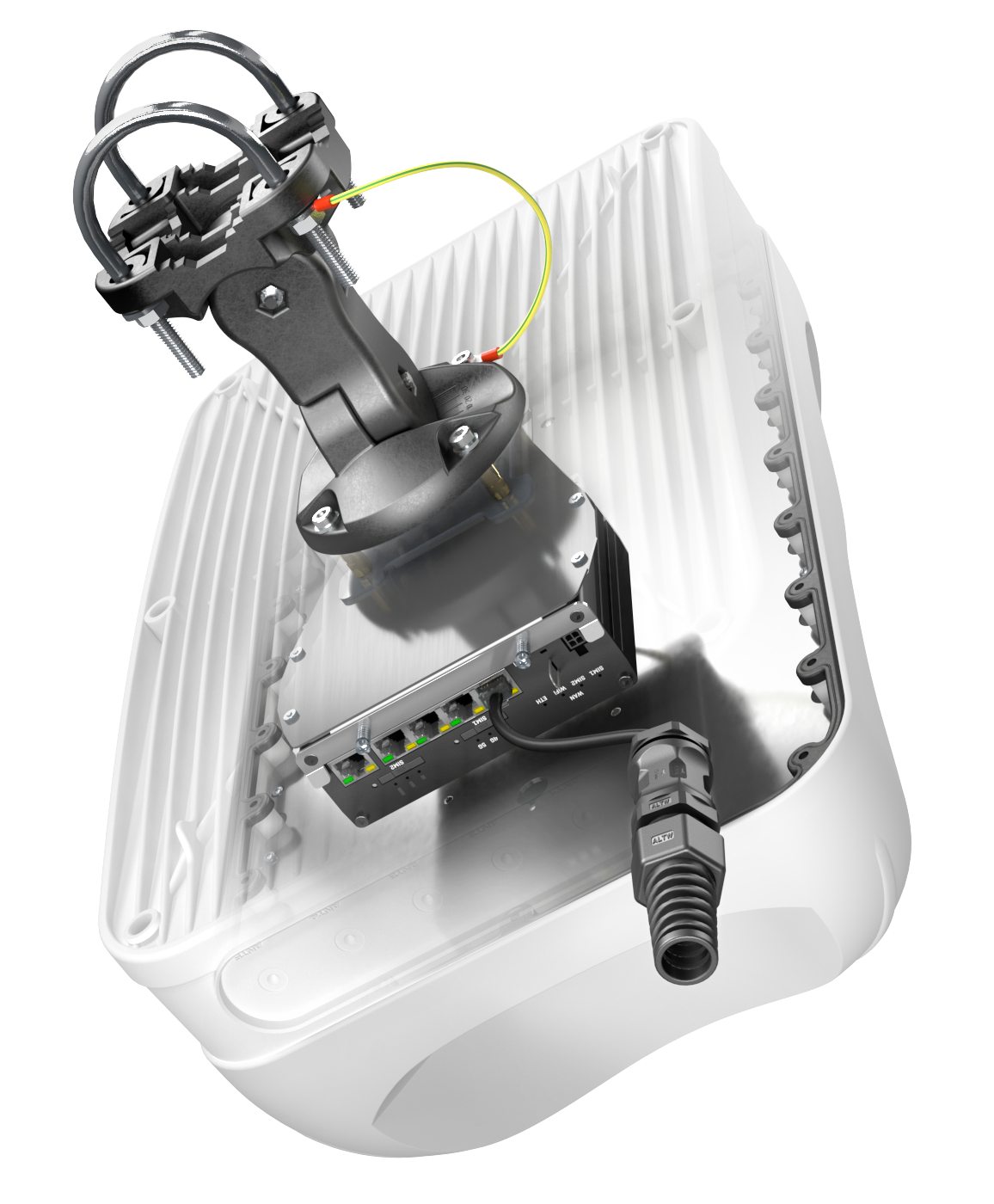

Combining QuMax with RUTM50 inside the antenna housing gives you complete outdoor solution with mulitple use scenarios such as transportation public, energy, mining IoT and more.

Why QuMax for Teltonika RUTM50

Learn more about your profit

Passive PoE support

Antenna perfectly matched with the router

Outdoor antenna works in any weather conditions, IP68

Made in Europe

QuMax for Teltonika RUTM50

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

Wi-Fi antenna specification

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

0.617 - 0.96 GHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

0.617 - 0.96 GHz: 6 dBi

1.7 - 2.7 GHz: 7 dBi

3.3 - 4.6 GHz: 7 dBi

4.7 - 6.0 GHz: 5.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuMax for Teltonika RUTM50

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuMax for Teltonika RUTM50

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuMax for Teltonika RUTM50

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuMax for Teltonika RUTM50
PORT 1&3 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 1&3 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 2&4 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Teltonika RUTM50QuMax for Teltonika RUTM50
QuMax for Teltonika RUTM50QuMax for Teltonika RUTM50
QuMax for Teltonika RUTM50QuMax for Teltonika RUTM50

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuMax for Teltonika RUTM50

Parts of QuMax for Teltonika RUTM50
1 x
Parts of QuMax for Teltonika RUTM50
1 x
Parts of QuMax for Teltonika RUTM50
1 x QuRJ45
Parts of QuMax for Teltonika RUTM50
2 x
Parts of QuMax for Teltonika RUTM50
1 x 8mm wrench
Parts of QuMax for Teltonika RUTM50
1 x
Parts of QuMax for Teltonika RUTM50
4 x M6 x 18
Parts of QuMax for Teltonika RUTM50
4 x
Parts of QuMax for Teltonika RUTM50
4 x M8
Parts of QuMax for Teltonika RUTM50
6 x M3
Parts of QuMax for Teltonika RUTM50
5 x M4 x 40

Download

Datasheet QuMax for Teltonika RUTM50
Download
3D MODEL
Download
Installation Guide
Download
IP67 Certificate
Download
IP68 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax for Teltonika RUTM50
Use case QuMax for Teltonika RUTM50
Use case QuMax for Teltonika RUTM50
