1. What does it mean that the antenna is directional?

Type of antenna which maximizes its gain in particular direction. Like a flashlight concentrates its light at one spot, directional antenna emits radio waves in a concentrated beam. Directioanl antenna radiation pattern: To learn more about directional antennas take a look at -> „link”

2. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality.

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

Porównaj

Antenna QuMax for Teltonika RUTM52

P/n: AM52M

INTEGRATED MULTI-BAND LTE & 5G PANEL ANTENNA + 5G OMNI ANTENNA + WI-FI 6E OMNI ANTENNA + GPS + PLACE TO INSTALL TELTONIKA RUTM52 (ALL-IN-ONE)

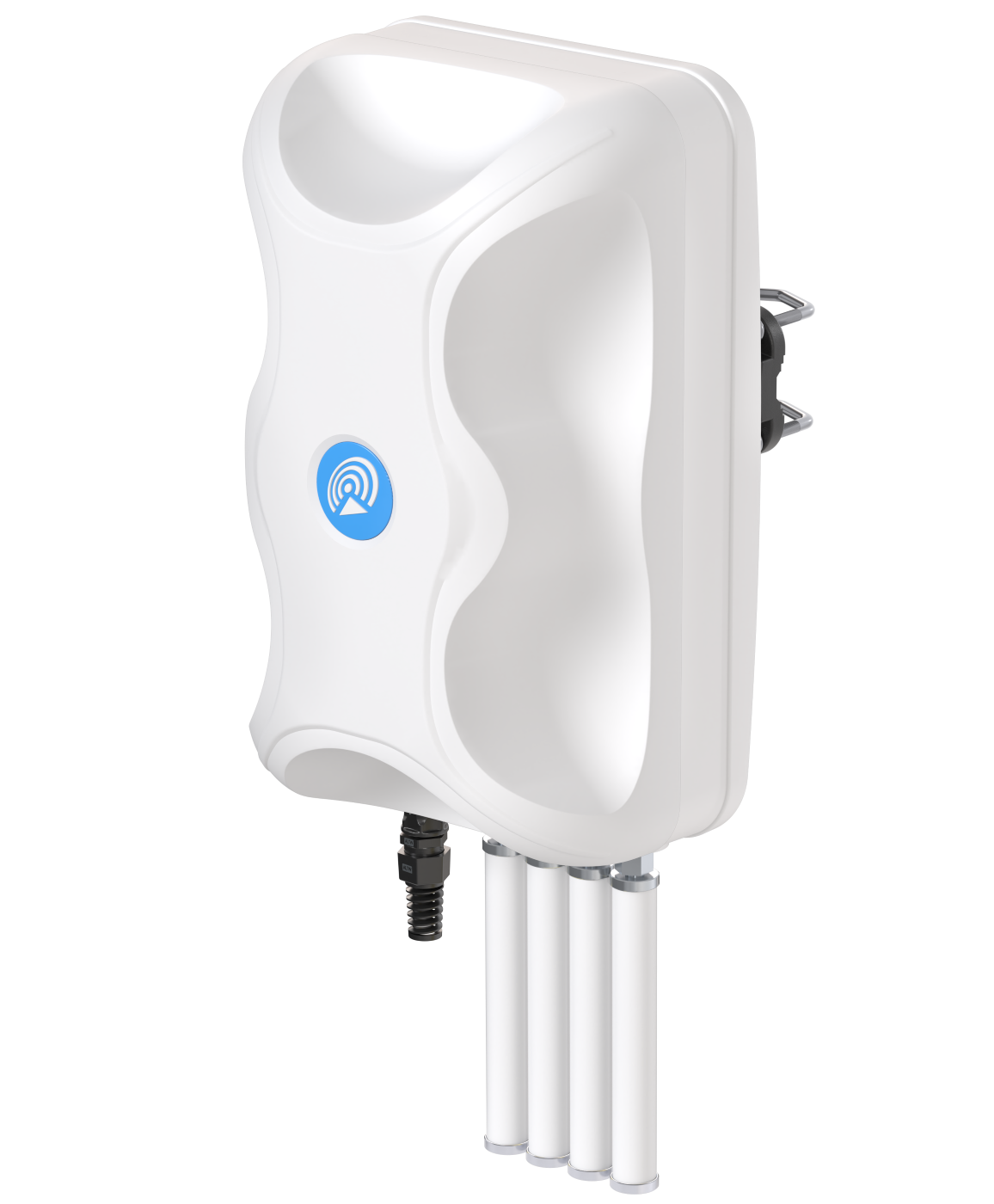

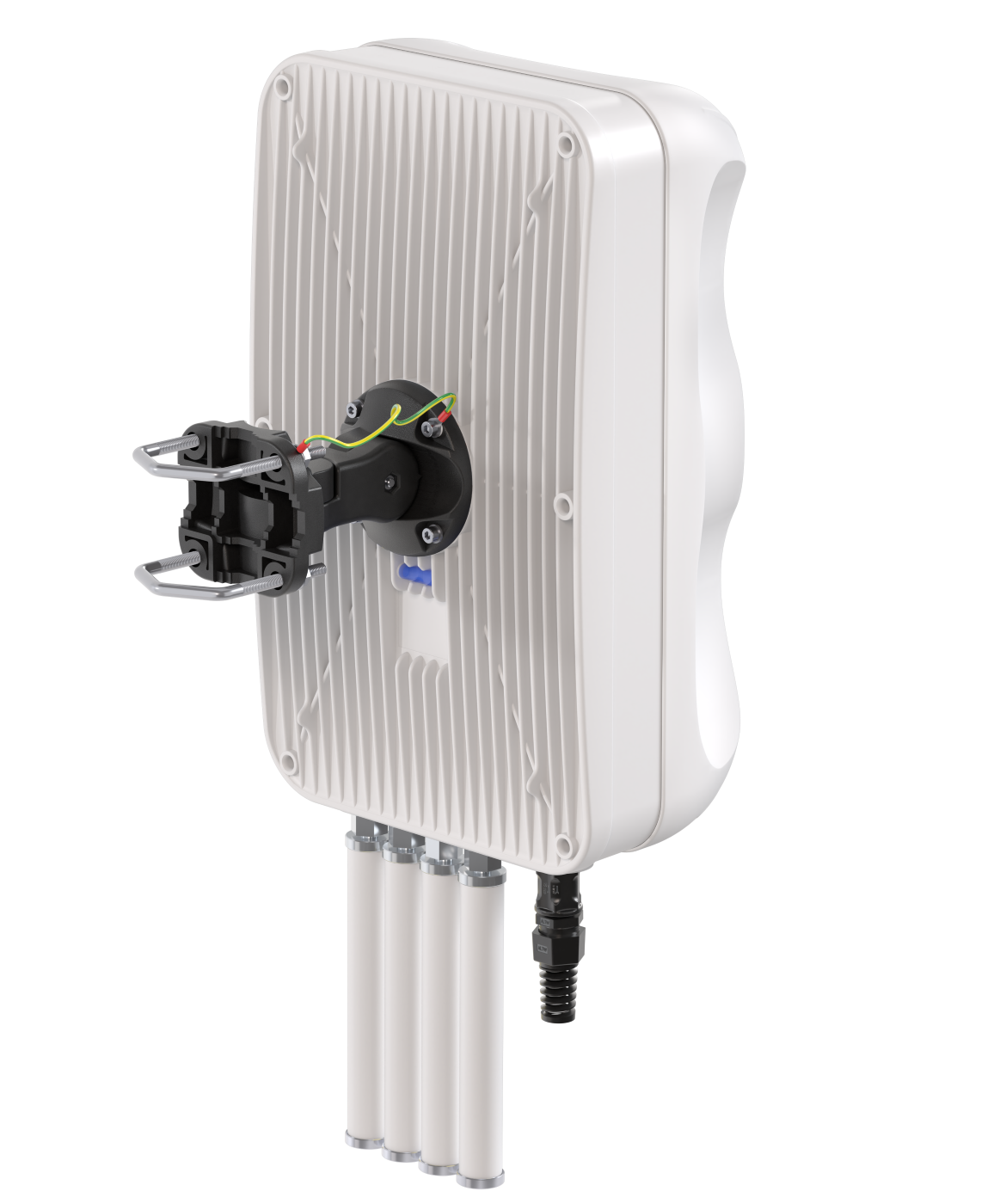

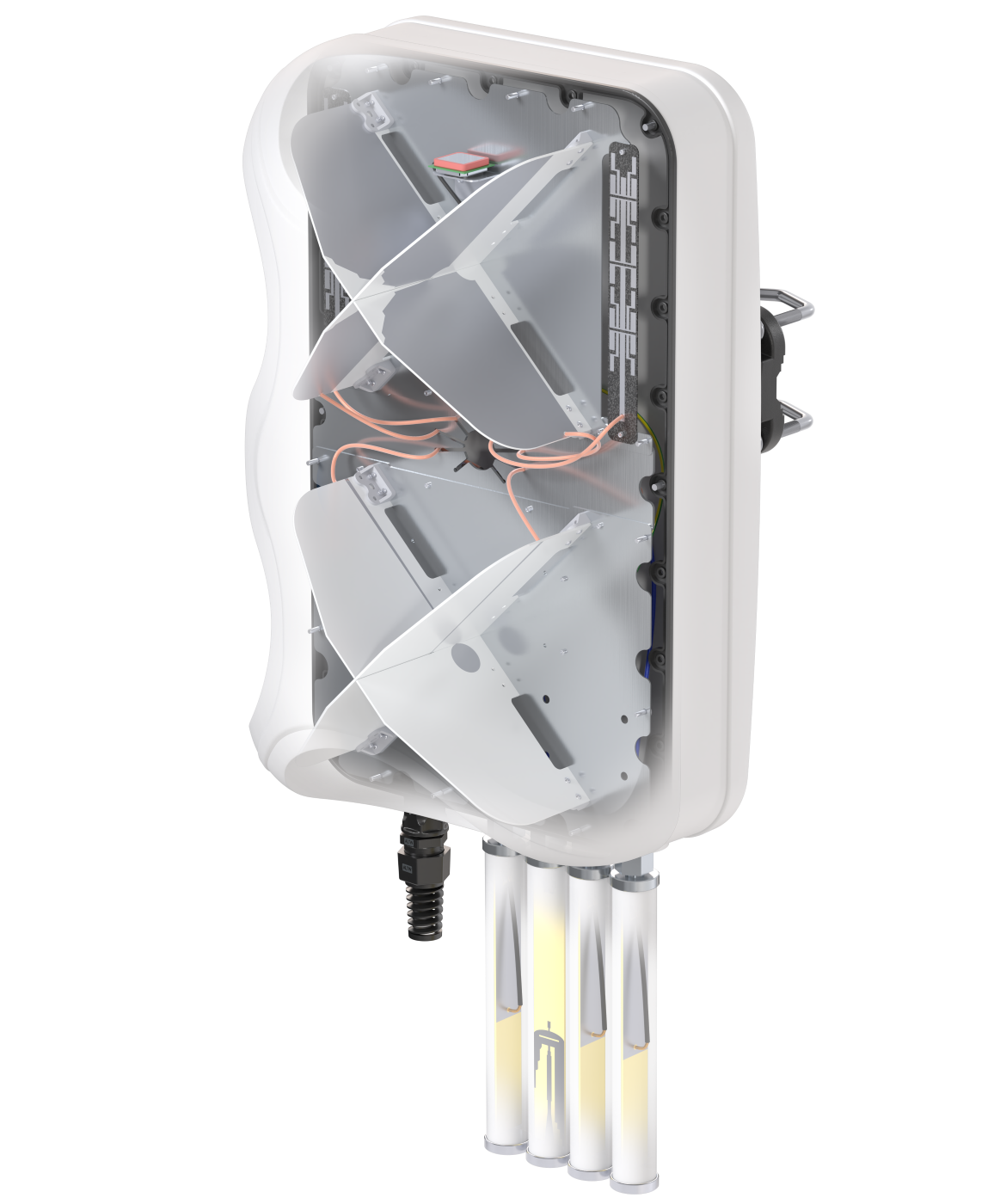

QuMax for RUTM52 is a high performance directional antenna designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band directional 5G, omni 5G, Wi-Fi and GPS antennas integrated in IP68 enclosure. It offers 7.5 dBi gain and wide beamwidth, which makes it suitable for use in both urban and rural environments.

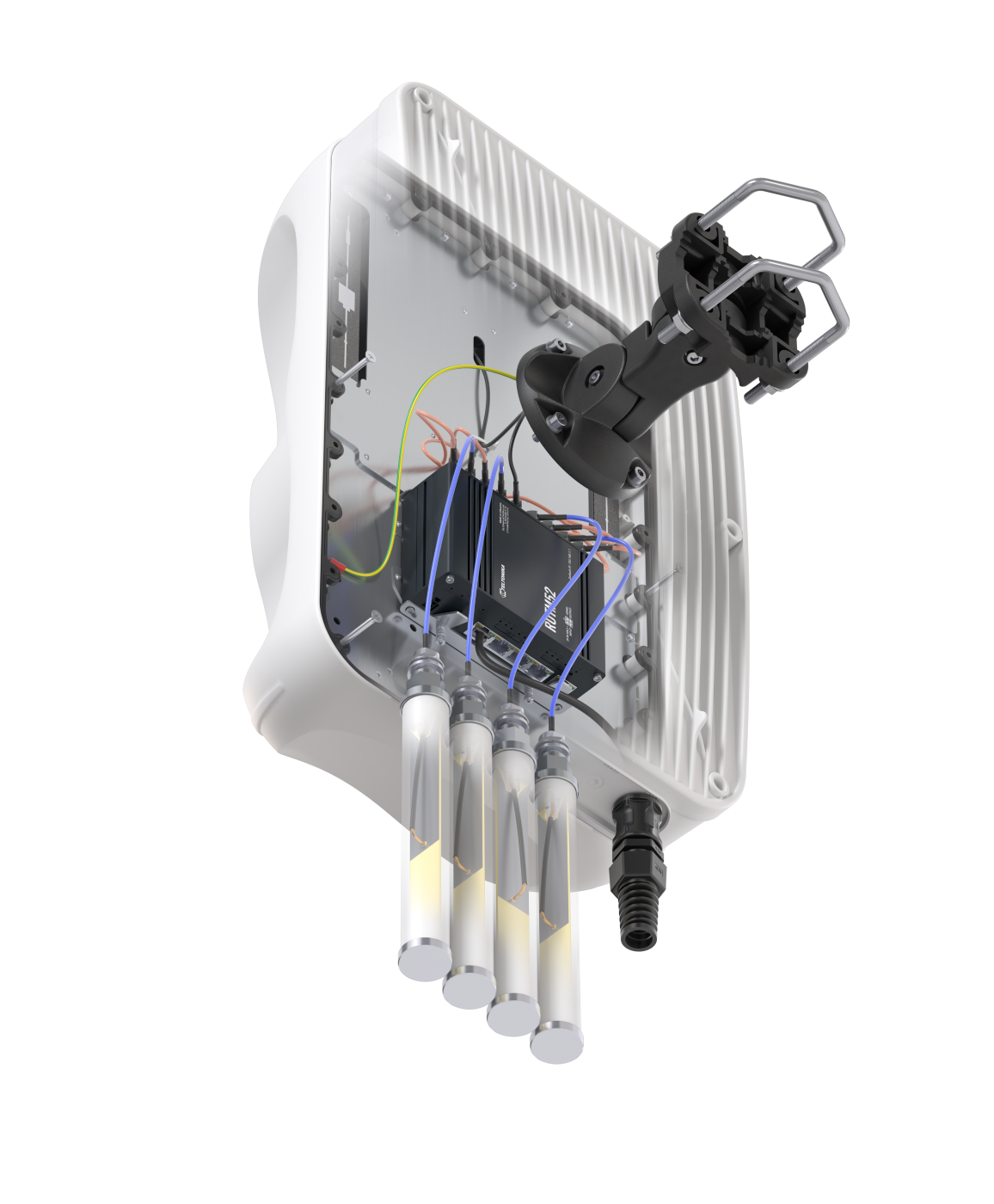

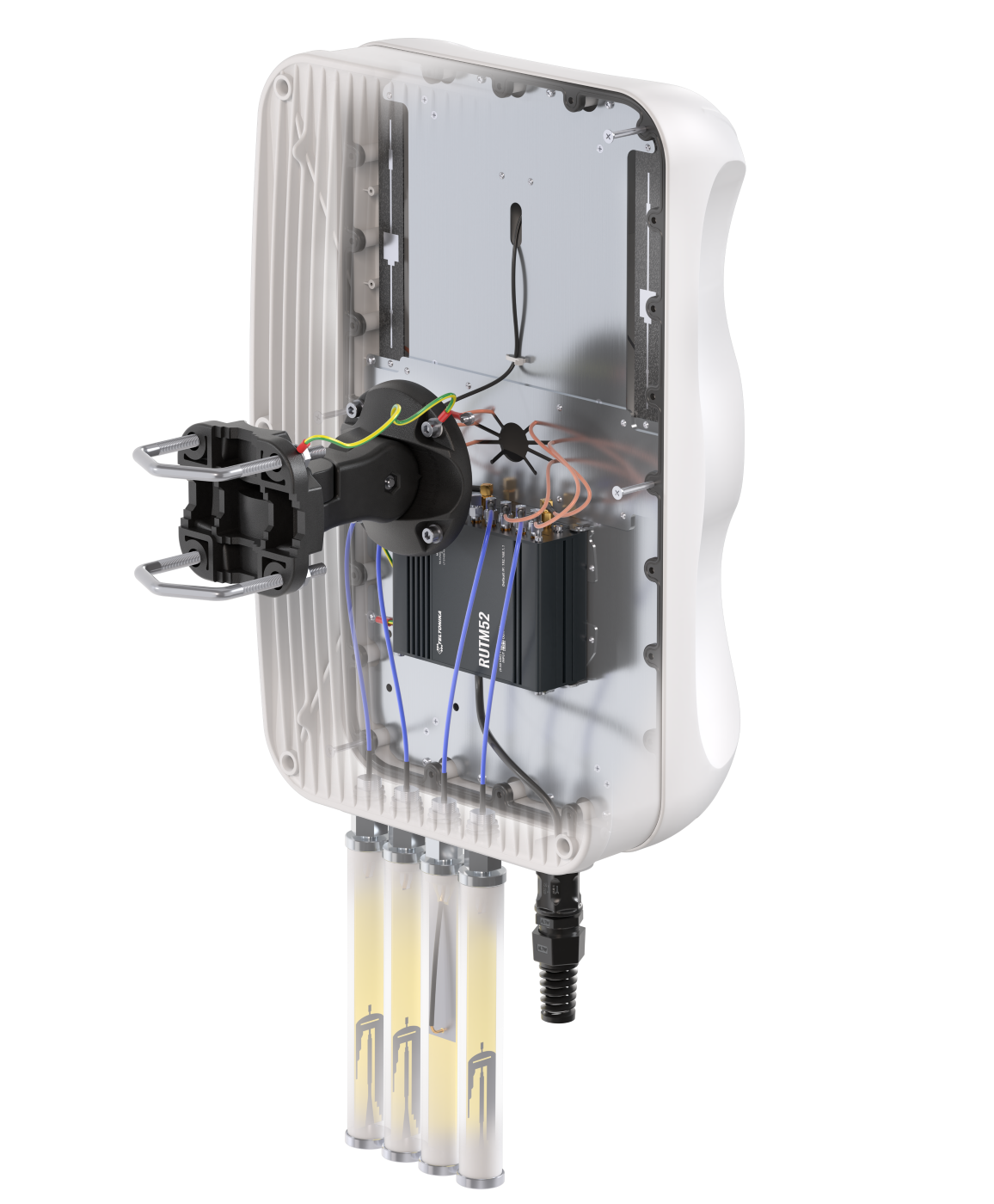

Combining QuMax with RUTM52 inside the antenna housing gives you complete outdoor solution with mulitple use scenarios such as transportation public, energy, mining IoT and more.

Wi-Fi 6E support!

Technical specification

Any question?

Why QuMax for Teltonika RUTM52

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Passive PoE support

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.617 - 0.96 GHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

0.617 - 0.96 GHz: 6 dBi

1.7 - 2.7 GHz: 7 dBi

3.3 - 4.6 GHz: 7 dBi

4.7 - 6.0 GHz: 5.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω
