Antenna QuMax for Milesight UR41

P/n: AMUR41M

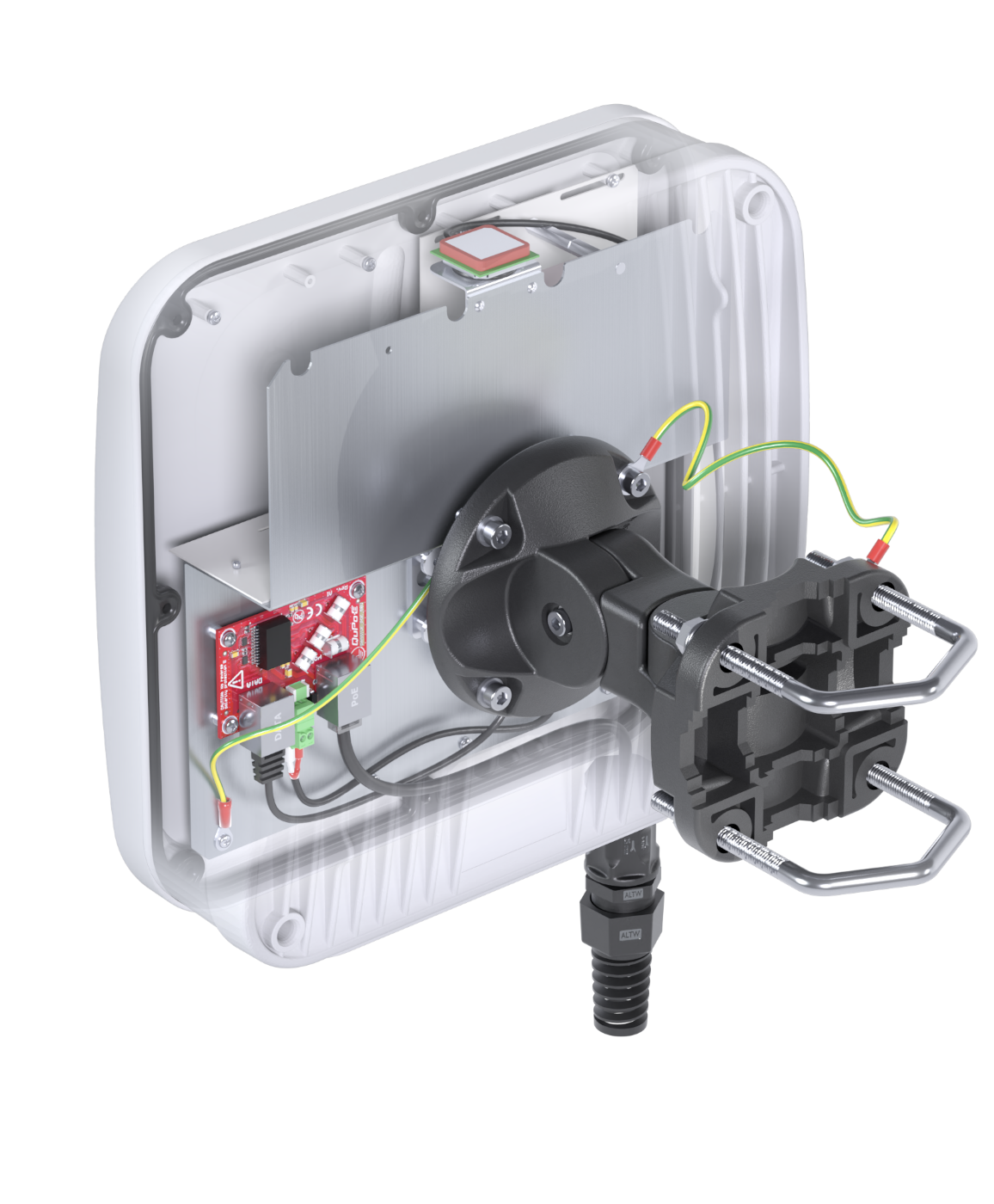

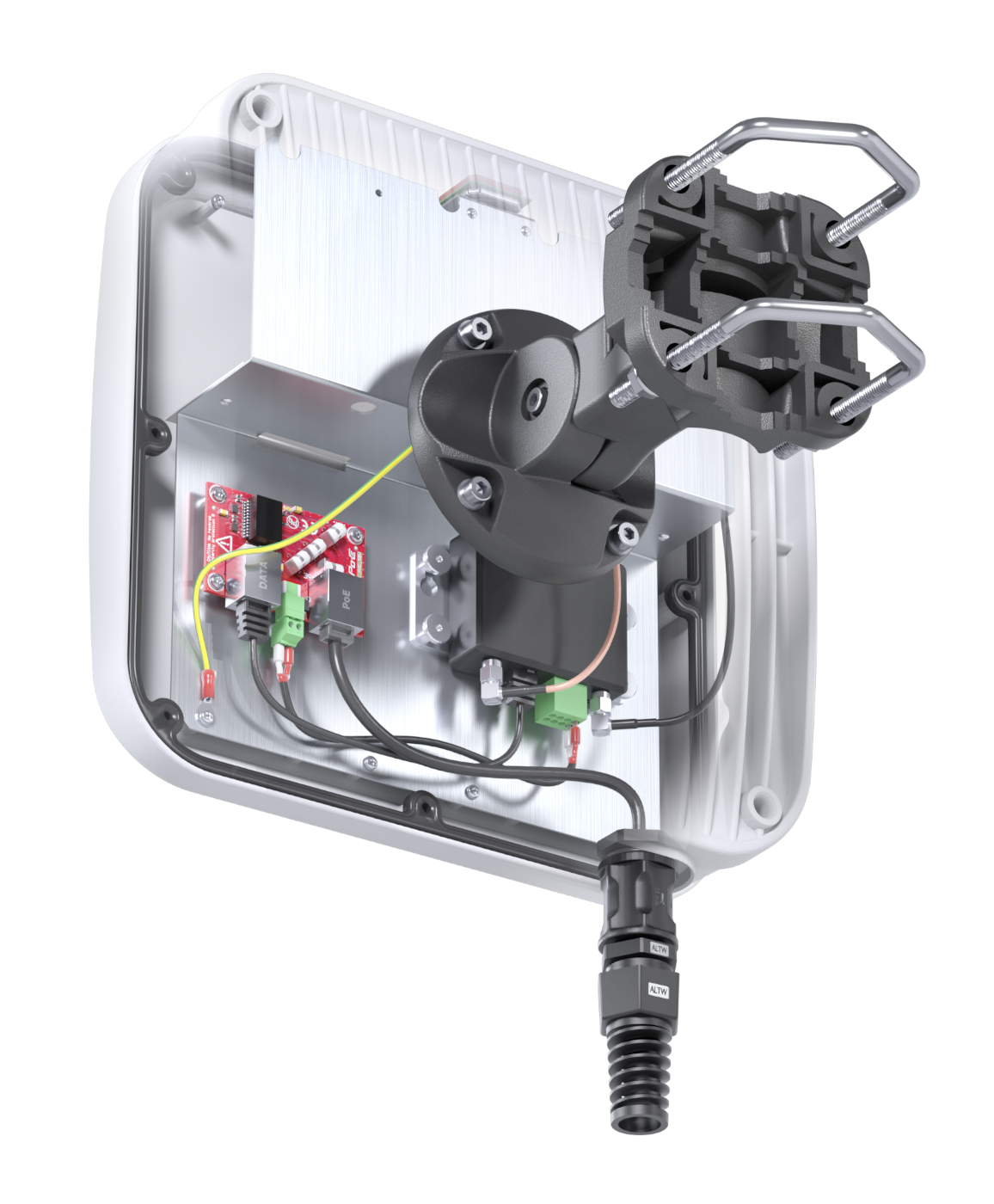

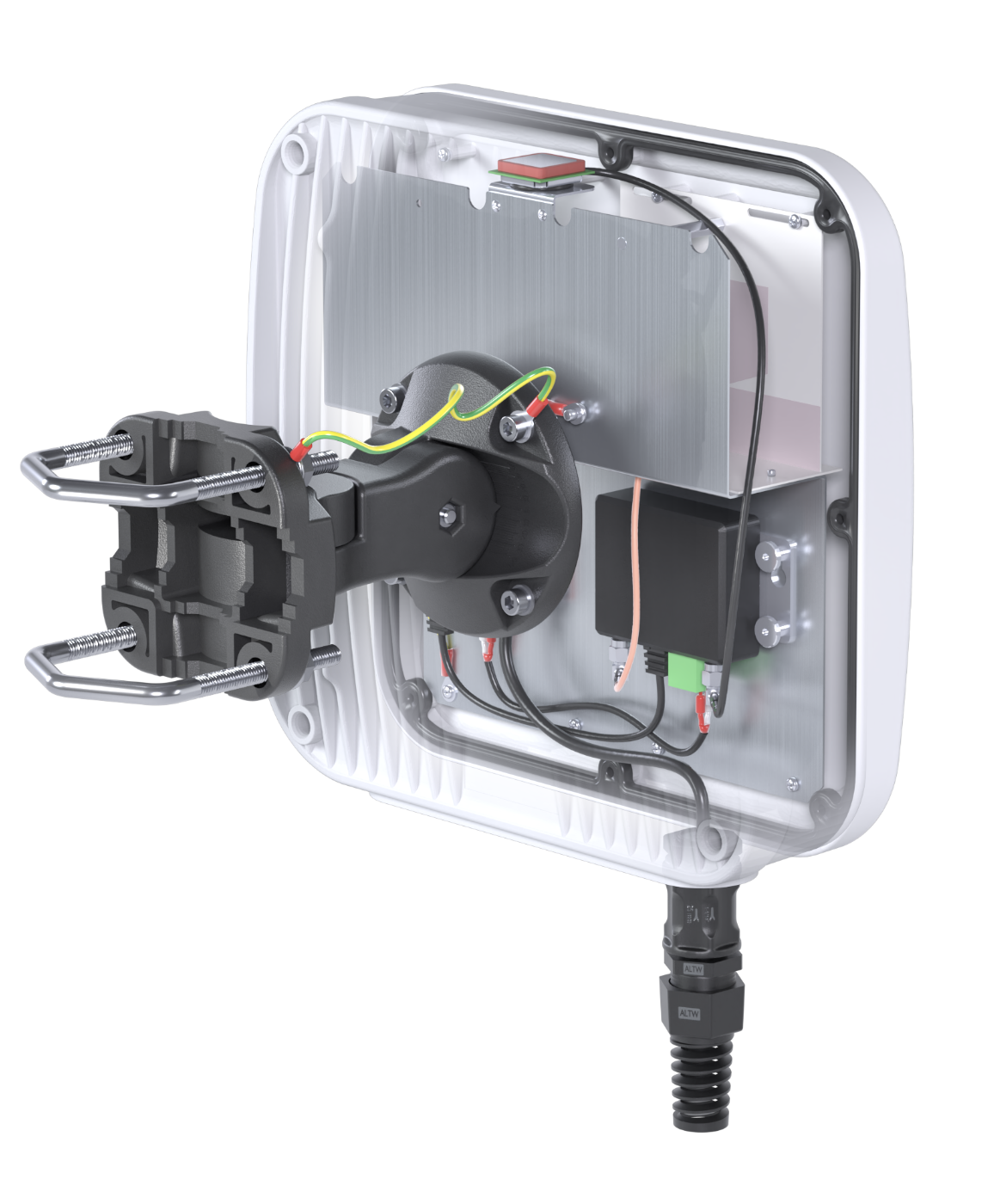

Integrated outdoor LTE high power directional antenna + GPS antenna + Passive PoE Splitter + place to install Milesight UR41 (All-in-one)

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Milesight UR41 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It also has embedded GPS antenna.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Technical specification

Any question?

Contact us

Why QuMax for Milesight UR41

Learn more about your profit

All antennas and Milesight router integrated in one enclosure

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Made in Europe

QuMax for Milesight UR41

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

Frequency Bands

COMPATIBLE ROUTERS

Frequency

0.694 - 0.96 GHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

0.694 - 0.96 GHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.2 - 2.7 GHz : 6 dBi

Front-to-Back

>8 dB

VSWR

<1.30, max <1.80

Beamwidth

90°/90° ±30°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna

VSWR for LTE antenna of QuMax for Milesight UR41

Gain for LTE antenna

Gain for LTE antenna of QuMax for Milesight UR41
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
