Antenna QuMini for Teltonika TRB140

P/n: A140I

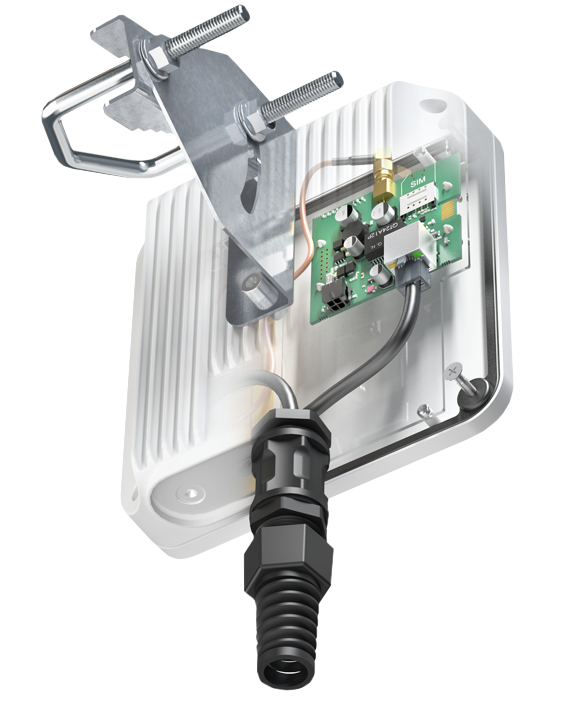

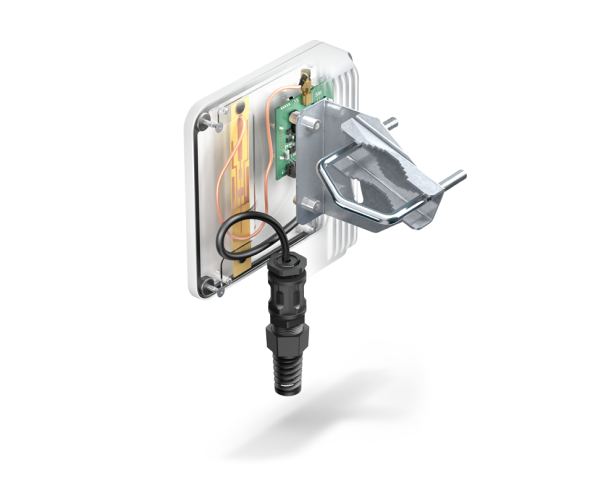

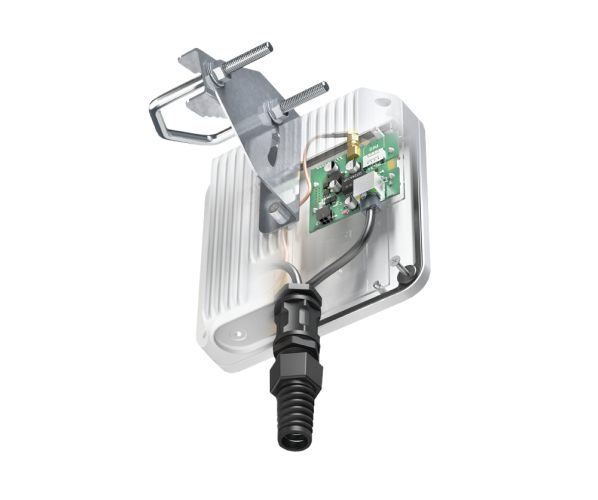

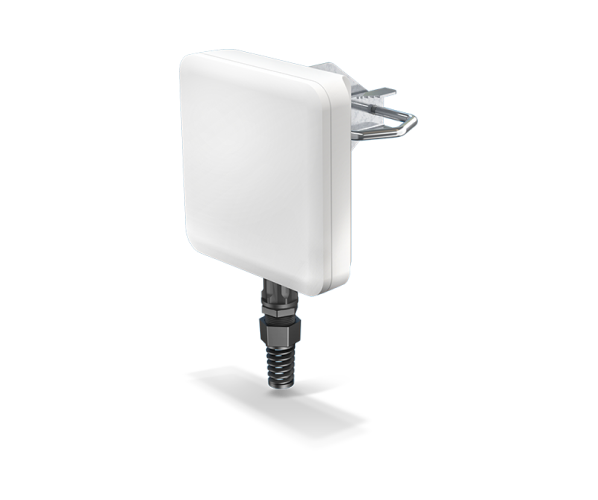

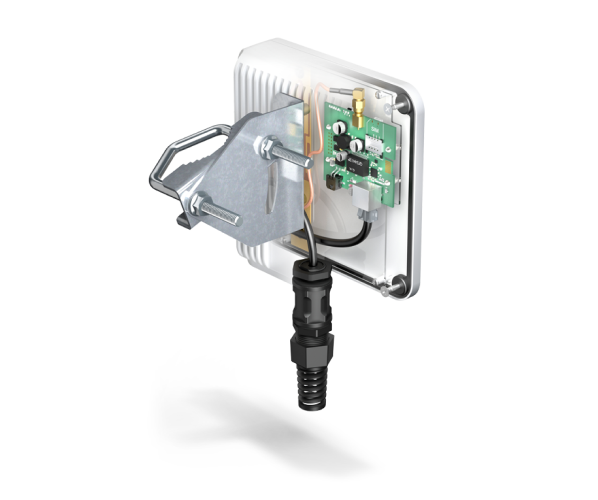

Integrated small multi-band LTE omni antenna + place to install Teltonika TRB140 (All-in-one)

QuMini omni LTE antenna for Teltonika TRB140 router is a perfect and small outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. If you use TRB140 with QuMini antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Why QuMini for Teltonika TRB140

Learn more about your profit

All antennas and Teltonika router integrated in one enclosure

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Made in Europe

QuMini for Teltonika TRB140

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

700 - 1000 MHz

1.7 - 2.2 GHz

2.5 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 65, 66, 67, 69, 103, n80, n81, n82, n83, n84, n86, n89, n95, n98, n100, n101, n256

Gain

700 - 1000 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.5 - 2.7 GHz : 3 dBi

VSWR

<1.50, max <2.00

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna

VSWR for LTE antenna of QuMini for Teltonika TRB140

Gain for LTE antenna

Gain for LTE antenna of QuMini for Teltonika TRB140
From 700MHz to 900MHz
Elevation
Azimuth
From 1.71MHz to 2.17MHz
Elevation
Azimuth
From 2.3GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMini for Teltonika TRB140QuMini for Teltonika TRB140
QuMini for Teltonika TRB140QuMini for Teltonika TRB140

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuMini for Teltonika TRB140

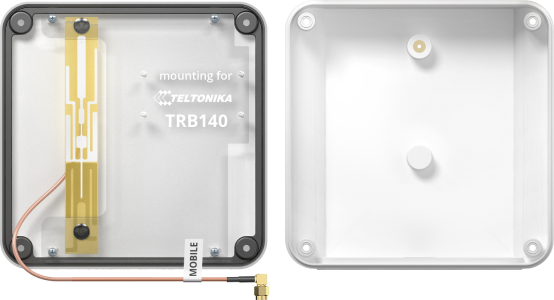

Parts of QuMini for Teltonika TRB140
1 x
Parts of QuMini for Teltonika TRB140
1 x
Parts of QuMini for Teltonika TRB140
2 x M8
Parts of QuMini for Teltonika TRB140
1 x 8mm wrench
Parts of QuMini for Teltonika TRB140
2 x M6 x 10
Parts of QuMini for Teltonika TRB140
2 x
Parts of QuMini for Teltonika TRB140
1 x
Parts of QuMini for Teltonika TRB140
4 x M4 x 16
Parts of QuMini for Teltonika TRB140
1 x QuRJ45

Download

Datasheet QuMini for Teltonika TRB140
Download
3D MODEL
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMini for Teltonika TRB140
Use case QuMini for Teltonika TRB140
Use case QuMini for Teltonika TRB140
