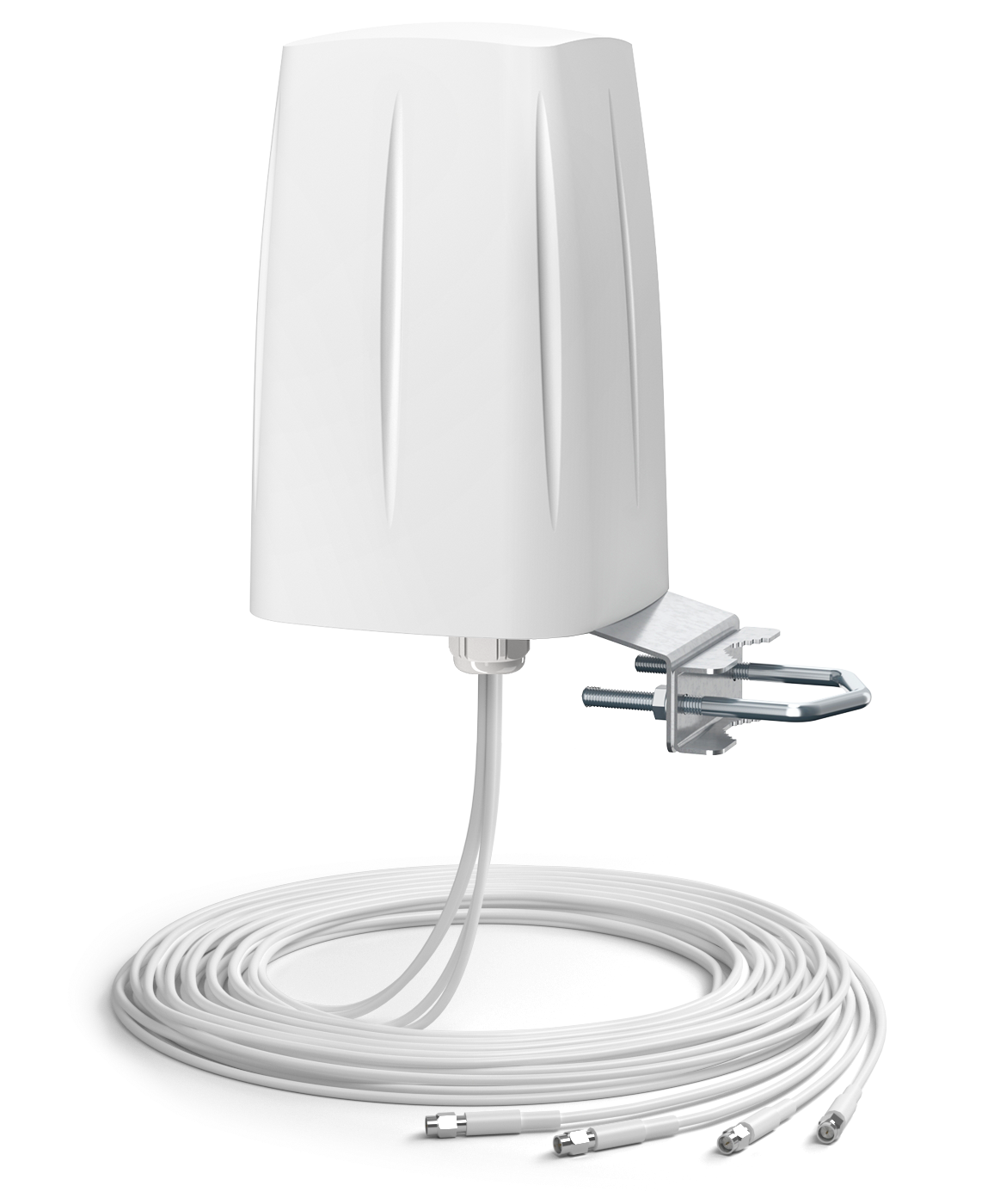

Antenna QuOmni 5G/LTE Global MIMO 4x4

To check PN please select variant below

Omnidirectional ultra wideband 5G/LTE MIMO 4x4 antenna

QuOmni 5G/LTE omnidirectional MIMO 4x4 is ultra wideband LTE Outdoor antenna. It´s primary designed for LTE/5G/3G/2G devices which require high efficiency connections. The antenna covers many LTE bands including the new Extended LTE Band 71, frequencies: 617 - 6000MHz. The mounting bracket allows the antenna to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/5G/3G/2G. It's ideal solution to use with all industrial and domestic 4x4 LTE modems and routers like: Teltonika, DIGI, Mikrotik, Robustel, Cisco, etc.

Variants:

5m

10m

Why QuOmni 5G/LTE Global MIMO 4x4

Learn more about your profit

Wide band 600-6000MHz, 5G technology

Galvanized steel, wall or pole mounting bracket

Four SMA connectors

360° beamwidth

4.5dBi gain

Made in Europe

QuOmni 5G/LTE Global MIMO 4x4

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

Gain

617 - 960 MHz : 3 dBi

1.7 - 2.2 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 GHz : 2.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.80, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuOmni 5G/LTE Global MIMO 4x4

Gain

Gain of QuOmni 5G/LTE Global MIMO 4x4
From 617MHz to 960MHz
Elevation
Azimuth
From 1.71GHz to 2.5GHz
Elevation
Azimuth
From 3.3GHz to 4.2GHz
Elevation
Azimuth
From 4.6GHz to 5.5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuOmni 5G/LTE Global MIMO 4x4QuOmni 5G/LTE Global MIMO 4x4
QuOmni 5G/LTE Global MIMO 4x4QuOmni 5G/LTE Global MIMO 4x4

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuOmni 5G/LTE Global MIMO 4x4

Parts of QuOmni 5G/LTE Global MIMO 4x4
1 x
Parts of QuOmni 5G/LTE Global MIMO 4x4
1 x
Parts of QuOmni 5G/LTE Global MIMO 4x4
1 x
Parts of QuOmni 5G/LTE Global MIMO 4x4
4 x M6 x 10
Parts of QuOmni 5G/LTE Global MIMO 4x4
4 x
Parts of QuOmni 5G/LTE Global MIMO 4x4
2 x M8

Download

Datasheet QuOmni 5G/LTE Global MIMO 4x4
Download
3D MODEL
Download
Installation Guide
Download
IP67 Certificate
Download
IP68 Certificate
Download
