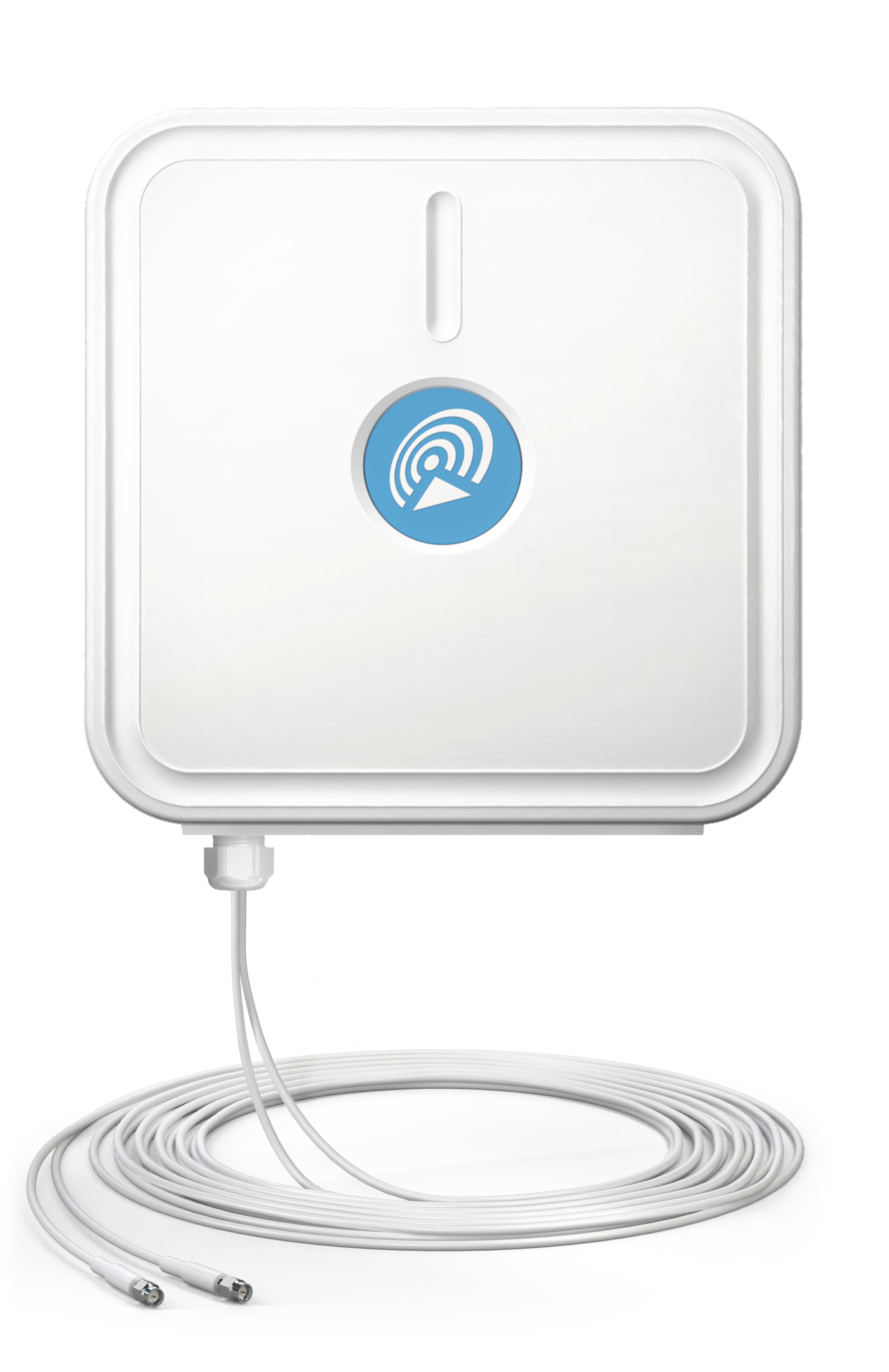

Antenna QuPanel 5G/LTE MIMO 2x2

To check PN please select variant below

Directional High Power multiband 5G/LTE MIMO 2x2 antenna

QuPanel 5G/LTE directional MIMO 2x2 high gain antenna is predicted for 5G and 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for 5G bands n77, n78 and LTE bands like LTE700 / 800 / 1800 / 1900 / 2100 / 2300 / 2600 / 3400 / 3800. It’s compatible with Teltonika and other MIMO 4x4 5G / LTE / 3G / 2G modems and routers.

Variants:

5m

10m

Why QuPanel 5G/LTE MIMO 2x2

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Mounting system with two planes, 60 degrees regulation

Two SMA connectors

7.5 dBi gain

70° beamwidth

Made in Europe

QuPanel 5G/LTE MIMO 2x2

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

3.3 - 3.8 GHz

Gain

694 - 960 MHz : 7 dBi

1.7 - 2.2 GHz : 7 dBi

2.2 - 2.7 GHz : 7.5 dBi

3.3 - 3.8 GHz : 5.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

Front-to-Back

694 - 960 MHz : >10 dB

1.7 - 2.2 GHz : >12 dB

2.2 - 2.7 GHz : >14 dB

3.3 - 3.8 GHz : >17 dB

VSWR

<1.70, max <2.00

Beamwidth

70°/70° ±15°

Polarization

Dual polarized X-Pol

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuPanel 5G/LTE MIMO 2x2

Gain

Gain of QuPanel 5G/LTE MIMO 2x2
Port 1 700MHz to 900MHz
Elevation
Azimuth
Port 1 1.71GHz to 2.17GHz
Elevation
Azimuth
Port 1 2.3GHz to 2.7GHz
Elevation
Azimuth
Port 1 3.3GHz to 3.8GHz
Elevation
Azimuth
Port 2 700MHz to 900MHz
Elevation
Azimuth
Port 2 1.71GHz to 2.17GHz
Elevation
Azimuth
Port 2 2.3GHz to 2.7GHz
Elevation
Azimuth
From 3.3GHz to 3.8GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuPanel 5G/LTE MIMO 2x2QuPanel 5G/LTE MIMO 2x2
QuPanel 5G/LTE MIMO 2x2QuPanel 5G/LTE MIMO 2x2
QuPanel 5G/LTE MIMO 2x2QuPanel 5G/LTE MIMO 2x2

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuPanel 5G/LTE MIMO 2x2

Parts of QuPanel 5G/LTE MIMO 2x2
1 x
Parts of QuPanel 5G/LTE MIMO 2x2
1 x
Parts of QuPanel 5G/LTE MIMO 2x2
4 x M6 x 18
Parts of QuPanel 5G/LTE MIMO 2x2
4 x
Parts of QuPanel 5G/LTE MIMO 2x2
4 x M8
Parts of QuPanel 5G/LTE MIMO 2x2
2 x
Parts of QuPanel 5G/LTE MIMO 2x2
1 x

Download

Datasheet QuPanel 5G/LTE MIMO 2x2
Download
3D MODEL
Download
Installation Guide
Download
IP67 Certificate
Download
