AF-12V-FP

QuPoE AF-12V-FP - active splitter that provides full PoE and data output protection. It is compliant with the IEEE802.3af standard. The device is ideal for outdoor applications and powering gateway devices, routers, etc.

QuPoE AF-12V-FP splitter provides full PoE and data output protection. It is compliant with the IEEE802.3af standard and has a temperature range of -40…+80C. The device has lightning/surge/ESD protection and is ideal for outdoor applications and powering gateway devices, routers, etc.

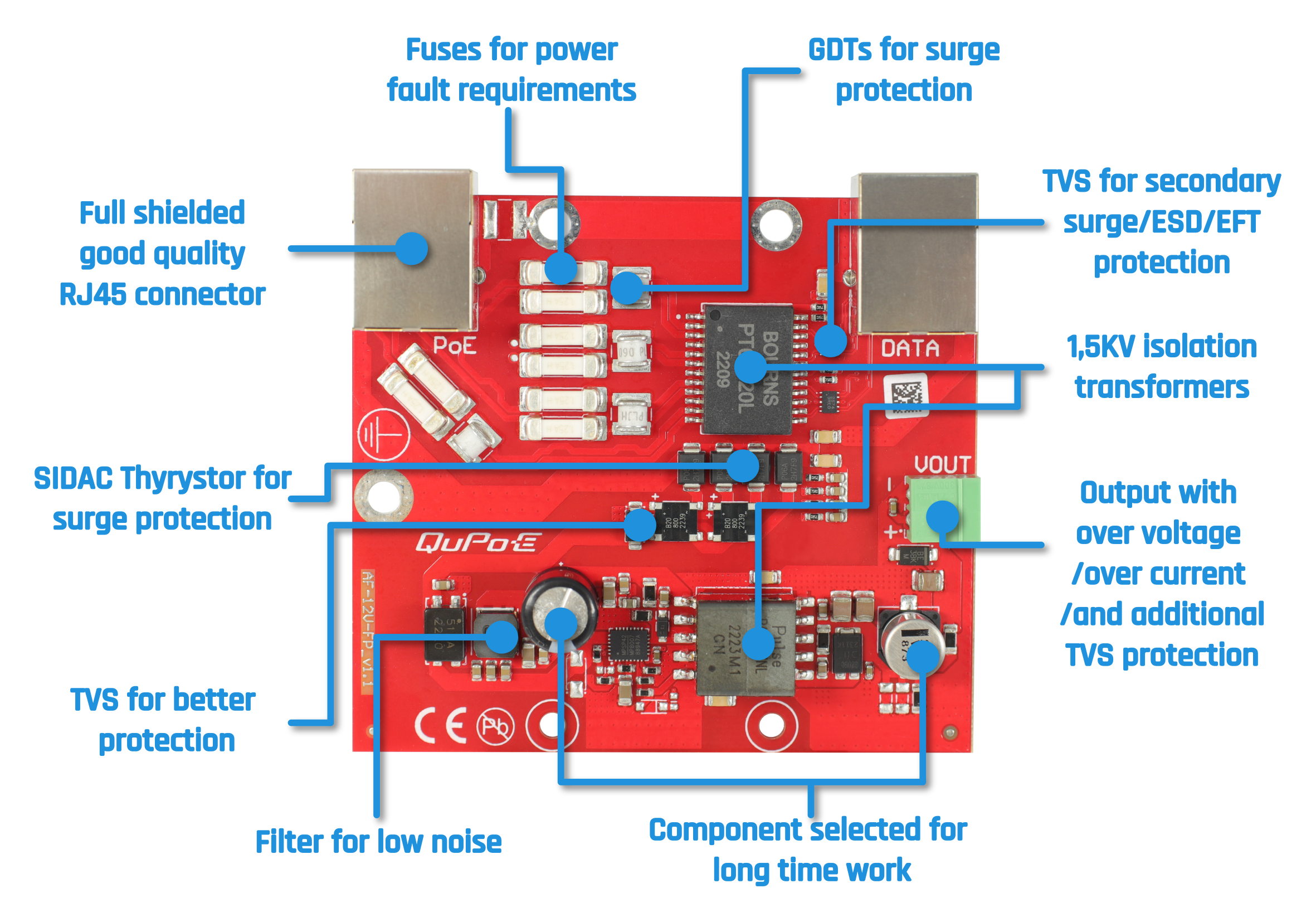

The GDT elements, SIDAC Thyristor, High power TVS Diode and TVS Diode Array provide protection against lightning and high surge. The device has overcurrent protection that complies with the GR-1089, ITU K20/21, EN60950-1 power fault requirements.

The device has 1 DC output 12VDC 1,1A (13W) overcurrent/short protection with auto restart.

Why QuPoE AF-12V-FP - 802.3af Splitter

Learn more about your profit

Lightning/Surge/ESD protection

Gigabit Ethernet

Made in Europe

QuPoE AF-12V-FP - 802.3af Splitter

SPECIFICATION

PRODUCT DETAILS

POE SPECIFICATION

MECHANICAL SPECIFICATION

PROTECTION

IEEE Standard

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3af PoE (Power over Ethernet)

Power Supply

Powered from PoE in, IEEE802.3af/at

38-58V, 15W max for PD_802.3AF

38-58V, 30W max for PD_802.3AT

PoE In

PD_802.3AF 12V 13W

PD_802AT 12V 25W

Supports both PoE A mode or B mode

Data Out

RJ45 10/100/1000Base-T(X)

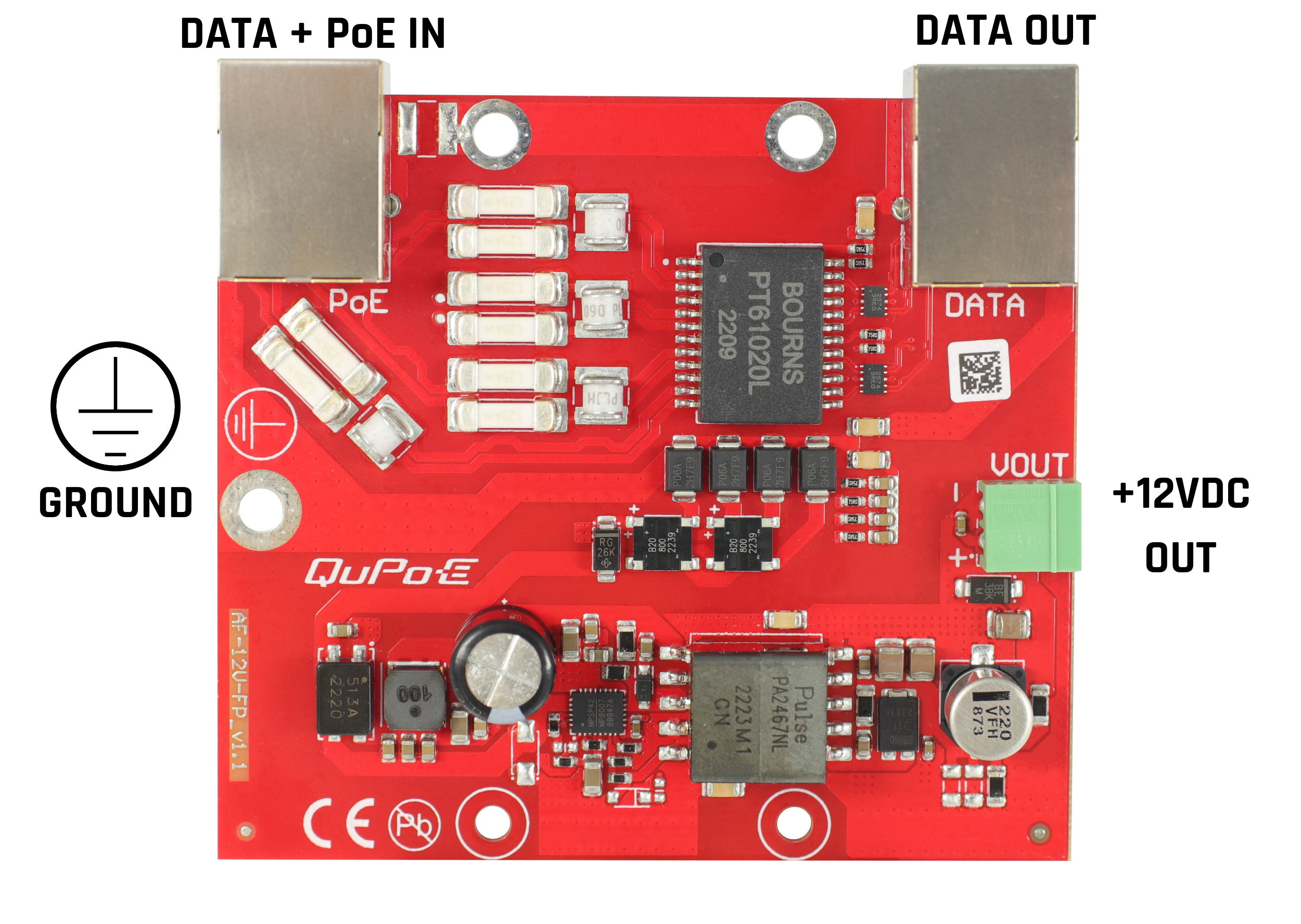

PORTS

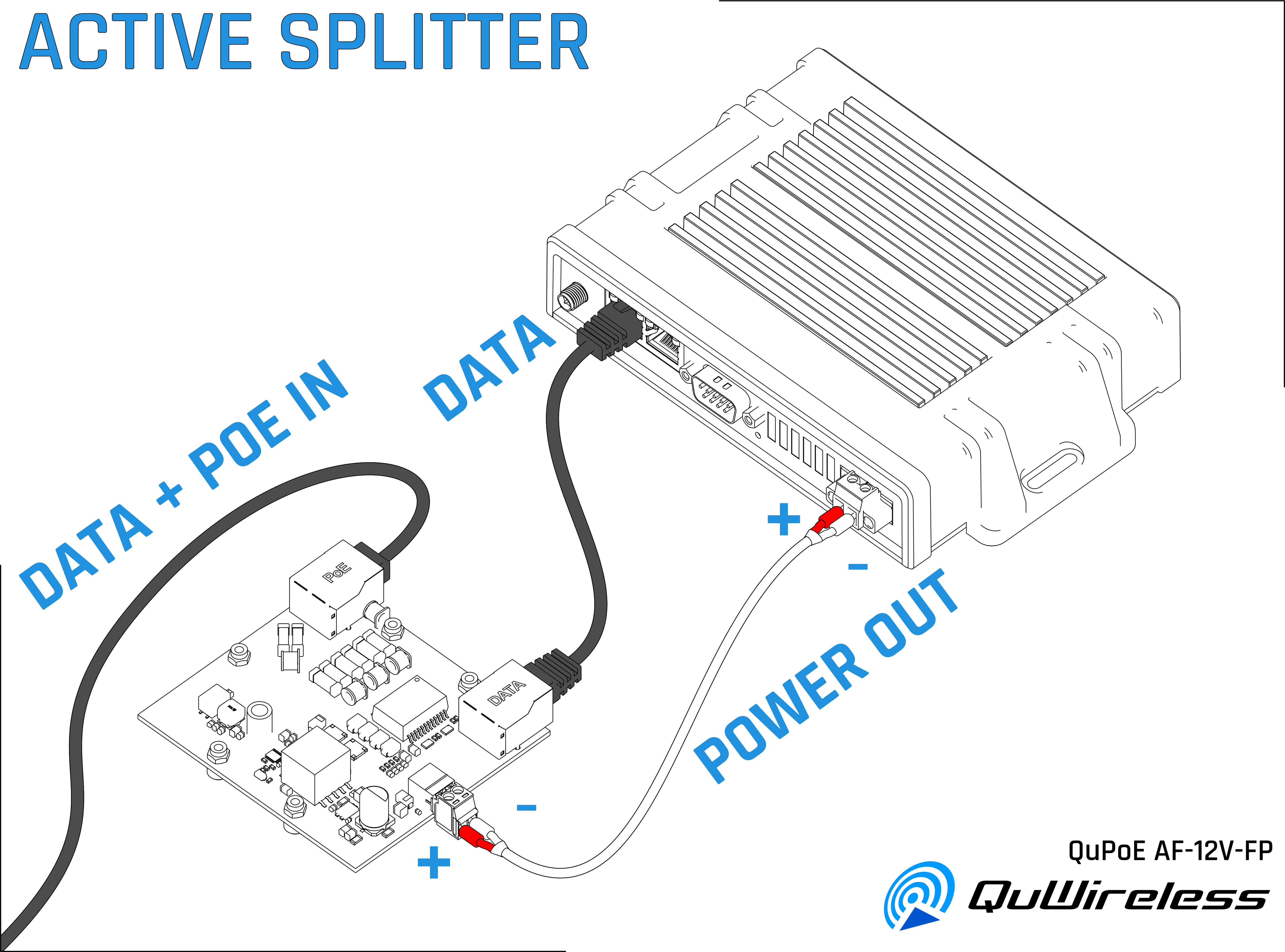

Working scheme of QuPoE AF-12V-FP - 802.3af Splitter

HOW TO CONNECT

QuPoE AF-12V-FP - 802.3af Splitter QuPoE AF-12V-FP - 802.3af Splitter

Download

Datasheet QuPoE AF-12V-FP - 802.3af Splitter
