QuPoE AF-24V-SP - 802.3at Splitter to 24 Passive PoE (mode B) or DC output

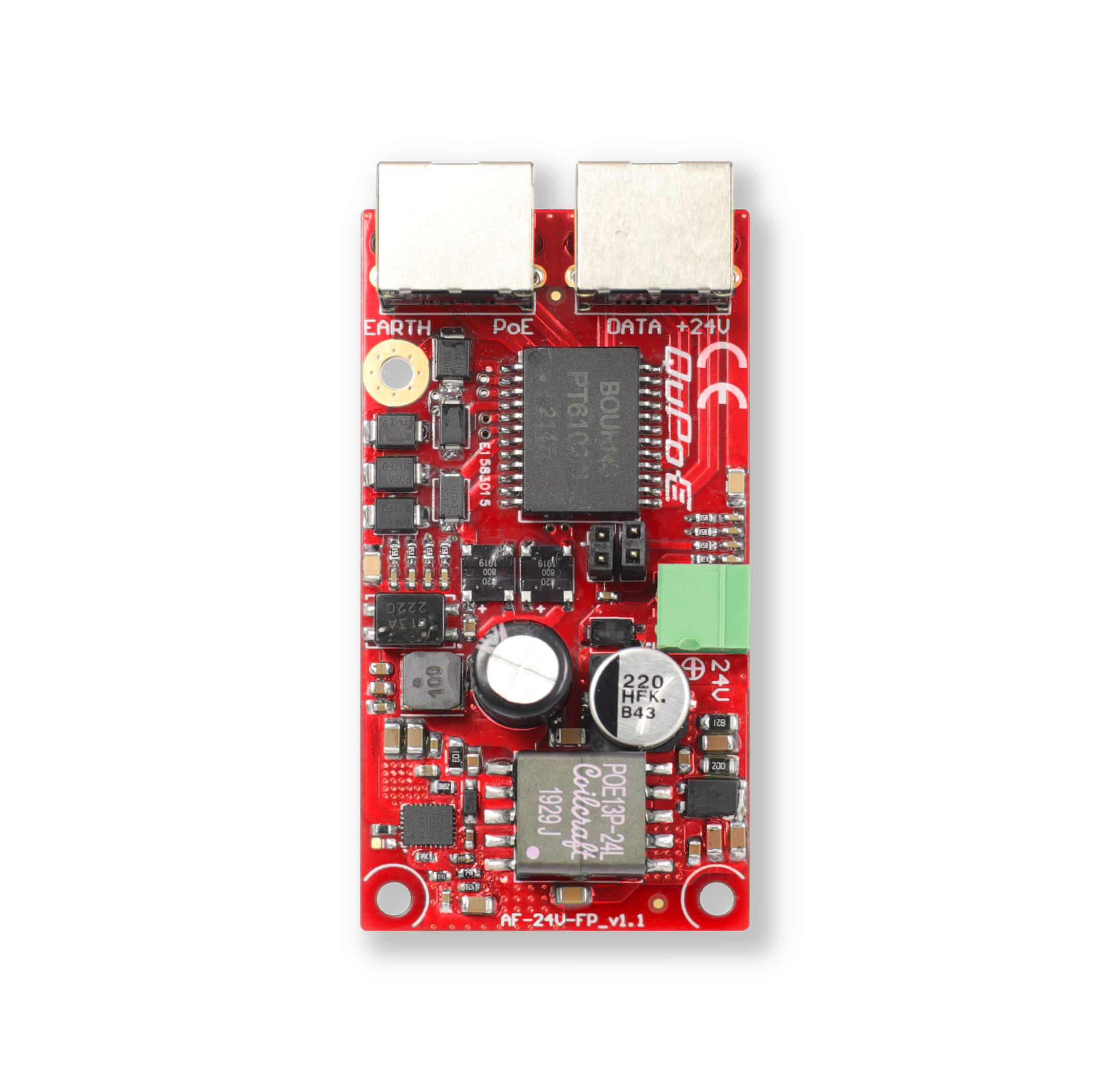

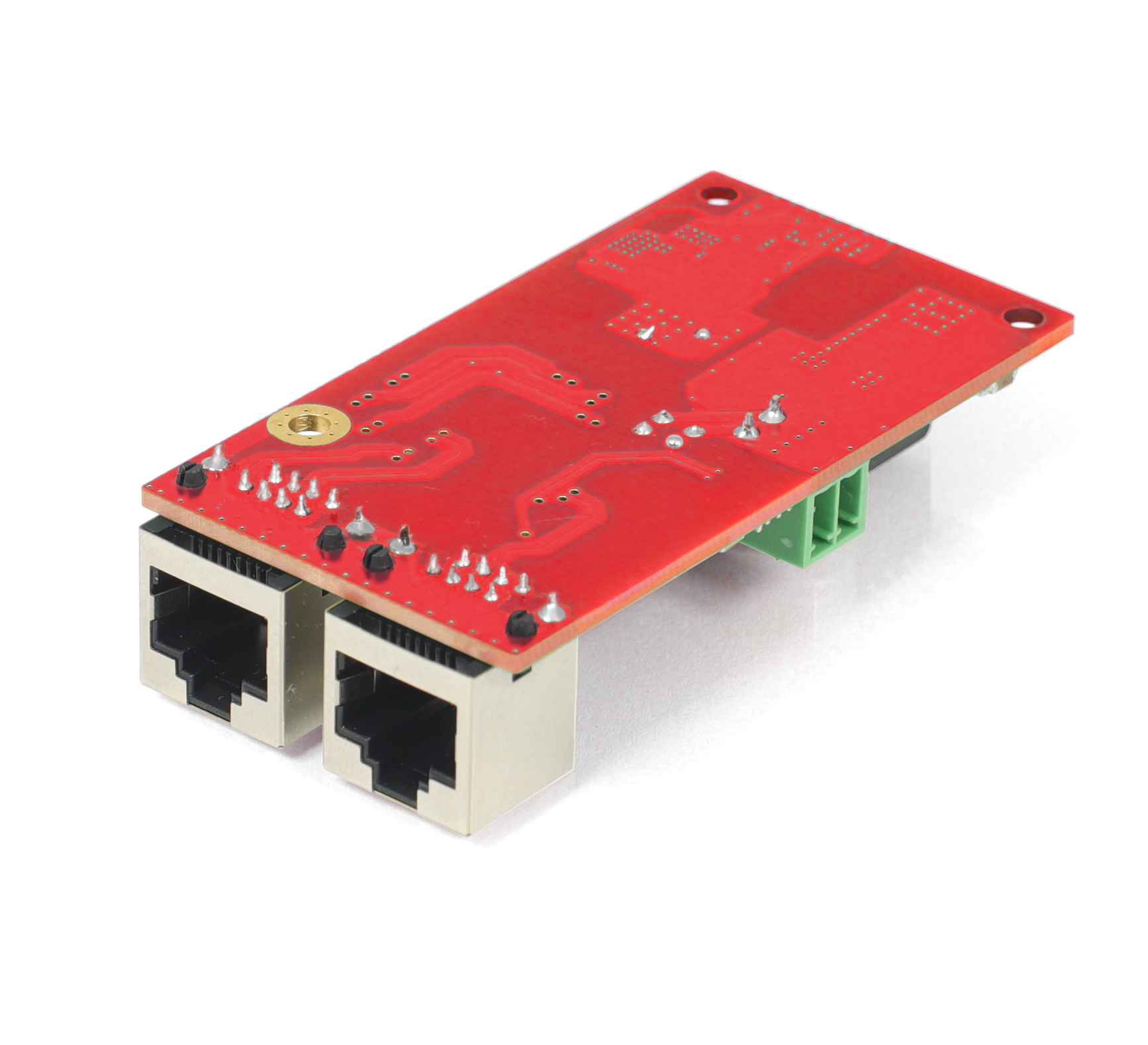

AF-24V-SP

QuPoE AF-24V-SP - This device has 2 applications: 1) 802.3af to 24V 13W active splitter, 2) 802.3af active to 24V 13W Passive PoE converter. Switching between this 2 modes is done using remove jumpers

QuPoE AF-24V-SP splitter provides PoE and data output protection. It is compliant with the IEEE802.3af standard and has a work temperature range of -40…+80C. This small device has lightning, surge, ESD, EFT protection and is ideal for outdoor applications and powering gateway devices, routers, etc.

SIDAC Thyristor and High power TVS Diode provide protection against lightning and high surge. The device has overcurrent protection and short protection with auto restart.

Based on high quality parts for working long life time.


Technical specification

Any question?

Contact us

Why QuPoE AF-24V-SP - 802.3at Splitter to 24 Passive PoE (mode B) or DC output

Learn more about your profit

Gigabit Ethernet

Lightning/Surge/ESD protection

Made in Europe

QuPoE AF-24V-SP - 802.3at Splitter to 24 Passive PoE (mode B) or DC output

SPECIFICATION

PRODUCT DETAILS

POE SPECIFICATION

MECHANICAL SPECIFICATION

PROTECTION

IEEE Standard

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3af PoE (Power over Ethernet)

Power Supply / PoE in

Powered from PoE in, IEEE802.3af/at

38-58V, 30W max for PD_802.3AT

Supports both PoE A mode or B mode

DC Output / Passive PoE output

DC: 24V 13W

Passive PoE 24V 13W (mode B)

Data Out

RJ45 10/100/1000Base-T(X)

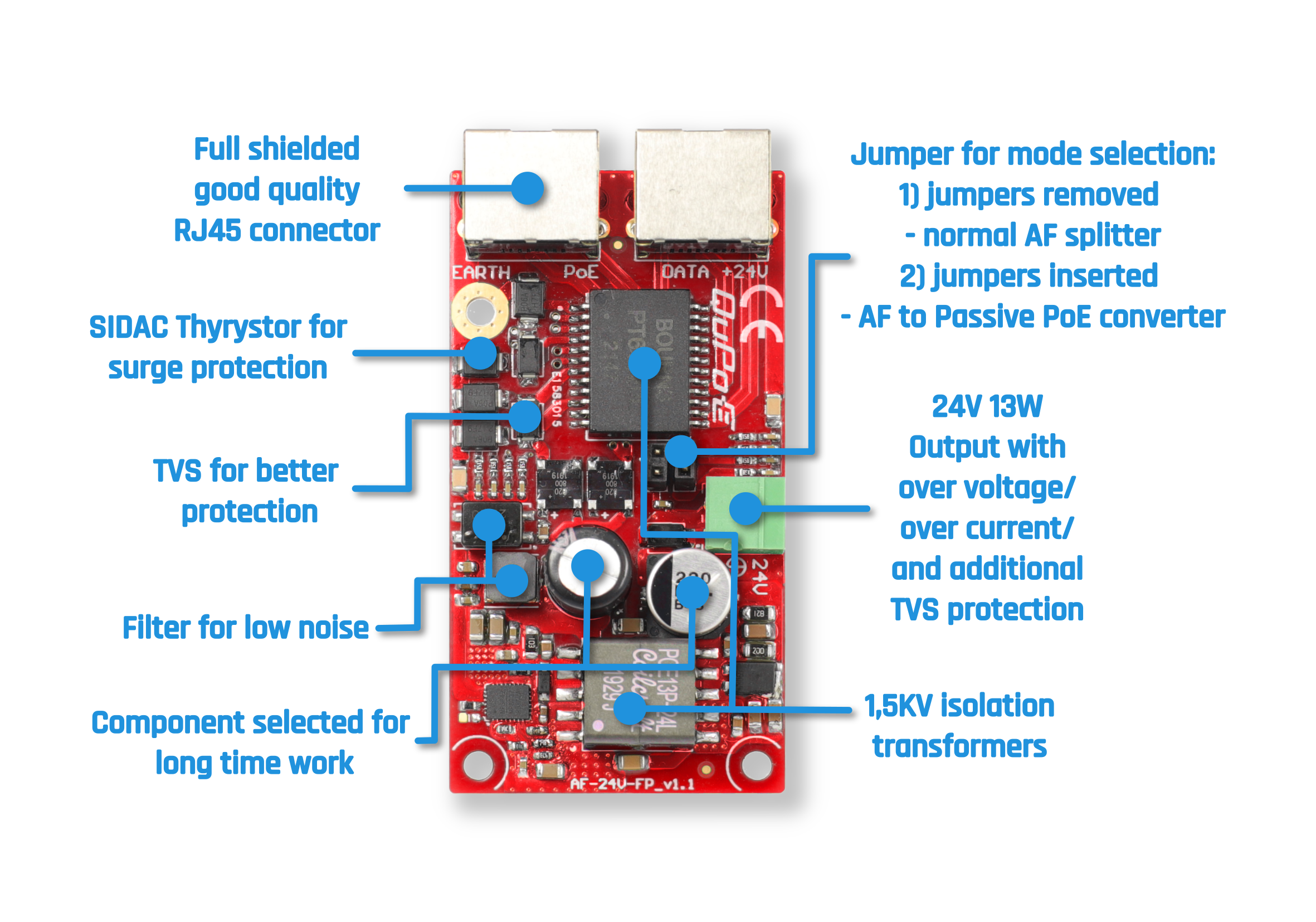

Safety Features

Working scheme of QuPoE AF-24V-SP - 802.3at Splitter to 24 Passive PoE (mode B) or DC output

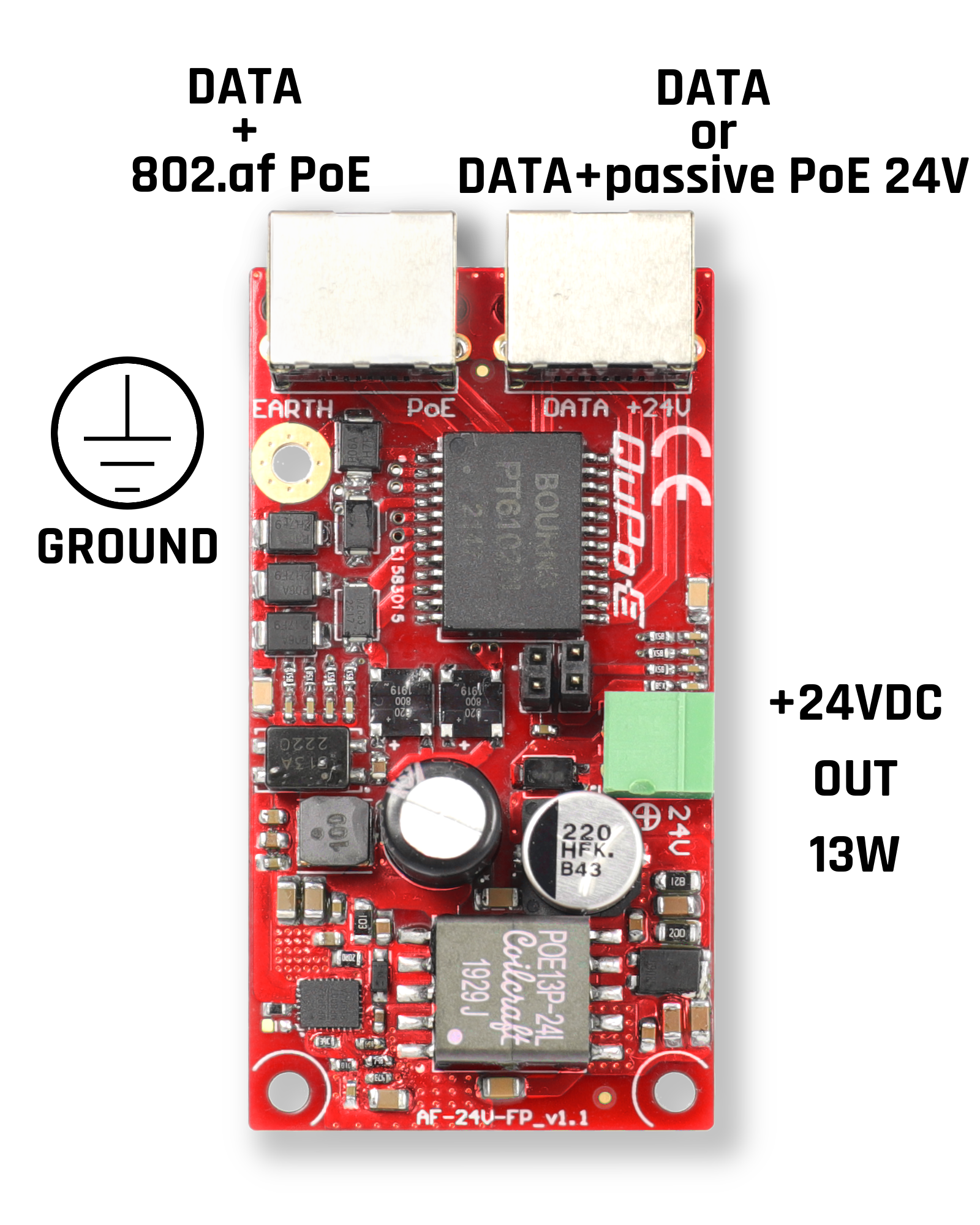

PORTS

Working scheme of QuPoE AF-24V-SP - 802.3at Splitter to 24 Passive PoE (mode B) or DC output

HOW TO CONNECT

QuPoE AF-24V-SP - 802.3at Splitter to 24 Passive PoE (mode B) or DC outputQuPoE AF-24V-SP - 802.3at Splitter to 24 Passive PoE (mode B) or DC output

Download

Datasheet QuPoE AF-24V-SP - 802.3at Splitter to 24 Passive PoE (mode B) or DC output
Download
