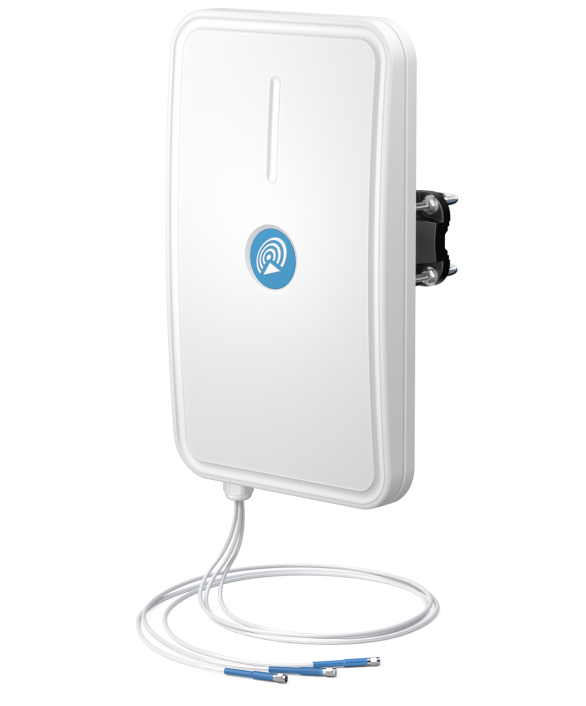

Antenna QuSector 12HV-30-3

To check PN please select variant below

QuSector 12HV-30-3 offers a 30 degrees, 12dBi gain signal with two RP-SMA 2.4GHz connectors. It is a perfect indoor and outdoor device for industrial installations.

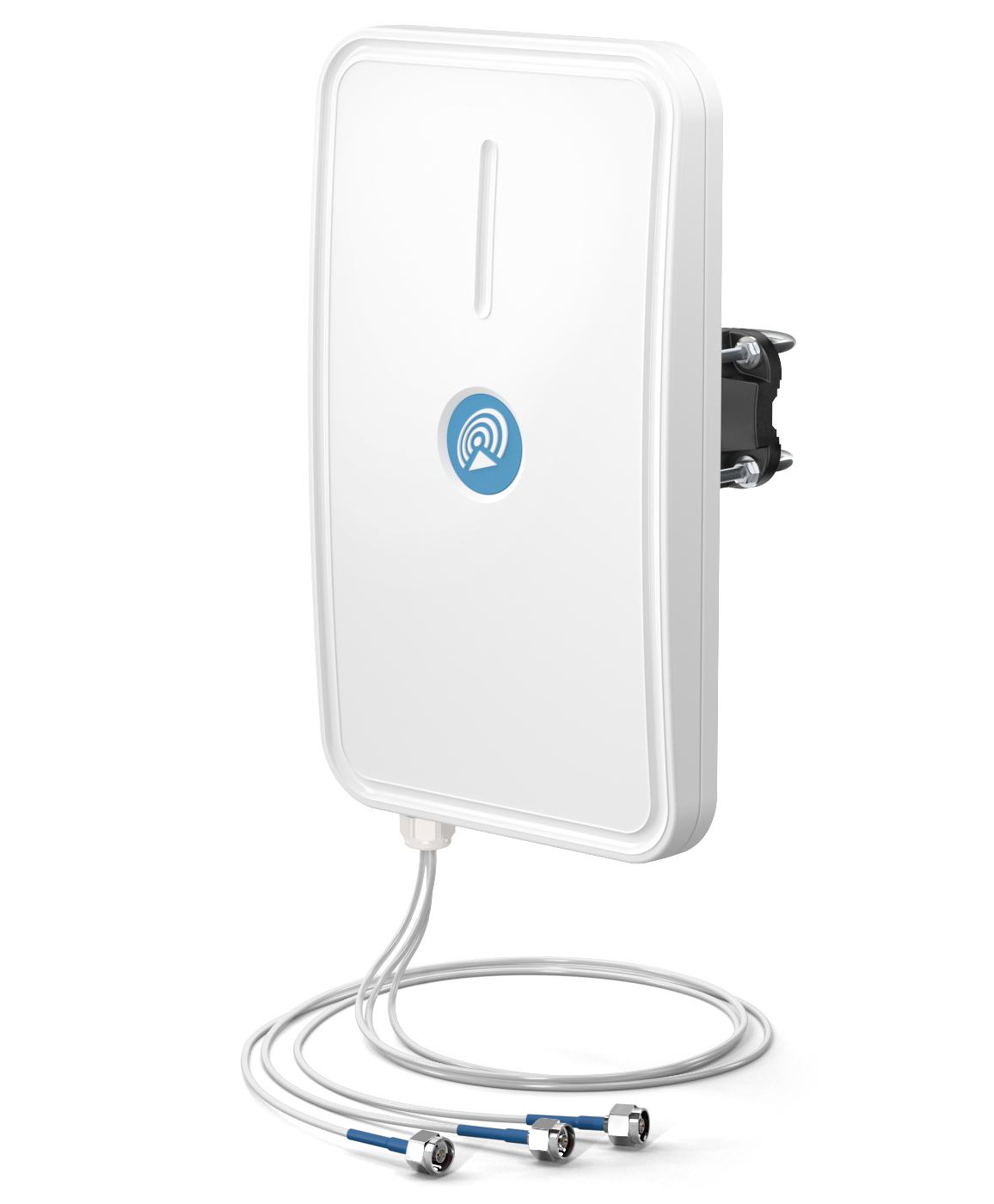

QuSector 12HV-30-3 is a single band, H&V polarity, MIMO 3x3 panel antenna. Two connectors operate at 2.4GHz with 12dBi gain. Due to its medium gain, it can be used on short or medium distances, for example for hotspots in schools, stadiums, offices or public places. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. The antenna comes with 3*70cm (28inch) cables terminated with Nm, RPSMA or RPTNC connectors. QuSector 12HV-30-3 was designed to be a perfect match for your access point.

Variants:

RPSMA

NM

RPTNC

Why QuSector 12HV-30-3

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Wall or mast mounting system with two planes, 60 degrees regulation

Made in Europe

QuSector 12HV-30-3

SPECIFICATION

PRODUCT DETAILS

Wi-Fi SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

Frequency

2.4 - 2.5GHz

5.1 - 5.9GHz

Gain

12 dBi

VSWR

< 2.00

Beamwidth

35°/35°

Polarization

Horizontal

Vertical

Impedance

50 Ω

Separation between Connectors

>25dB

Front-to-Back

> 20dB

>25dB

Max Input Power

50W

DC Ground

Yes

PLOTS

PRODUCT DETAILS

VSWR

VSWR  of QuSector 12HV-30-3

Gain

Gain of QuSector 12HV-30-3
PORT 1, 3 from 2.4GHz to 2.5GHz
Azimuth
Elevation
Port 1, 3 from 5.1GHz to 5.9GHz
Azimuth
Elevation
PORT 2 from 2.4GHz to 2.5GHz
Azimuth
Elevation
Port 2 from 5.1GHz to 5.9GHz
Azimuth
Elevation

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSector 12HV-30-3QuSector 12HV-30-3
QuSector 12HV-30-3QuSector 12HV-30-3

Download

Datasheet QuSector 12HV-30-3
Download
Installation Guide
Download
IP67 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuSector 12HV-30-3
Use case QuSector 12HV-30-3
Use case QuSector 12HV-30-3
