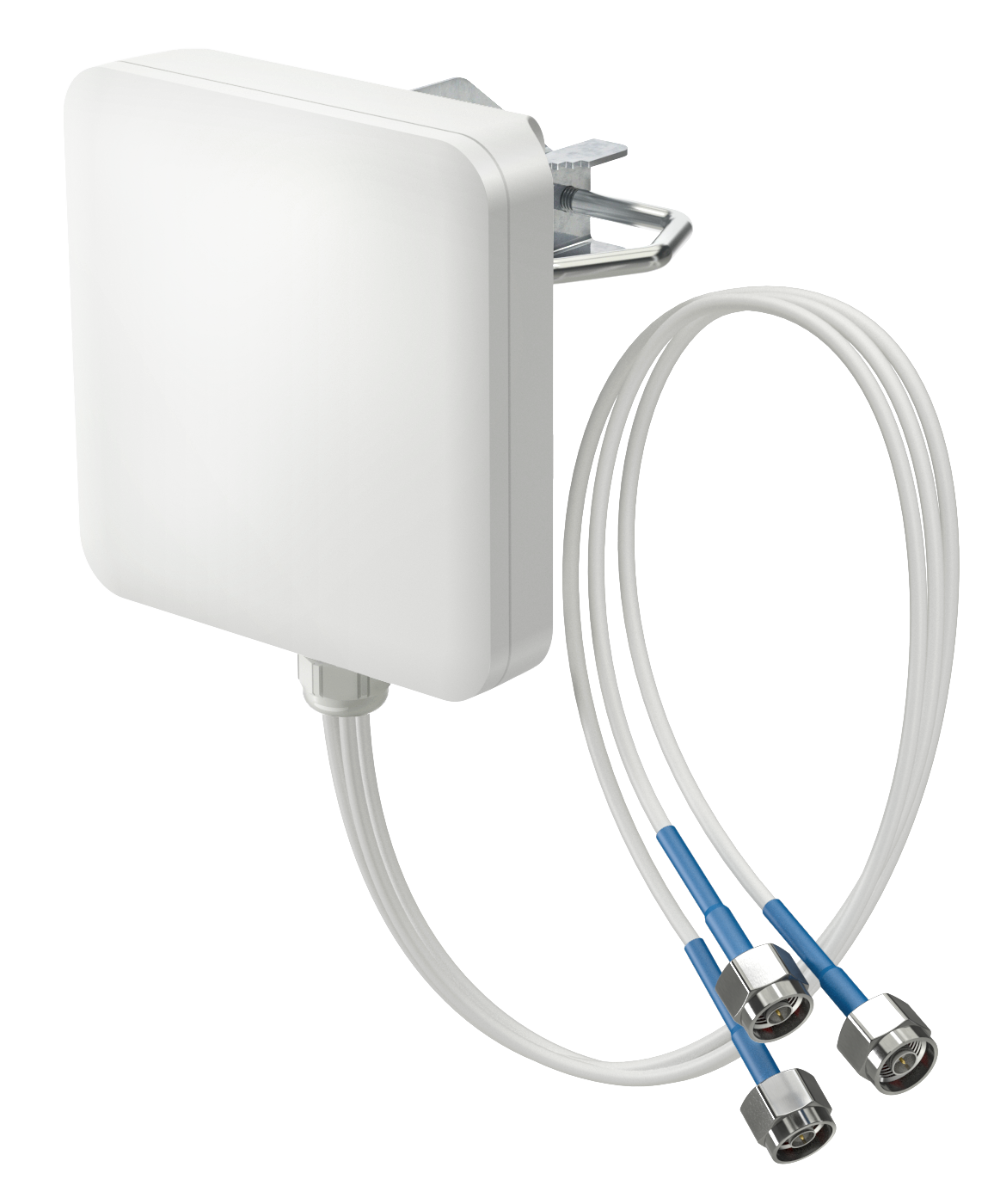

Antenna QuSector 7V-120-3 Wi-Fi 6E

To check PN please select variant below

QuSector 7V-120-3 offers a 120 degrees, 7dBi signal gain. It is a perfect indoor and outdoor device for industrial installations. Wi-Fi 6E support!

QuSector 7V-120-3 is a concurrent triple band, Vertical polarity, MIMO 3x3 panel antenna.It operates at 2.4GHz, 5GHz and 7GHz simultaneously with 7dBi gain. It is a futureproof solution with Wi-Fi 6E support.

Due to its medium gain, it can be used on short or medium distances, for example for hotspots in schools, stadiums, offices or public places. High quality injection moulded enclosure is characterized by a wide range of applications: from indoor through mobile devices to the outdoor (IP67) ones. Wide frequency range (2.4-2.5GHz & 5.0-7.125GHz) helps to find suitable frequency for the most effective operation.

The antenna comes in three versions: with 3*70cm (28inch) cables terminated with Nm, RPSMA, RPTNC.

Variants:

RPSMA

NM

RPTNC

WHY QUSECTOR 7V-120-3 Wi-Fi 6E

Learn more about your profit

Antenna perfectly matched with the access point

Adjustable, pole mounting system

Made in Europe

QuSector 7V-120-3 Wi-Fi 6E

SPECIFICATION

PRODUCT DETAILS

Wi-Fi antenna specification

Mechanical specification

Mounting kit

COMPATIBLE ROUTERS

FREQUENCY

2.4 - 2.5 GHz

5.0 - 7.125 GHz

GAIN

2.4 - 2.5 GHz: 7 dBi

5.0 - 7.125 GHz: 7 dBi

VSWR

<1.80

BREAMWIDTH

120°/60°

120°/90°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

Separation between Connectors

>30dB

Front-to-Back

20dB

Max Input Power

50W

DC Ground

Yes

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuSector 7V-120-3 Wi-Fi 6E

Gain

Gain of QuSector 7V-120-3 Wi-Fi 6E
From 2.4GHz to 2.5GHz
Azimuth
Elevation
From 5.1GHz to 6.9GHz
Azimuth
Elevation
