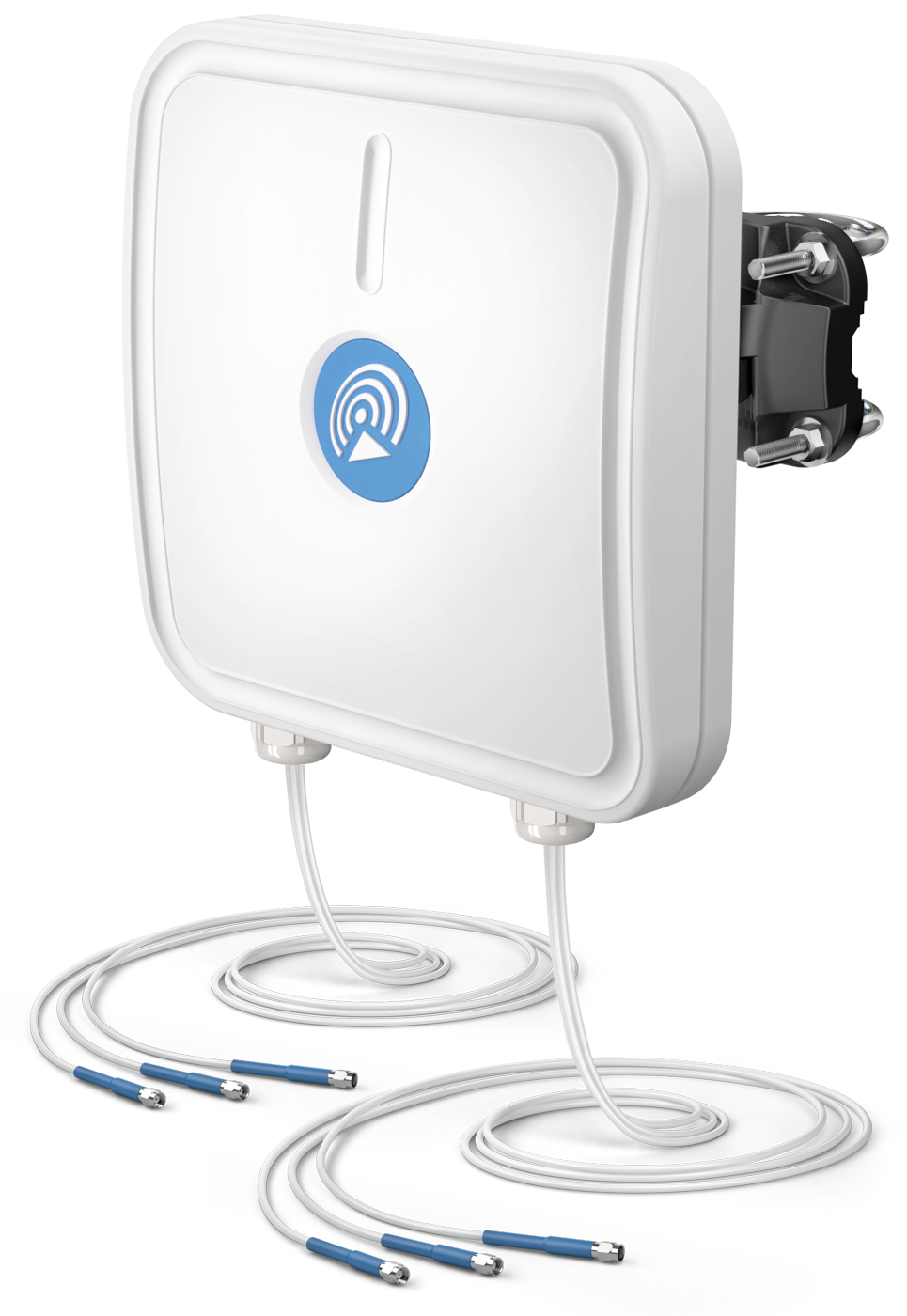

QuSector 9HV-65-6

QuSector 9HV-65-6 offers a 65 degrees, 8dBi (2.4GHz) & 9dBi (5GHz) gain signal. It is a perfect indoor and outdoor device for industrial installations.

QuSector 9HV-65-6 is a concurrent dual band, H&V polarity, panel antenna. It simultaneously operates at 2.4GHz with 8dBi gain and at 5GHz with 9dBi gain. Due to its medium gain, it can be used on short or medium distances, for example for hotspots in schools, stadiums, offices or public places. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. Wide frequency range (2.4-2.5GHz & 4.9-6.0GHz) helps to find suitable frequency for the most effective operation. It is designed to be applied mainly to special access points working in the systems where two bands (frequencies) are diplexed for one antenna connector. The antenna comes in four configurations: with 6*70cm (28inch) cables terminated with Nm, RPSMA, RPTNC connectors. QuSector 9HV-65-6 was designed to be a perfect match for your access point.

Variants:

RPTNC

RPSMA

NM

Why QuSector 9HV-65-6

Learn more about your profit

Adjustable, pole mounting system

Antenna perfectly matched with the router

Outdoor antenna works in any weather conditions, IP67

Made in Europe

QuSector 9HV-65-6

SPECIFICATION

PRODUCT DETAILS

Wi-Fi SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

Frequency

2.4 - 2.5 GHz

4.9 - 6 GHz

Gain

2.4 - 2.5 GHz: 8 dBi

4.9 - 6 GHz: 9 dBi

VSWR

< 2.00

Beamwidth

2.4 - 2.5 GHz - 70°/70°

4.9 - 6 GHz - 60°/60°

Polarization

Horizontal

Vertical

Impedance

50 Ω

Separation between connectors

2.4 - 2.5 GHz: > 33dB

Front-to-back

2.4 - 2.5 GHz: 20dB

4.9 - 6 GHz: 25dB

Max Input Power

50W

DC Ground

Yes

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuSector 9HV-65-6

Gain

Gain of QuSector 9HV-65-6
2.4GHz to 2.5GHz
PORT 1&3&5 Elevation
PORT 1&3&5 Azimuth
5GHz to 6GHz
PORT 1&3&5 Elevation
PORT 1&3&5 Azimuth
2.4GHz to 2.5GHz
PORT 2&4&6 Elevation
PORT 2&4&6 Azimuth
5GHz to 6GHz
PORT 2&4&6 Elevation
PORT 2&4&6 Azimuth
