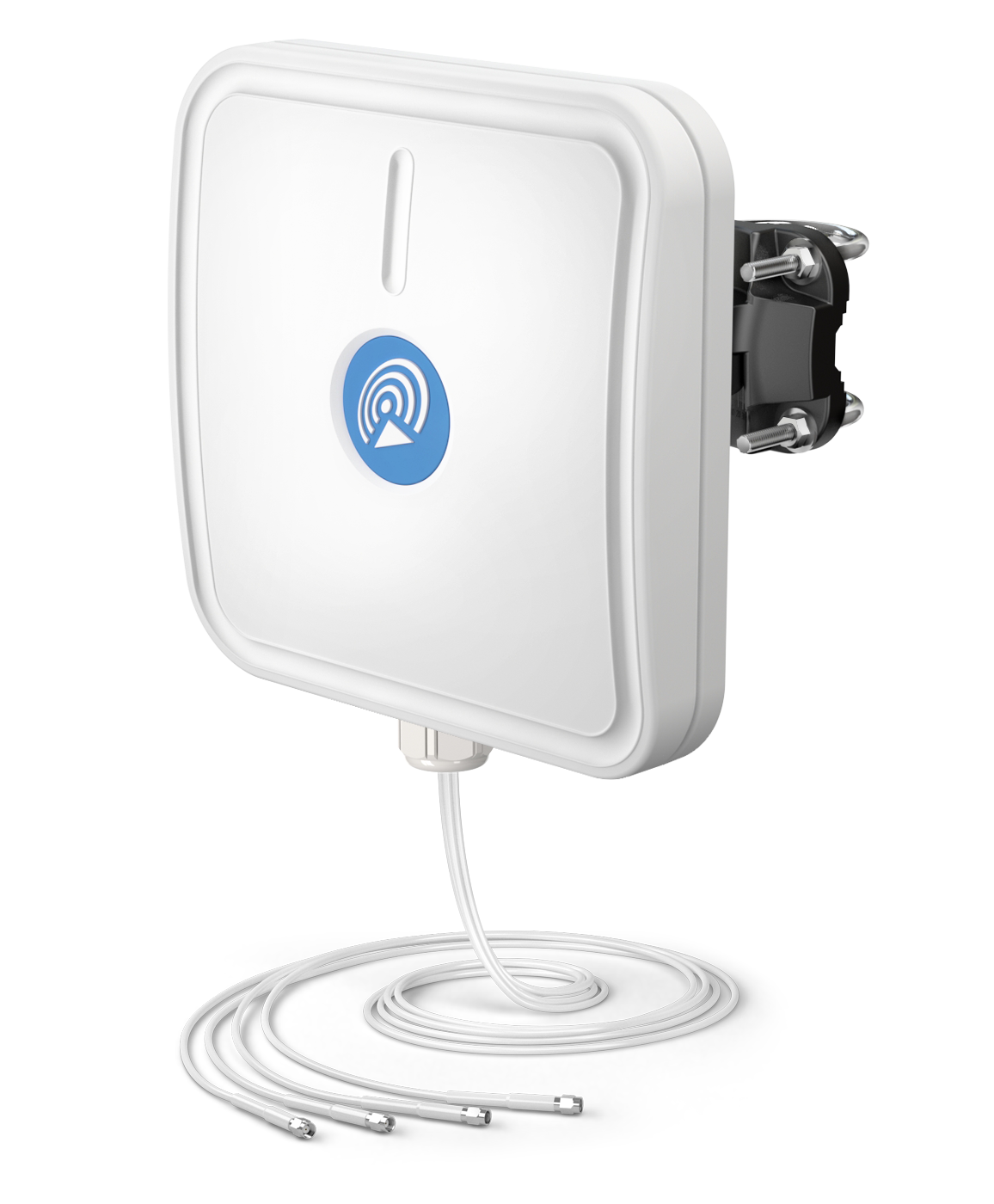

Antenna QuSector S38-14X-30

QuSector S38-14X-30 provides targeted coverage for 5G small cell deployments in the 3.8–4.2 GHz band. Offering up to 14 dBi gain and a focused 30° beamwidth, it helps concentrate signal energy within selected areas that require local wireless connectivity.

This single-band, cross-polarized MIMO 4x4 panel antenna combines four antenna ports with ±45° polarization to support multi-stream operation with compatible 5G radios. Its 30° horizontal and vertical beamwidth makes it well suited to small cells serving production zones, warehouse aisles and dedicated areas within industrial facilities or enterprise campuses.

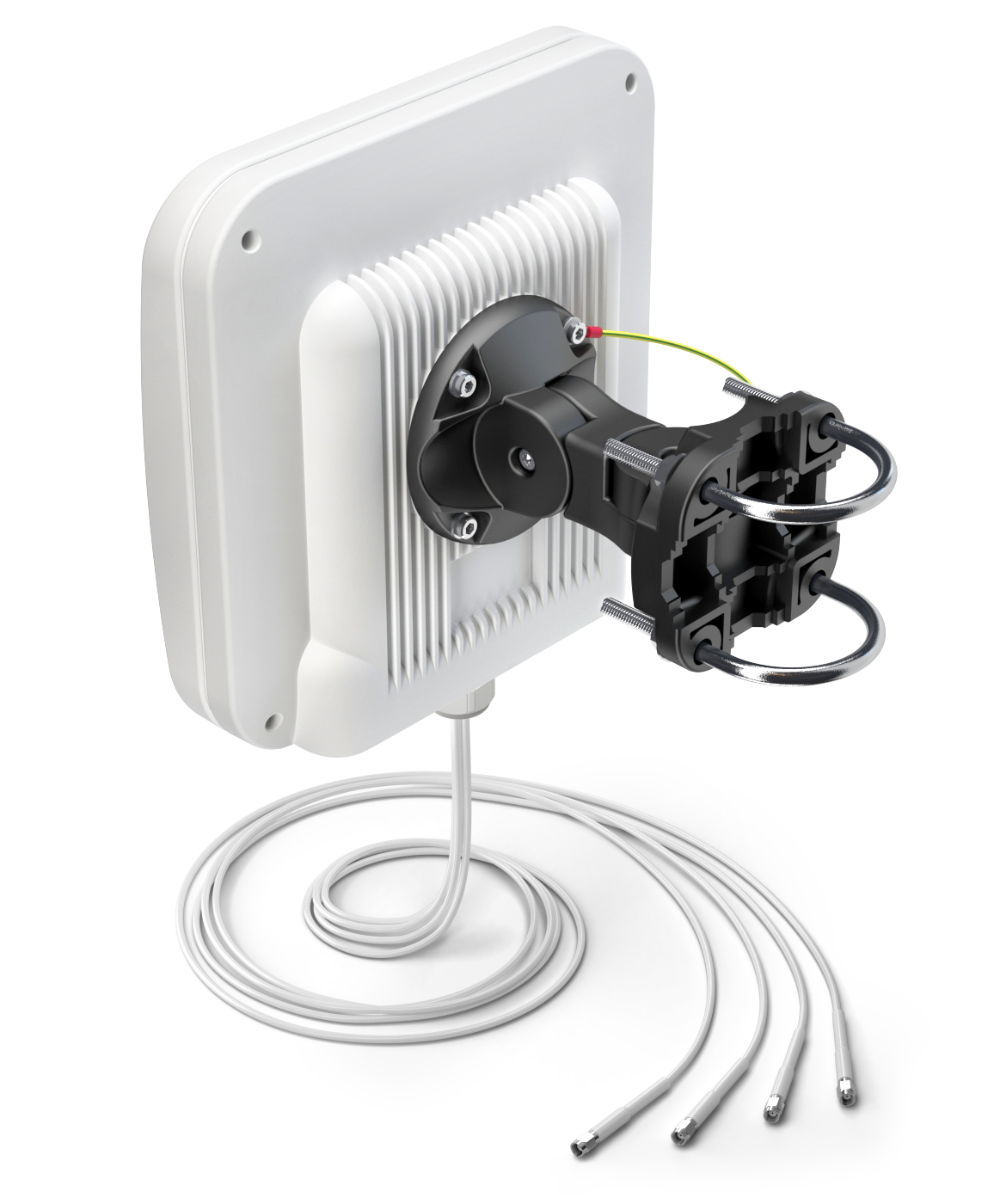

The directional radiation pattern helps installers tailor coverage to a defined zone, supporting planned small cell deployments within private 5G networks. A high-quality injection-moulded IP67 enclosure protects the antenna outdoors, while the adjustable pole mounting system enables accurate positioning towards the intended service area in both indoor and outdoor installations.
