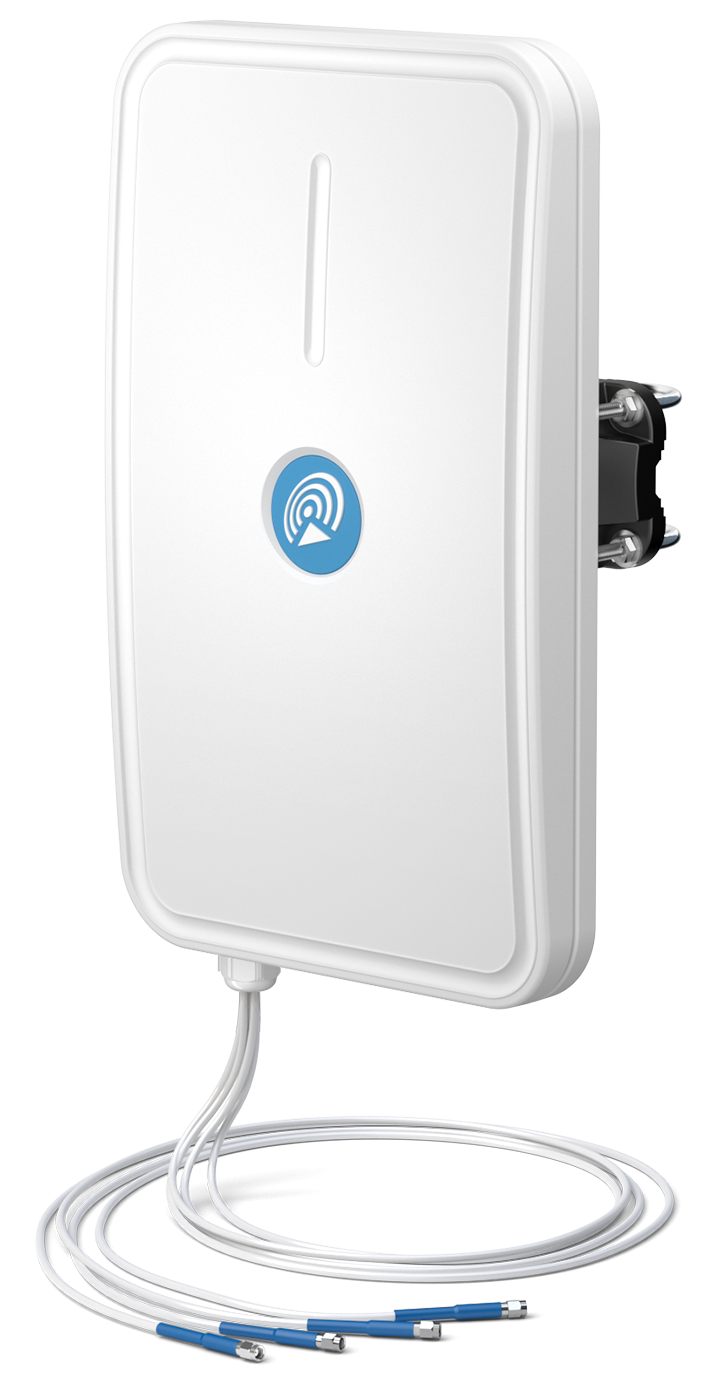

Antenna QuSector S38-19X-15

QuSector S38-19X-15 offers highly focused coverage for 5G small cell installations requiring a narrow service area in the 3.8–4.2 GHz band. With up to 19 dBi gain, it concentrates signal energy towards selected locations where precise coverage is a priority.

This single-band, cross-polarized MIMO 4x4 panel antenna features four antenna ports and ±45° polarization to support multi-stream operation with compatible 5G radios. Its narrow 15° horizontal and vertical beamwidth suits targeted small cell applications within private 5G networks, including coverage directed along industrial corridors or towards specific zones across enterprise sites.

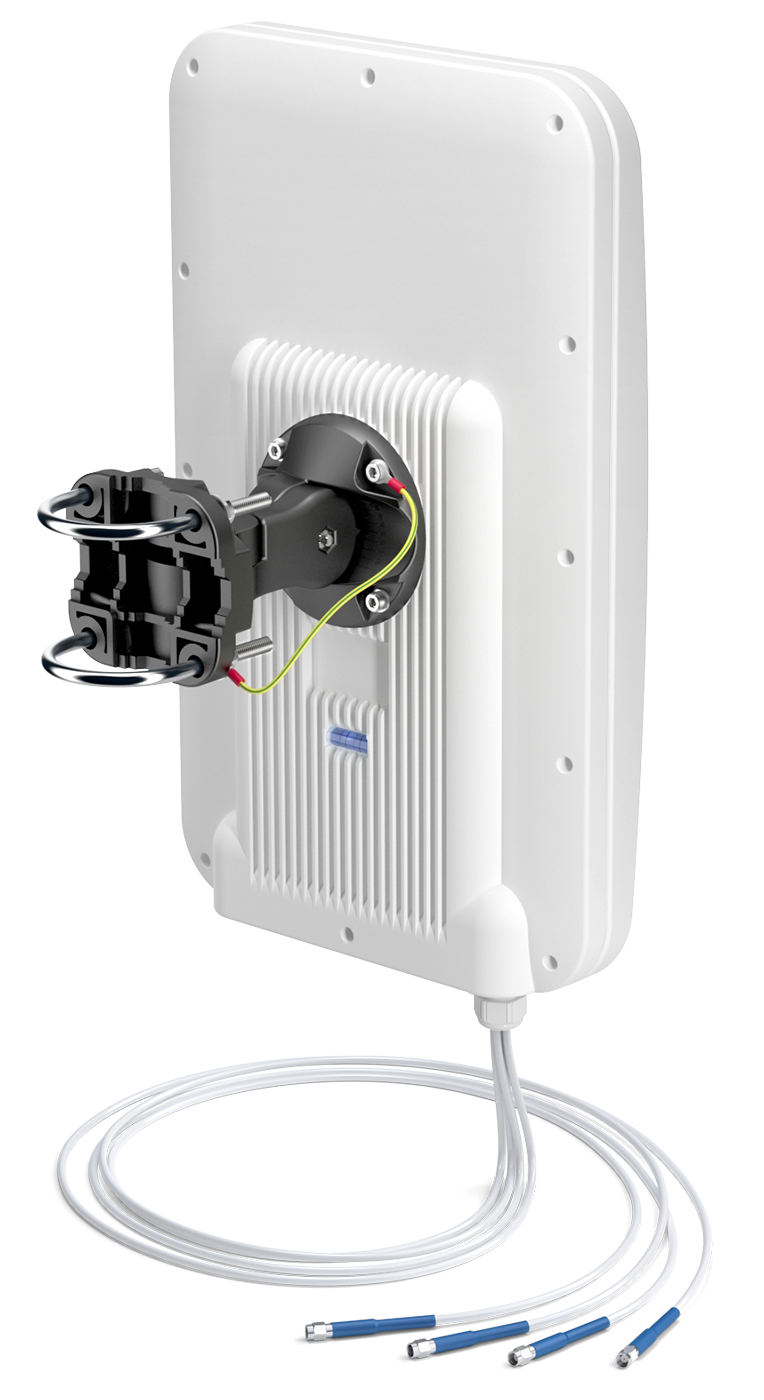

The highly directional radiation pattern helps limit coverage outside the intended direction, making accurate alignment particularly important. A durable, injection-moulded IP67 enclosure supports indoor and outdoor installation, while the adjustable pole mounting system allows precise positioning to match the antenna’s focused beam to the target service area.
