QuShell 450 seriesQuShell 450 series
QuShell 450 seriesQuShell 450 series

Antenna QuShell 450 series

P/n: -

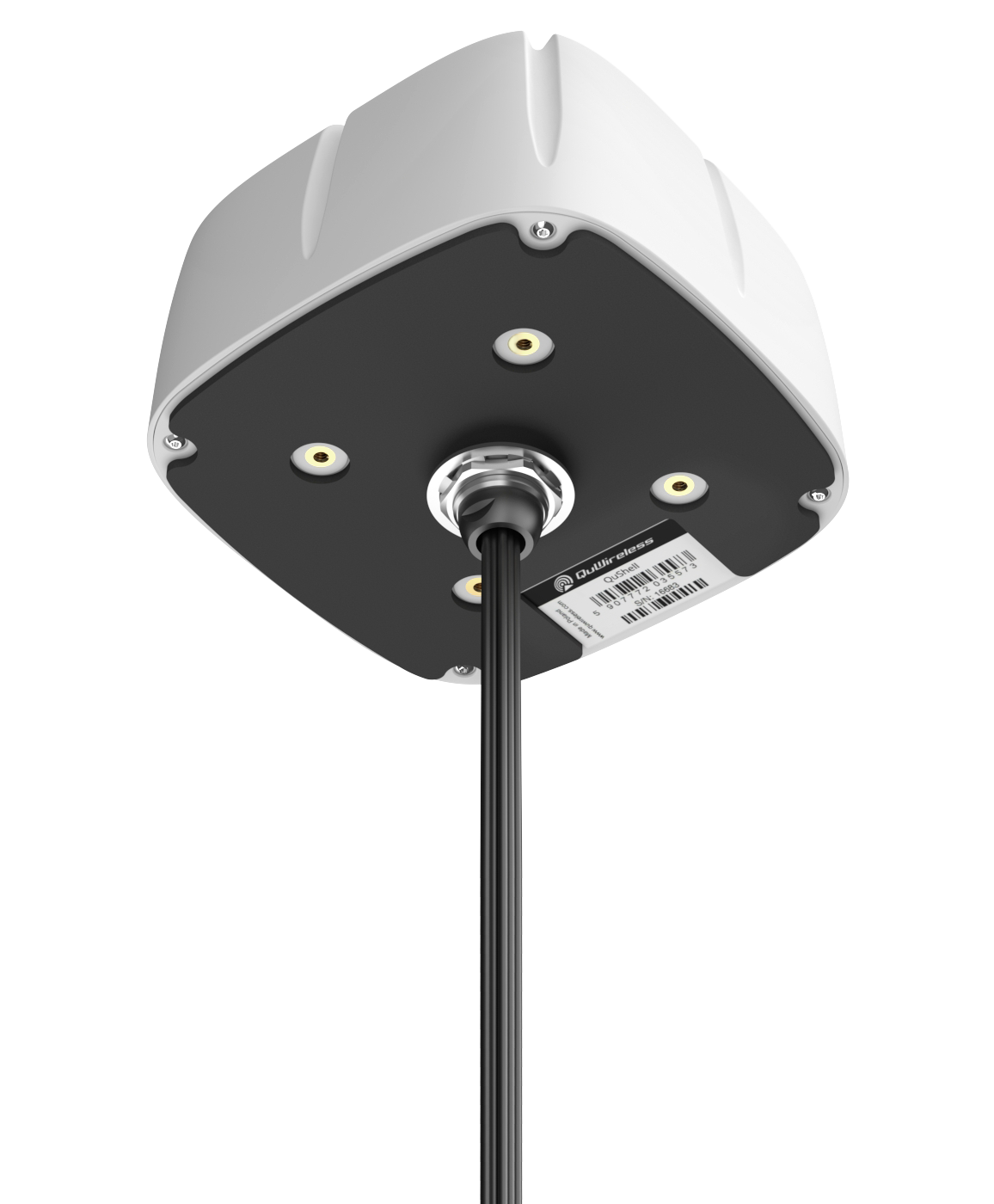

QuShell is a high-performance communication antenna designed for professional vehicles

QuShell is a high-performance communication antenna designed for professional vehicles, including police cars, while also providing reliable connectivity for fixed installations.

It supports 5G/4G (617–2500 MHz) with 3dBi gain and TETRA 450 MHz band with 1dBi gain, widely used by emergency services for mission-critical communications. An optional GPS/GNSS module can be added for accurate tracking and navigation.

The rugged, low-profile housing is built to withstand wind and harsh weather conditions, ensuring dependable performance in all environments.

Optional roof mounting is included.



Why QuShell 450 series

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfect for mobility uses

Made in Europe

QuShell 450 series

SPECIFICATION

PRODUCT DETAILS

ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

FREQUENCY

450 – 470 MHz

617 – 803 MHz

2000 – 2500 MHz

Bands

B12, B13, B14, B17, B28, B29, B30, B31, B34, B40, B44, B53, B67, B68, B71, B72, B73, B85, B103, n12, n13, n14, n28, n29, n30, n34, n40, n53, n67, n71, n83, n85, n95, n97

GAIN

450 – 470 MHz : 1 dBi

617 – 803 MHz : 2 dBi

2000 – 2500 MHz : 3.5 dBi

VSWR

<1.50, max <2.50

BEAMWIDTH

360°/35° ±5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuShell 450 series

GAIN

GAIN of QuShell 450 series
450MHz
Elevation
Azimuth
750MHz
Elevation
Azimuth
2450MHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

Download

Datasheet QuShell 450 series
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuShell 450 series
Use case QuShell 450 series
Use case QuShell 450 series
